HIGH TORQUE

HIGH TORQUE Panthera-HT 6-Axis Robotic Arm

  • 6-axis robotic arm with 3.5kg maximum payload and 36N·m peak torque
  • 0.8m/s maximum end-effector speed with 24V operating voltage
  • 6 DoF design with FDCAN communication and compact 3.75kg arm weight
  • Low-level control SDK and open-source motion control algorithm for development
$1,799

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

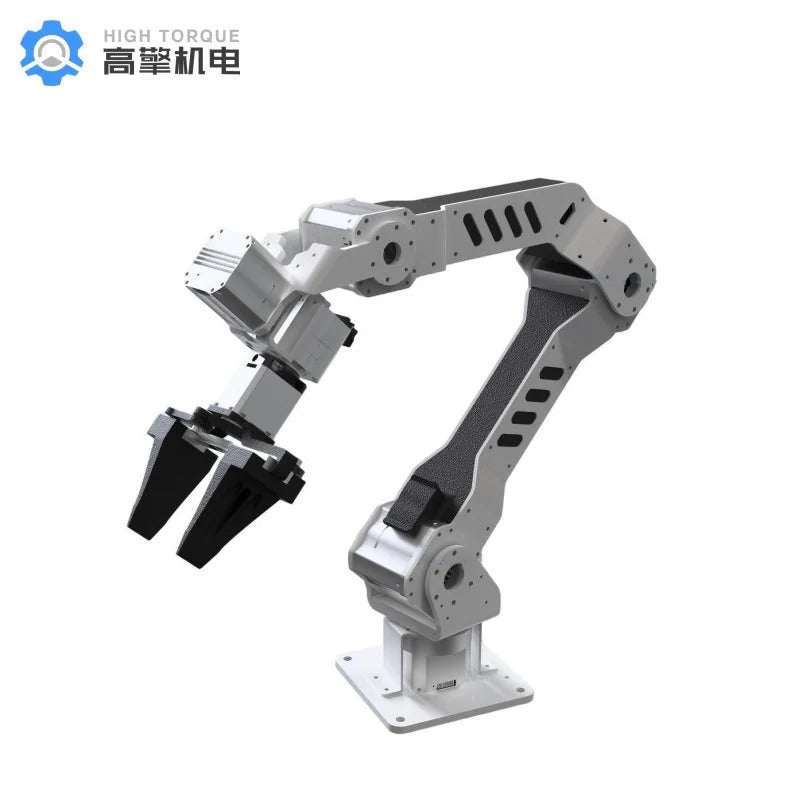

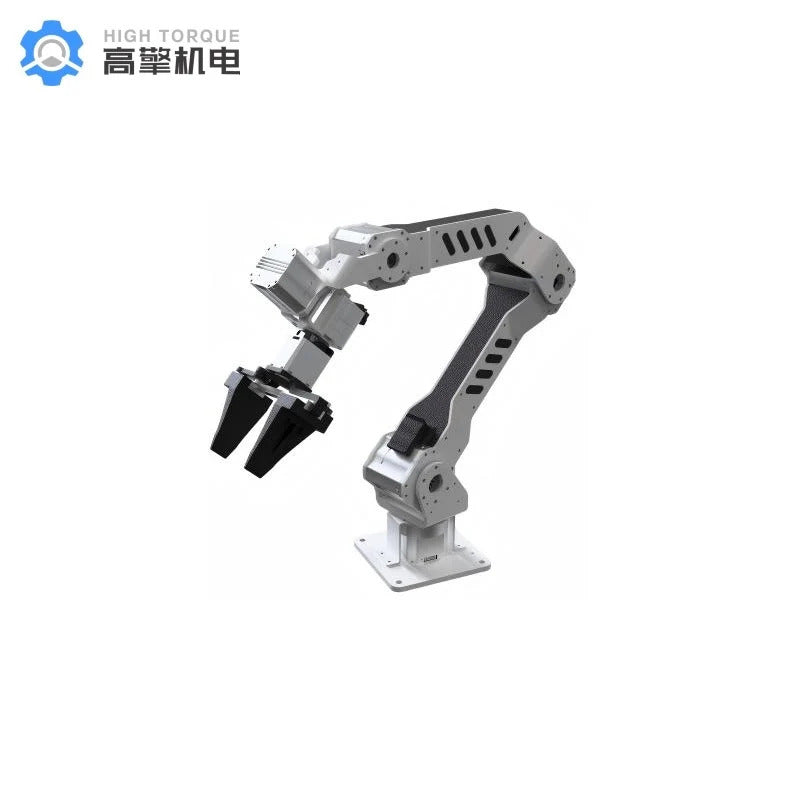

HIGH TORQUE Panthera-HT 6-Axis Robotic Arm

The HIGH TORQUE Panthera-HT is a compact 6-axis robotic arm designed for robotics research, development, and custom manipulation applications. With a lightweight 3.75 kg design, 3.5 kg maximum payload, and 36 N·m peak torque, it combines a high torque-to-weight ratio with flexible 6-DoF motion.

6-Axis High-Torque Robotic Arm

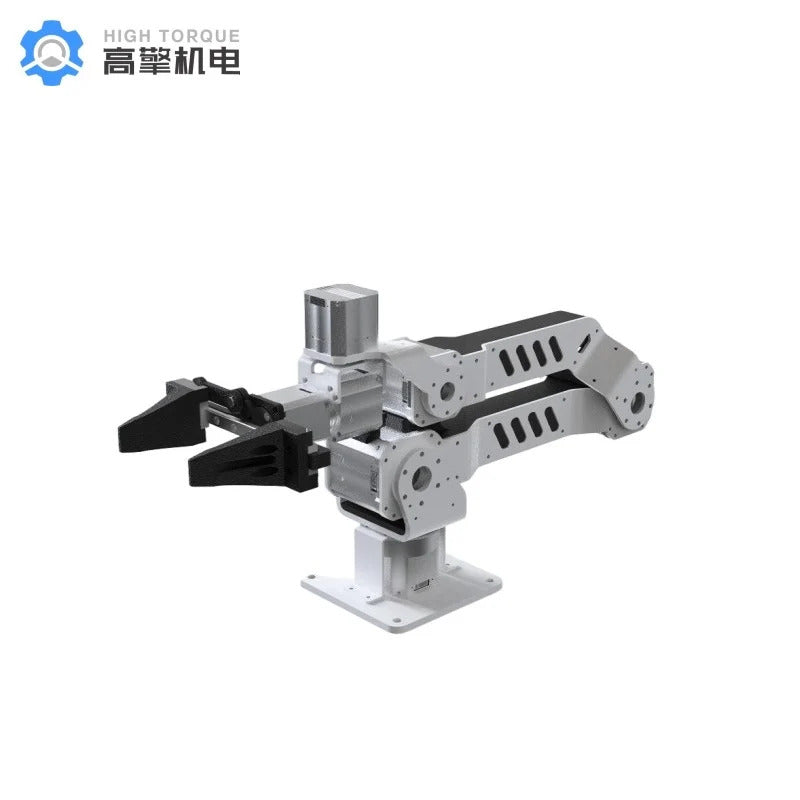

Panthera-HT features 6 degrees of freedom and a maximum end-effector speed of 0.8 m/s, providing flexible motion for a wide range of robotic manipulation tasks. Its compact structure supports both standing and folded configurations, with a standing height of 820 mm and folded height of 460 mm.

Lightweight Design with High Torque Output

Despite its 3.75 kg weight, Panthera-HT supports a maximum payload of 3.5 kg and delivers up to 36 N·m of peak joint torque. This combination makes it suitable for applications that require a lightweight robotic arm while maintaining substantial load-handling capability.

Open-Source Motion Control

Panthera-HT includes a high-performance low-level controller, low-level control SDK, and open-source motion control algorithm. FDCAN communication provides a direct interface for custom control and robotic development, making the arm suitable for research, prototyping, and secondary development.

Key Specifications

  • 6-axis / 6-DoF robotic arm
  • Maximum payload: 3.5 kg
  • Peak torque: 36 N·m
  • Maximum end-effector speed: 0.8 m/s
  • Arm weight: 3.75 kg
  • Operating voltage: 24 V
  • Communication: FDCAN
  • Low-level control SDK
  • Open-source motion control algorithm

Applications

Panthera-HT is suitable for robotics research, manipulation experiments, custom robotic development, education, prototyping, and low-level motion control development. Its lightweight structure and open control architecture make it well suited for developers and research teams building customized robotic systems.

HIGH TORQUE Panthera-HT 6-Axis Robotic Arm

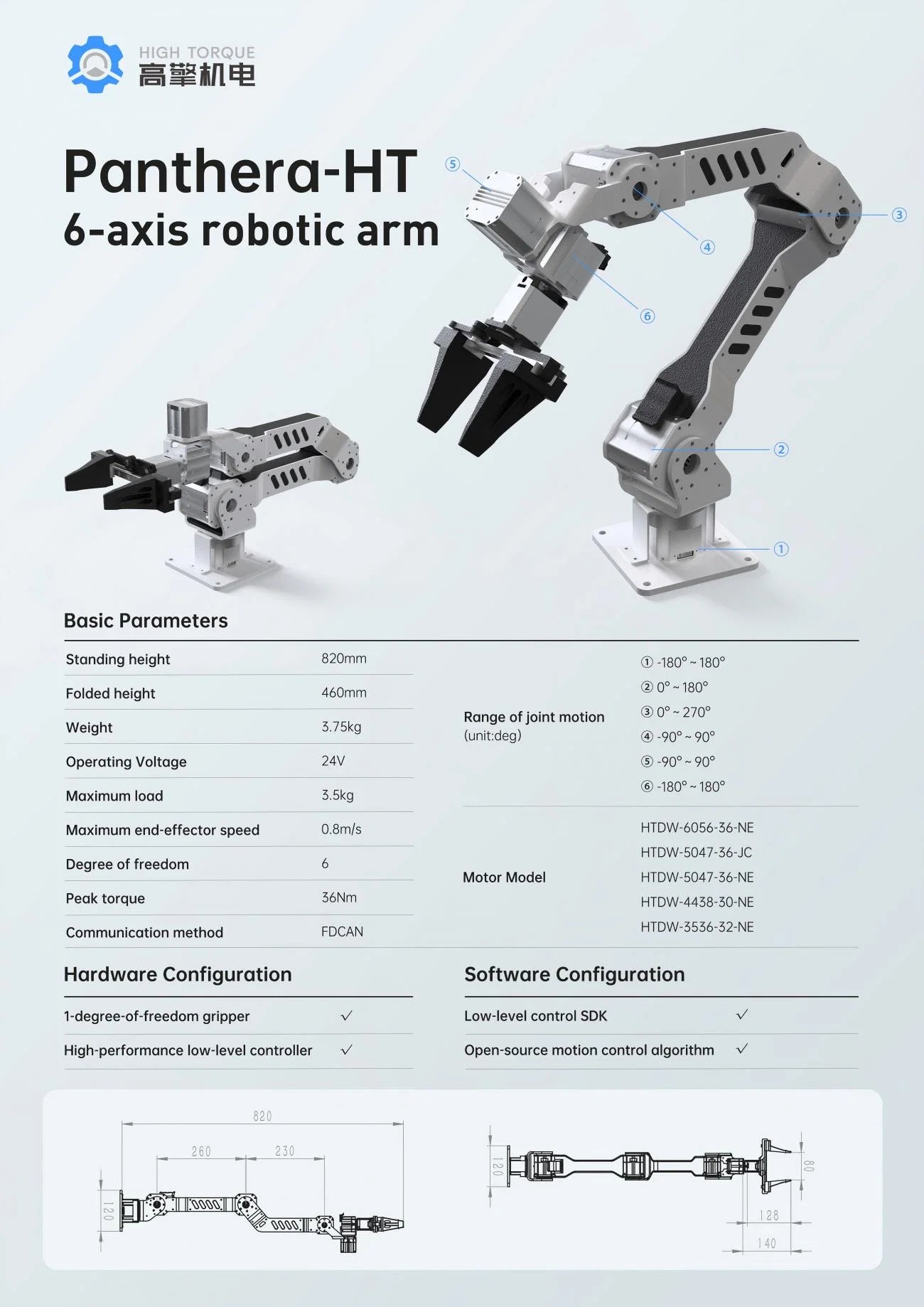

▤ Panthera-HT 6-Axis Robotic Arm Specifications ⌃
Basic Parameters
Parameter Specification
Name / Model Panthera-HT 6-axis robotic arm
Standing Height 820 mm
Folded Height 460 mm
Weight 3.75 kg
Operating Voltage 24 V
Maximum Load 3.5 kg
Maximum End-Effector Speed 0.8 m/s
Degree of Freedom 6
Peak Torque 36 N·m
Communication Method FDCAN
