BrainCo

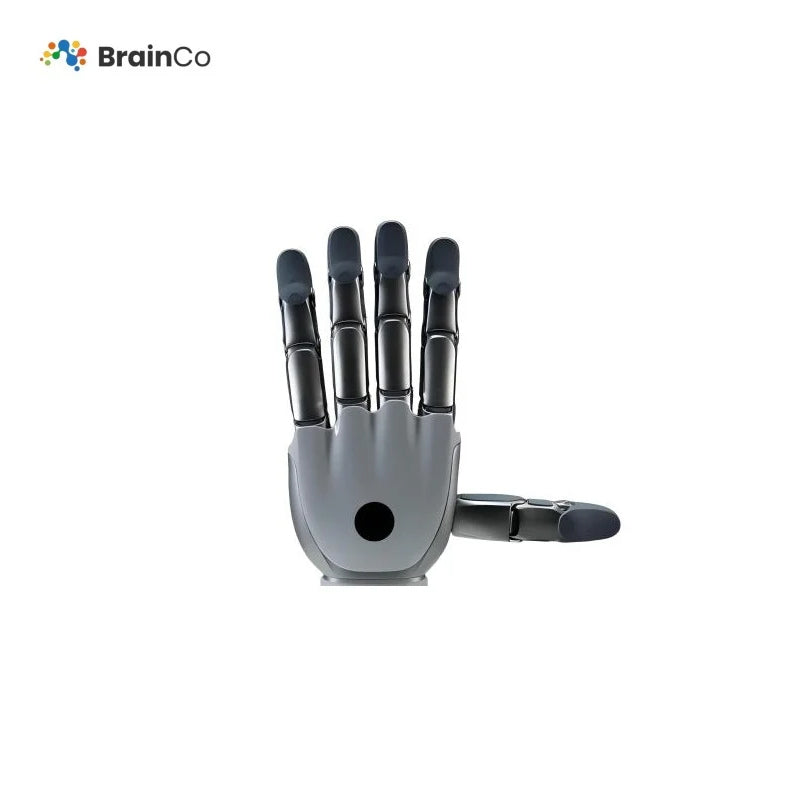

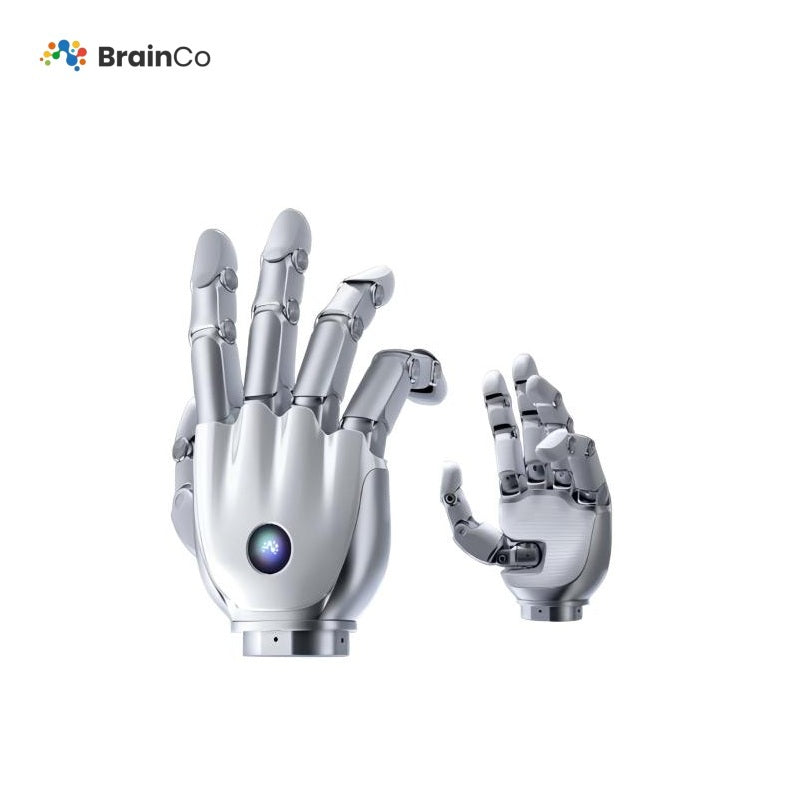

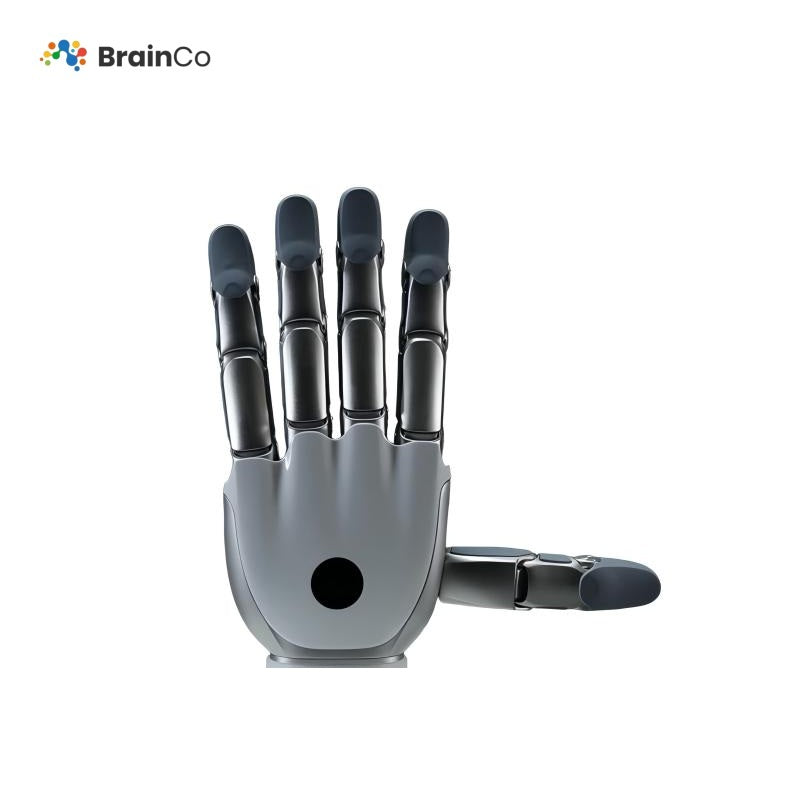

BrainCo Bionic Dexterous Hand Revo 3

  • BrainCo Bionic Dexterous Hand Revo 3 for dexterous manipulation, humanoid robotics, and embodied AI research.
  • Suitable for robotics developers, research labs, education teams, and teleoperation projects.
  • Designed for robotic hand integration in grasping, interaction, and automation workflows.
  • Useful for prototyping robot manipulation, hand control, and human robot interaction applications.
$54,000
Version
Left or Right
Color

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

BrainCo Revo 3 Dexterous Hand user manual for setup and integration.pdf ▶

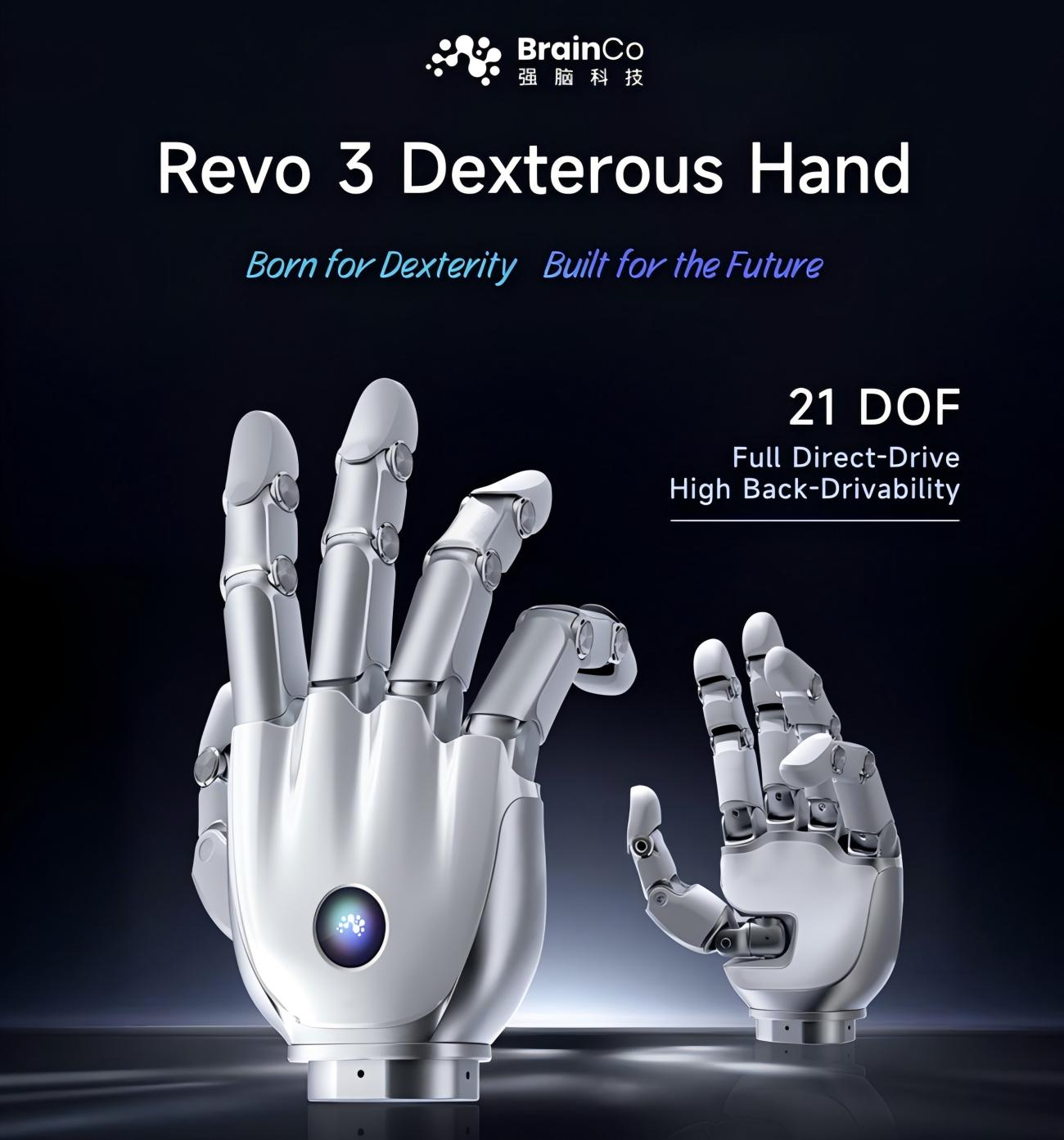

BrainCo Bionic Dexterous Hand Revo 3 detail image 1

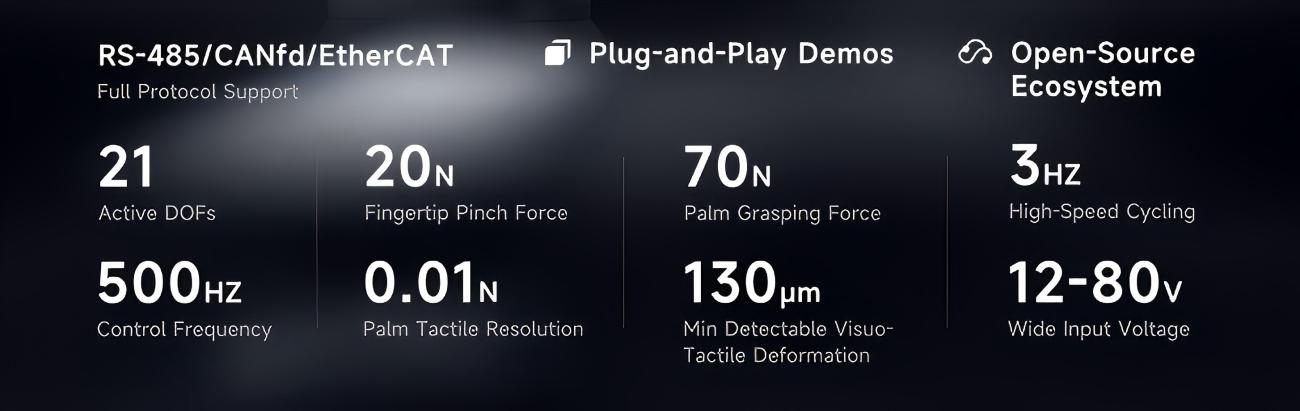

BrainCo Bionic Dexterous Hand Revo 3 detail image 2

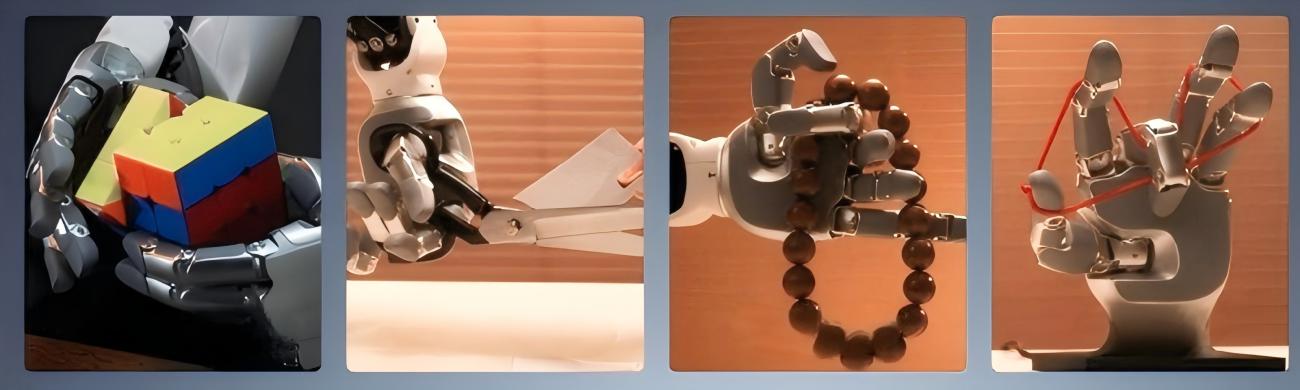

BrainCo Bionic Dexterous Hand Revo 3 detail image 3

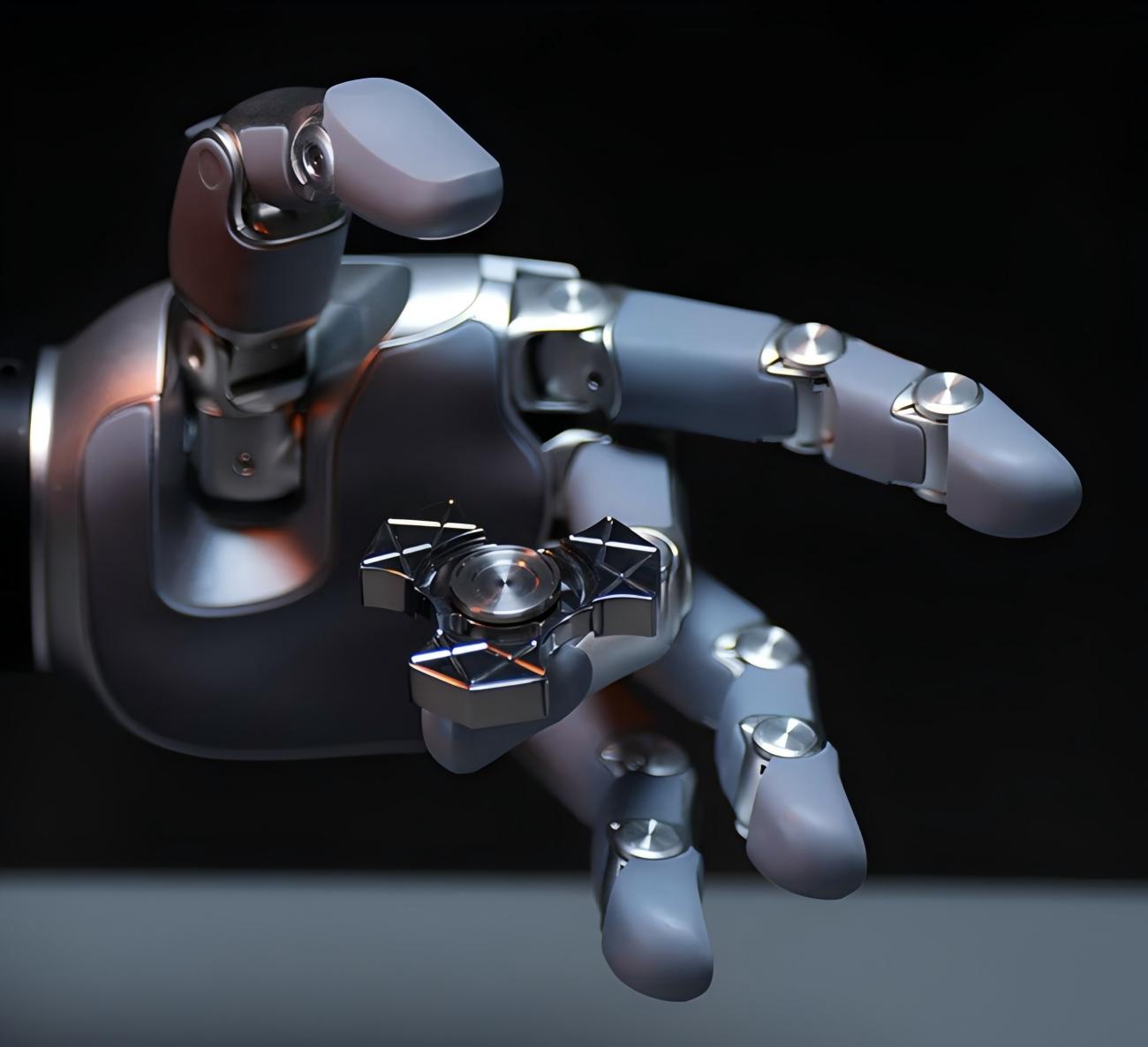

BrainCo Bionic Dexterous Hand Revo 3 detail image 4

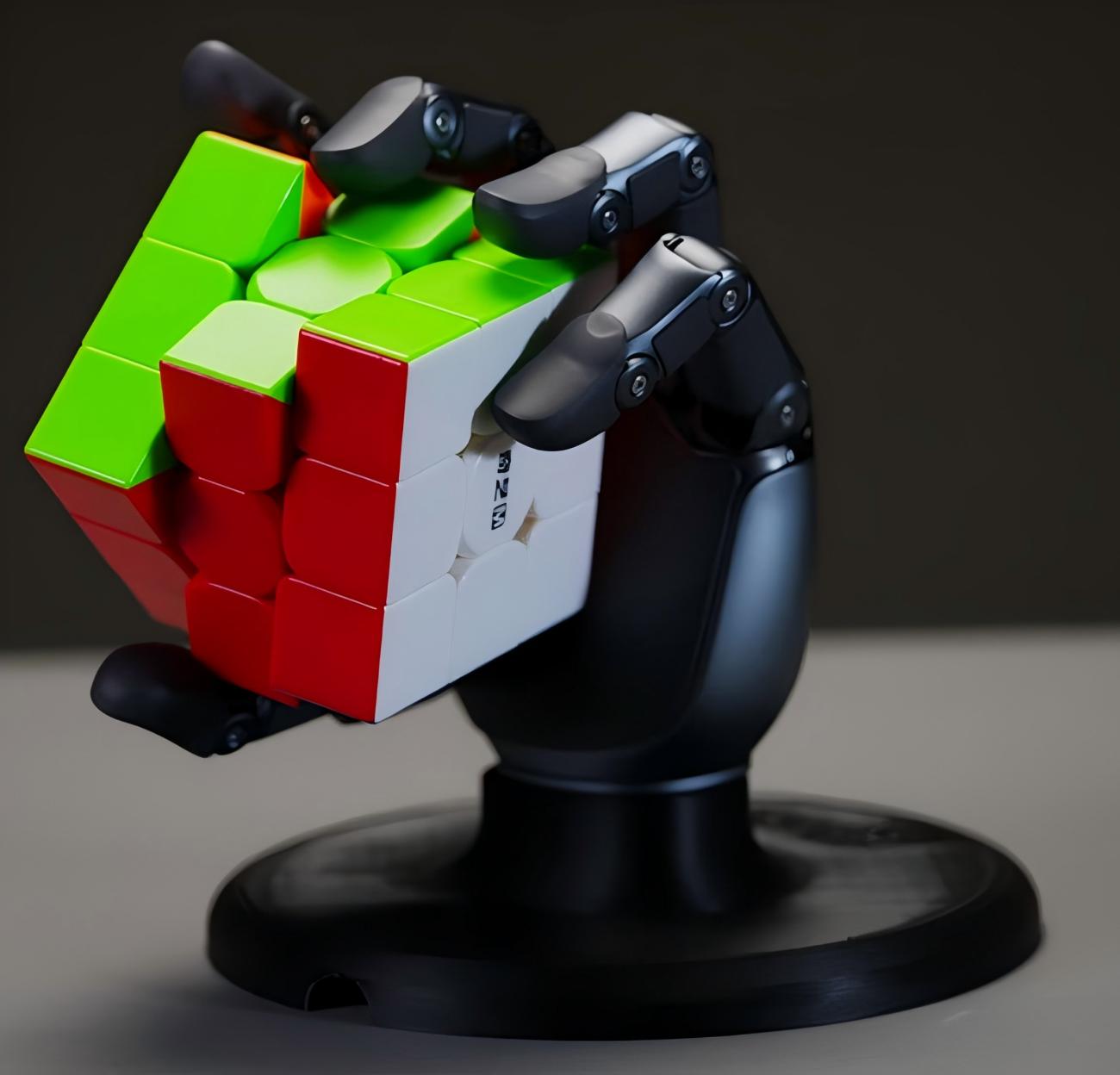

BrainCo Bionic Dexterous Hand Revo 3 detail image 5

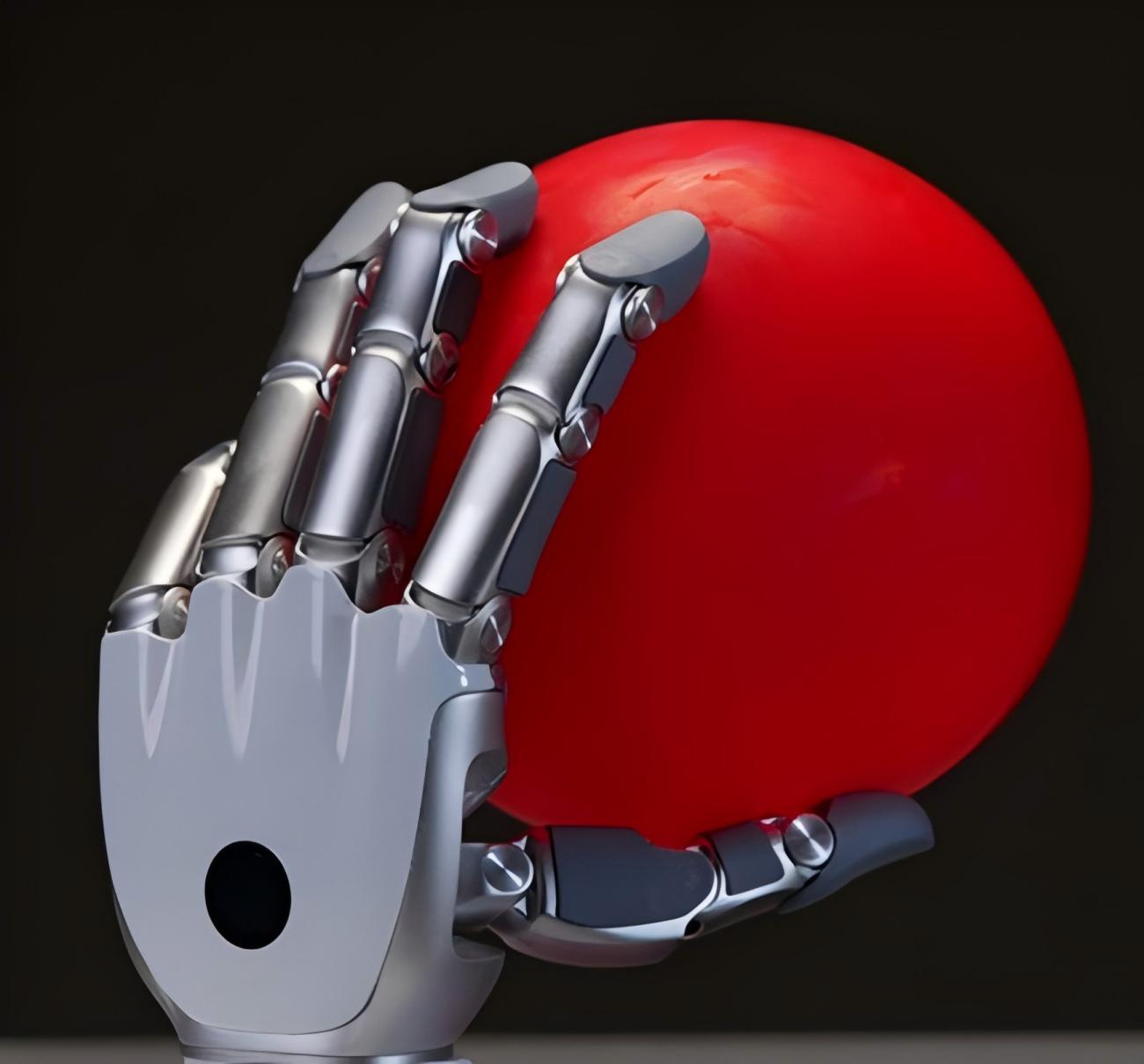

BrainCo Bionic Dexterous Hand Revo 3 detail image 6
▤ Technical Specifications ⌃
Specifications Revo 3 U21 Revo 3 U21T Revo 3 U21VT
Total DOFs 21 (Full Direct-Drive, Back-Drivable) 21 (Full Direct-Drive, Back-Drivable) 21 (Full Direct-Drive, Back-Drivable)
DOF Distribution 4 fingers x 4 DOFs, Thumb 5 DOFs 4 fingers x 4 DOFs, Thumb 5 DOFs 4 fingers x 4 DOFs, Thumb 5 DOFs
Overall Dimensions 215x105x50mm 215x105x50mm 215x105x50mm
Supply Voltage 12-80V 12-80V 12-80V
Max Current 10A(24V) 10A(24V) 10A(24V)
Active Grasping Force >70N >70N >70N
Max Fingertip Pinch Force >20N >20N >20N
Overall Payload 20kg 20kg 20kg
4-Finger Payload 5kg 5kg 5kg
Repeatability 0.1° 0.1° 0.1°
Closing Speed 3Hz 3Hz 3Hz
5-Finger Opposition All fingers touchable to palm (Full Kapandji Score) All fingers touchable to palm (Full Kapandji Score) All fingers touchable to palm (Full Kapandji Score)
Min Grasping Diameter 10mm 10mm 10mm
Max Grasping Diameter 150mm 150mm 150mm
Communication Interfaces EtherCAT / CANfd / RS-485 EtherCAT / CANfd / RS-485 EtherCAT / CANfd / RS-485
Communication Frequency 500 Hz 500 Hz 500 Hz
Sensors IMU (Mainboard), Temperature (Mainboard) IMU (Mainboard), Temperature (Mainboard) IMU (Mainboard), Temperature (Mainboard)
Control Modes Position / MIT Force-Position / Admittance / Zero-Torque Position / MIT Force-Position / Admittance / Zero-Torque Position / MIT Force-Position / Admittance / Zero-Torque
Tactile Sensors / Palm Array Tactile Palm Array Tactile + Fingertip Visuo-Tactile
Measurement Range / 0-25N 0-25N
Resolution / 0.01N 0.01N
Min Detectable Deformation / / 130 µm
