SINOTUP

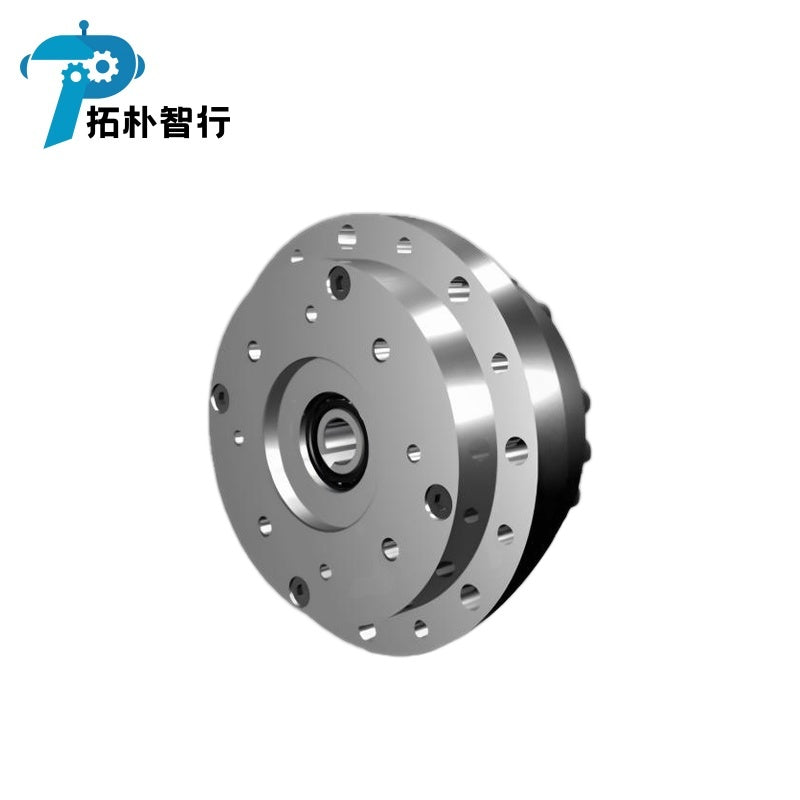

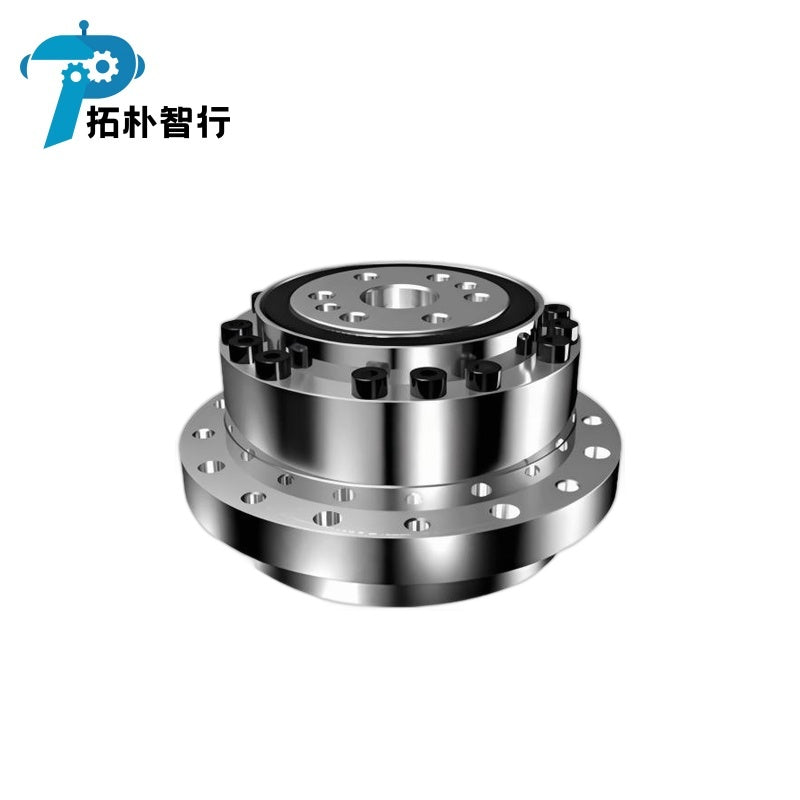

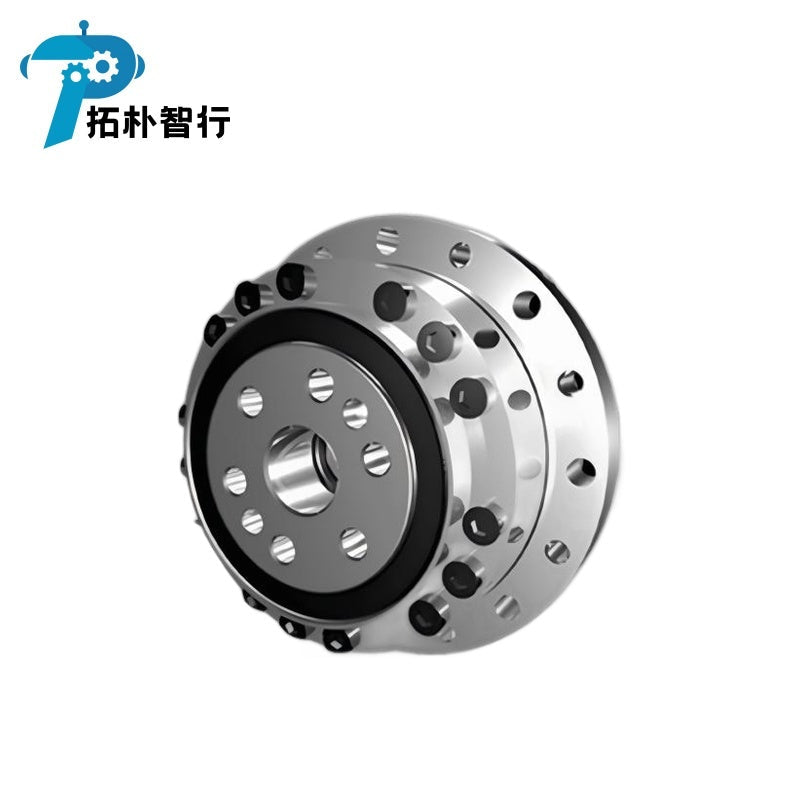

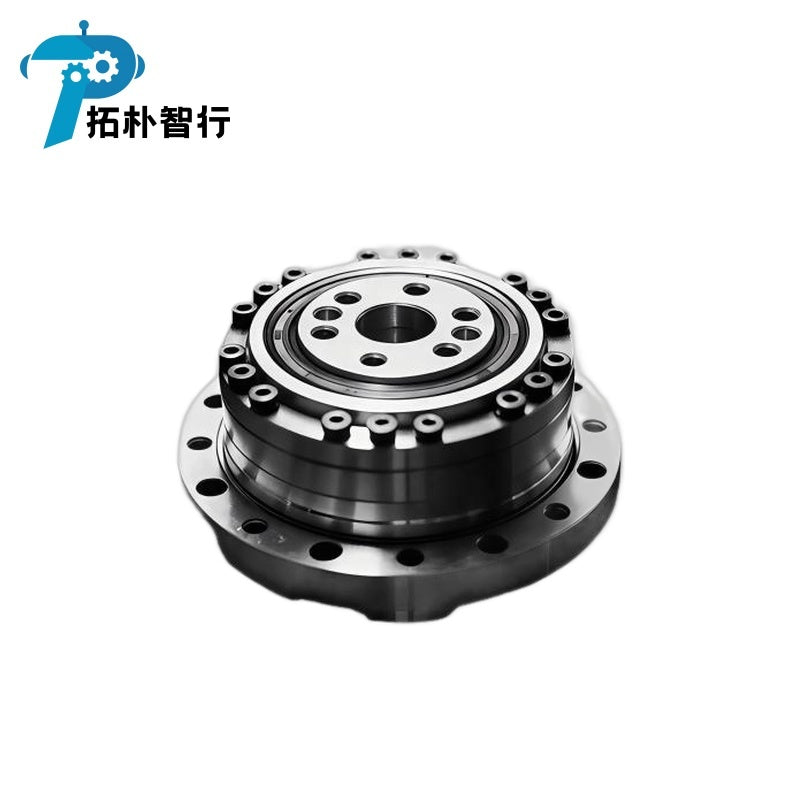

SINOTUP TF86 Reducer | Precision Reducer for Robot Joint Applications

  • SINOTUP precision reducer for robot joints, compact mechanisms, automation hardware, and robotics development.
  • Suitable for engineering teams building servo joints, actuator assemblies, research platforms, and test rigs.
  • Designed for reducer and gearbox integration in robot hardware, automation projects, and motion-control systems.
  • Useful for component selection in robotics labs, education programs, prototype builds, and industrial development.
$880
Version
Reduction Ratio

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

SINOTUP TF86 Reducer dimension drawing for installation reference.pdf ▶ SINOTUP TF86 Reducer CAD model for mechanical integration.stp ▶
SINOTUP TF86 Reducer | Precision Reducer for Robot Joint Applications detail image 1

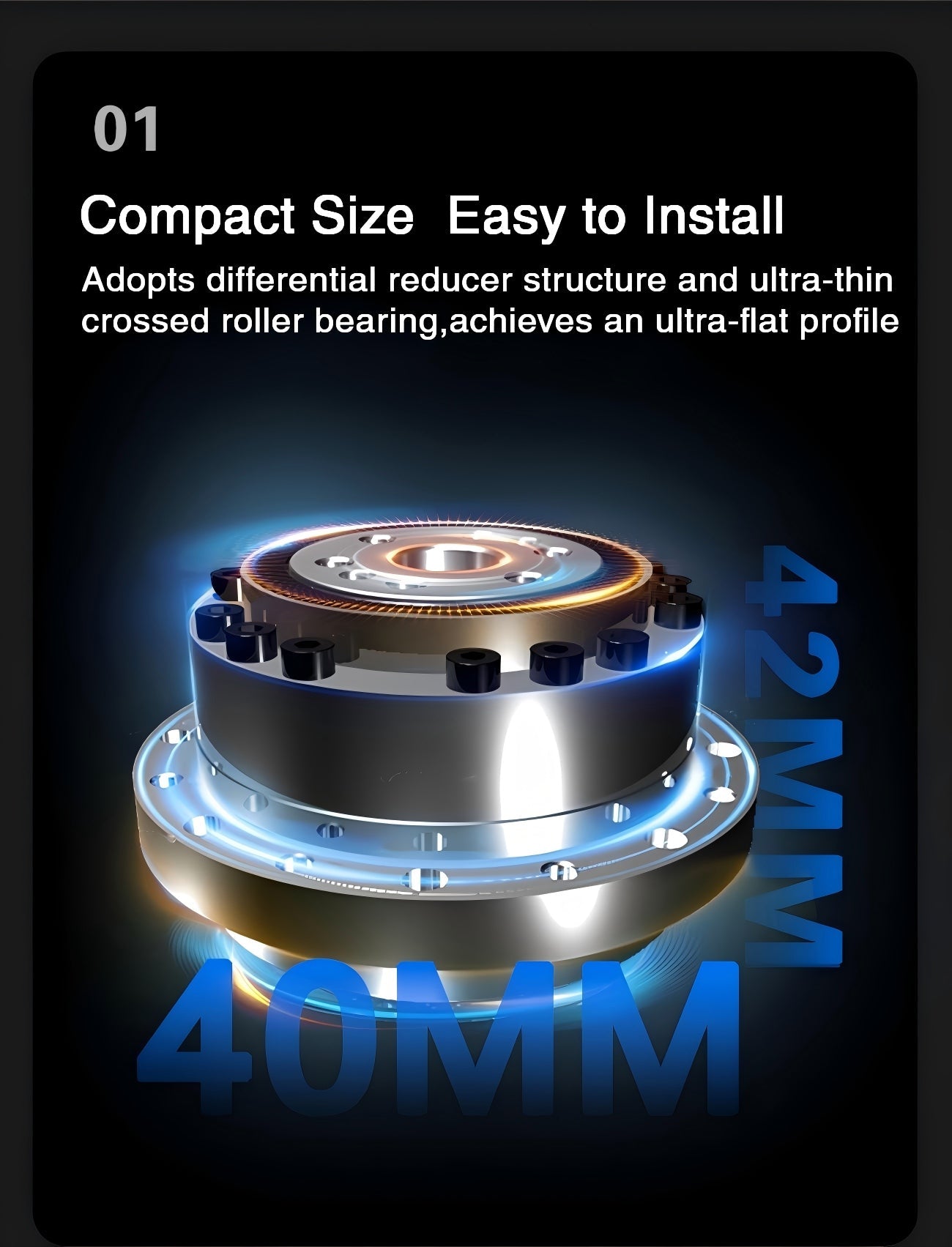

SINOTUP TF86 Reducer | Precision Reducer for Robot Joint Applications detail image 2
SINOTUP TF86 Reducer | Precision Reducer for Robot Joint Applications detail image 3

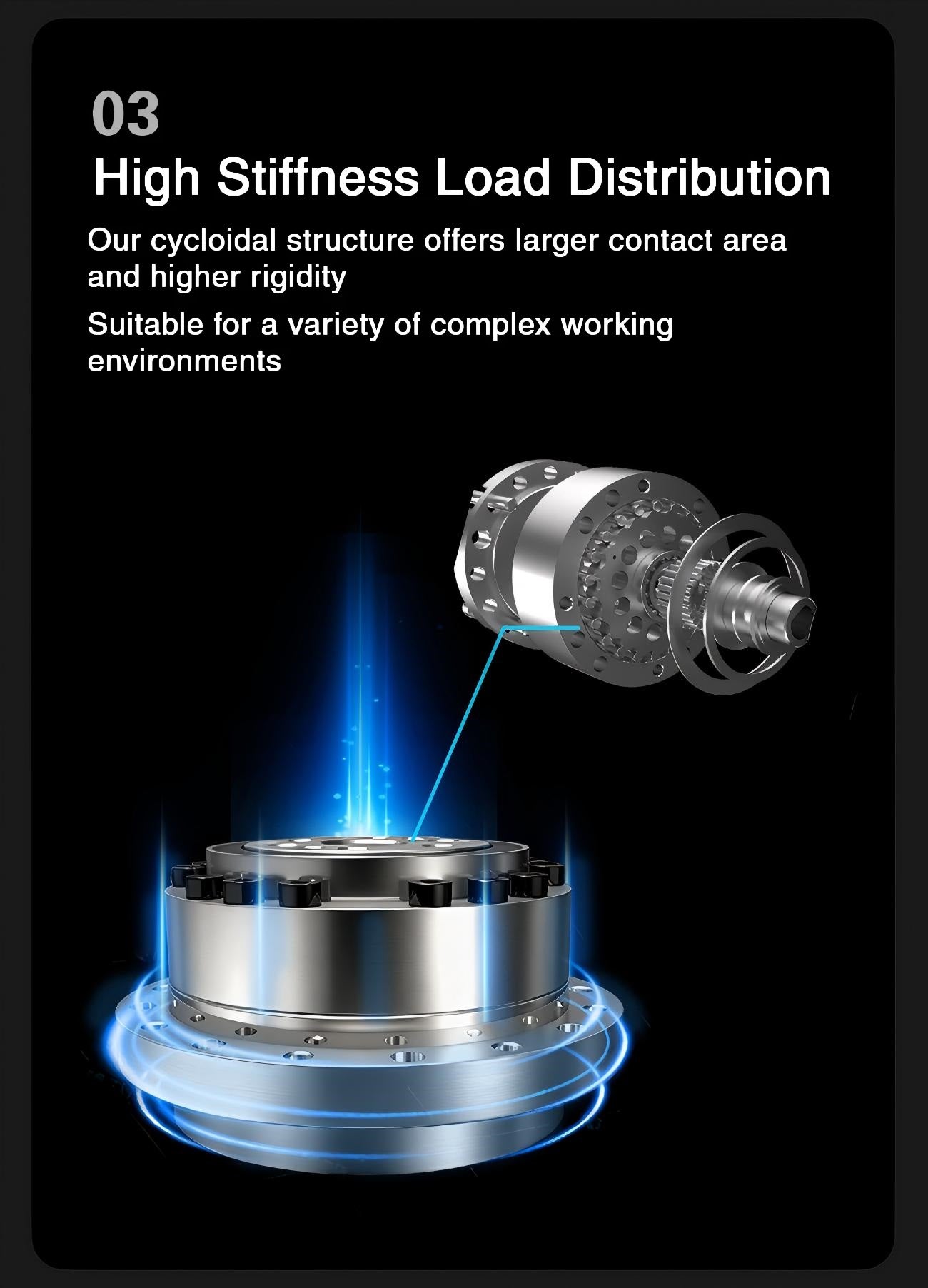

SINOTUP TF86 Reducer | Precision Reducer for Robot Joint Applications detail image 4

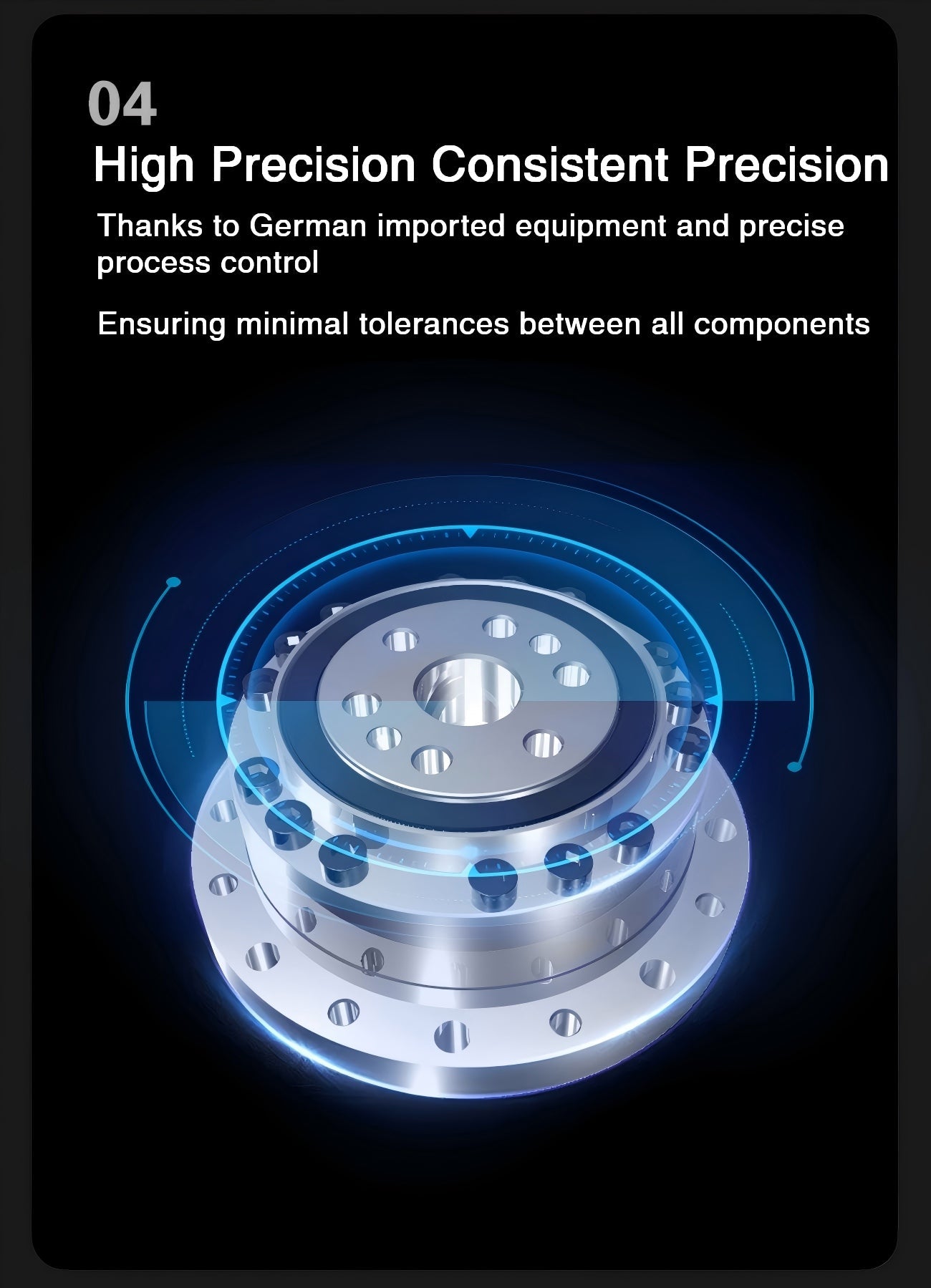

SINOTUP TF86 Reducer | Precision Reducer for Robot Joint Applications detail image 5

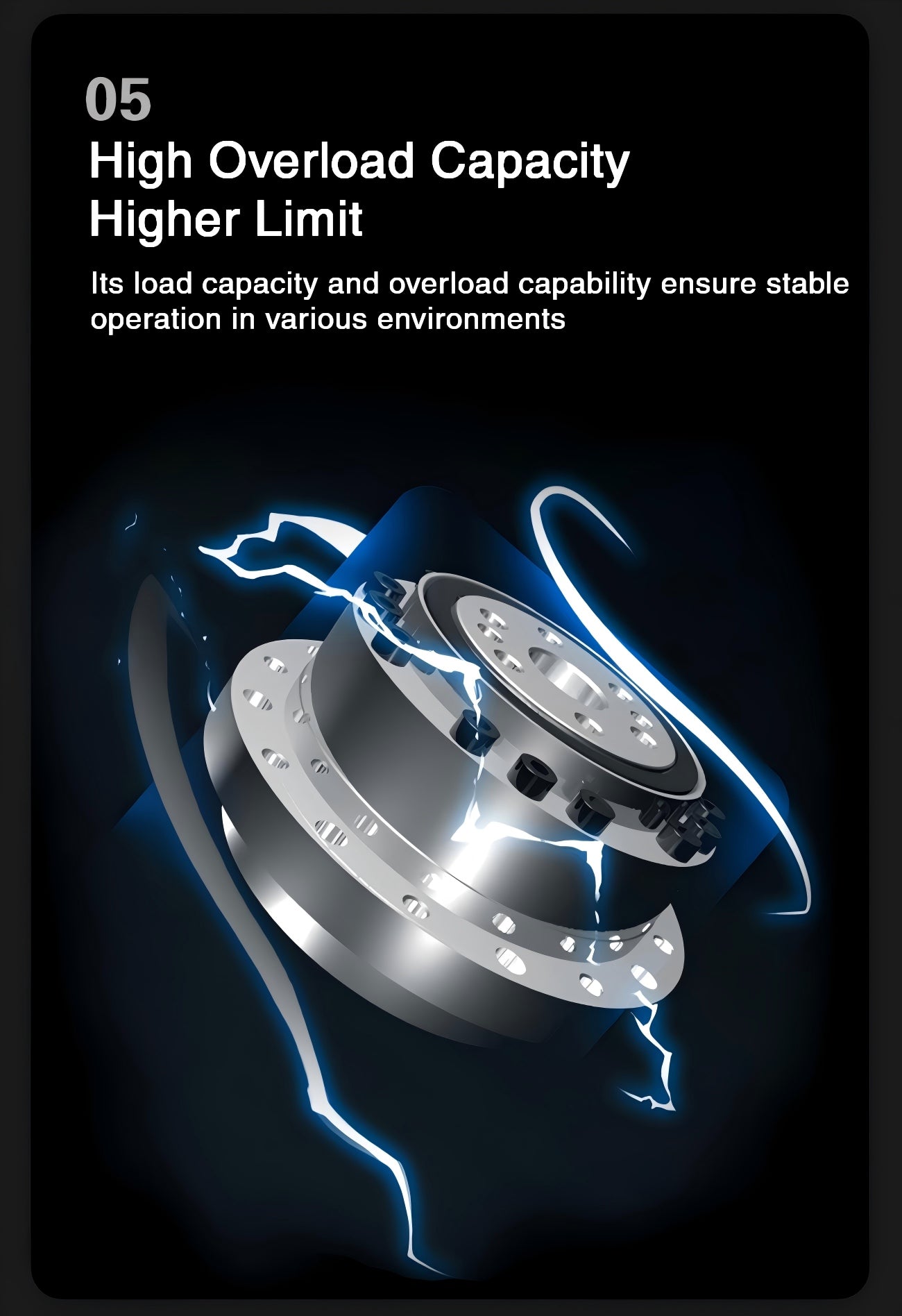

SINOTUP TF86 Reducer | Precision Reducer for Robot Joint Applications detail image 6

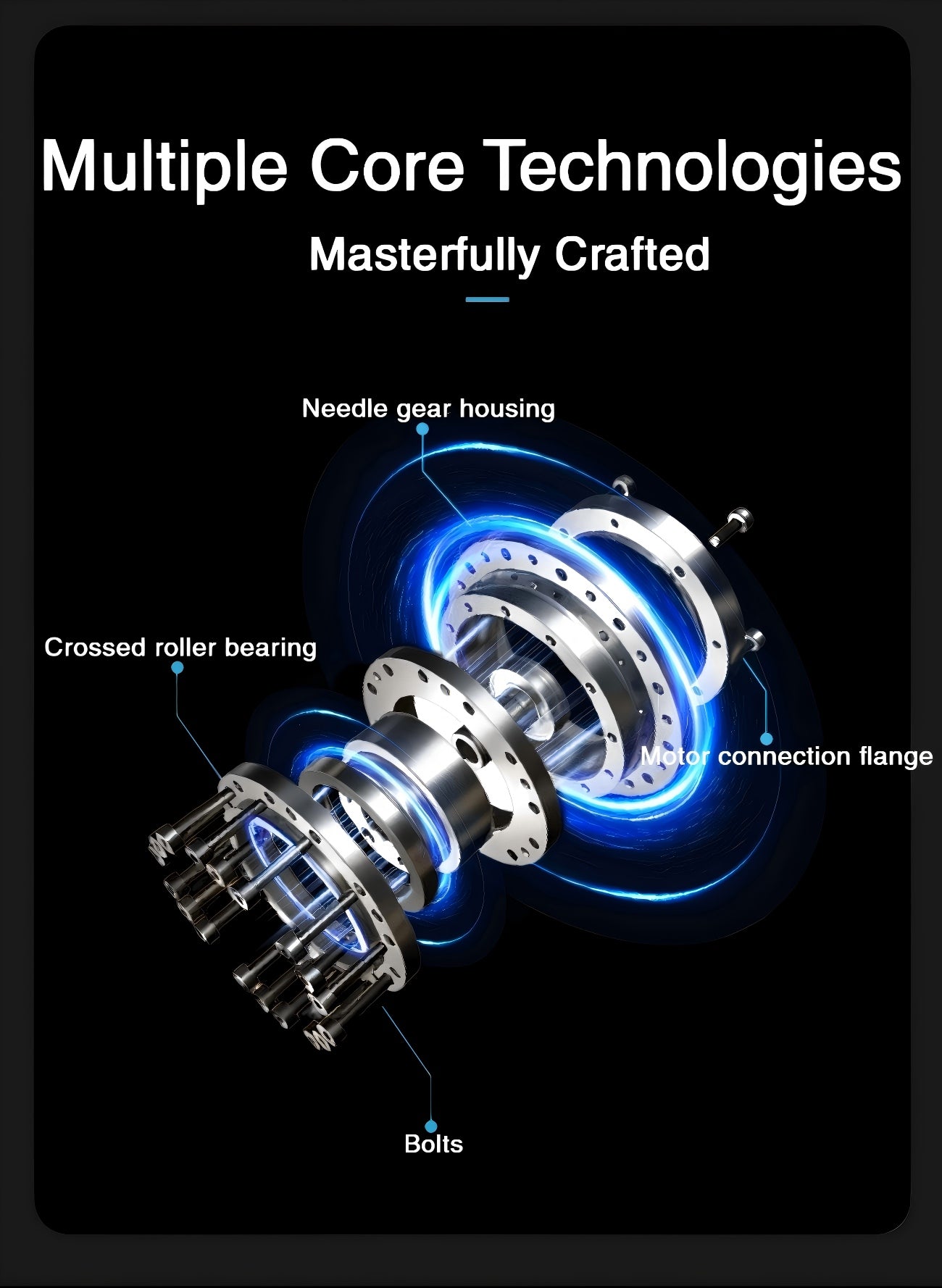

SINOTUP TF86 Reducer | Precision Reducer for Robot Joint Applications detail image 7
SINOTUP TF86 Reducer | Precision Reducer for Robot Joint Applications detail image 8
▤ PARAMETER ⌃
Model
TF86
Reduction ratio
Axis rotation: 21–101 Shell rotation: 22–102
Rated output torque
127 Nm
Max. acceleration/deceleration torque
252 Nm
Permissible torque at emergency stop
380 Nm
Rated input speed
1500 rpm
Max. input speed
3000 rpm
Tilting stiffness
130 Nm
Torsional stiffness
18 Nm
Max. radial force
5.5 kN
Max. axial force
7.1 kN
Max. no-load starting torque
0.4 Nm 、 0.37 Nm 、 0.35 Nm 、 0.34 Nm 、 0.33 Nm
Average angular transmission error
±20 arcsec
Backlash accuracy
P0–P2 arcmin
Moment of inertia
6.2 × 10⁻⁶ kg·m²
Weight
2.18 kg
