Xiaomi

Xiaomi CyberGear Micro Motor | BLDC Robot Servo Motor & FOC Actuator

• Ideal for robotics, Arduino projects, educational robotics, and open-source development
• Suitable for robot joints, smart devices, automation systems, and AI-powered applications
• High-performance BLDC motor with advanced FOC motor control technology
• Closed-loop feedback system enables precise positioning and smooth motion control
• Supports PWM, CAN Bus, and serial communication for flexible integration
• Open-source ecosystem with Arduino libraries, GitHub resources, and developer support
$170
Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

Free shipping. 12-Day delivery.

Xiaomi CyberGear Micro Motor | BLDC Robot Servo Motor & FOC Actuator Xiaomi CyberGear Micro Motor | BLDC Robot Servo Motor & FOC Actuator Xiaomi CyberGear Micro Motor | BLDC Robot Servo Motor & FOC Actuator Xiaomi CyberGear Micro Motor | BLDC Robot Servo Motor & FOC Actuator
▤ PARAMETER ⌃
Motor Weight
317g ±3g
Rated Voltage
24VDC
Continuous Torque
4N·m
Peak Torque
12N·m
Maximum Speed at Continuous Torque
240rpm ±10%
Maximum Phase Current at Continuous Torque
6.5A ±10%
Maximum Phase Current at Peak Torque
23A ±10%
Maximum Speed
296rpm ±10%
Communication
CAN
Back EMF Constant
0.054–0.057
Maximum Torque to Weight Ratio
37.85N·m/kg
Maximum Power to Weight Ratio
5104W/kg
Reduction Ratio
7.75:1

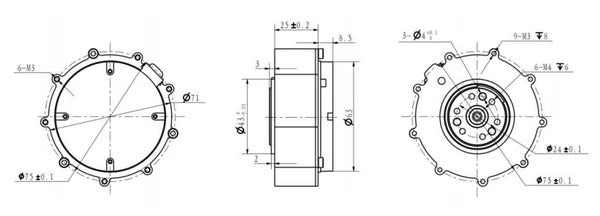

Outer Diameter
80.5mm
Height
36.5mm
Torque Constant
0.87N·m/A
Communication Baud Rate
1Mbps
Encoder Type
Single-turn Absolute
Encoder Resolution
14bit
