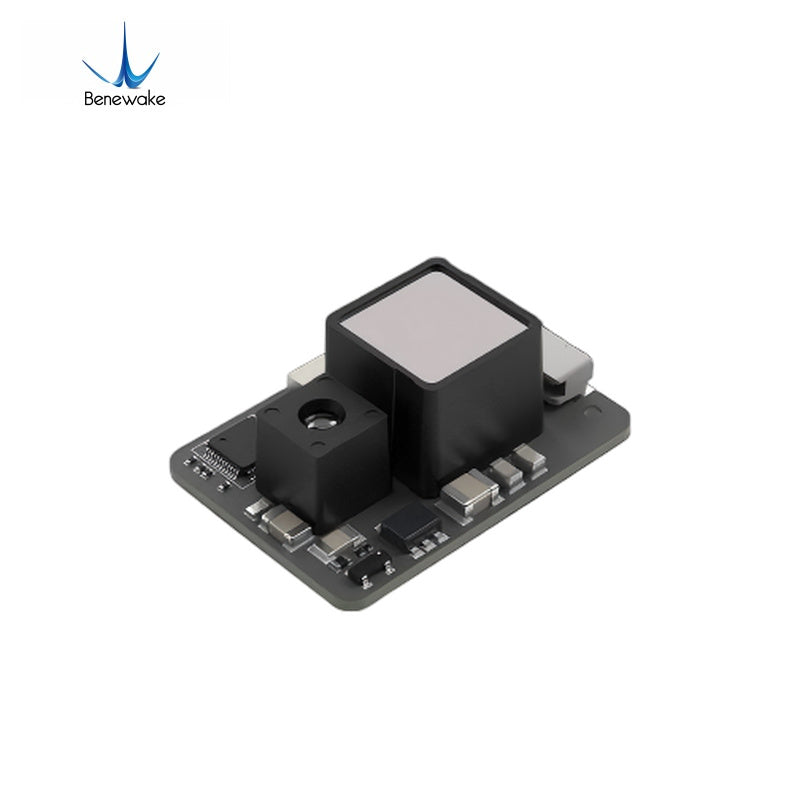

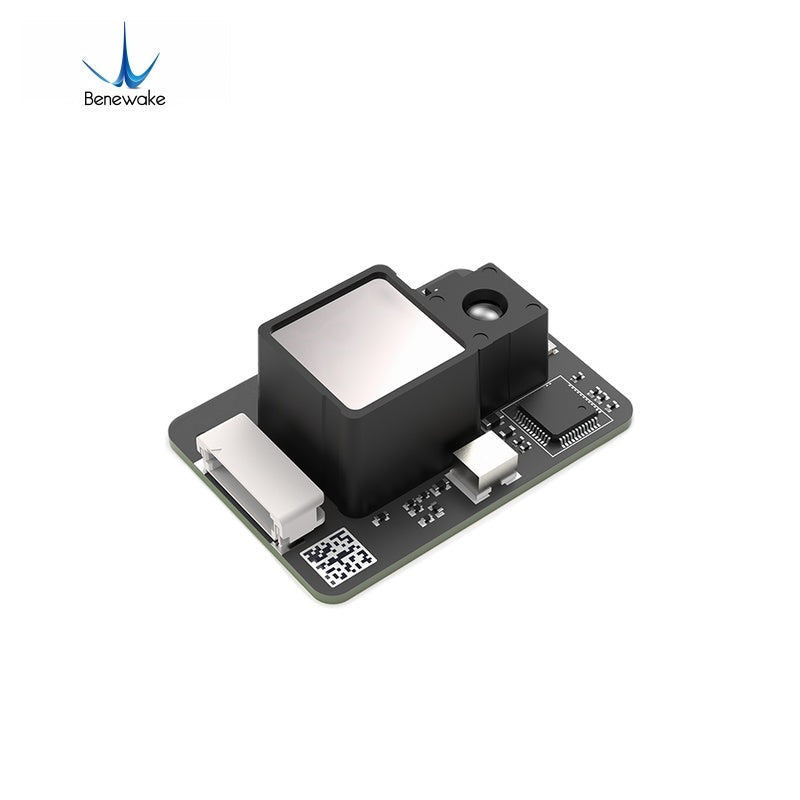

Benewake TFS20-L LiDAR | Robot LiDAR Sensor for Robotics & Mapping

  • Detection range: 0.2-20m @90% reflectivity @0Klux, 0.2-15m @90% reflectivity @100Klux 0.2-12m @10% reflectivity @0Klux, 0.2-9m @10% reflectivity @100Klux
  • Suitable for mobile robots, autonomous platforms, robotics research, education labs, and automation systems.
  • Designed for robot sensing workflows that require reliable ranging and environmental perception.
  • Useful for developers building SLAM, localization, obstacle detection, and autonomous robotics applications.
$60
Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

Benewake TFS20-L LiDAR datasheet with technical specifications.pdf ▶ Benewake TFS20-L LiDAR user manual for setup and integration.pdf ▶ Benewake TFS20-L LiDAR dimension drawing for installation reference.pdf ▶

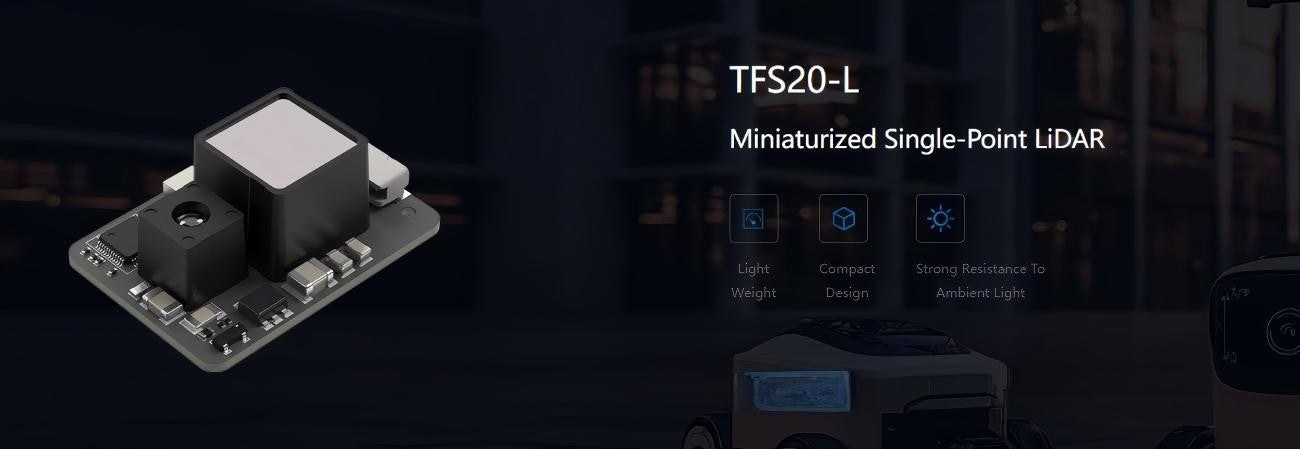

Benewake TFS20-L LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 1
Benewake TFS20-L LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 2
Benewake TFS20-L LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 3

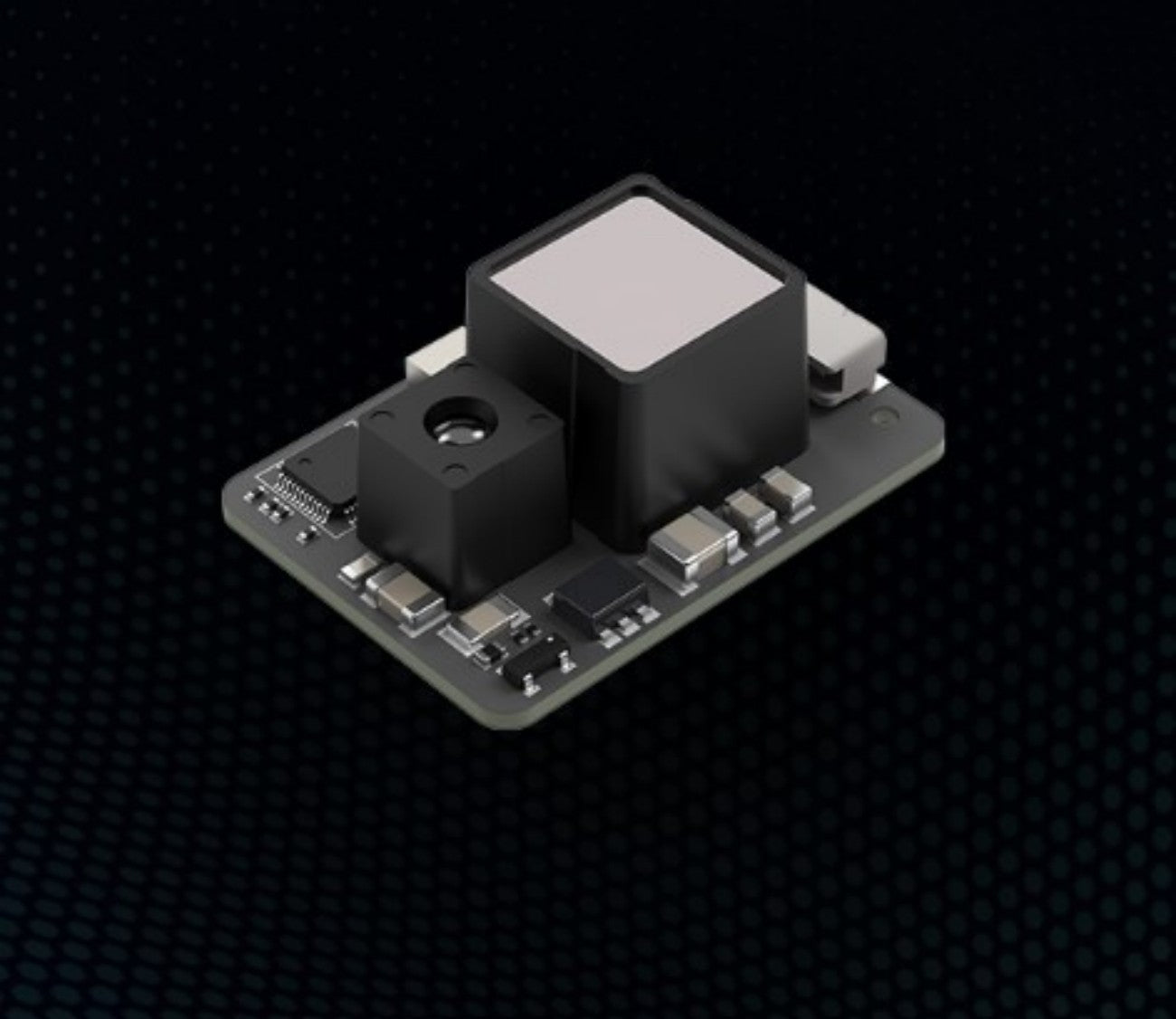

Benewake TFS20-L LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 4
Benewake TFS20-L LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 5

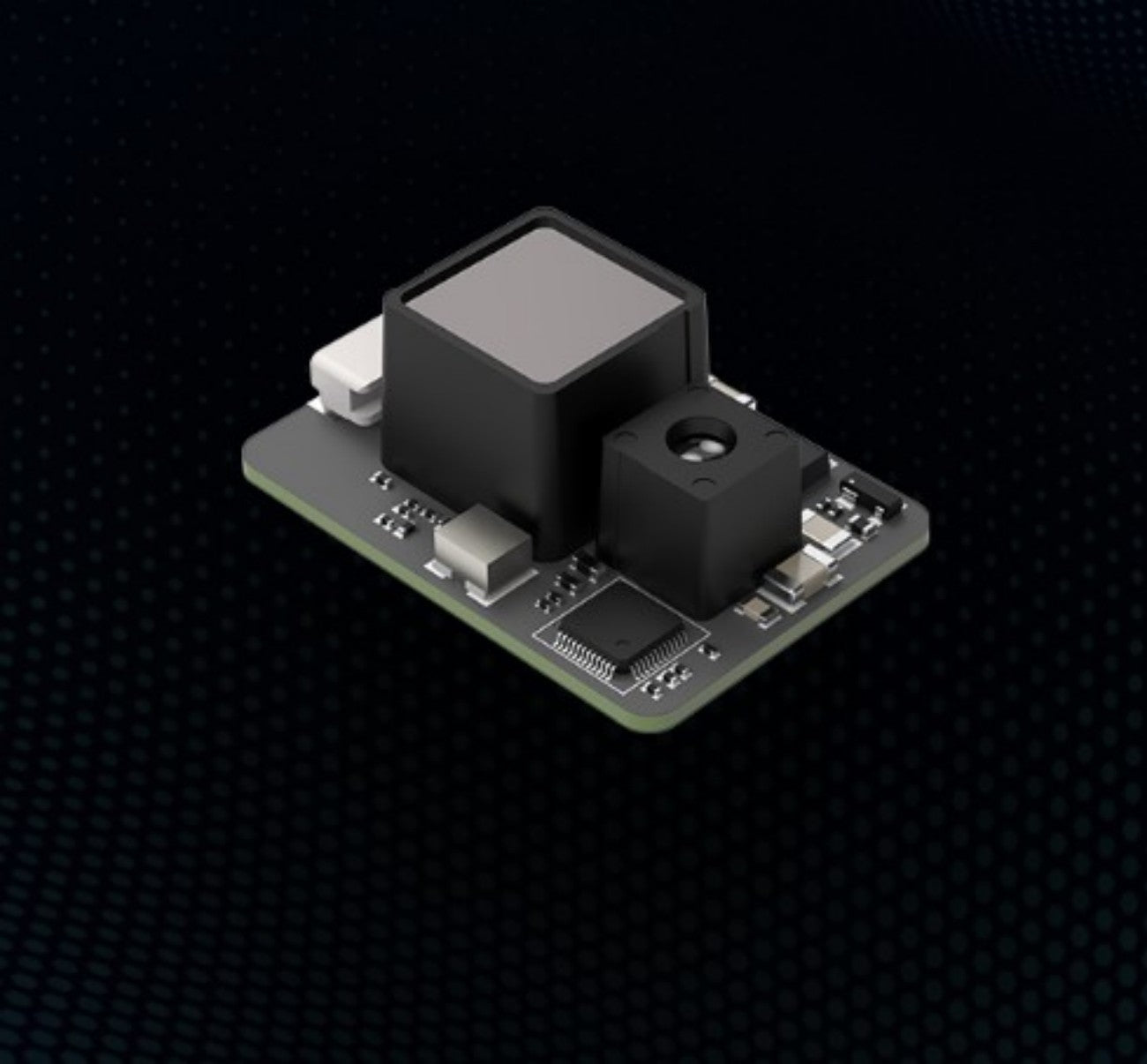

Benewake TFS20-L LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 6
▤ Technical Specifications ⌃
Parameter Value Value 3
Detection range 0.2-20m @90% reflectivity @0Klux, 0.2-15m @90% reflectivity @100Klux 0.2-12m @10% reflectivity @0Klux, 0.2-9m @10% reflectivity @100Klux -
Accuracy ±6cm (0.2~6m), 1% (>6m) -
Precision 2cm (0.2~6m) @1σ -
Default frame rate 0 / 20 / 50 / 100 (Default) / 250Hz -
Ambient light resistance 100Klux -
Light source VCSEL -
Central wavelength 905nm -
Field of View (FoV) <2° -
Eye safety Class 1 Eye-safe [IEC60825] -
Average power consumption ≤0.43W -
Peak current 130mA @3.3V -
Power supply DC 3.3 ± 9% V -
Communication level LVTTL (3.3V) -
Operating temperature -20°C ~ +60°C -
Storage temperature -40°C ~ +85°C -
Dimensions 21 × 15 × 7.87 mm³ -
Weight ~1.35g -
Connector 0.8mm-6P (Model: WF08006-01207) -
Protection Level N/A -
Communication Interface UART I²C
Baud rate / Max transmission rate 115200 400kbps
Data bit / Master/Slave mode 8 Slave
Stop bit / Default address 1 0x10
Parity / Address range None 0x10 ~ 0x7F
