FAIRINO

FAIRINO FR30 Collaborative Robot Arm

  • 30kg rated payload with 35kg maximum payload
  • 1403mm reach with a 6-axis articulated configuration
  • ±0.1mm ISO 9283 pose repeatability and 2m/s typical TCP speed
  • Designed for palletizing, machine tending, material handling, assembly, inspection and packaging
$18,199

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

FAIRINO FR30 product overview, specification, technical drawings.pdf ▶

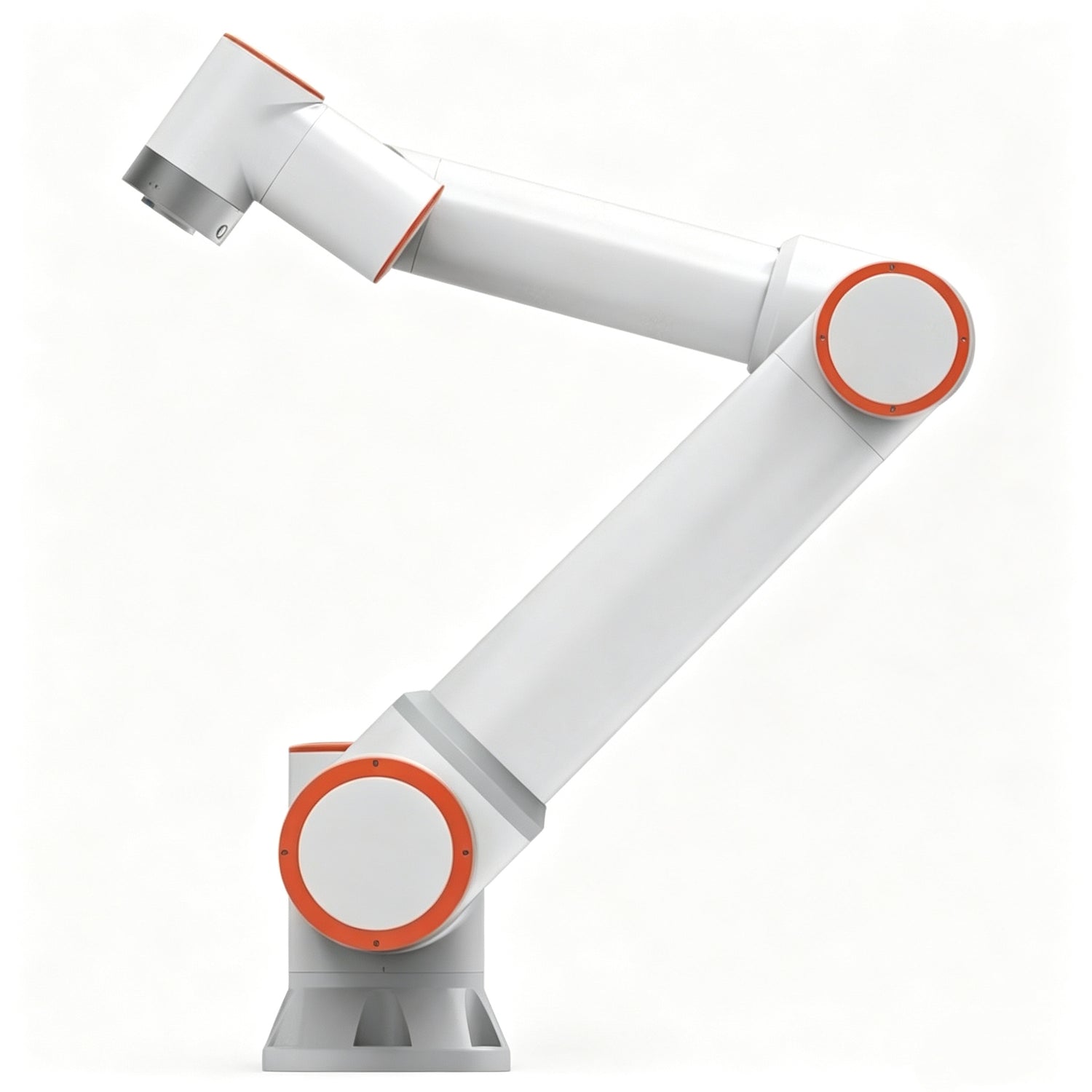

FAIRINO FR30 Collaborative Robot Arm

The FAIRINO FR30 is a 6-axis collaborative robot designed for automation applications that require higher payload capacity. It provides a 30kg rated payload, 35kg maximum payload, and 1403mm reach, making it suitable for heavier material handling and industrial automation tasks.

30kg Payload and 1403mm Reach

With a rated payload of 30kg and a working reach of 1403mm, the FR30 is designed for applications involving heavier workpieces and larger loads. Its typical TCP speed is 2m/s.

6-Axis Collaborative Robot

The FR30 features six rotating joints with defined working ranges across the base, shoulder, elbow and wrist axes. The robot supports a 10.1-inch teach pendant or mobile terminal Web App for operation and programming.

Flexible Industrial Integration

FR30 supports any-orientation mounting and provides digital, analog and high-speed pulse I/O for integration with automation equipment. The standard protection rating is IP54, with IP65 available as an option.

Applications

The FR30 is positioned for applications including palletizing, large machine tending, heavy pick-and-place, assembly, inspection and packaging, making it suitable for automation workflows involving higher payload requirements.

FAIRINO FR30 Collaborative Robot Arm
FAIRINO FR30 Collaborative Robot Arm
▤ FR30 Specifications ⌃
Robot Arm Technical Specifications
Specification FR30
Payload 30kg (Max: 35kg)
Reach 1403mm
Degrees of Freedom 6 rotating joints
HMI 10.1 inch teach pendant (Optional) or mobile terminal Web App
Pose Repeatability per ISO 9283 ±0.1mm

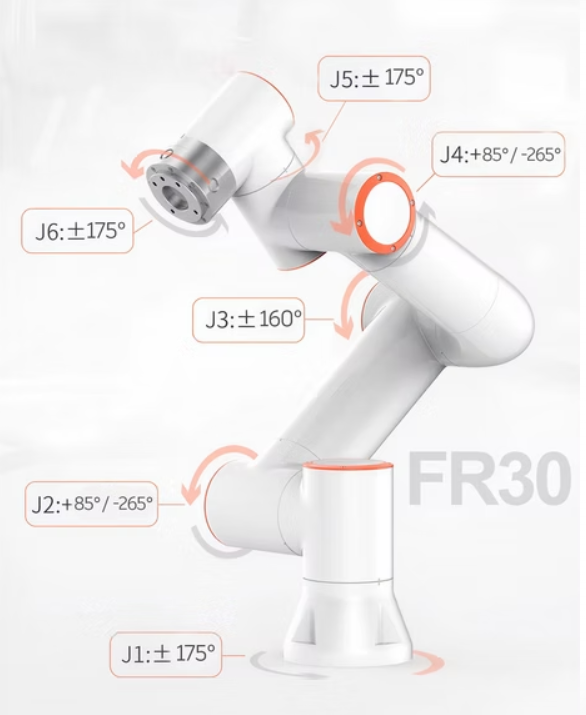

Base Working Range ±175°
Base Maximum Speed ±120°/s
Shoulder Working Range +85° / -265°
Shoulder Maximum Speed ±120°/s
Elbow Working Range ±160°
Elbow Maximum Speed ±120°/s
Wrist 1 Working Range +85° / -265°
Wrist 1 Maximum Speed ±180°/s
Wrist 2 Working Range ±175°
Wrist 2 Maximum Speed ±180°/s
Wrist 3 Working Range ±175°
Wrist 3 Maximum Speed ±180°/s
Typical TCP Speed 2m/s
IP Classification IP54 (IP65 Optional)
Noise <70dB
Robot Mounting Any orientation
Digital Input / Output (DI) 2 / (DO) 2
Analog Input / Output (AI) 1 / (AO) 1
Tool I/O Power Supply 24V / 1.5A
Footprint 240mm
Weight ≈85kg
Operating Temperature 0 ~ 45°C
Operating Humidity 90%RH (non-condensing)
Materials Aluminium, Steel
Black Optional no
Payload Setting for Power Test FR30 payload setting: 30kg, Z-axis: 200mm
Typical Average Power 600W
Typical Peak Power 910W
