HITBOT

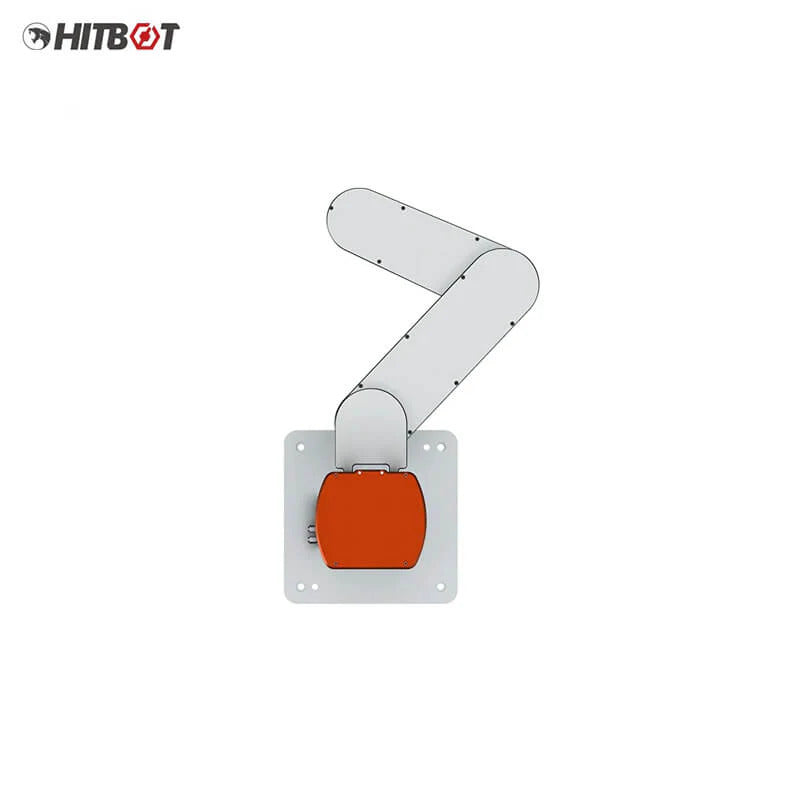

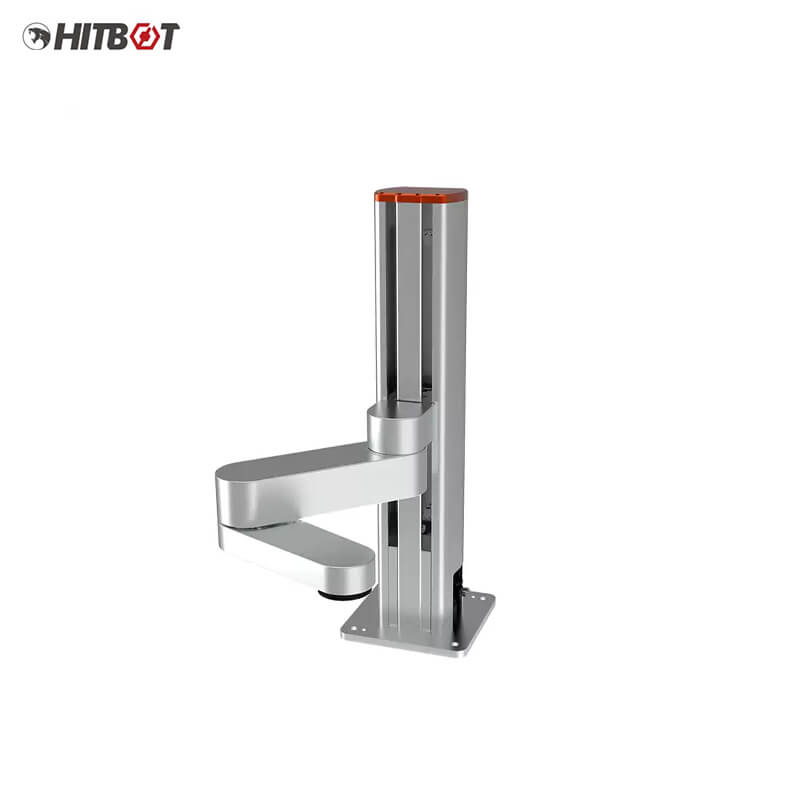

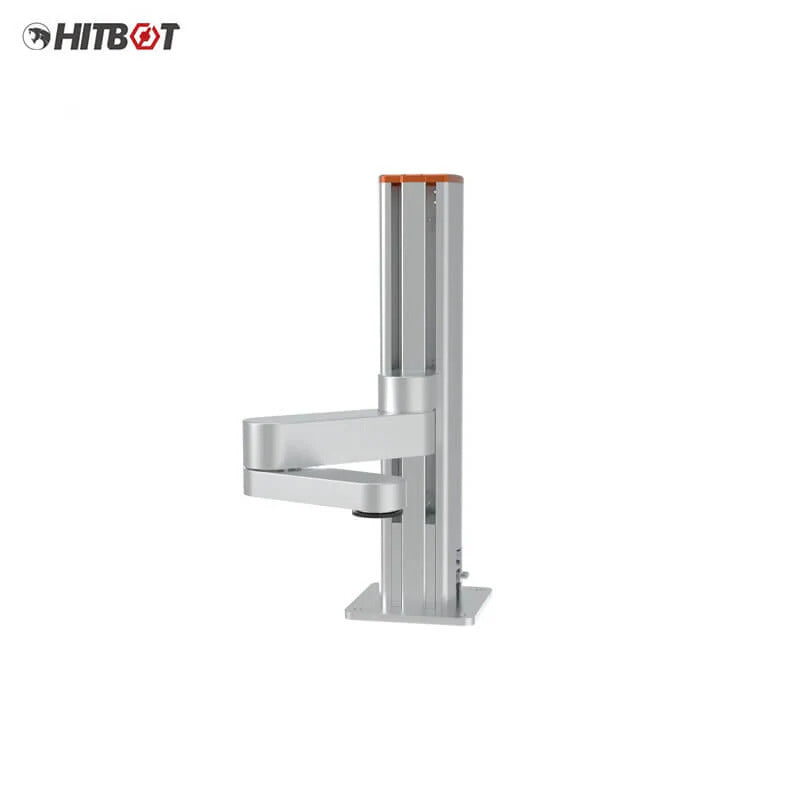

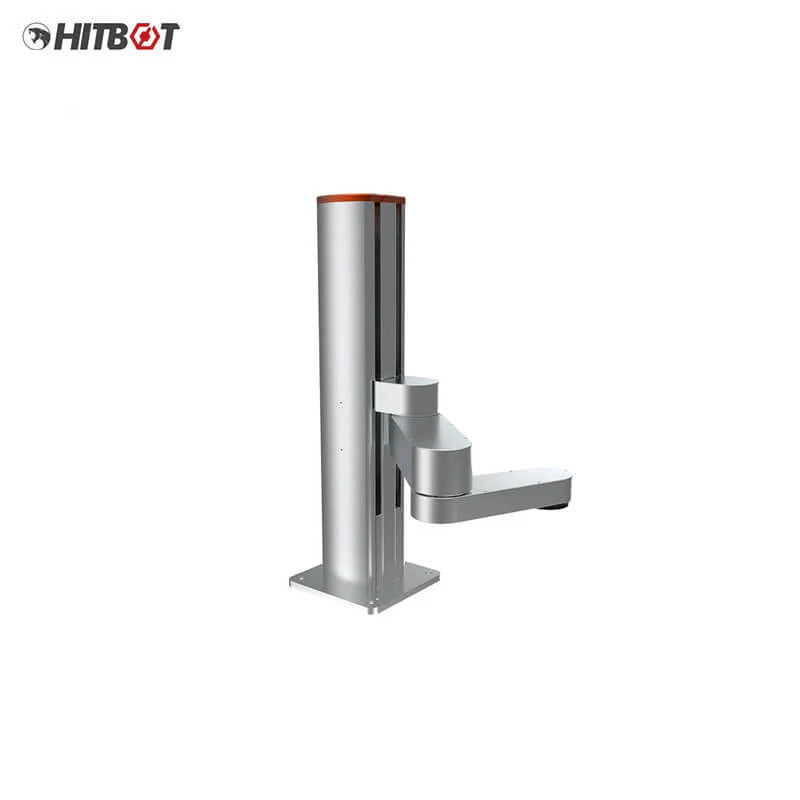

HITBOT Z-Arm 4150 Robotic Arm | Robotic Arm for Research & Automation

  • 4 robotic arm for robotics research and automation
  • Payload specification: 4kg
  • Repeatability specification: ±0.05mm
  • Suitable for education labs, research teams, and automation developers
$8,700
Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

HITBOT Z-Arm 4150 Robotic Arm technical documentation for product reference and integration ▶ HITBOT Z-Arm 4150 Robotic Arm technical documentation for product reference and integration ▶
HITBOT Z-Arm 4150 Robotic Arm | Robotic Arm for Research & Automation
▤ PARAMETER ⌃
Parameter
Value
Product Name
HITBOT Z-Arm 4150 Robotic Arm
Parameter
Value
1-axis arm length
275mm
1-axis rotation angle
±90°
2-axis arm length
225mm
2-axis rotation angle
±164°
Z-axis stroke
410mm (height customizable)
R-axis rotation range
±1080° without mechanical limit / ±170° with mechanical limit
Linear speed
1400mm/s (4kg load)
Repeatability
±0.05mm
Standard payload
4kg
Max payload
5kg
Degrees of freedom (DOF)
4
Power supply
220V/110V 50-60Hz adapted to 48VDC, peak power 960W
Communication
Ethernet
Customizable Z-axis height
0.1m - 1m
Electrical reserved interface
Standard: socket panel straight-through small tube lower cover plate, 2 x 23mm wide (unshielded) or optional: socket panel straight-through flange, 2 x Φ4 air tubes
Optional accessories
Z-EFG-8S / Z-EFG-12 / Z-EFG-20 / Z-EFG-20S / Z-EFG-200, fifth axis, 3D printing
Operating environment
Temperature: 0-45°C, Relative humidity: 20-80% RH (non-condensing)
I/O, digital input (isolated)
9×3 + forearm expansion (8 in / 8 out; gripper dedicated port; pulse or 485)
I/O, digital output (isolated)
9×3 + forearm expansion (8 in / 8 out; gripper dedicated port; pulse or 485)
I/O, analog input (4-20mA)
/
I/O, analog output (4-20mA)
/
Overall height
830mm
Host weight
410mm stroke module weight 28.5kg
Base dimensions
250mm × 250mm × 15mm
Base mounting hole spacing
200mm × 200mm with four M8×20 screws
Collision detection
/
Lead-through teaching
/
Hard emergency stop
√
