Benewake

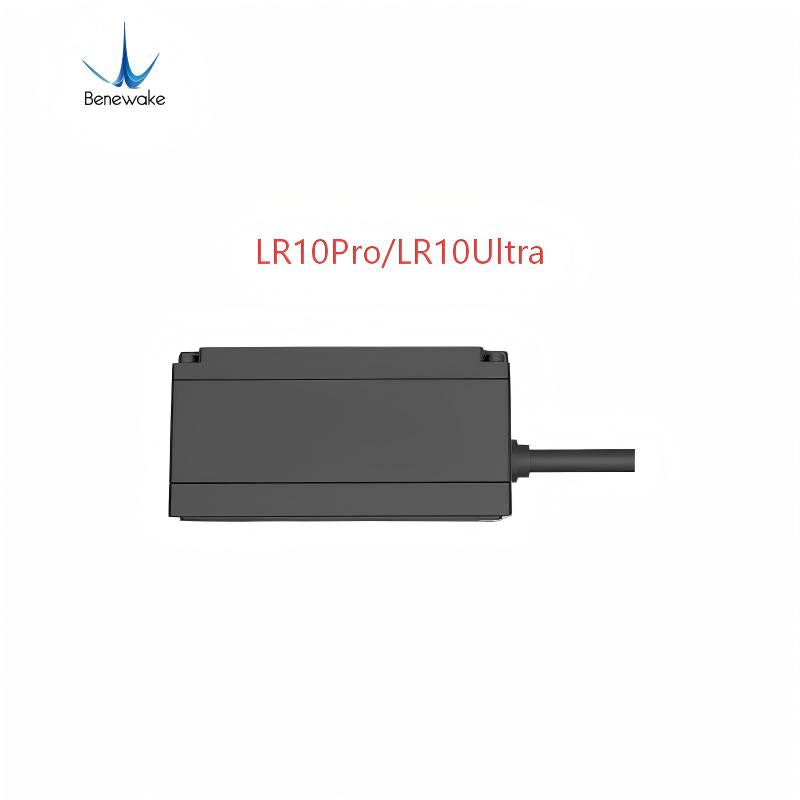

Benewake LR10 LiDAR | Robot LiDAR Sensor for Robotics & Mapping

  • Sensor type: dToF & RGB-D
  • Suitable for mobile robots, autonomous platforms, robotics research, education labs, and automation systems.
  • Designed for robot sensing workflows that require reliable ranging and environmental perception.
  • Useful for developers building SLAM, localization, obstacle detection, and autonomous robotics applications.
$820
Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

Benewake LR10 LiDAR product documentation for robotics integration.pdf ▶

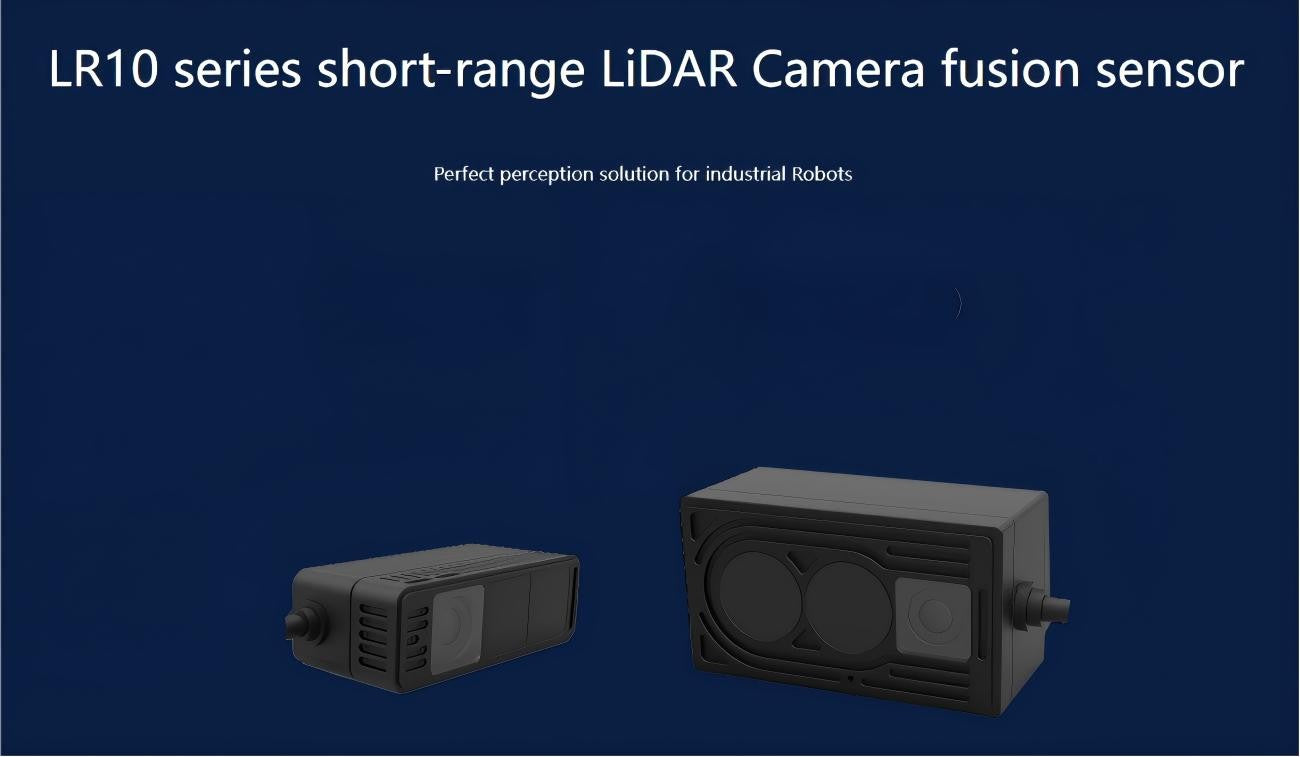

Benewake LR10 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 1
Benewake LR10 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 2
Benewake LR10 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 3
Benewake LR10 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 4
▤ Technical Specifications ⌃
Parameter LR10 LR10 Pro LR10 Ultra
Sensor type dToF & RGB-D dToF & RGB-D dToF & RGB-D
Output data Point cloud & RGB Point cloud & RGB Point cloud & RGB
TOF resolution and frame rate 240×160 @ Max.20fps (Typical 15fps) 240×160 @ Max.10fps (Typical 10fps) 240×160 @ Max.10fps (Typical 10fps)
TOF field of view 90°×61° / 120°×80° 70°×90° / 70°×120° 120°×80°
RGB resolution and frame rate 1920×1080 @ Max.20fps (Typical 15fps) 1920×1080 @ Max.10fps (Typical 15fps) 1920×1080 @ Max.10fps (Typical 10fps)
RGB angle of view 120°×90° 61°×90° 120°×80°
Distance ranges 0.05-8m (90% reflectivity) 0.05-5m (10% reflectivity) 0.05-18m (90% reflectivity) 0.05-10m (10% reflectivity) 0.05-30m (90% reflectivity) 0.05-30m (10% reflectivity)
Accuracy ≤3cm ≤3cm ≤4cm
Average and peak power consumption ≤4W & 28W ≤7W ≤9W
Laser wavelength 940 nm 940 nm 940 nm
Size (length × width × height) 80mm×37mm×25mm 92mm×47mm×51mm 92mm×57mm×51mm
Weight 190g 460g 500g
Power supply 12-28V 24V 24V-28V
Communication interface Ethernet/GMSL/IO Ethernet/GMSL/IO Ethernet/GMSL/IO
Level of protection IP54 IP67 IP67
Working temperature -20°C ~ 60°C -20°C ~ 60°C -20°C ~ 60°C
Storage temperature -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C
Software environment C/C++/ROS SDK C/C++/ROS SDK C/C++/ROS SDK
Support operating system Windows 7/8/10/11, Linux, ARM, Linux/ROS Windows 7/8/10/11, Linux, ARM, Linux/ROS Windows 7/8/9/10/11, Linux, ARM, Linux/ROS
Ambient light resistance 100Klux 100Klux 100Klux
