TTBOT HJ20 Motor | Robot Servo Motor for Robotics Development

  • TTBOT robot servo motor for robot joints, actuator assemblies, automation hardware, and robotics development.
  • Suitable for engineering teams building research robots, education platforms, prototypes, and motion-control systems.
  • Designed for practical integration in robot actuator, compact mechanism, and embedded control applications.
  • Useful for robotics labs, automation engineers, and hardware developers selecting motor components for robot platforms.
$1,080
Version
Communication
Gear ratio

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

TTBOT HJ20 Motor dimension drawing for installation reference.pdf ▶ TTBOT HJ20 Motor CAD model for mechanical integration.stp ▶

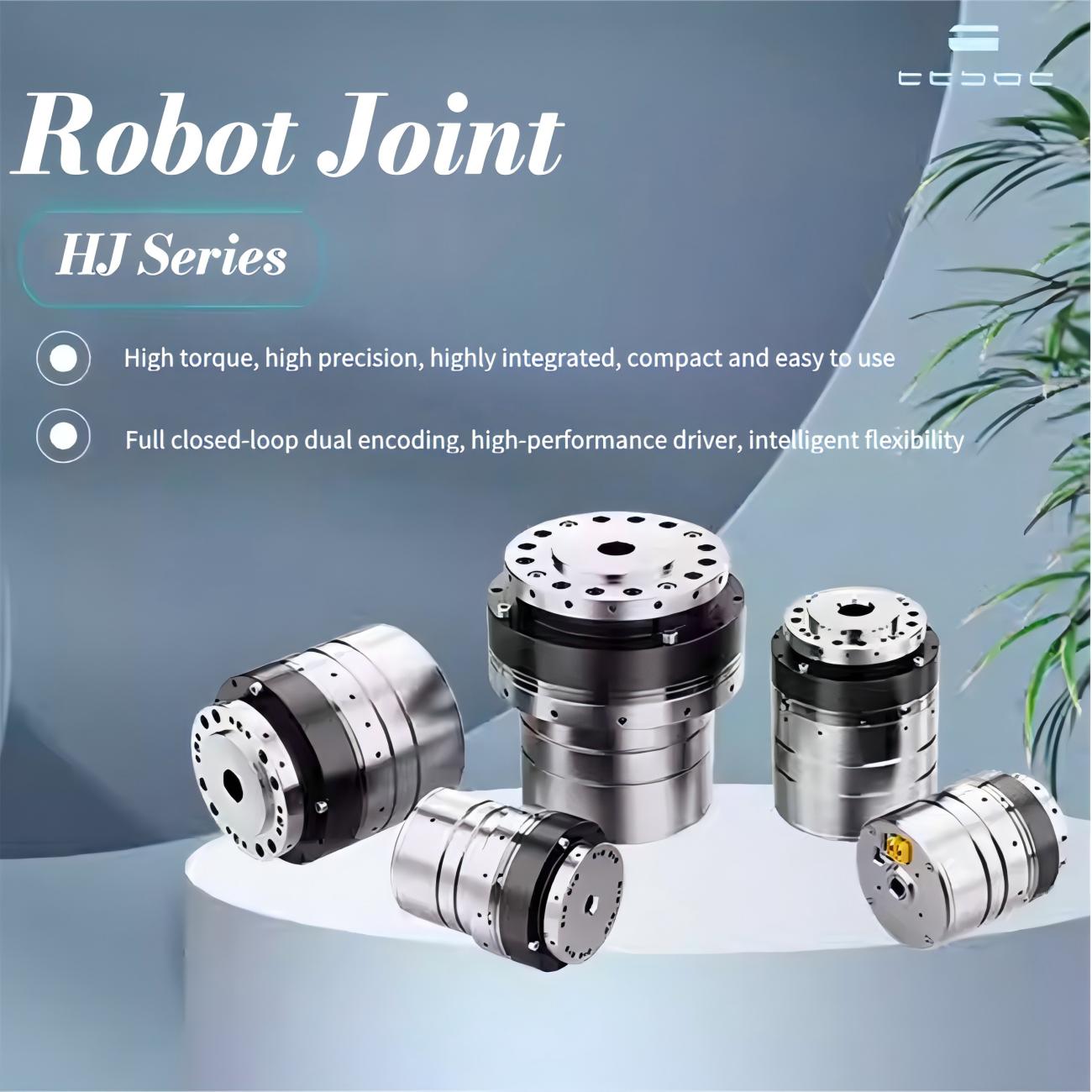

TTBOT HJ20 Motor | Robot Servo Motor for Robotics Development detail image 1

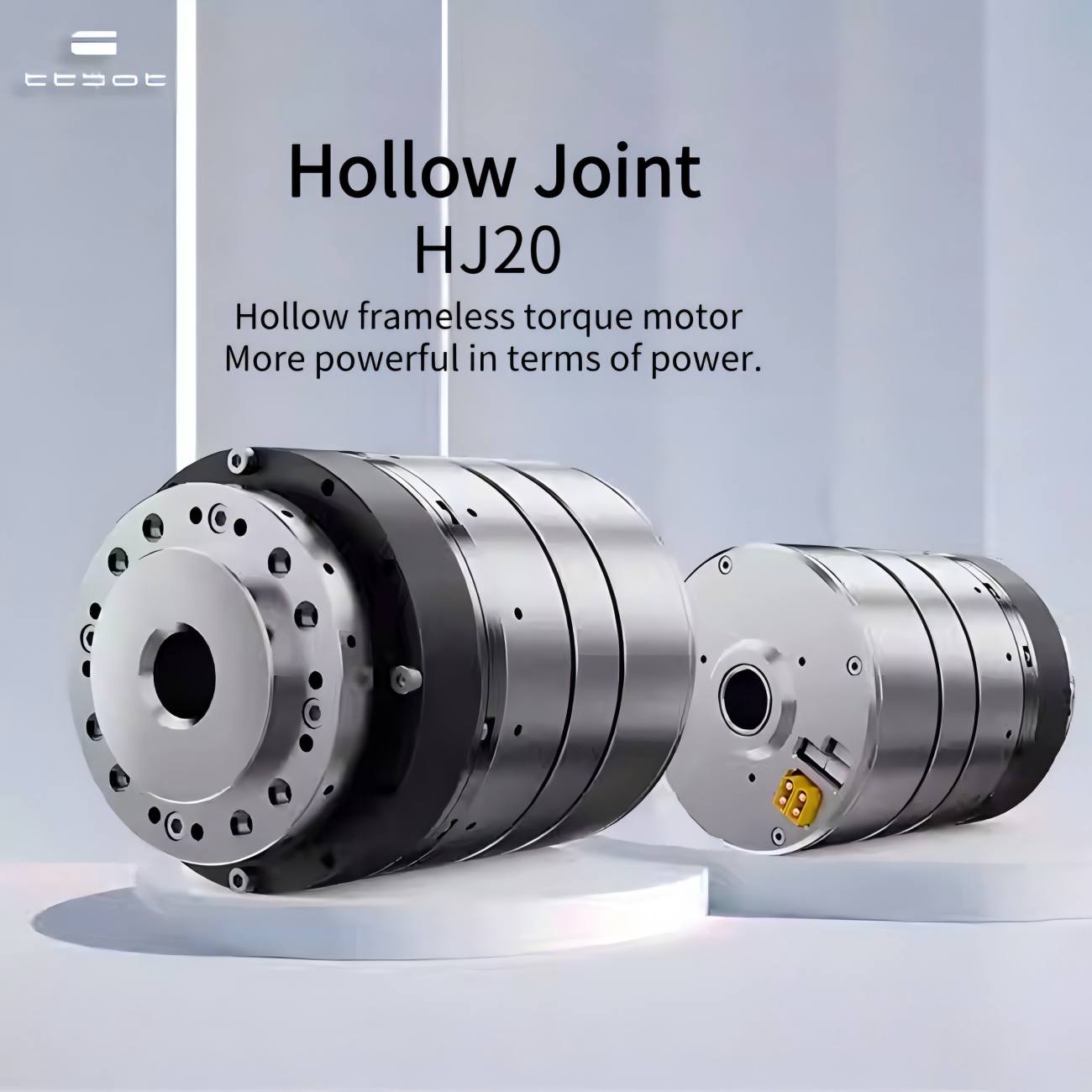

TTBOT HJ20 Motor | Robot Servo Motor for Robotics Development detail image 2

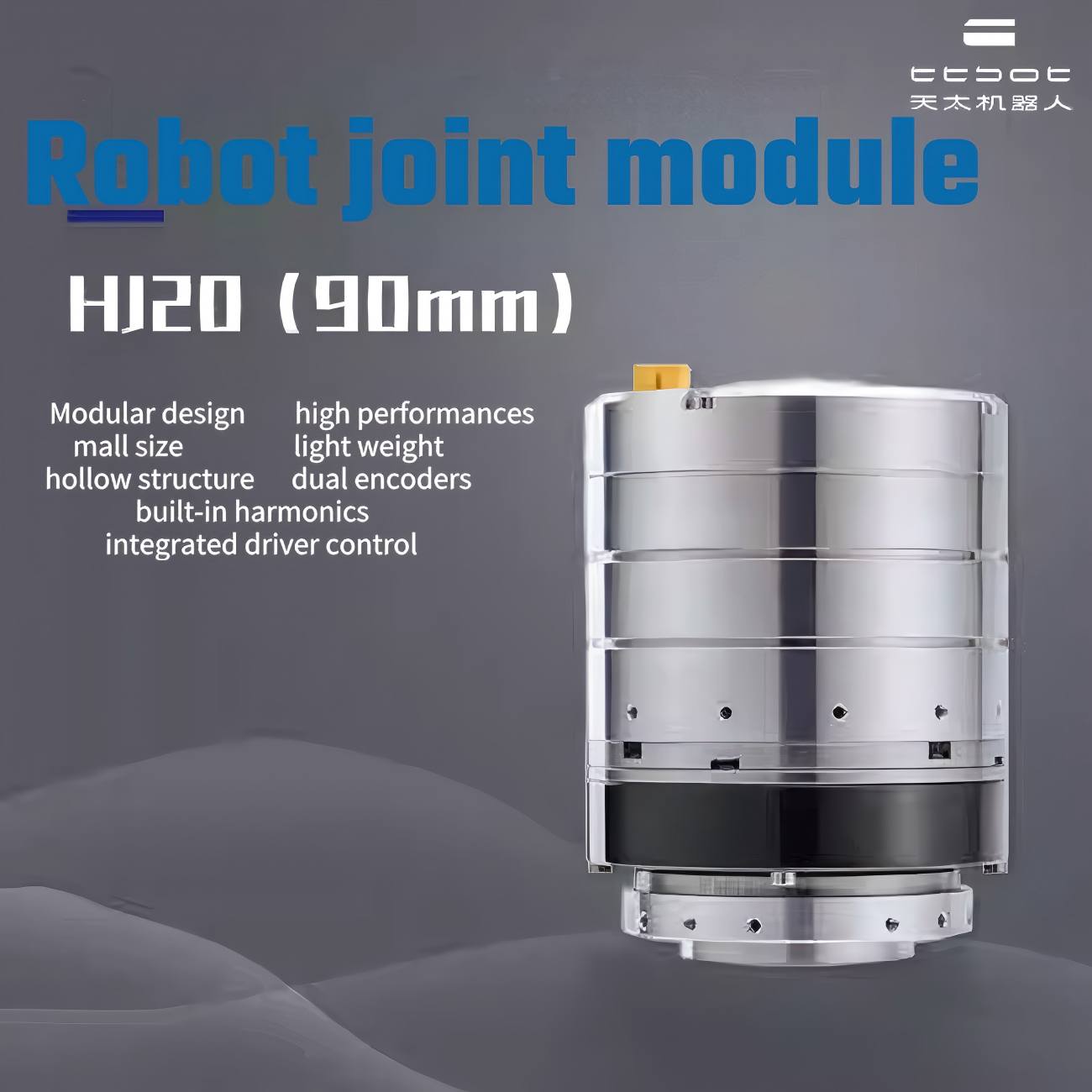

TTBOT HJ20 Motor | Robot Servo Motor for Robotics Development detail image 3

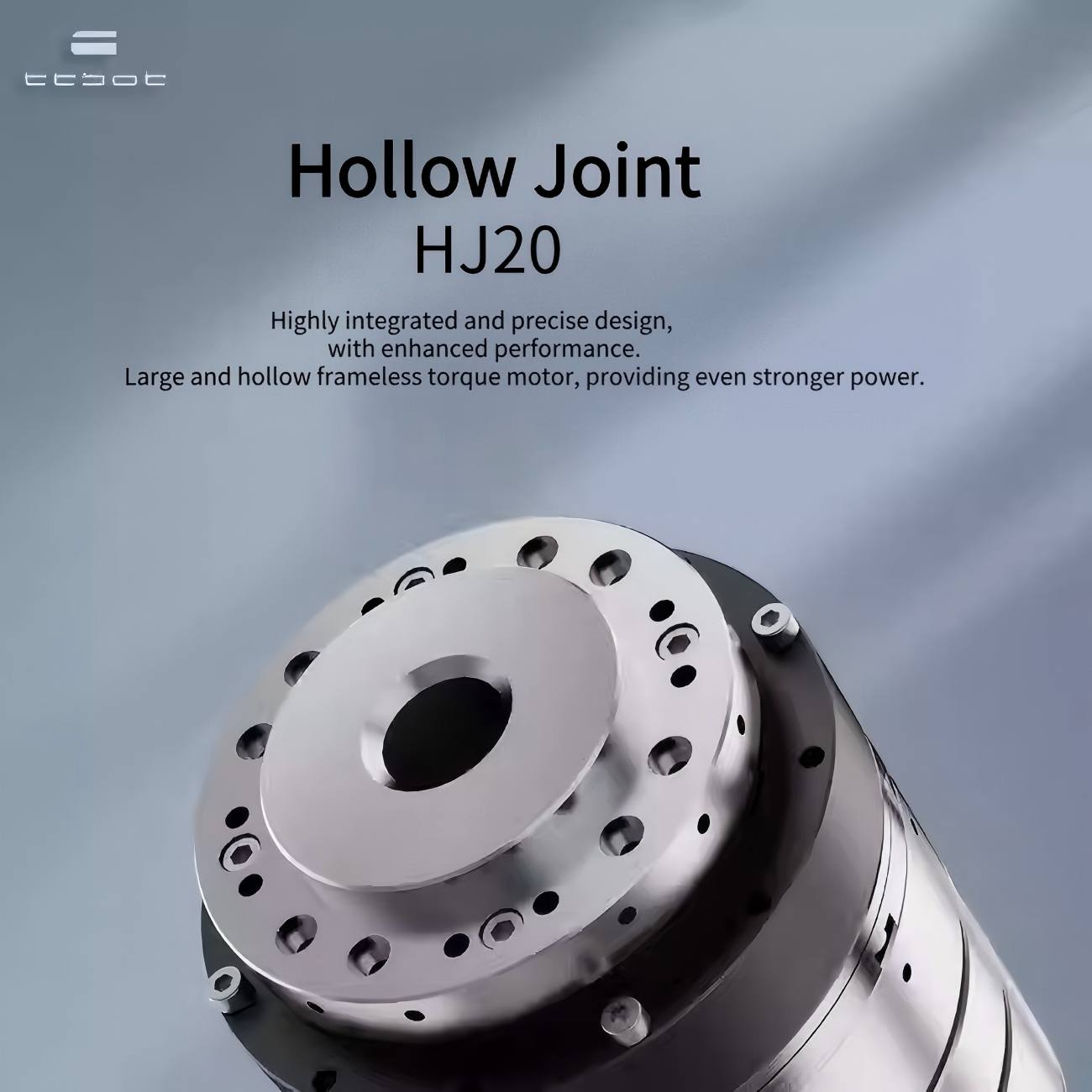

TTBOT HJ20 Motor | Robot Servo Motor for Robotics Development detail image 4

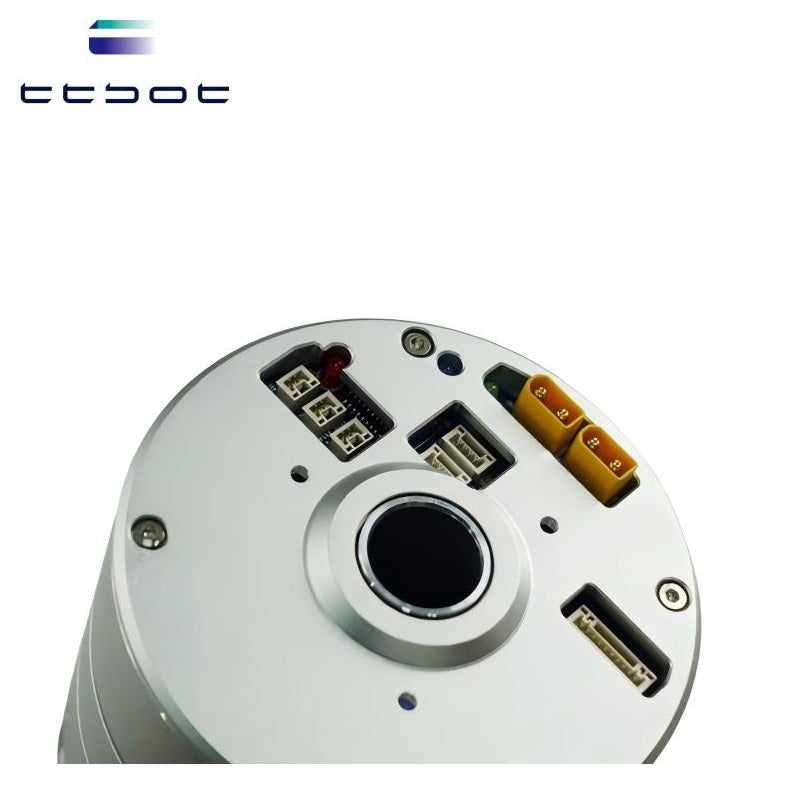

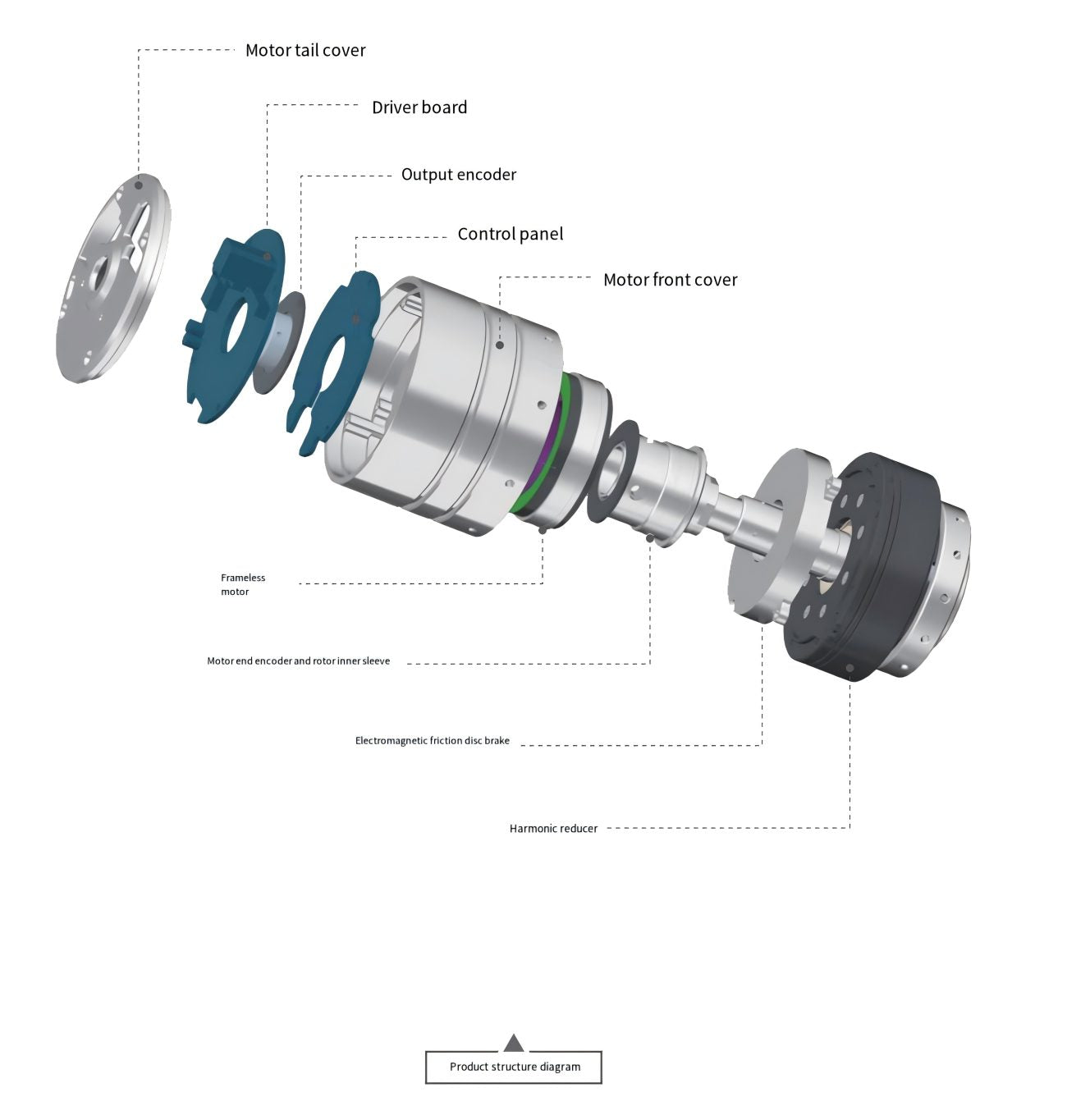

TTBOT HJ20 Motor | Robot Servo Motor for Robotics Development detail image 5
TTBOT HJ20 Motor | Robot Servo Motor for Robotics Development detail image 6
TTBOT HJ20 Motor | Robot Servo Motor for Robotics Development detail image 7
▤ Technical Specifications ⌃
Parameter Value 1 Value 2
Supply Voltage 48V DC 48V DC
Motor Power 220W 220W
Motor Rated Current 9.2A 9.2A
Motor Peak Current 28A 28A
Back EMF Constant 7.4Vrms/KRPM 7.4Vrms/KRPM
Module Rated Motor Speed 3000rpm 3000rpm
Module Peak Motor Speed 3500rpm 3500rpm
Reduction Ratio 101 121
Rated Torque 46N.m 61N.m
Peak Torque 182N.m 182N.m
Starting Torque 105N.m 108N.m
Rated Speed 29rpm 25rpm
Peak Speed 34rpm 29rpm
Allowable/Instantaneous Bending Moment 140/280N.m 140/280N.m
Allowable/Instantaneous Radial Force 650/1150N 650/1150N
Allowable/Instantaneous Axial Force 650/1150N 650/1150N
Outer Diameter × Length 90×122.2mm 90×122.2mm
Through Hole Diameter 17mm 17mm
Weight 2.3kg 2.3kg
Reducer Backlash 20arcsec 20arcsec
Transmission Accuracy 1arcmin 1arcmin
Power Supply Interface XT-30AW-M XT-30AW-M
Communication Method & Protocol CAN / EtherCAT CAN / EtherCAT
Communication Interface CAN: GH1.25-2P EtherCAT: GH1.25-4P CAN: GH1.25-2P EtherCAT: GH1.25-4P
Noise ≤70dBA ≤70dBA
Encoder Type 15-bit Absolute Dual Encoder 15-bit Absolute Dual Encoder
Control Type (Optional) Electromagnetic Friction Plate Type Electromagnetic Friction Plate Type
Protection Class IP6X IP6X
Insulation Class B B
Operating Ambient Temperature 0~40°C 0~40°C
