CASBOT

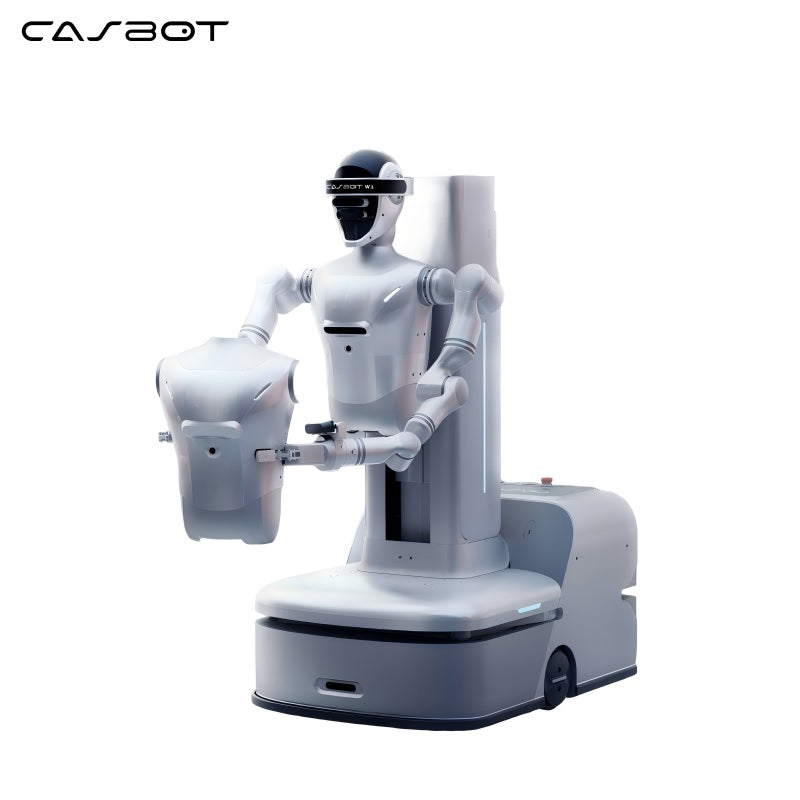

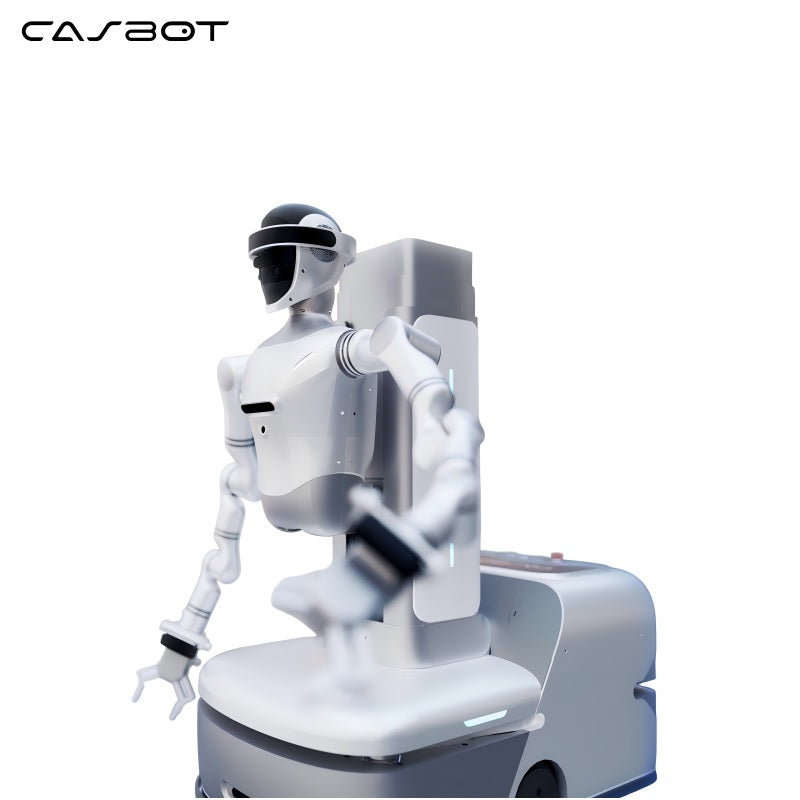

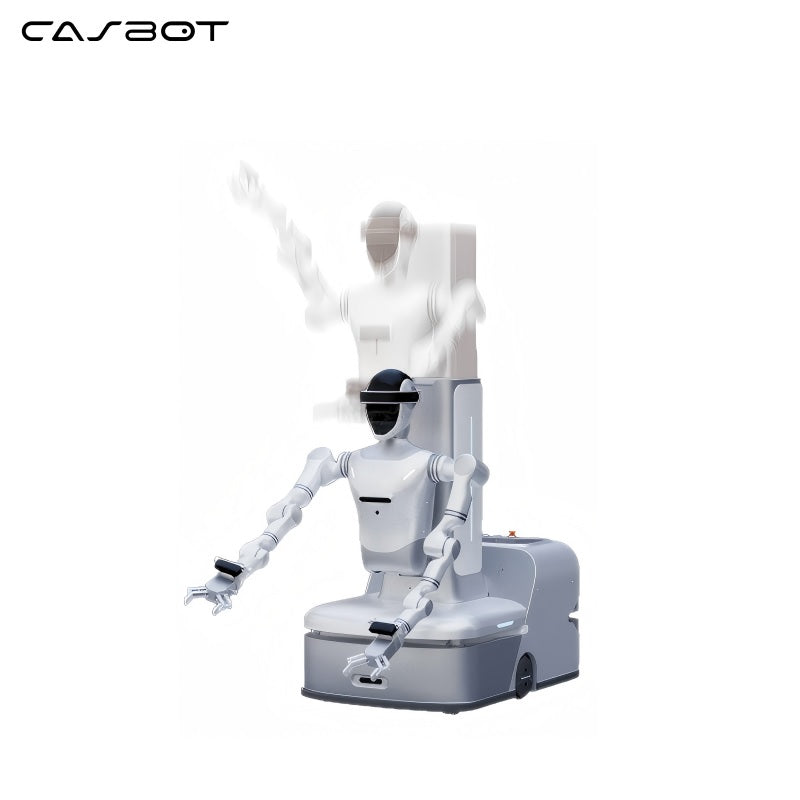

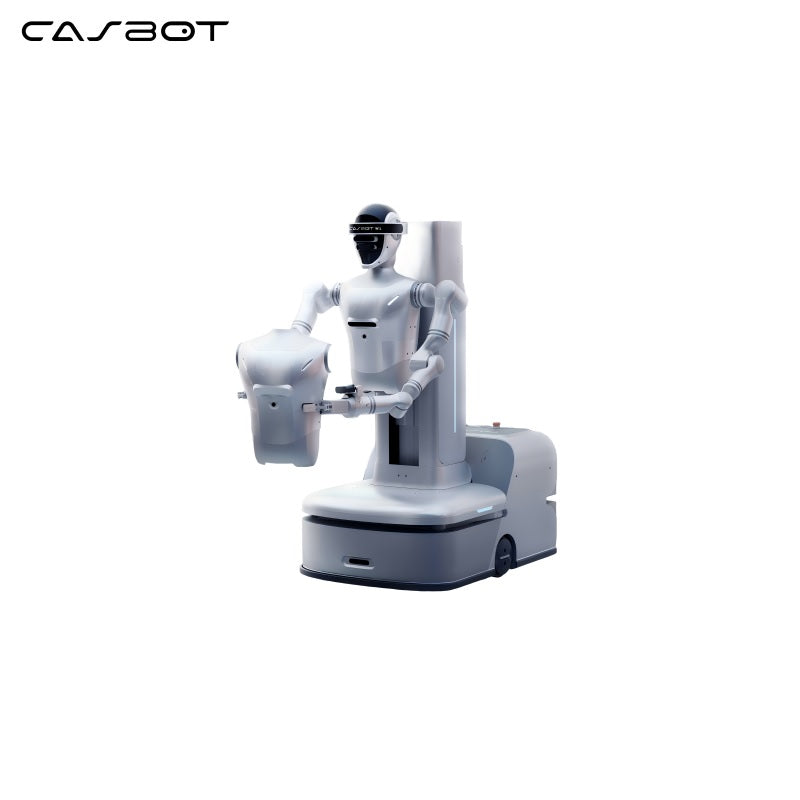

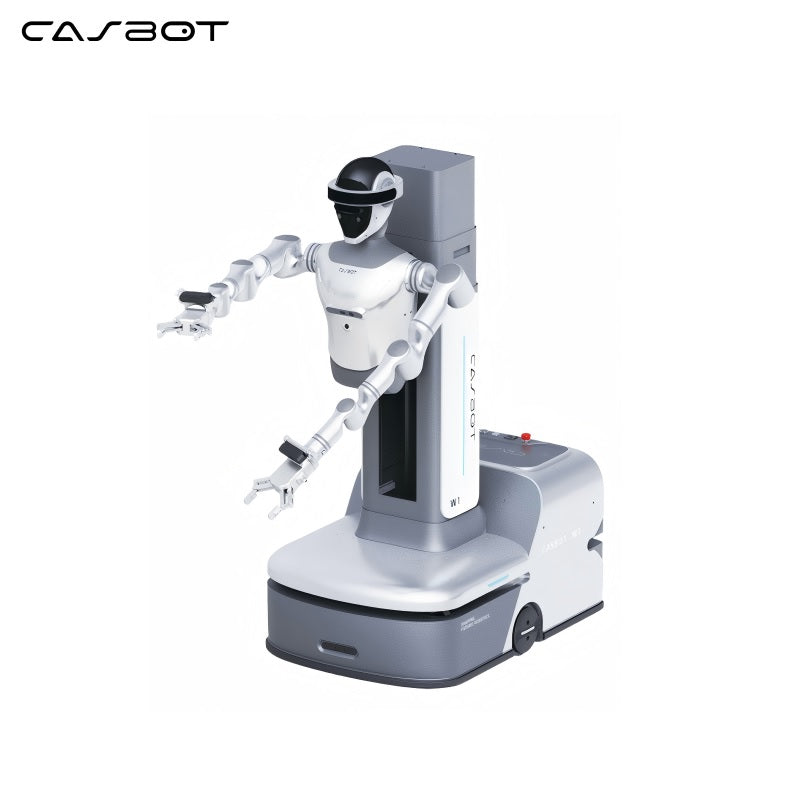

CASBOT W1 Robot

  • CASBOT humanoid robot platform for embodied AI, robotics research, and education lab development.
  • Suitable for developers evaluating robot mobility, interaction, autonomy, and applied robotics workflows.
  • Designed for universities, research teams, integrators, and labs building humanoid robot applications.
  • Useful for prototyping, demonstrations, automation experiments, and AI robotics development.
$67,700
Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

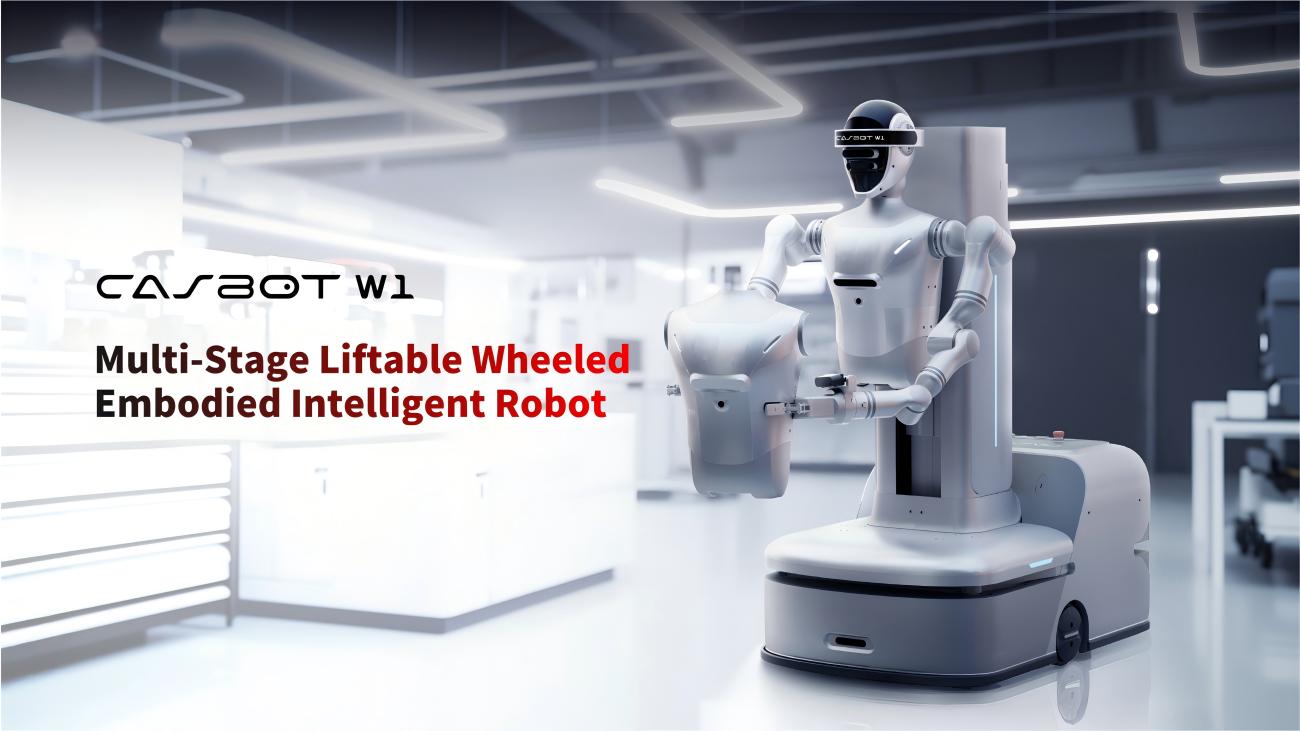

CASBOT W1 Robot | Humanoid Robot Platform for Robotics Research detail image 1

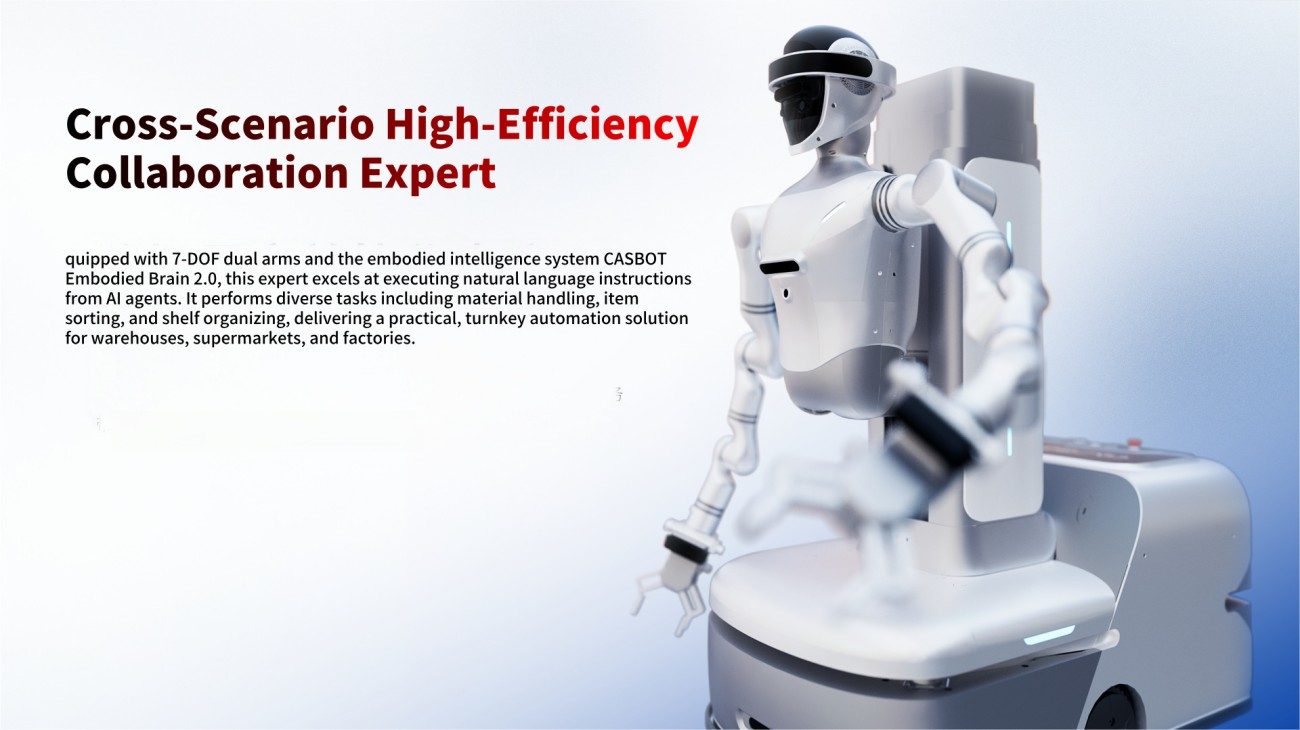

CASBOT W1 Robot | Humanoid Robot Platform for Robotics Research detail image 2

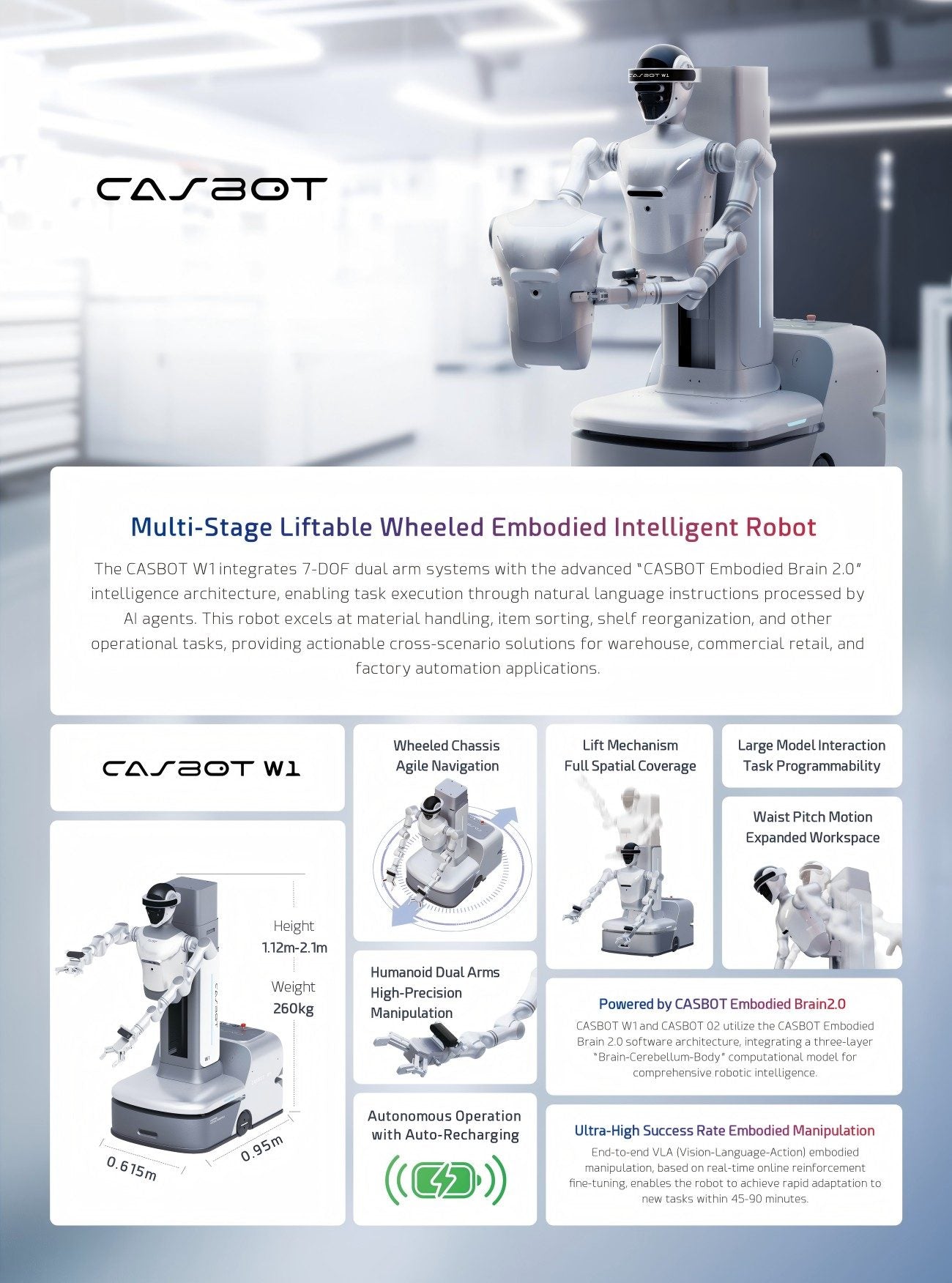

CASBOT W1 Robot | Humanoid Robot Platform for Robotics Research detail image 3
▤ PARAMETER ⌃
Overall Dimensions
Value 2: Collapsed: 0.95m (L) * 0.615m (W) * 1.12m (H) Extended: 0.95m (L) * 0.615m (W) * 2.1m (H)
Dual-Arm Span
Value 2: 2040mm (including gripper)
Material
Value 2: Alloy, Engineering Plastic
Weight
Value 2: 260kg
Working Height
Value 2: 0-2.1m
Total Degrees of Freedom (DOF)
Value 2: 20dof
Head DOF
Value 2: 2dof(yaw、pitch)
Waist DOF
Value 2: 1DoF(pitch)
Chassis DOF
Value 2: 2DoF Single-axis Linear Motion & Rotation (Wheeled Chassis with Differential Steering)
Lifting Column
Value 2: 1DoF
Single Arm DOF
Value 2: 7DoF
End-Effector DOF (Interchangeable)
Value 2: 2 DOF (Gripper)Can be replaced with a dexterous hand
Single Arm Payload
Value 2: 5kg
Arm Degrees of Freedom (DOF)
Value 2: 7
Working Radius
Value 2: 610mm
RGBD Camera (Structured Light)
Value 2: 2, one on each arm end, interchangeable
Gripping Force
Value 2: 15N (Dexterous Hand), interchangeable
Hand Weight
Value 2: 500g, interchangeable
Hand Degrees of Freedom (Hand DOF)
Value 2: 2 DOF (Gripper)
Head DOF
Value 2: 2dof(yaw、pitch)
Stereo Camera
Value 2: 1, Head, interchangeable
RGBD Camera (Structured Light)
Value 2: 1, Head, interchangeable
Display Screen
Value 2: VR Headset: 1
Chassis External Dimensions (LWH)
Value 2: 820*620*290(mm）
Wheel Configuration
Value 2: 2+4, Two-wheel differential drive
Movement Speed
Value 2: Max Speed: 1.2m/s (unloaded, actual machine)
Microphone Array
Value 2: Chest: 2-microphone linear array
LiDAR
Value 2: Abdomen: Expandable 360° spherical LiDAR
RGBD Camera (Structured Light)
Value 2: 1, Chest
Speaker
Value 2: 2, Head
Lighting
Value 2: Chest: 2, One on each side of the lifting column
Main Controller, Motion Controller
Value 2: Industrial PC (i9 CPU + 4060 GPU)
Interaction
Value 2: 3588
Communication
Value 2: WiFi + 4G + Bluetooth + 100M Ethernet
Power Switch
Value 2: 1
Emergency Stop
Value 2: 1
Battery Voltage
Value 2: 48V
Battery Capacity
Value 2: 48V/25Ah
Battery Type
Value 2: Lithium Iron Phosphate (LFP)
Charging Time
Value 2: 2h
Operating Time / Endurance
Value 2: 4-5h
Charging Method
Value 2: Autonomous Charging
Operating Environment
Value 2: Temperature: 5~40℃, Humidity: 25%~85% (non-condensing)
IP Rating
Value 2: IP68
Heat Dissipation
Value 2: Localized Air Cooling
Noise Level
Value 2: ——
Charging Dock
Value 2: 1
Remote Controller
Value 2: 1
Teleoperation Device
Value 2: Optional
Hand
Value 2: Standard mechanical & communication interfaces, supports grippers, dexterous hands, suction cups, and other end-effectors
