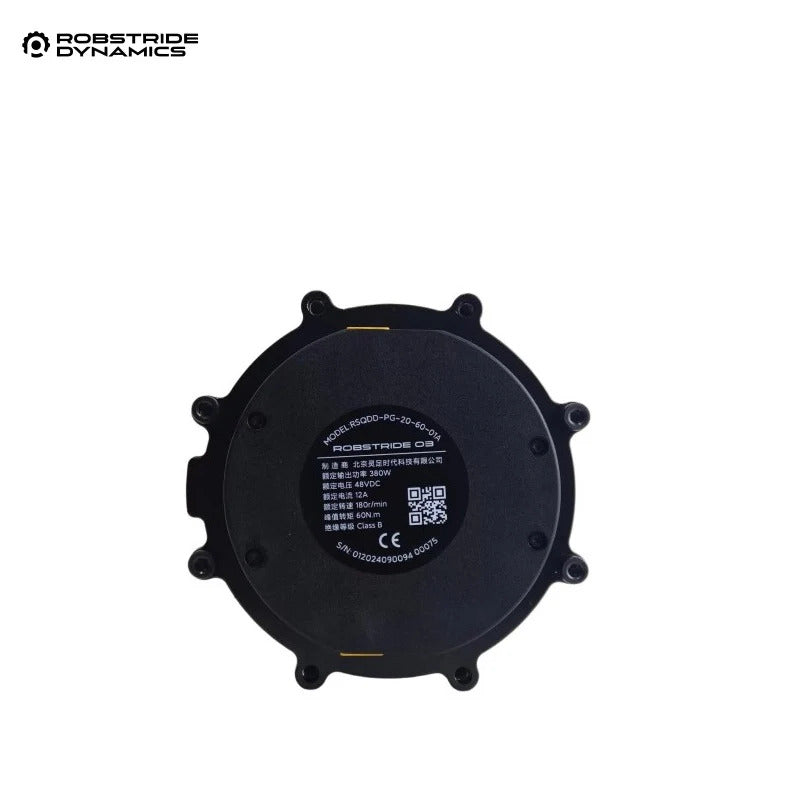

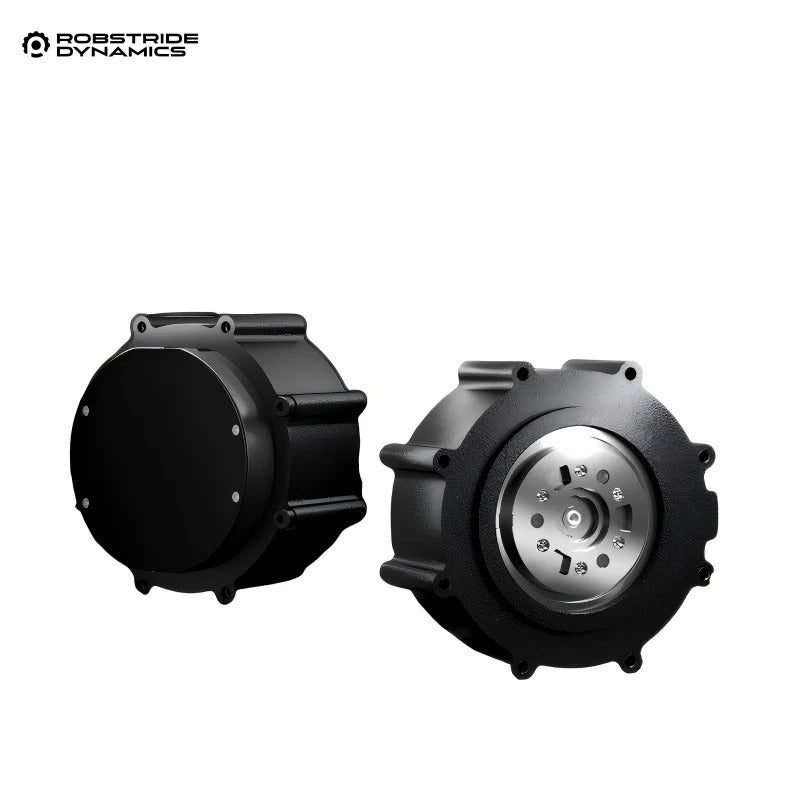

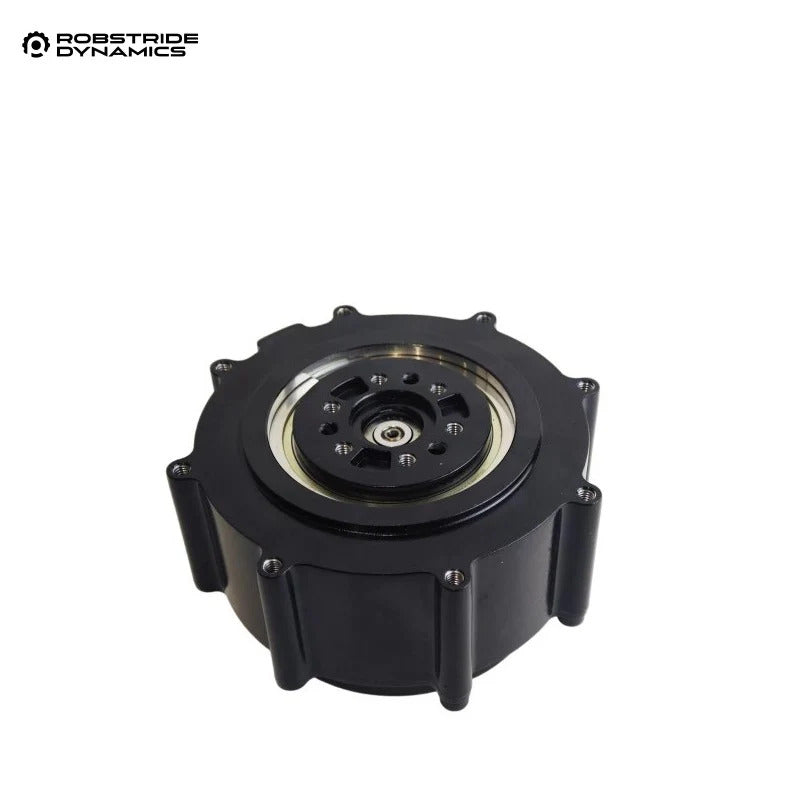

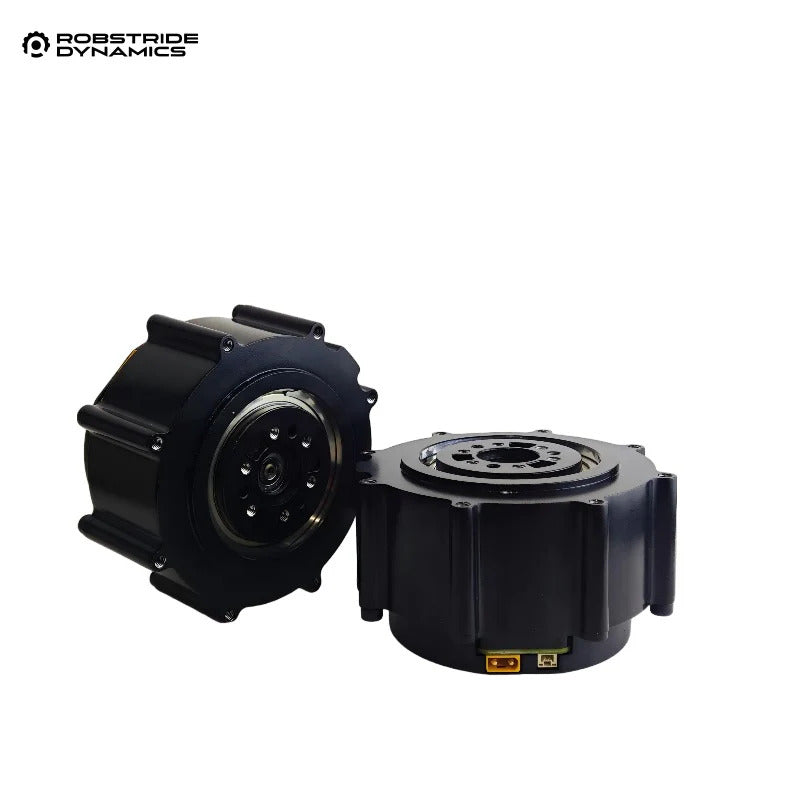

RobStride 03 QDD Motor Actuator | High Torque Robot Servo Motor

• Ideal for humanoid robots, robotics research, and automation control systems
• Integrated design combining driver, motor, planetary reducer, and encoders in one compact unit, 880g.
• Peak Torque 60N.m, Torque density 66.67N.m/Kg, Torque value density 0.24N.m/USD

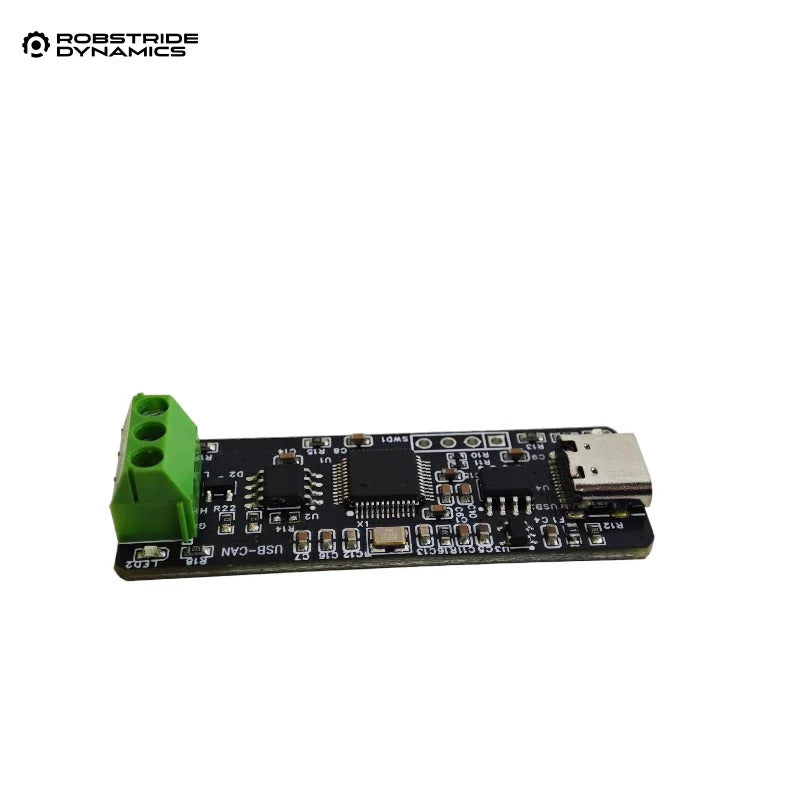

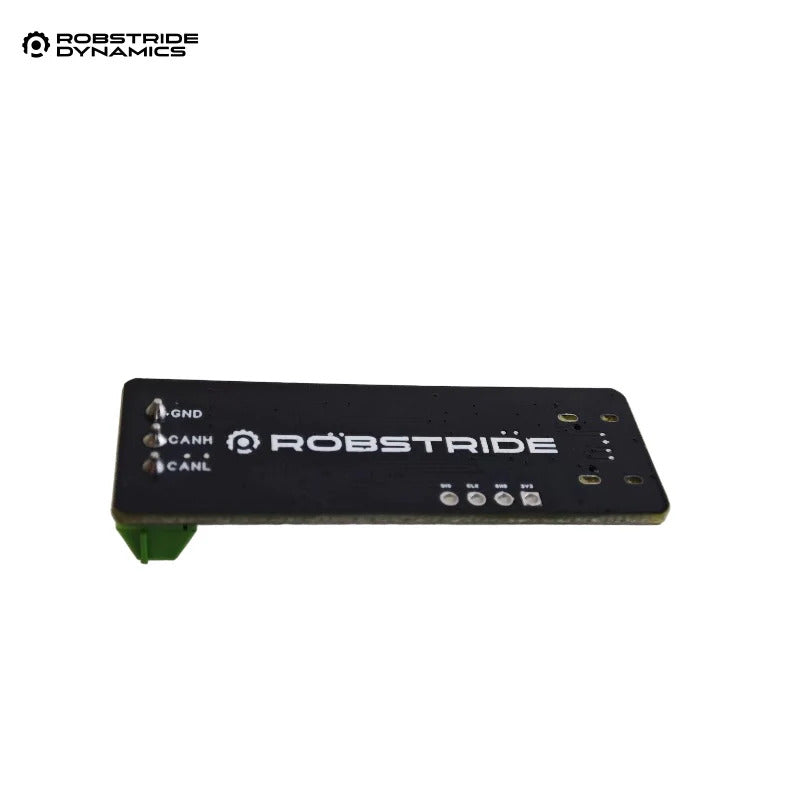

• Providing complete debug software, debug modules and routines

$225
Version

Care information
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

Free shipping. 12-Day delivery.

Application Scenarios
Humanoid Robots Robotic Arms Exoskeletons Quadruped Robots AGV Vehicles ARU Robots

Technical Specifications

Parameter Value
Model ROBSTRIDE 03
Rated Voltage 48 VDC
Operating Voltage Range 15–60 VDC
Rotation Direction CW / CCW
Dimensions 106 × 106 × 56 mm
Flange Mounting Hole Pattern 30.35 × 9 × 6 mm (M4)
Mounting Hole Pattern 98 × 8 × 8 mm (M4)
Weight 880 g ± 20 g

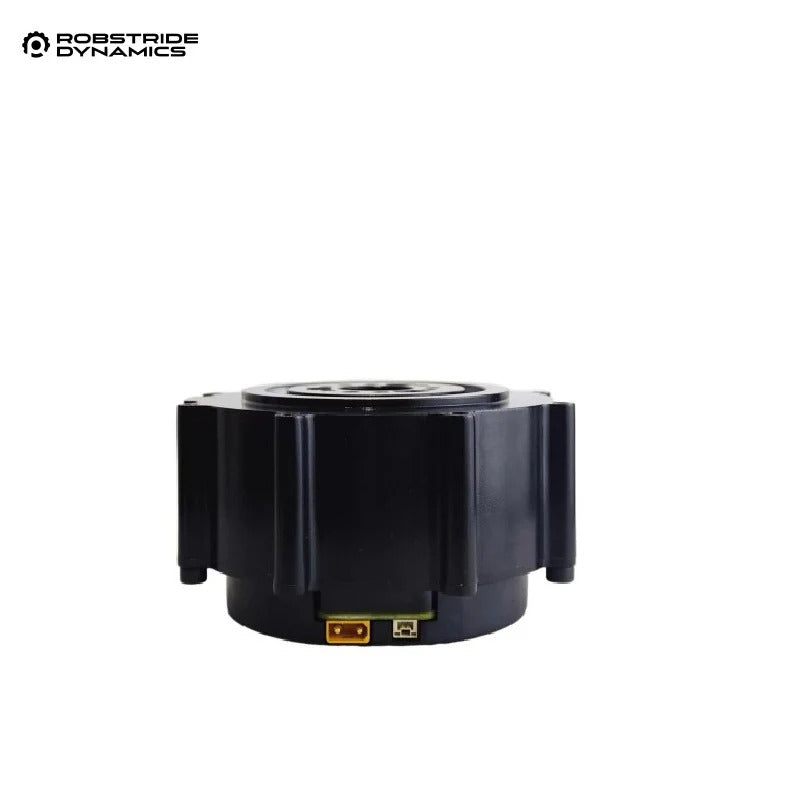

Electrical Connectors XT30 + GH1.25
Operating Temperature Range -20 °C to +50 °C
Operating Humidity Range 5% to 85% RH, non-condensing
Storage Temperature Range -30 °C to +70 °C
Insulation Class Class B
No-Load Speed 195 rpm ±10%
No-Load Current 0.6 Arms ±10%
Rated Torque 20 N·m
Rated Speed (at Rated Torque) 180 rpm ±10%
Phase Current at Rated Load (Peak) 12 Apk ±10%
Peak Torque 60 N·m
Maximum Phase Current (Peak) 43 Apk ±10%
Insulation Resistance (Stator Winding) DC 500VAC, 100 MΩ
Hi-Pot Test (Stator to Frame) 600VAC, 1s, 2mA
Motor Back-EMF Constant 17 Vrms/krpm ±10%
Torque Constant 2.36 N·m / Arms
Encoder Type Dual Encoders
Number of Encoders 2
Number of Poles 42
Number of Phases 3
Drive Method FOC
Gear Ratio 9:1
Terminal Resistance 0.39 Ω ±10%
Terminal Inductance 0.275 mH ±10%
