DEEP Robotics

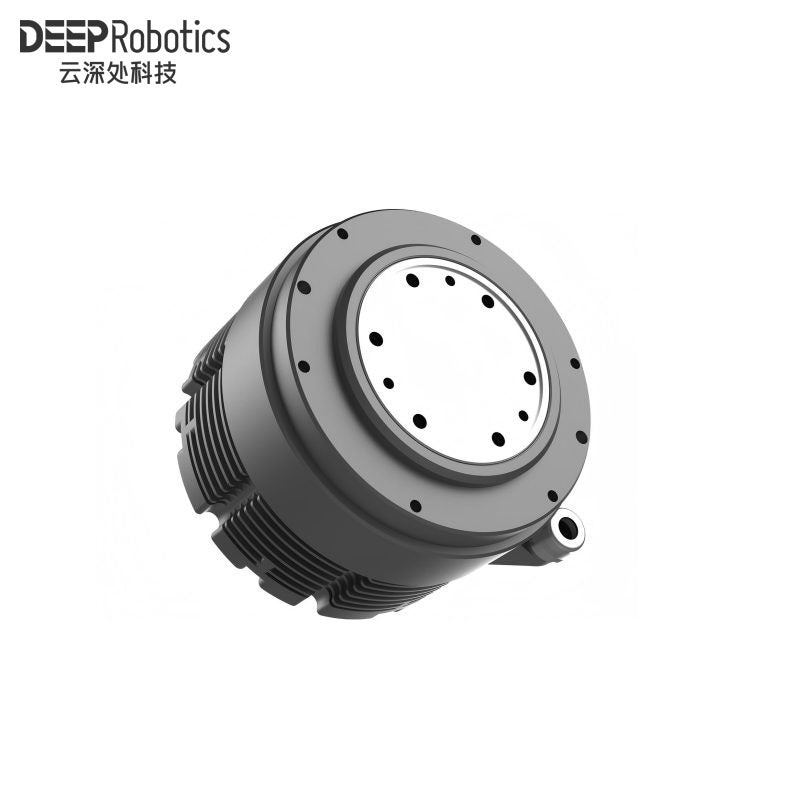

DEEP Robotics J100-64P Motor

  • DEEP Robotics robot servo motor for robot joints, actuator builds, and motion-control development.
  • Suitable for robotics research, automation projects, education labs, and prototype hardware integration.
  • Designed for engineering teams working on compact robot actuator and servo motor systems.
  • Supports robot hardware development where precise, integrated motion components are required.
$3,035
Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

DEEP Robotics J100-64P 3D CAD model for mechanical integration.stp ▶ DEEP Robotics J100-64P installation drawing for mounting reference.pdf ▶

DEEP Robotics J100-64P Motor

The DEEP Robotics J100-64P Motor is a DEEP Robotics motor for robotics development, robot joint integration, actuator platforms, automation prototypes, and engineering research systems.

Features

  • **Robotics integration:** Suitable for robot joints, compact actuators, and motion-control hardware.
  • **Engineering development:** Built for robotics developers, automation engineers, education labs, and prototype teams.
  • **Servo motor platform:** Useful for robot actuator assemblies where source specifications match the target design.
  • **Application range:** Supports robotics research, automation hardware, and robot development projects.

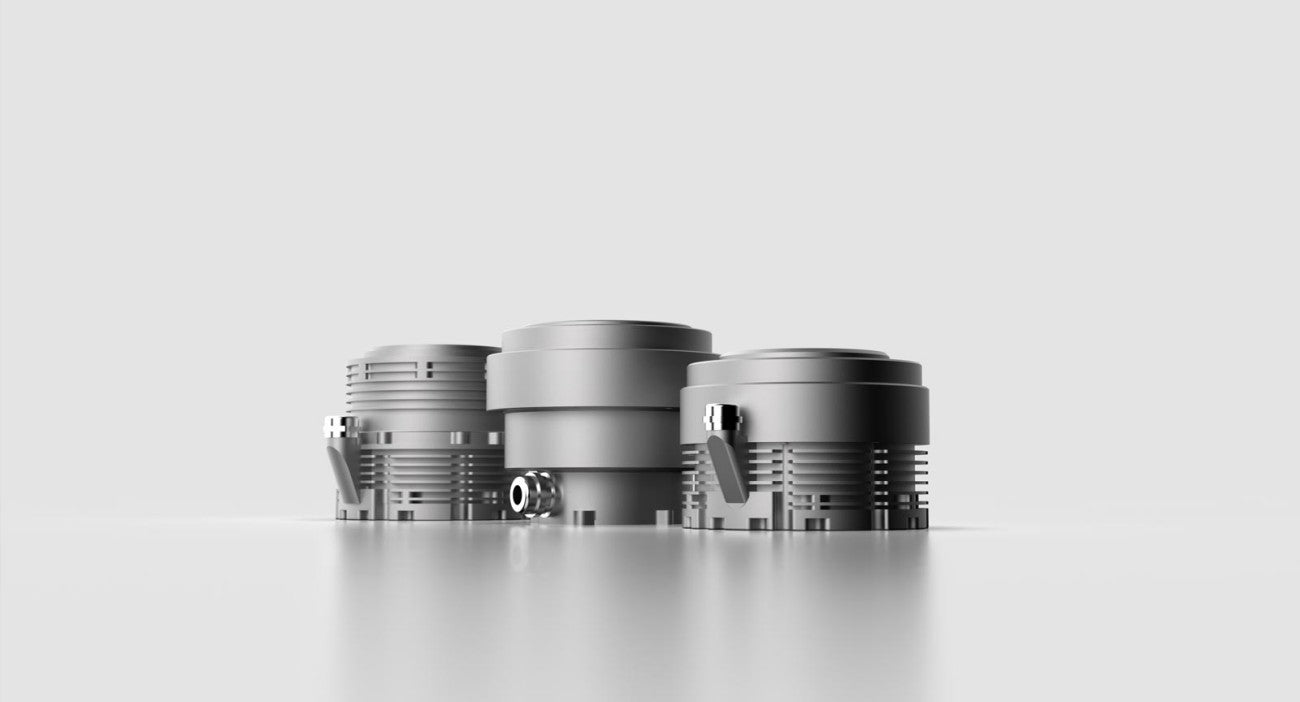

DEEP Robotics J100-64P Motor | Robot Servo Motor for Robotics Development detail image 1
DEEP Robotics J100-64P Motor | Robot Servo Motor for Robotics Development detail image 2

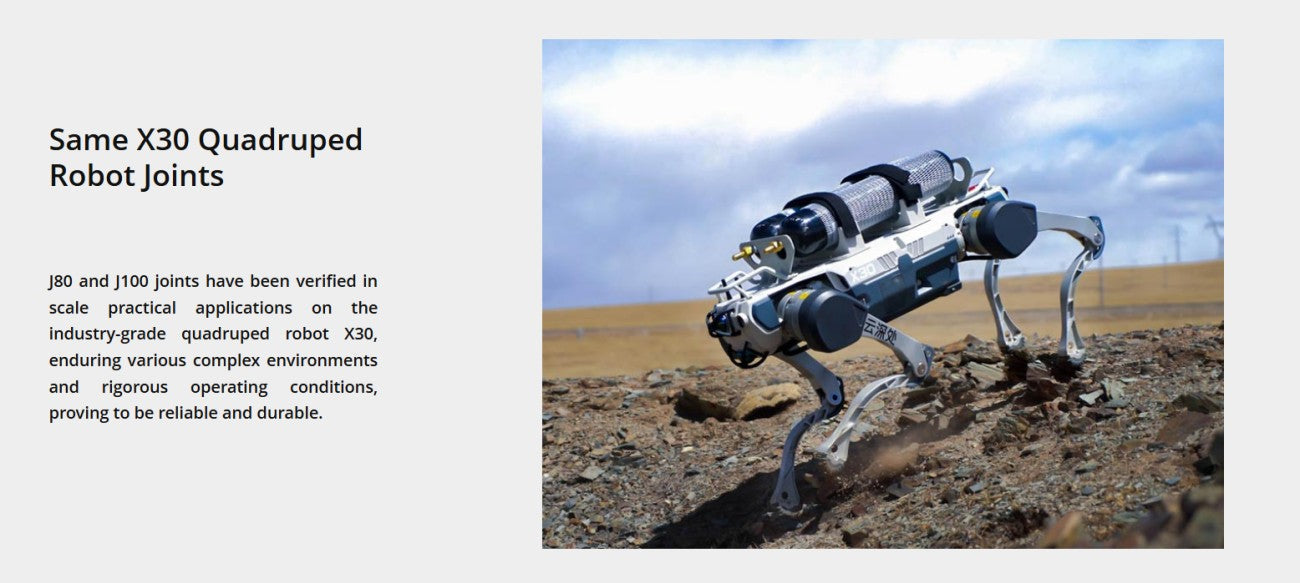

DEEP Robotics J100-64P Motor | Robot Servo Motor for Robotics Development detail image 3

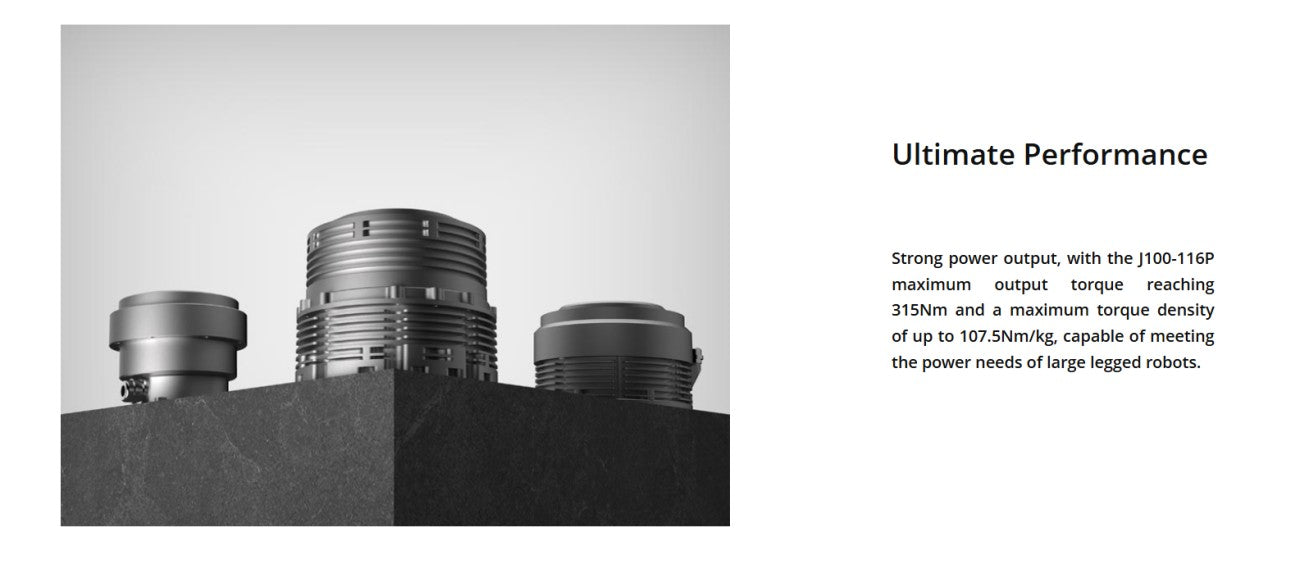

DEEP Robotics J100-64P Motor | Robot Servo Motor for Robotics Development detail image 4

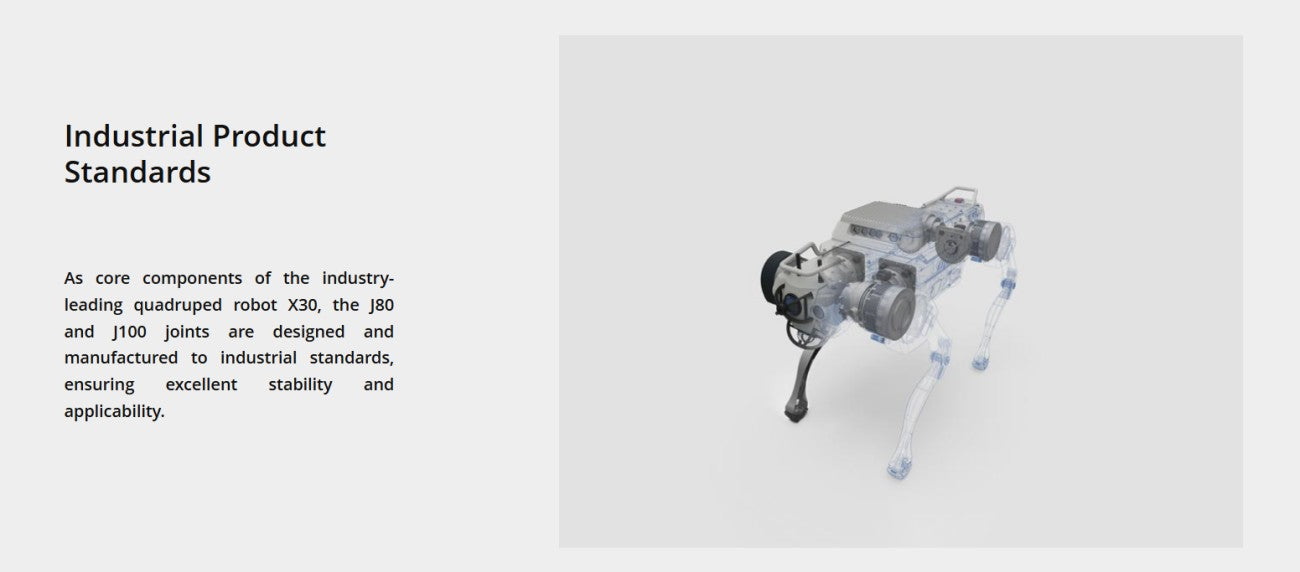

DEEP Robotics J100-64P Motor | Robot Servo Motor for Robotics Development detail image 5
DEEP Robotics J100-64P Motor | Robot Servo Motor for Robotics Development detail image 6

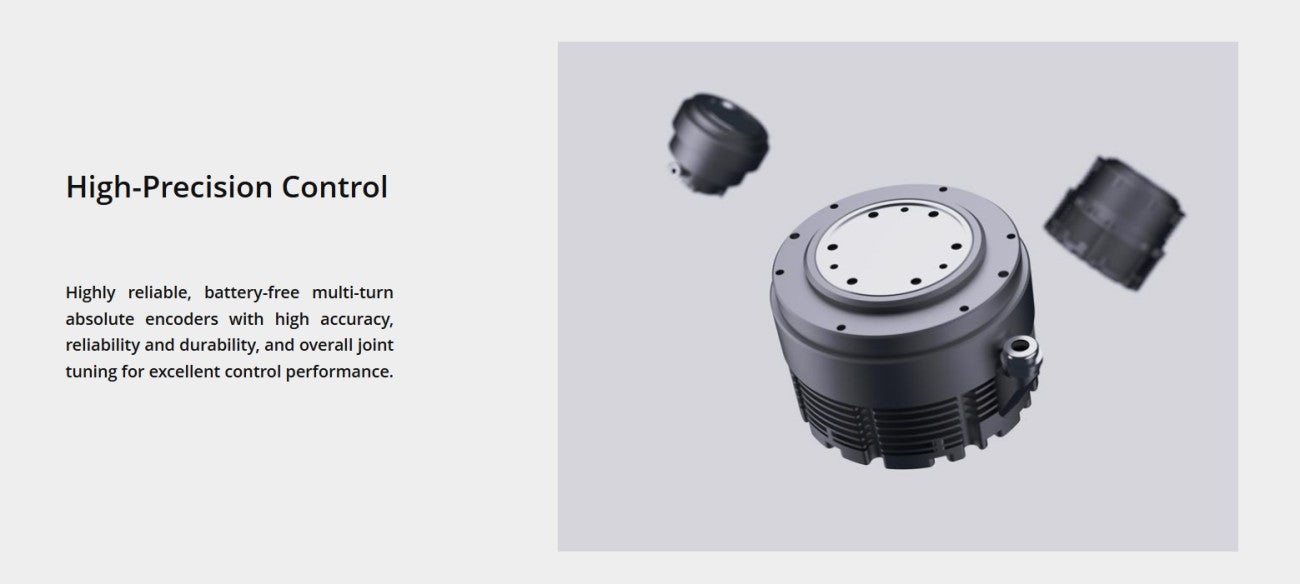

DEEP Robotics J100-64P Motor | Robot Servo Motor for Robotics Development detail image 7

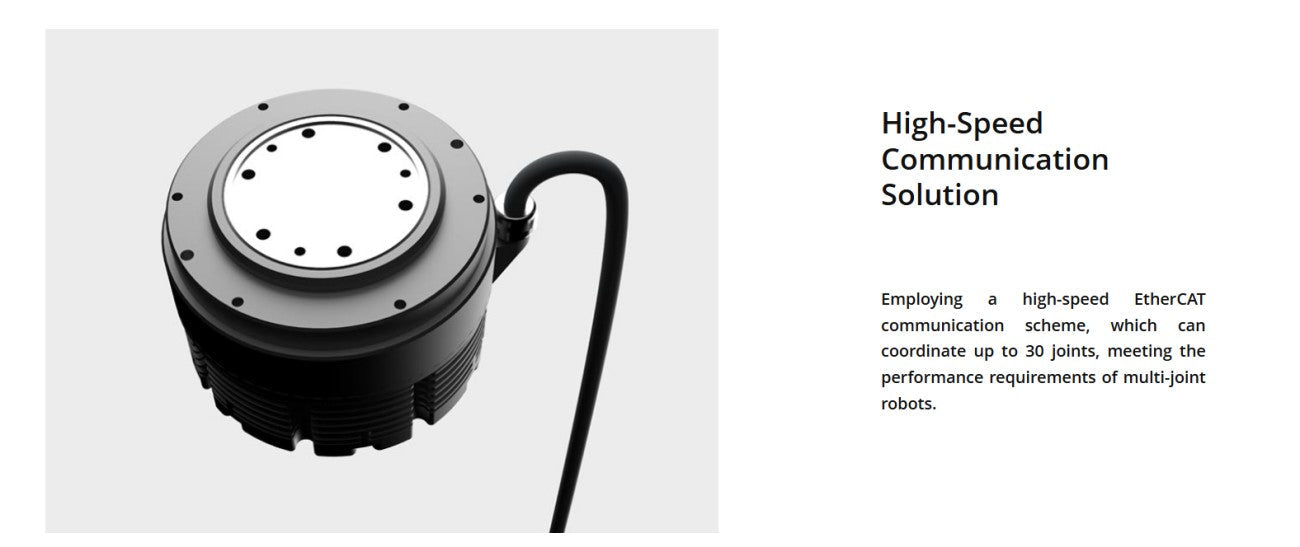

DEEP Robotics J100-64P Motor | Robot Servo Motor for Robotics Development detail image 8

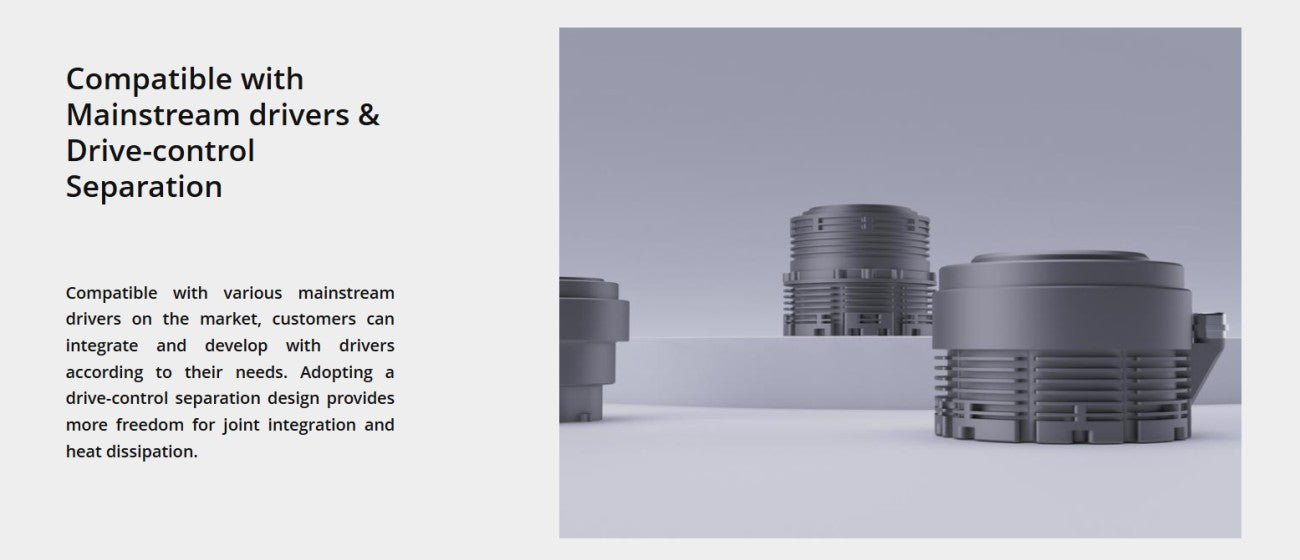

DEEP Robotics J100-64P Motor | Robot Servo Motor for Robotics Development detail image 9
Application Scenarios
Humanoid Robots Robotic Arms Exoskeletons Quadruped Robots AGV Vehicles ARU Robots
▤ PARAMETER ⌃
Weight
2.72kg
Dimensions (Outer Diameter × Height)
126mm×88mm
Rated Voltage
DC 72V
Operating Voltage Range
DC 28~95V
Rated Torque
65Nm
Maximum Torque
180Nm
Maximum Speed
18rad/s
Rated Current (rms)
13A
Maximum Current (rms)
43A
Joint Torque Coefficient
5Nm/Arms
Peak Torque Density
66.2Nm/kg
Motor Pole Pairs
14
Motor Line Resistance
0.34Ω
Motor Line Inductance
0.61mH
Encoder
Multi-turn absolute: single-turn 17-bit + multi-turn 16-bit
Encoder Communication
Biss C
Operating Environment Temperature
-40°C~55°C
Protection Class
IP67
