FAIRINO

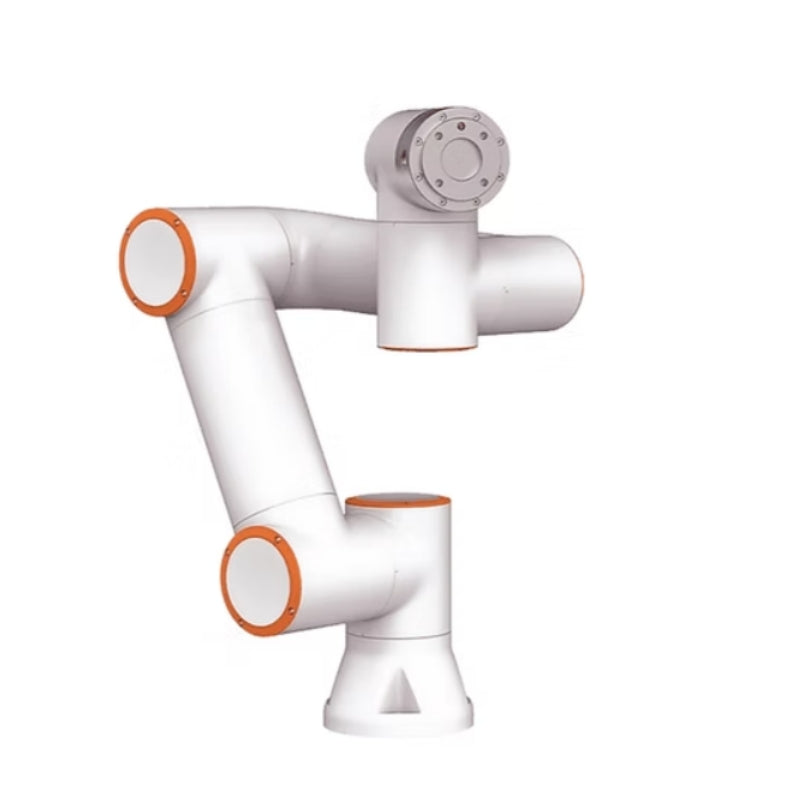

FAIRINO FR10 Collaborative Robot Arm

  • 10kg payload and 1400mm reach
  • 6-axis collaborative robot with ±0.05mm repeatability
  • 1.5m/s typical TCP speed with ±175° wrist motion
  • Suitable for machine tending, welding, material handling, assembly and inspection
$10,199

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

FAIRINO FR10 product overview, specification, technical drawings.pdf ▶

FAIRINO FR10 Collaborative Robot Arm

The FAIRINO FR10 is a 6-axis collaborative robot arm designed for industrial automation, material handling, machine tending, and other robotic applications. It provides a 10kg payload, 1400mm reach, and ±0.05mm pose repeatability according to ISO 9283.

10kg Payload and 1400mm Reach

FR10 combines a 10kg rated payload with a 1400mm working reach, making it suitable for automation tasks that require both payload capacity and extended workspace coverage. The robot has a typical TCP speed of 1.5m/s.

6-Axis Robot Arm

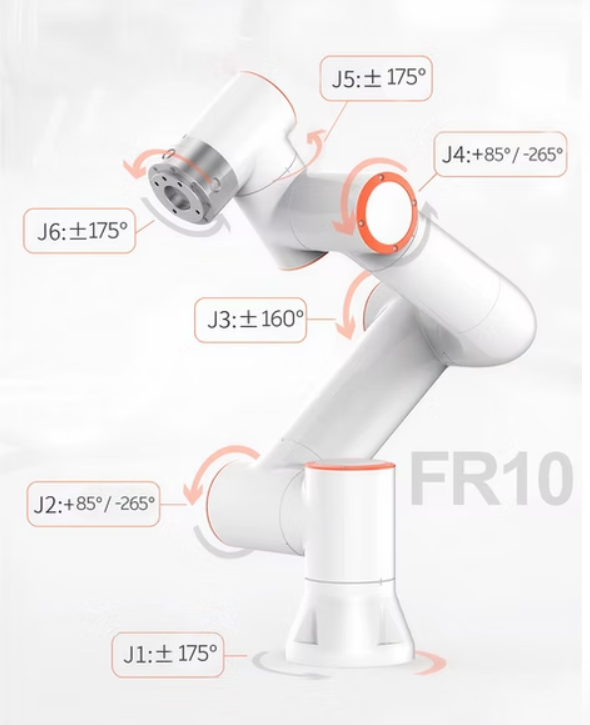

The FR10 uses a six-axis articulated configuration with defined working ranges across all six joints. Wrist 3 supports an optional ±360° working range, providing additional flexibility for applications requiring extended wrist rotation.

Flexible Industrial Integration

FR10 supports 10.1-inch teach pendant or mobile terminal Web App operation and provides integrated I/O interfaces, including digital, analog, and high-speed pulse inputs. The robot can be mounted in any orientation, allowing integration into different automation cell configurations.

Industrial Applications

FAIRINO positions the FR10 for applications including machine tending, welding, material handling, assembly, and inspection. Its 10kg payload and 1400mm reach provide a practical configuration for medium-payload industrial automation tasks

FAIRINO FR10 Collaborative Robot Arm
FAIRINO FR10 Collaborative Robot Arm
▤ FAIRINO FR10 Technical Specifications ⌃
FR10 Specifications
Specification FR10
Payload 10kg (Max: 14kg)
Reach 1400mm
Degrees of Freedom 6 rotating joints
HMI 10.1 inch teach pendant (Optional) or mobile terminal Web App
Pose Repeatability per ISO 9283 ±0.05mm
Base - Working Range ±175°
Base - Maximum Speed ±120°/s
Shoulder - Working Range +85° / -265°
Shoulder - Maximum Speed ±120°/s
Elbow - Working Range ±160°
Elbow - Maximum Speed ±180°/s
Wrist 1 - Working Range +85° / -265°
Wrist 1 - Maximum Speed ±180°/s
Wrist 2 - Working Range ±175°
Wrist 2 - Maximum Speed ±180°/s
Wrist 3 - Working Range ±175° (Optional ±360°)
Wrist 3 - Maximum Speed ±180°/s
Typical TCP Speed 1.5m/s
IP Classification IP54 (IP65 Optional)
Noise <65dB
Robot Mounting Any orientation
I/O Ports (DI) 2 (DO) 2 (AI) 1 (AO) 1
Tool I/O Power Supply 24V / 1.5A
Footprint 190mm
Weight ≈40kg
Operating Temperature 0~45°C
Operating Humidity 90%RH (non-condensing)
Materials Aluminium, Steel
Black Optional Yes
Power Test Payload Setting FR10 payload setting: 10kg, Z-axis: 60mm
Typical Average Power 300W
Typical Peak Power 500W
