FAIRINO

FAIRINO FR20 Collaborative Robot Arm

  • 20kg rated payload with 25kg maximum payload
  • 1854mm reach with 6-axis articulated configuration
  • 2m/s typical TCP speed and ±0.01mm ISO 9283 pose repeatability
  • Designed for palletizing, machine tending, heavy pick-and-place, assembly, inspection and packaging
$15,499

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

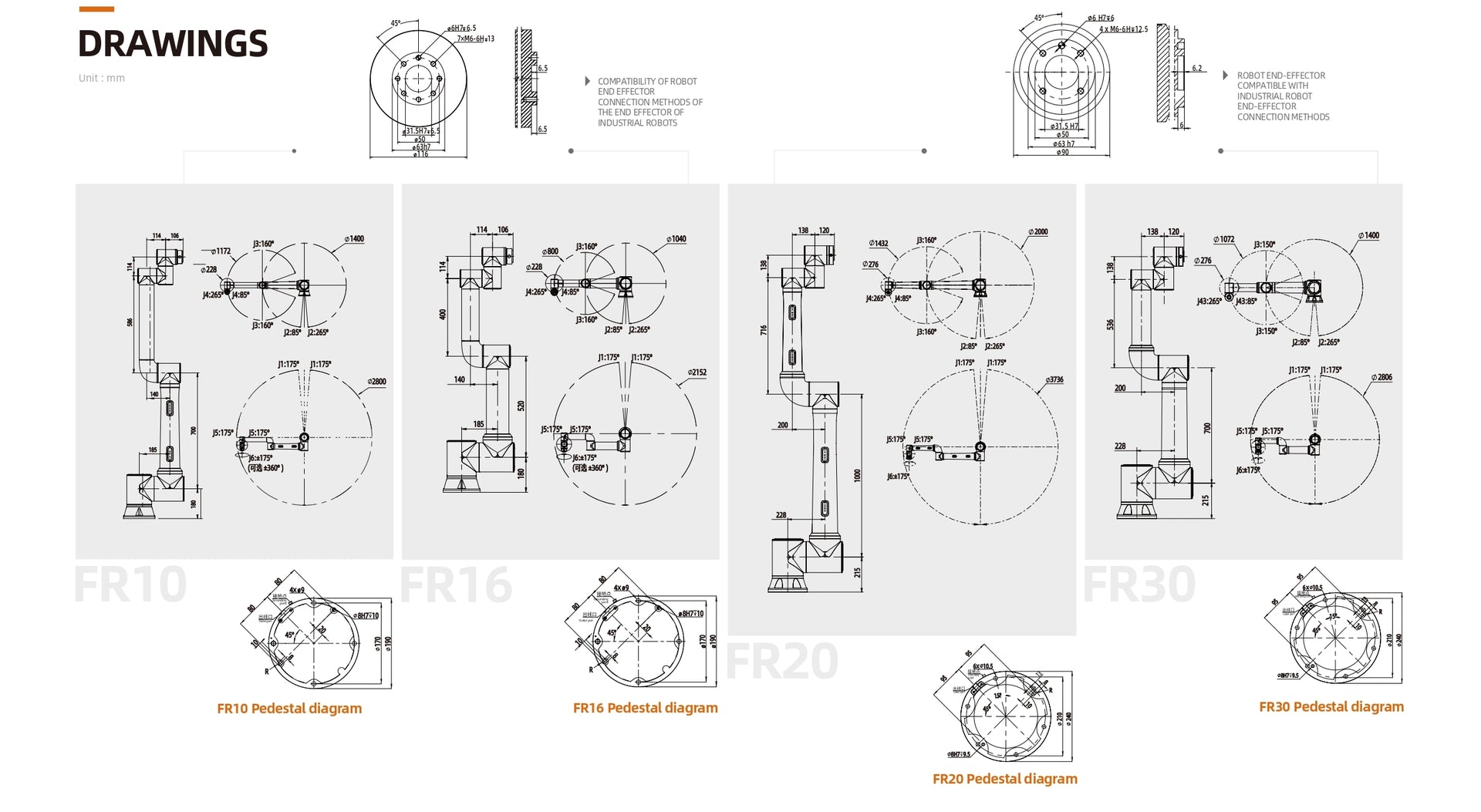

FAIRINO FR20 product overview, specification, technical drawings.pdf ▶

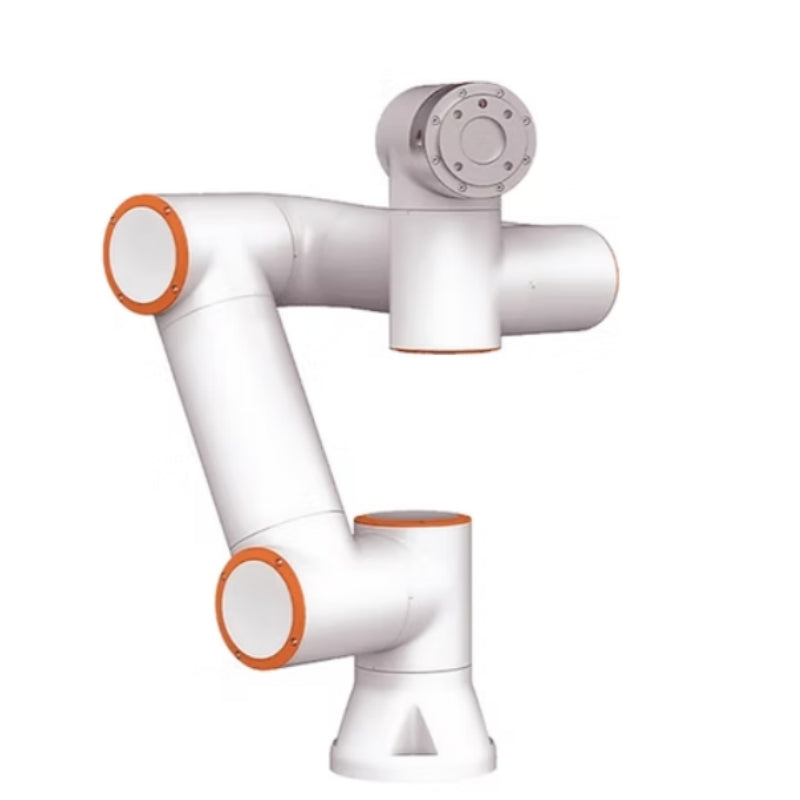

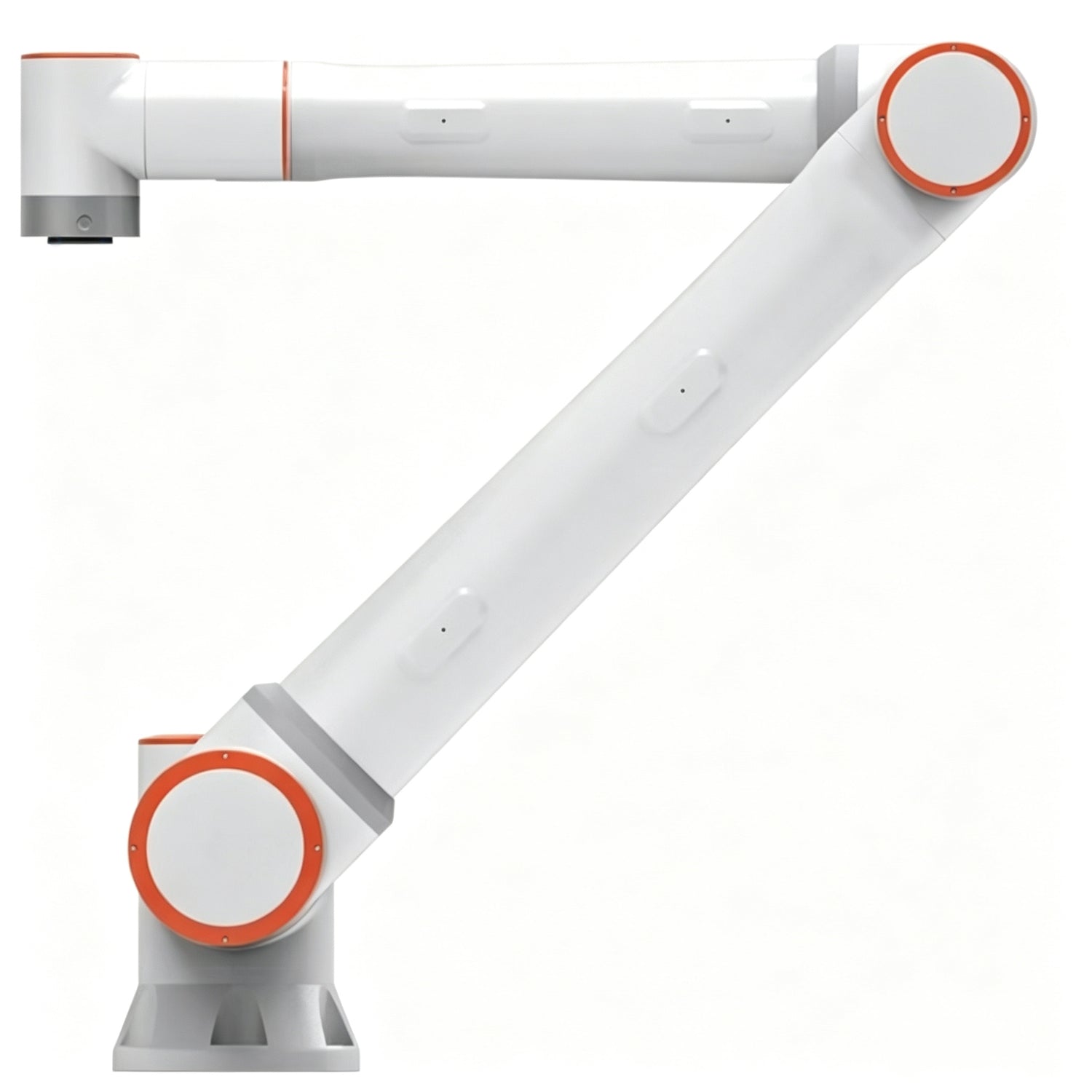

FAIRINO FR20 Collaborative Robot Arm

The FAIRINO FR20 is a 6-axis collaborative robot designed for automation applications requiring a combination of higher payload capacity and extended working reach. It provides a 20kg rated payload, 25kg maximum payload, and 1854mm reach, making it suitable for a range of material handling and industrial automation tasks.

20kg Payload and Long Reach

With a rated payload of 20kg and a working reach of 1854mm, the FR20 is designed for applications involving heavier workpieces and larger working areas. Its typical TCP speed is specified at 2m/s.

6-Axis Collaborative Robot

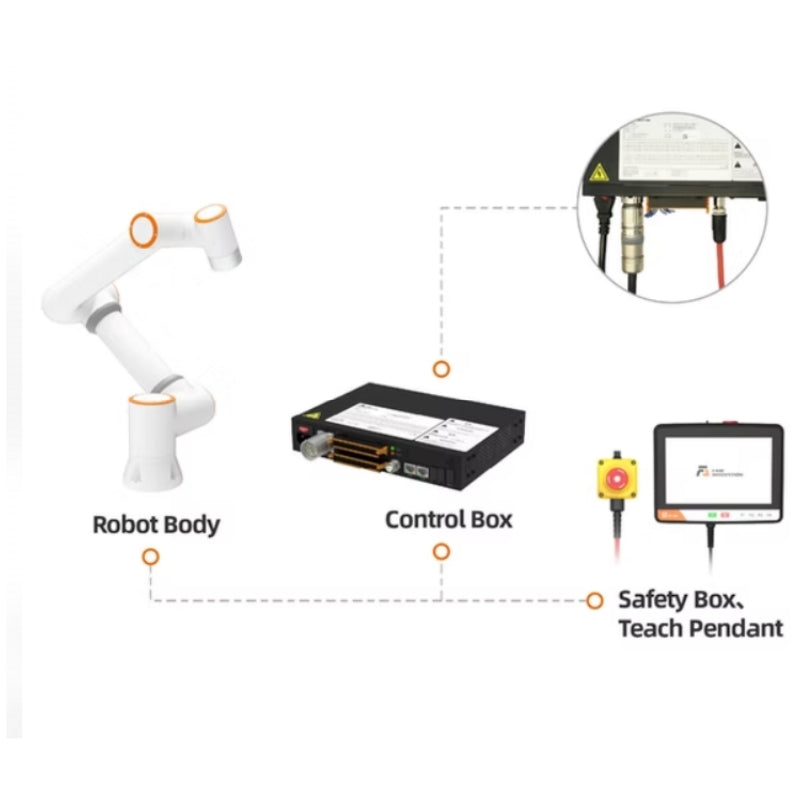

The FR20 features six rotating joints with defined motion ranges across the base, shoulder, elbow and wrist axes. The robot supports a 10.1-inch teach pendant or mobile terminal Web App, providing options for programming and operation.

Flexible Industrial Integration

FR20 supports any-orientation mounting, with digital and analog I/O as well as high-speed pulse inputs for integration with automation equipment. Standard protection is IP54, with IP65 available as an option according to FAIRINO's specifications.

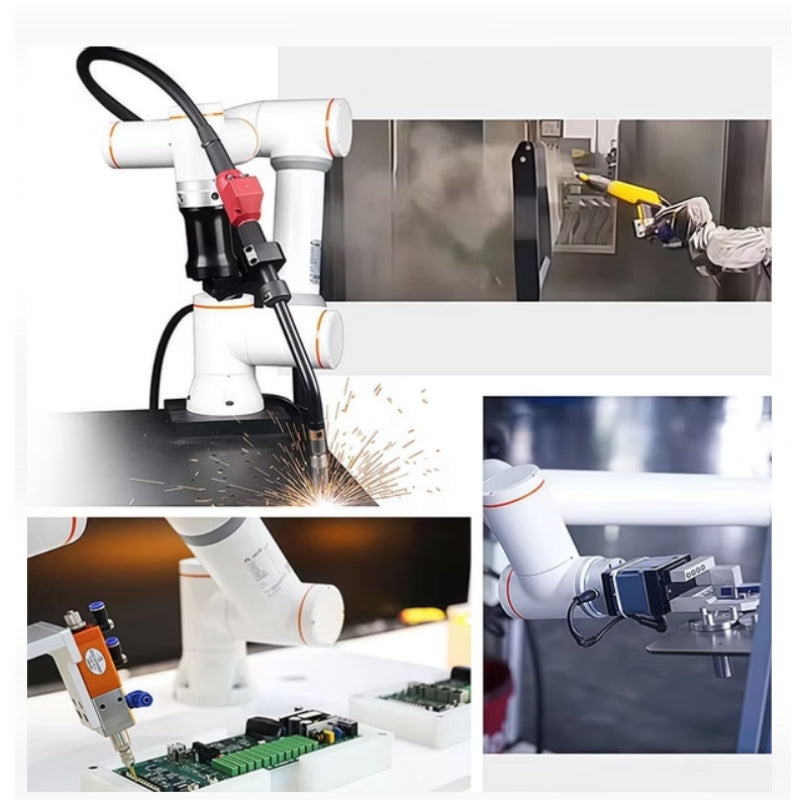

Applications

FAIRINO positions the FR20 for applications including palletizing, large machine tending, heavy pick-and-place, assembly, inspection, packaging and other automation tasks

FAIRINO FR20 Collaborative Robot Arm
FAIRINO FR20 Collaborative Robot Arm
▤ FR20 Specifications ⌃
Robot Arm Technical Specifications
Specification FR20
Payload 20kg (Max: 25kg)
Reach 1854mm
Degrees of Freedom 6 rotating joints

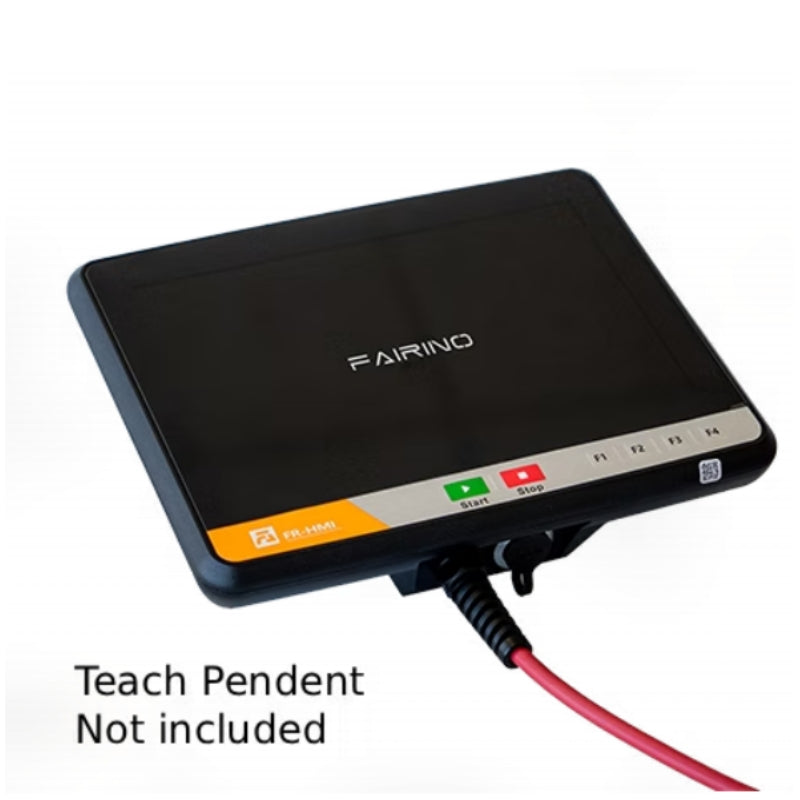

HMI 10.1 inch teach pendant (Optional) or mobile terminal Web App
Pose Repeatability per ISO 9283 ±0.1mm

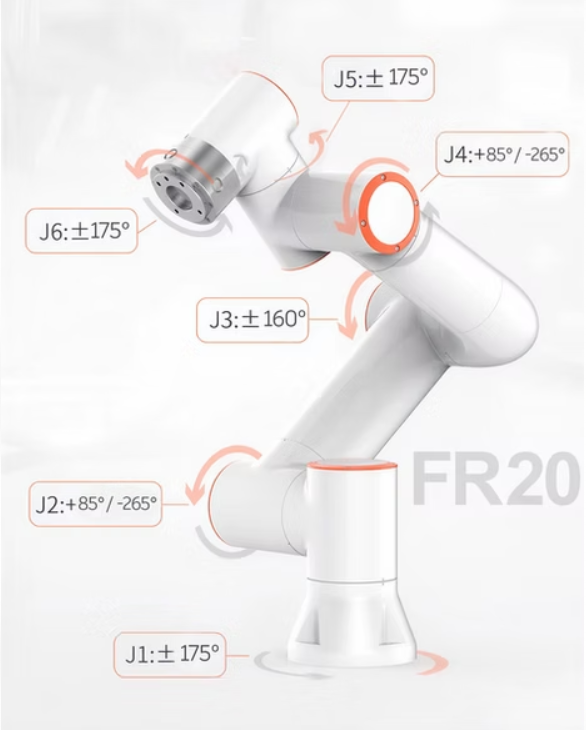

Base Working Range ±175°
Base Maximum Speed ±120°/s
Shoulder Working Range +85° / -265°
Shoulder Maximum Speed ±120°/s
Elbow Working Range ±160°
Elbow Maximum Speed ±120°/s
Wrist 1 Working Range +85° / -265°
Wrist 1 Maximum Speed ±120°/s
Wrist 2 Working Range ±175°
Wrist 2 Maximum Speed ±180°/s
Wrist 3 Working Range ±175° (Optional ±360°)
Wrist 3 Maximum Speed ±180°/s
Typical TCP Speed 2m/s
IP Classification IP54 (IP65 Optional)
Noise <70dB
Robot Mounting Any orientation
Digital Input / Output (DI) 2 / (DO) 2
Analog Input / Output (AI) 1 / (AO) 1
Tool I/O Power Supply 24V / 1.5A
Footprint 240mm
Weight ≈85kg
Operating Temperature 0 ~ 45°C
Operating Humidity 90%RH (non-condensing)
Materials Aluminium, Steel
Black Optional no
Payload Setting for Power Test FR20 payload setting: 20kg, Z-axis: 120mm
Typical Average Power 620W
Typical Peak Power 810W
