SLAMTEC

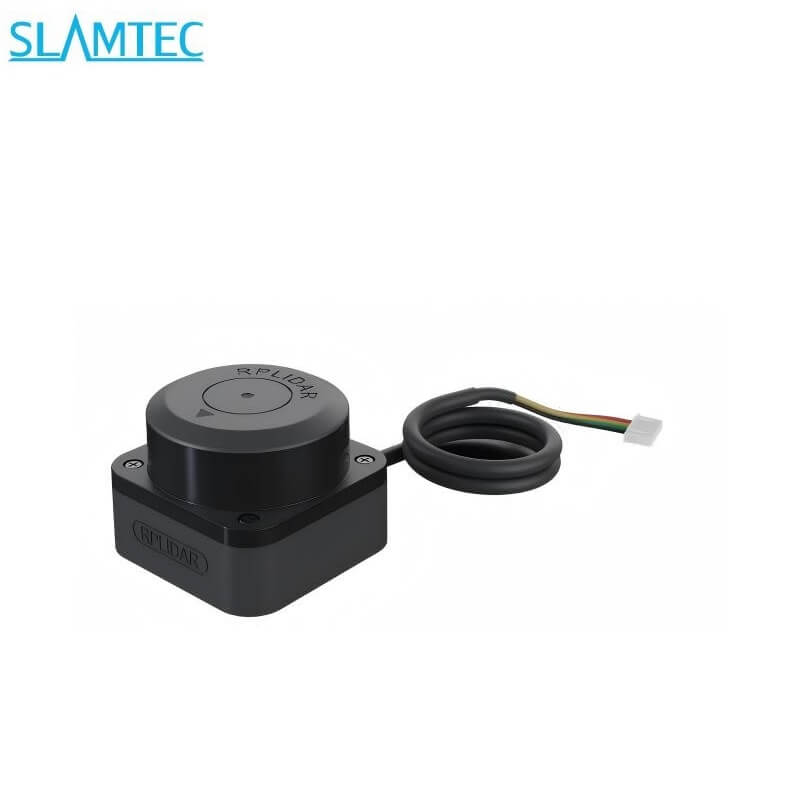

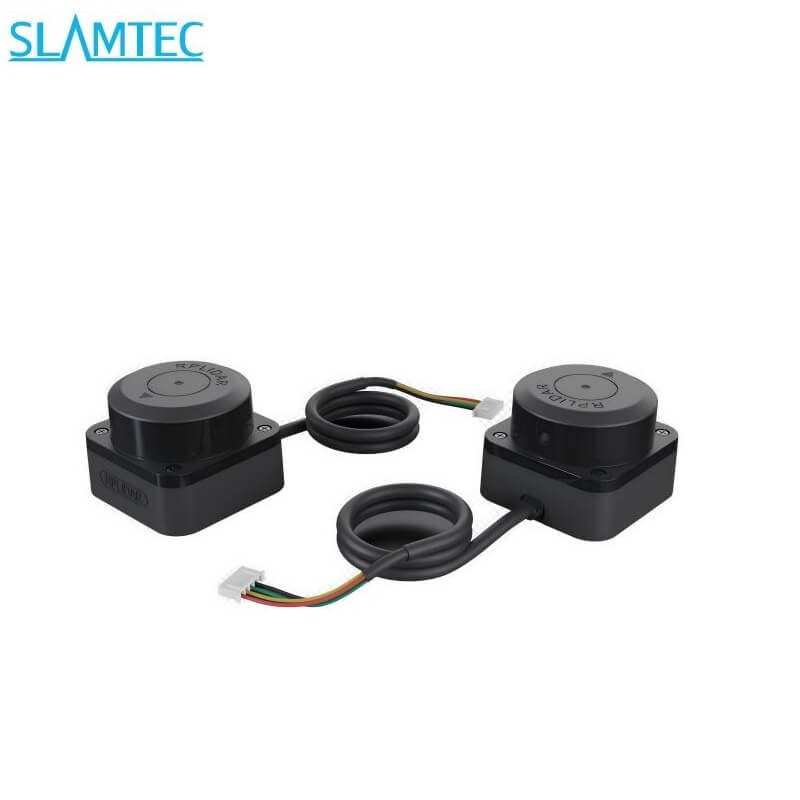

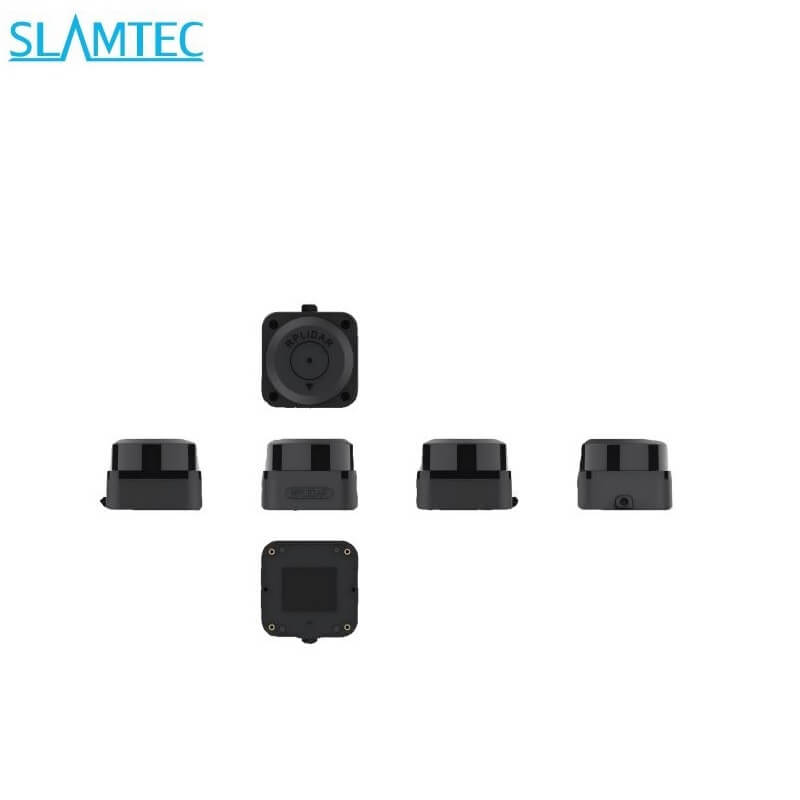

SLAMTEC RPLIDAR C1 LiDAR | Robot LiDAR Sensor for Robotics & Mapping

  • Model: SLAMTEC RPLIDAR C1
  • Suitable for mobile robots, autonomous platforms, robotics research, education labs, and mapping systems.
  • Designed for robot perception workflows that need reliable ranging, localization, and environmental sensing.
  • Useful for developers building SLAM, obstacle detection, navigation, and robotics automation applications.
$90
Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

SLAMTEC RPLIDAR C1 LiDAR CAD model for mechanical integration.stp ▶ SLAMTEC RPLIDAR C1 LiDAR user manual for setup and integration.pdf ▶ SLAMTEC RPLIDAR C1 LiDAR datasheet with technical specifications.pdf ▶
SLAMTEC RPLIDAR C1 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 1
SLAMTEC RPLIDAR C1 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 2

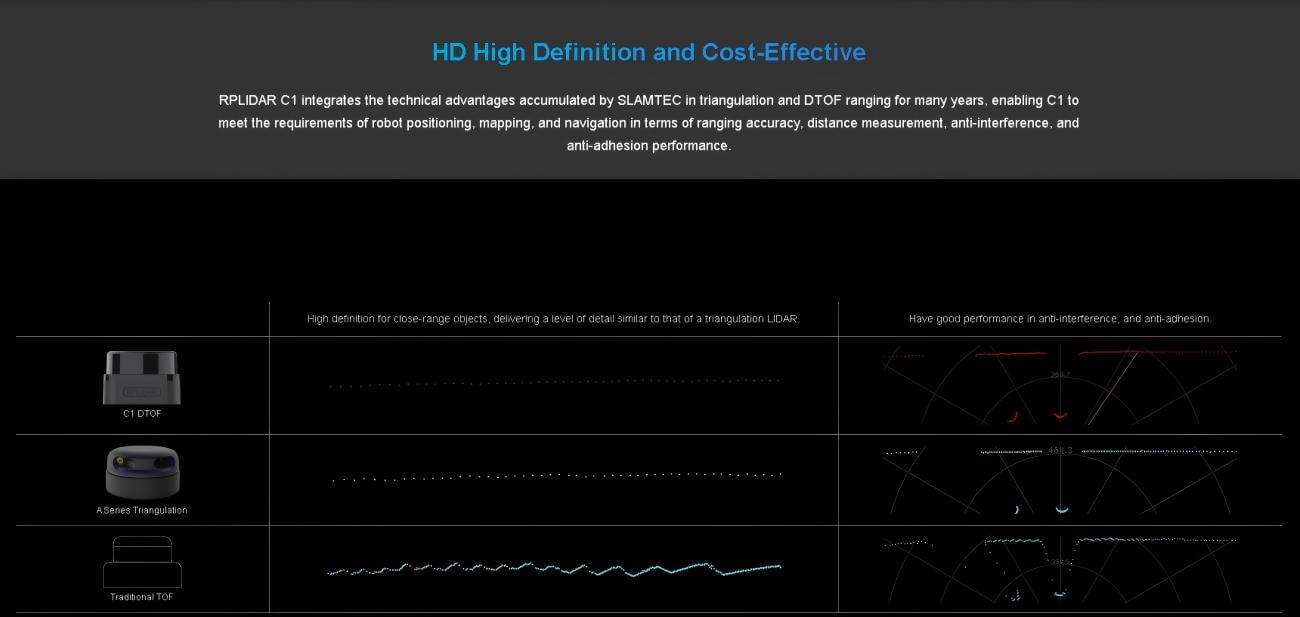

SLAMTEC RPLIDAR C1 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 3

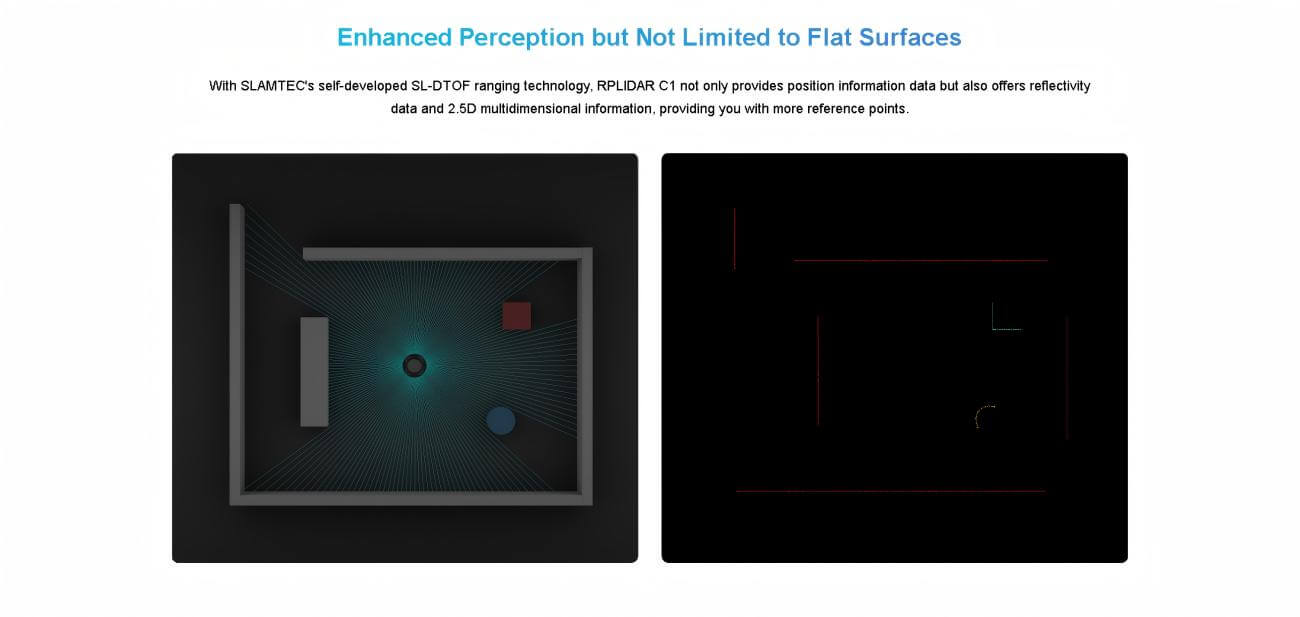

SLAMTEC RPLIDAR C1 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 4

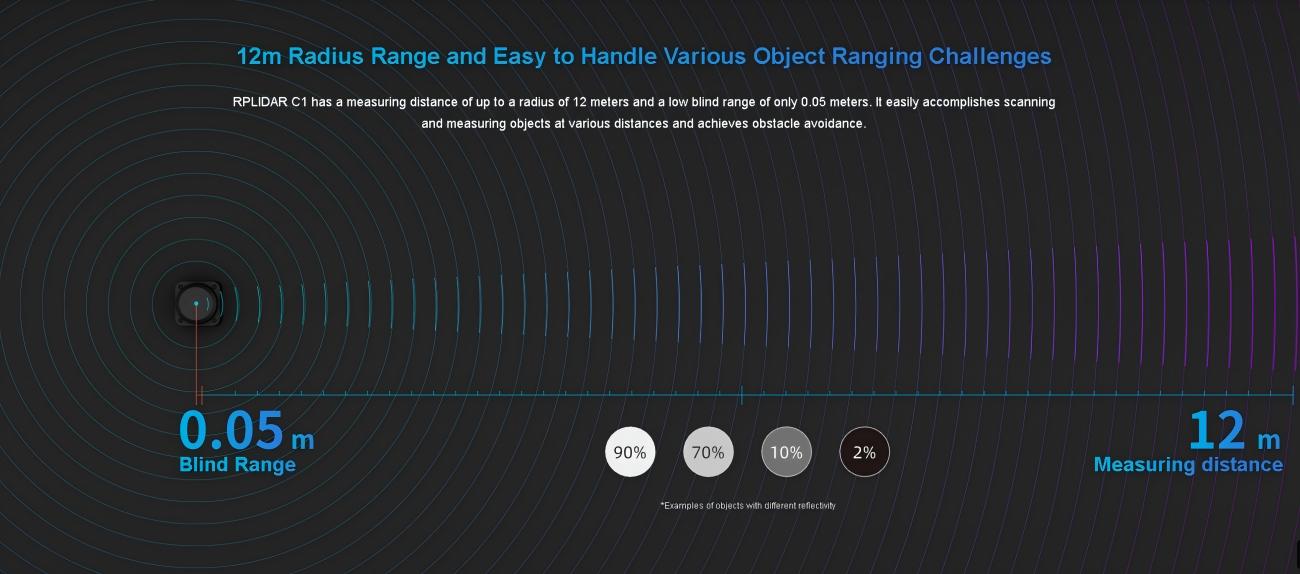

SLAMTEC RPLIDAR C1 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 5

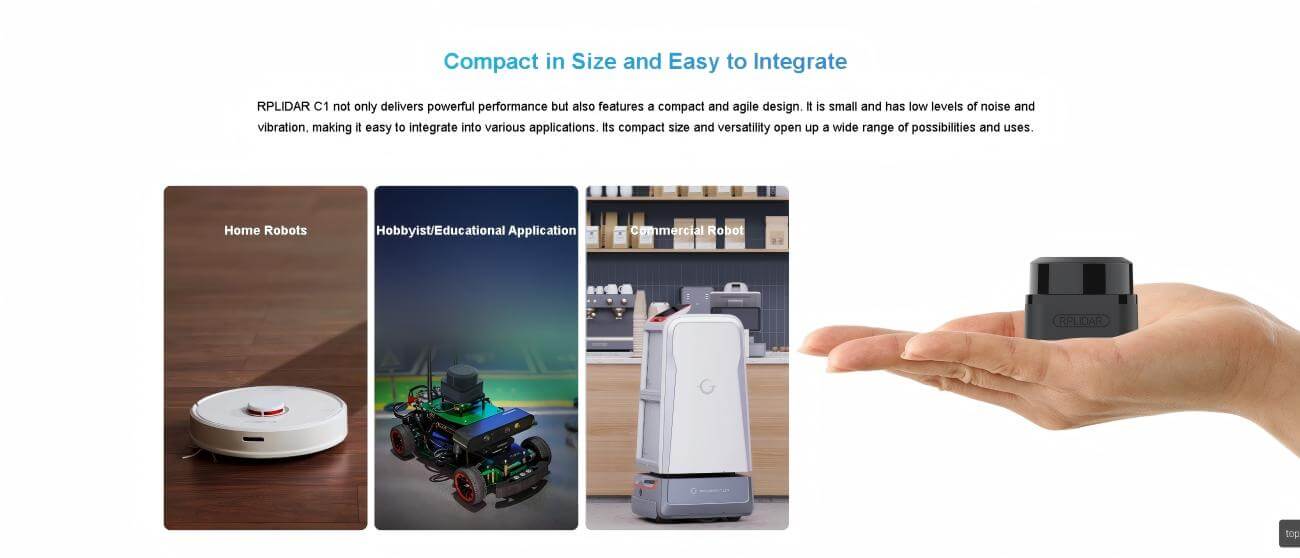

SLAMTEC RPLIDAR C1 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 6

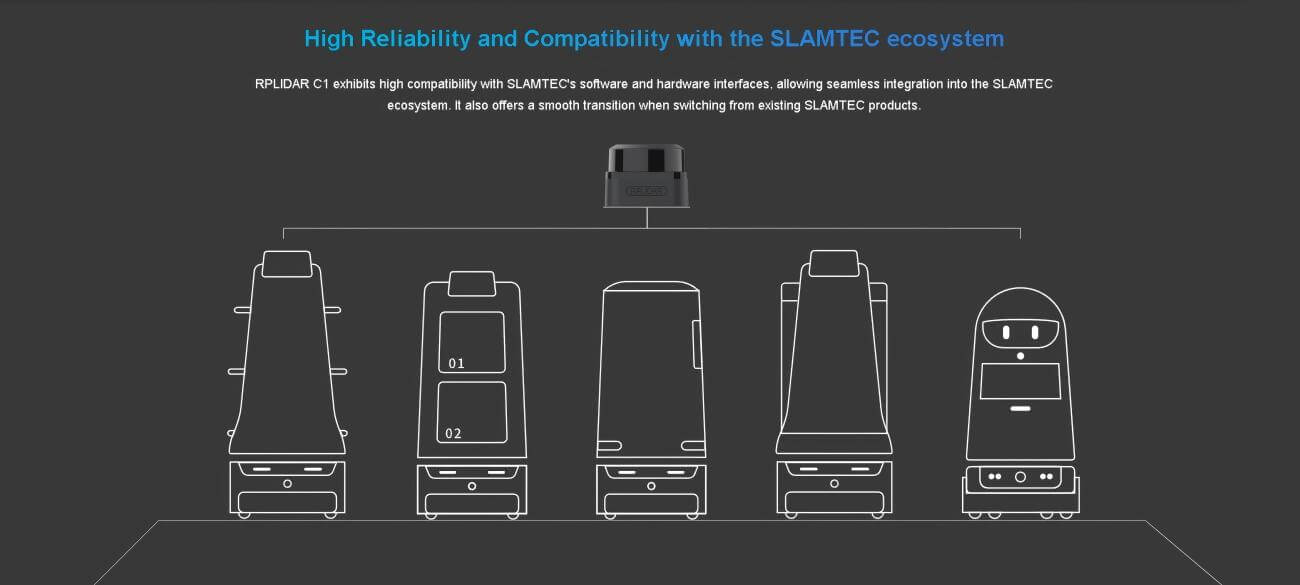

SLAMTEC RPLIDAR C1 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 7
SLAMTEC RPLIDAR C1 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 8
SLAMTEC RPLIDAR C1 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 9
SLAMTEC RPLIDAR C1 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 10
▤ PARAMETER ⌃
Model
SLAMTEC RPLIDAR C1
Distance Range
White object: 0.05-12 meters (under 70% reflection)
Distance Range
Black object: 0.05-6 meters (under 10% reflection)
Scan Field Flatness
0°~1.5° (can be customized)
Sample Rate
5KHz
Scanning Frequency
8~12Hz, 10Hz@typical
Angular Resolution
0.72°@typical
Communication Interface
TTL UART
Communication Speed
460800
Accuracy
±30mm*
Resolution
15mm*
Degree of Protection
IP54
Ambient Light Limit
40,000lux
Working Wavelength
895-915nm
Laser Power
20W
Pulse Length
1.4ns
Laser Safety Class
IEC-60825 Class 1
Power Voltage
4.8—5.2V
Power Voltage Ripple
150mV(Max)
System Start Current
800mA
Power Current
230mA
Weight
110g
Working Temperature Range
-10—40ºC
Storage Temperature Range
-20—60ºC
