ROBSTRIDE

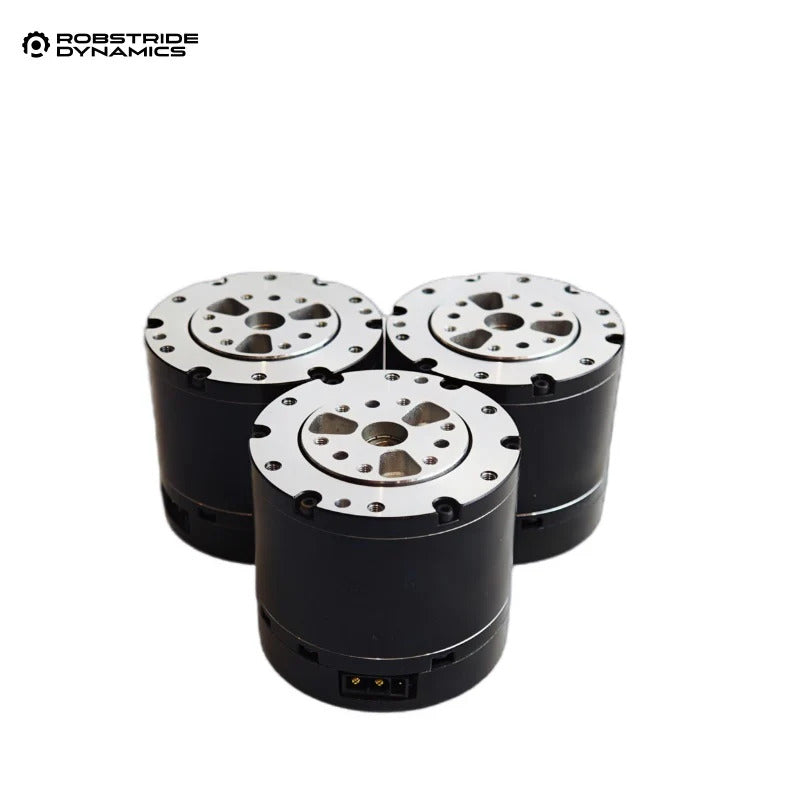

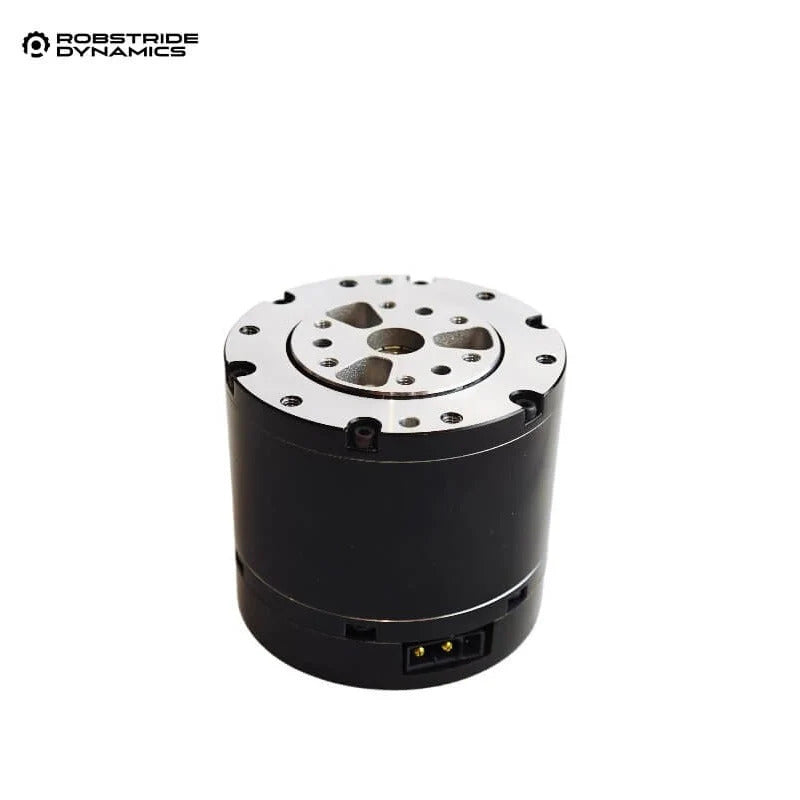

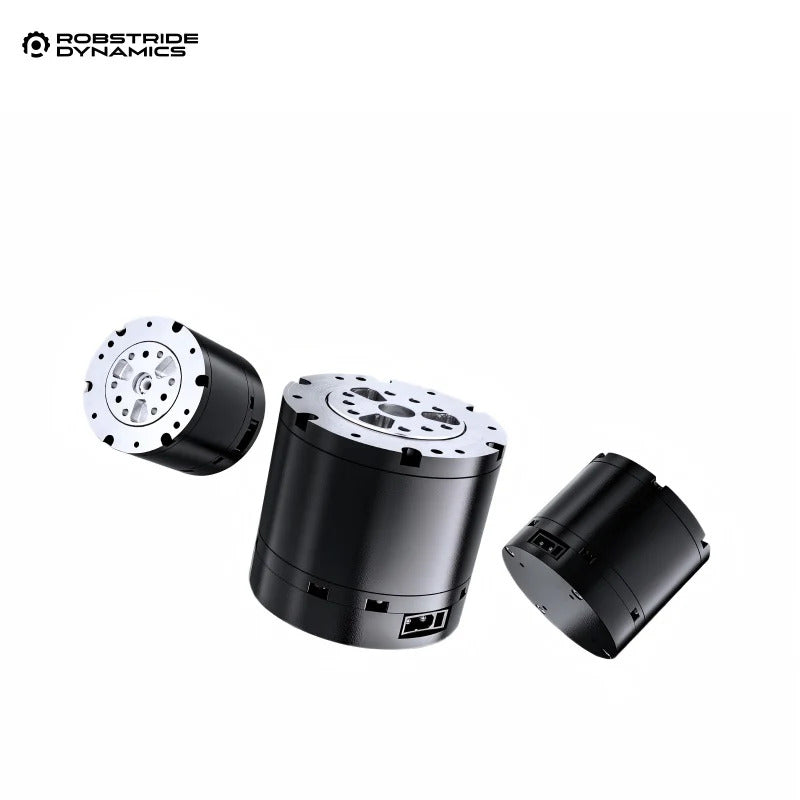

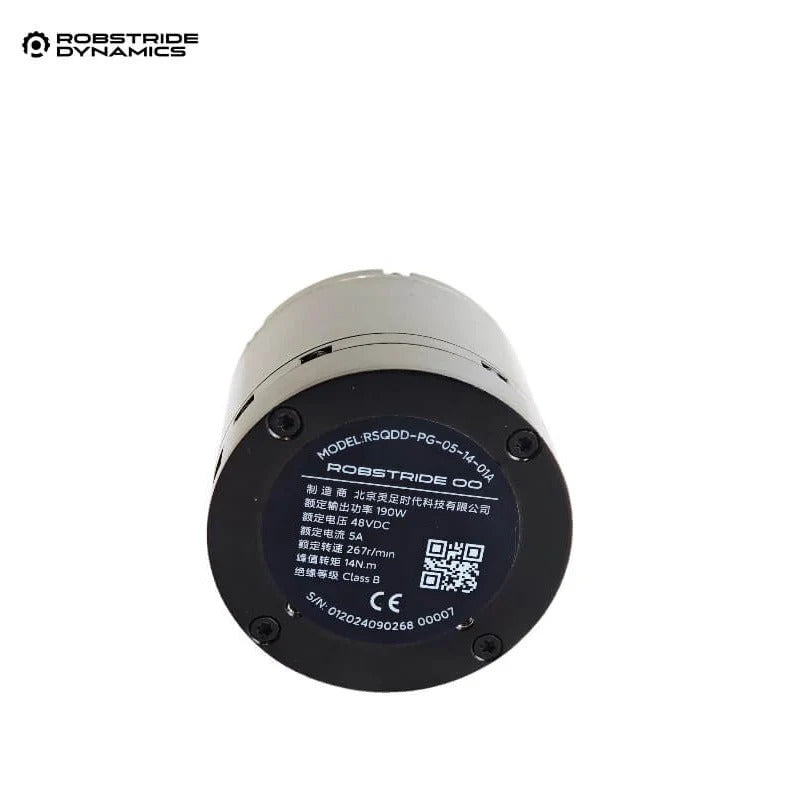

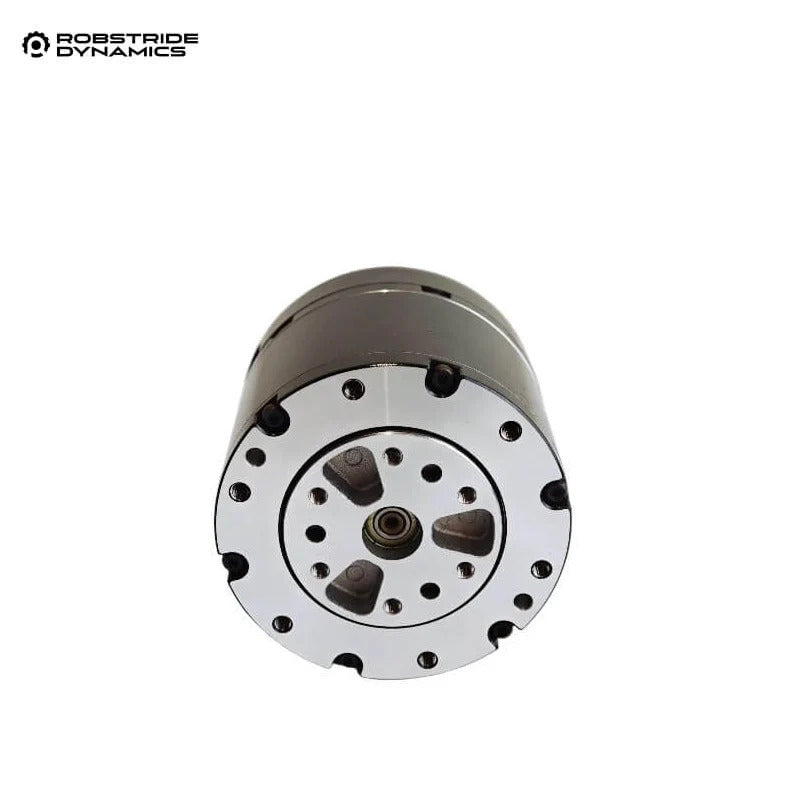

RobStride 00 QDD Motor Actuator | High Torque Robot Servo Motor

• Ideal for humanoid robots, robotic arms, and QDD actuator systems
• Integrated Robot Servo Motor design with motor, reducer, and driver in one compact module
• Delivers up to 14Nm peak torque for high-load robotic joint applications
• High-precision closed-loop control system ensures stable robotic motion performance
• Built-in temperature control algorithm for reliable long-duration operation
• Supports advanced robot actuator development with debugging software and tools
$125
Version

Care information
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

Free shipping. 12-Day delivery.

Application Scenarios
Humanoid Robots Robotic Arms Exoskeletons Quadruped Robots AGV Vehicles ARU Robots

Technical Specifications

Parameter Value
Model ROBSTRIDE 00
Rated Voltage 48 VDC
Operating Voltage Range 24 VDC – 60 VDC
Rated Torque (CW) 5 N·m
Rotation Direction CW / CCW
Dimensions 57 mm × 57 mm × 51 mm
Weight 310 g ± 3 g
Standard Operating Temperature 25 °C ± 5 °C
Operating Temperature Range -20 °C to +50 °C
Standard Operating Humidity 65% RH
Operating Humidity Range 5% to 85% RH, non-condensing
Storage Temperature Range -30 °C to +70 °C
Insulation Class Class B
No-Load Speed 315 rpm ±10%
No-Load Current 0.5 A RMS
Rated Torque 5 N·m
Rated Speed (at Rated Torque) 260 rpm ±10%
Phase Current at Rated Load (Peak) 4.7 A pk ±10%
Peak Torque 14 N·m
Maximum Phase Current (Peak) 15.5 A pk ±10%
Insulation Resistance (Stator Winding) 100 MΩ min @ 500 VDC
Hi-Pot Test (Stator to Frame) 600 VAC, 1 sec, 2 mA max leakage
Motor Back-EMF Constant 9.5 V RMS / kRPM ±10%
Torque Constant 1.48 N·m / A RMS
CAN Bus Bit Rate 1 Mbps
Encoder Resolution 14-bit (Single-Turn Absolute)
Encoder Type Magnetic Encoder
Number of Encoders 2
Wiring Method One input / one output
Number of Poles 28
Number of Phases 3
Drive Method FOC
Gear Ratio 10:1
