FAIRINO

FAIRINO FR5 Series Collaborative Robot Arm

  • FR5, FR5-C and FR5-WML configurations for different payload and reach requirements
  • 5kg rated payload and 922mm reach
  • 6-axis collaborative robot design with ±0.02mm repeatability
  • Suitable for machine tending, welding, pick & place, assembly, inspection and packaging
$7,999
version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

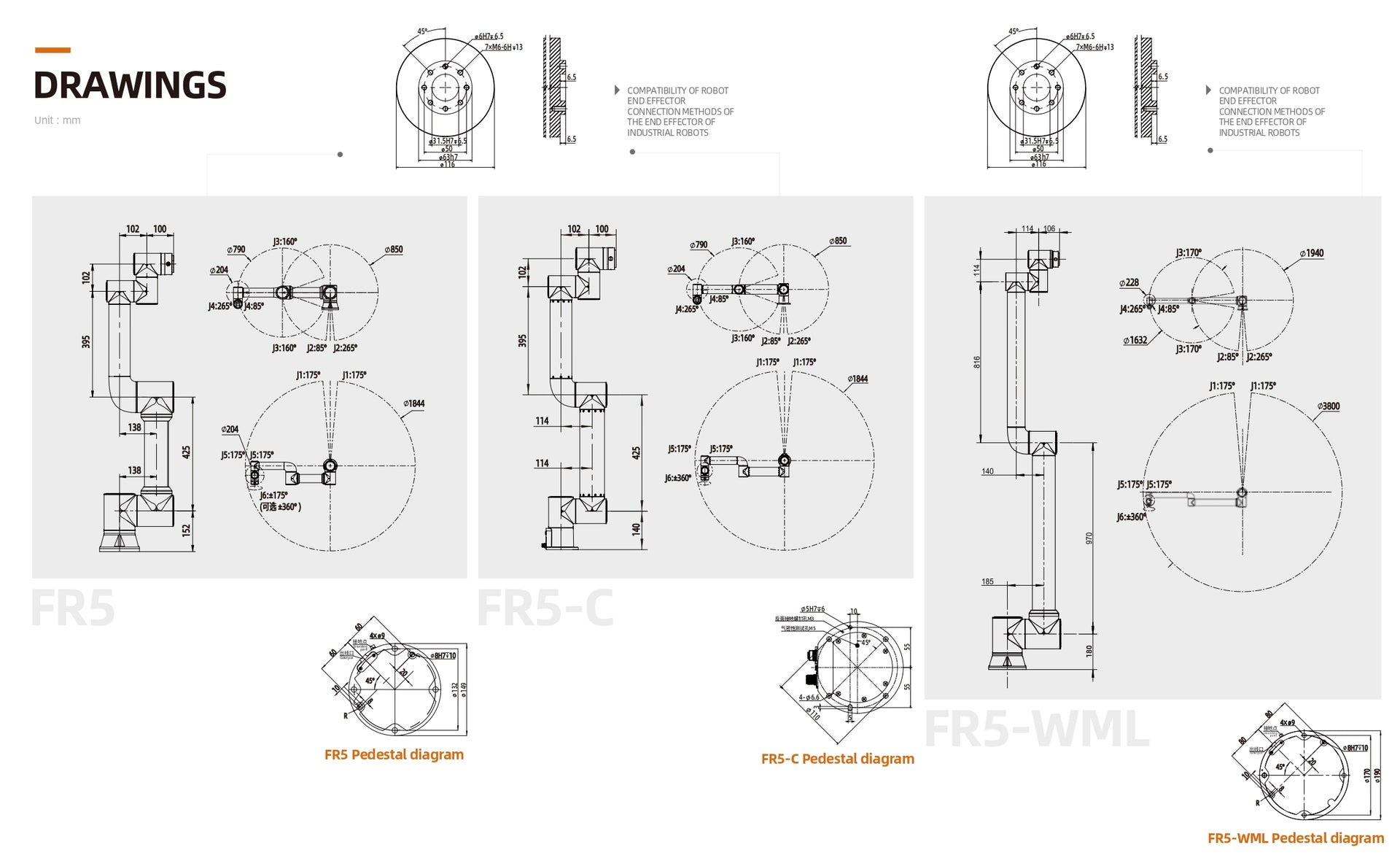

FAIRINO FR5 Series product overview, specification, technical drawings.pdf ▶

FAIRINO FR5 Series Collaborative Robot Arm

The FAIRINO FR5 Series is a family of 6-axis collaborative robot arms designed for industrial automation, robotic integration, and flexible manufacturing applications. The series includes the FR5, FR5-C, and FR5-WML, providing different payload, reach, and configuration options for various automation requirements.

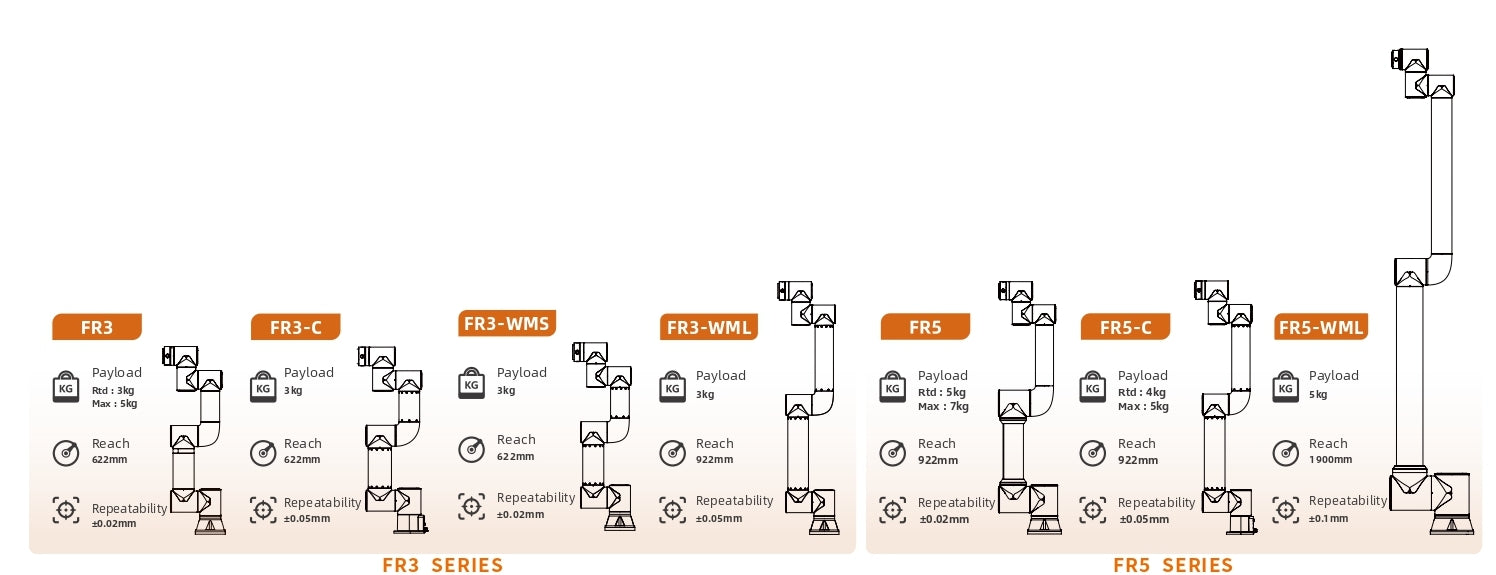

FR5 Series Models

  • FR5 — 5kg rated payload, 922mm reach, ±0.02mm repeatability
  • FR5-C — 4kg rated payload, 922mm reach, ±0.05mm repeatabilit
  • FR5-WML — 5kg rated payload, 1900mm reach, ±0.1mm repeatability

Flexible Payload and Reach Options

The standard FR5 provides a 5kg rated payload and 922mm reach, with ±0.02mm pose repeatability according to ISO 9283. The FR5-WML extends the reach to 1900mm, while the FR5-C provides a compact configuration with a 4kg rated payload.

Designed for Industrial Automation

The FR5 Series can be used for applications including machine tending, robotic welding, pick and place, light assembly, inspection, and packaging. The robots support flexible mounting orientations and provide integrated I/O interfaces for system integration.

FAIRINO FR5 Series Collaborative Robot Arm
FAIRINO FR5 Series Collaborative Robot Arm
▤ FAIRINO FR5 Series Technical Specifications ⌃
FR5 Series
Specification FR5 FR5-C FR5-WML
Payload 5kg (Max: 7kg) 4kg (Max: 5kg) 5kg
Reach 922mm 1900mm
Degrees of Freedom 6 rotating joints
HMI 10.1 inch teach pendant (Optional) or mobile terminal Web App Not support teach pendant 10.1 inch teach pendant (Optional) or mobile terminal Web App
Pose Repeatability per ISO 9283 ±0.02mm ±0.05mm ±0.1mm

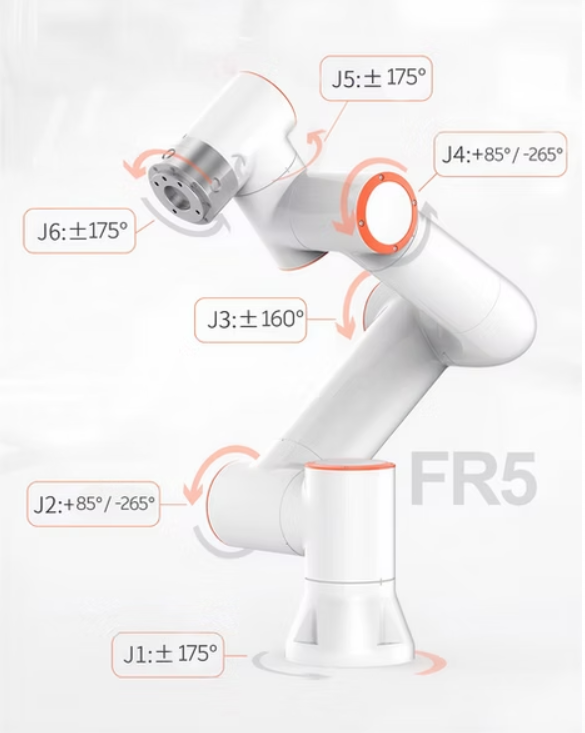

Base - Working Range ±175°
Base - Maximum Speed ±180°/s ±150°/s ±120°/s
Shoulder - Working Range +85° / -265°
Shoulder - Maximum Speed ±180°/s ±150°/s ±120°/s
Elbow - Working Range ±160° ±170°
Elbow - Maximum Speed ±180°/s ±150°/s ±180°/s
Wrist 1 - Working Range +85° / -265°
Wrist 1 - Maximum Speed ±180°/s
Wrist 2 - Working Range ±175°
Wrist 2 - Maximum Speed ±180°/s
Wrist 3 - Working Range ±175° (Optional ±360°) ±175° ±360°
Wrist 3 - Maximum Speed ±180°/s
Typical TCP Speed 1m/s 2m/s
IP Classification IP54 (IP65 Optional) IP54 IP54 (IP65 Optional)
Noise <65dB
Robot Mounting Any orientation
I/O Ports (DI) 2 (DO) 2 (AI) 1 (AO) 1
Tool I/O Power Supply 24V / 1.5A
Footprint 149mm 125mm 190mm
Weight ≈22kg ≈11.8kg ≈45kg
Operating Temperature 0~45°C -20~45°C
Operating Humidity 90%RH (non-condensing)
Materials Aluminium, Steel
Black Optional Yes No No
Power Test Payload Setting FR5 payload setting: 5kg, Z-axis: 30mm FR5-C payload setting: 4kg, Z-axis: 30mm FR5-WML payload setting: 5kg, Z-axis: 30mm
Typical Average Power 260W 190W 270W
Typical Peak Power 310W 340W 620W
