ROBSTRIDE

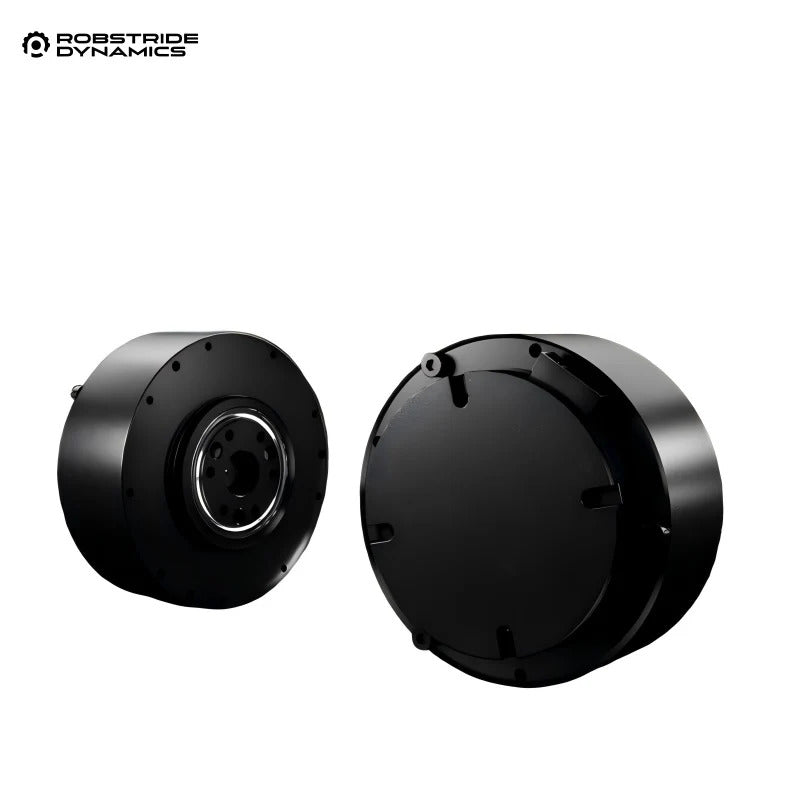

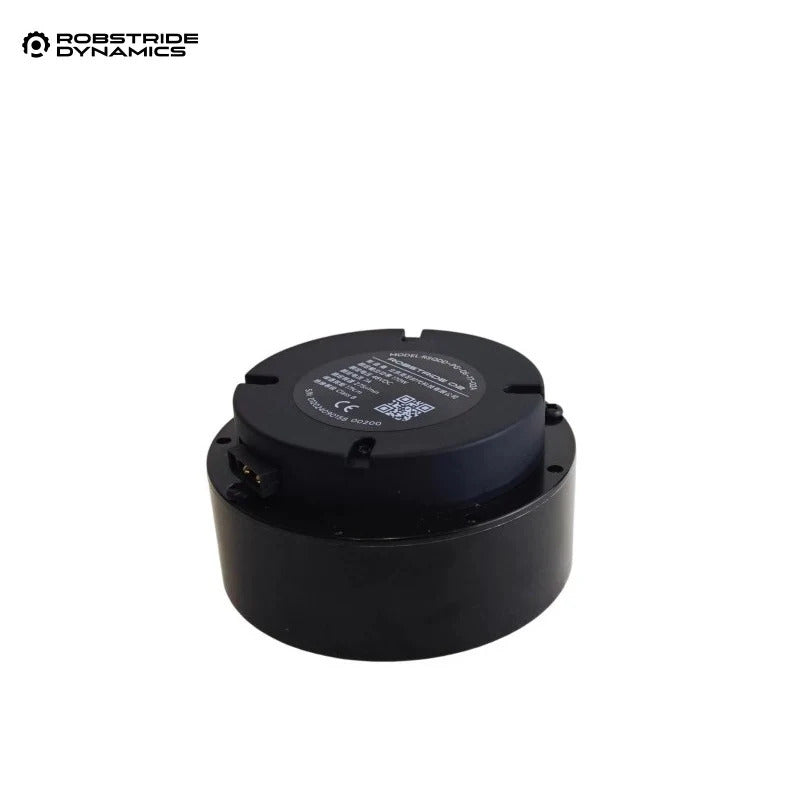

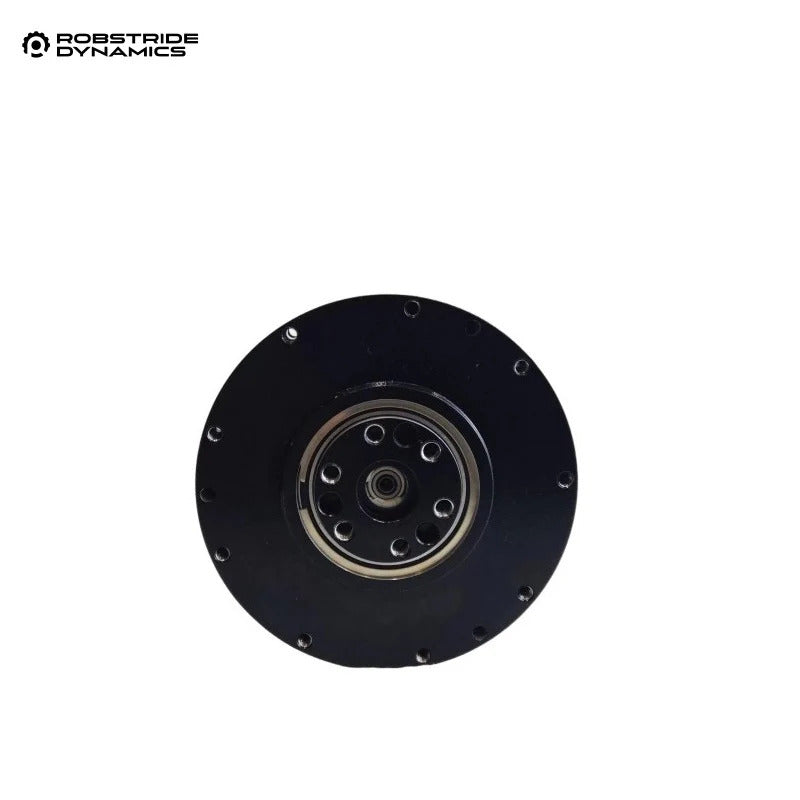

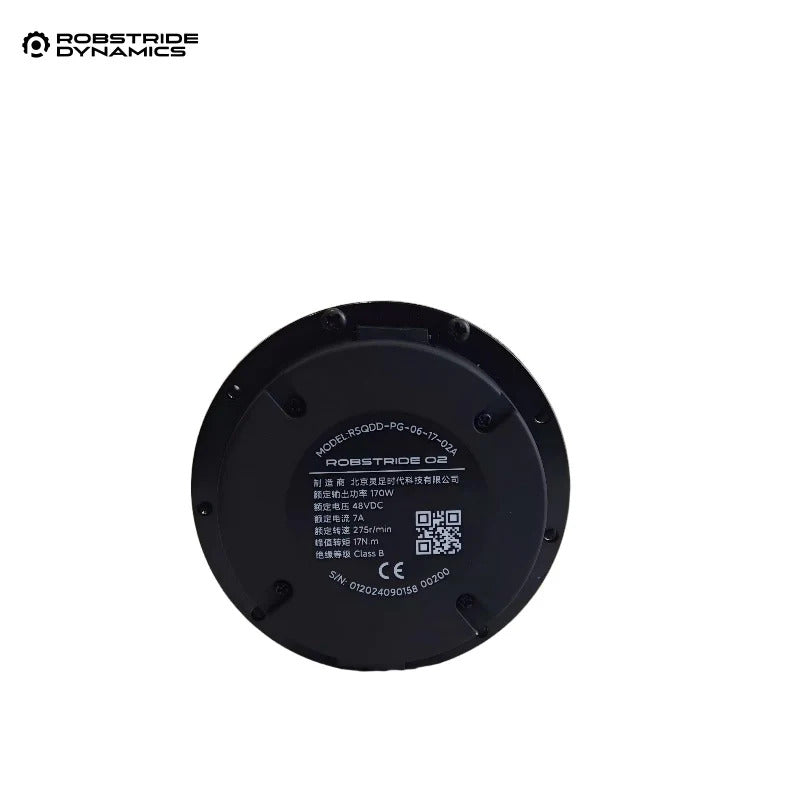

RobStride 02 QDD Motor Actuator | High Torque Robot Servo Motor

• Ideal for humanoid robots, robotics research, and automation control systems
• Integrated design combining driver, motor, planetary reducer, and encoders in one compact unit, only 405g.
• Peak Torque 17N.m, Torque density 44.73N.m/Kg, Torque value density 0.12N.m/USD

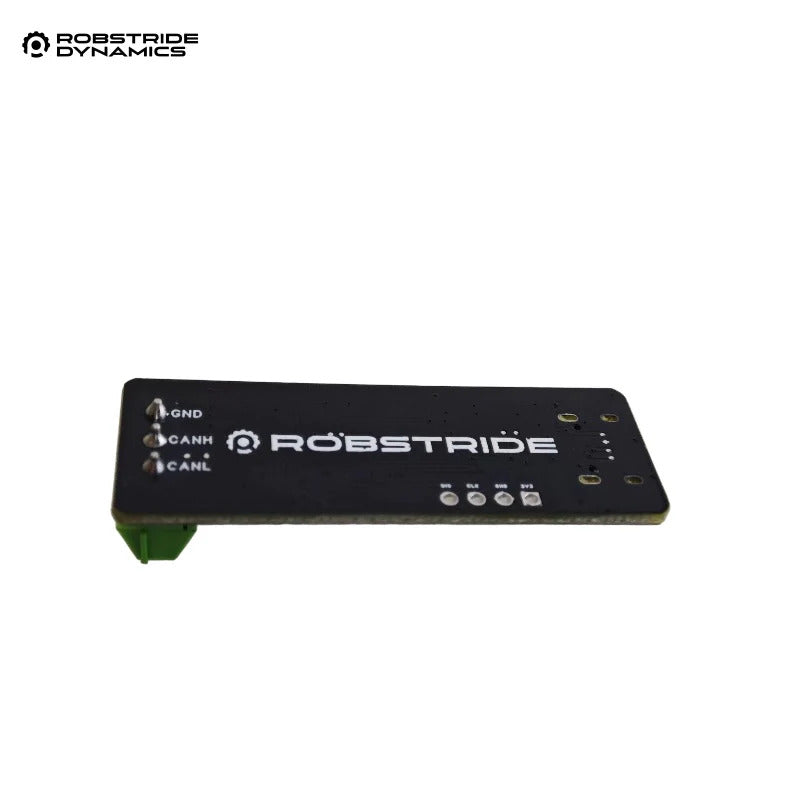

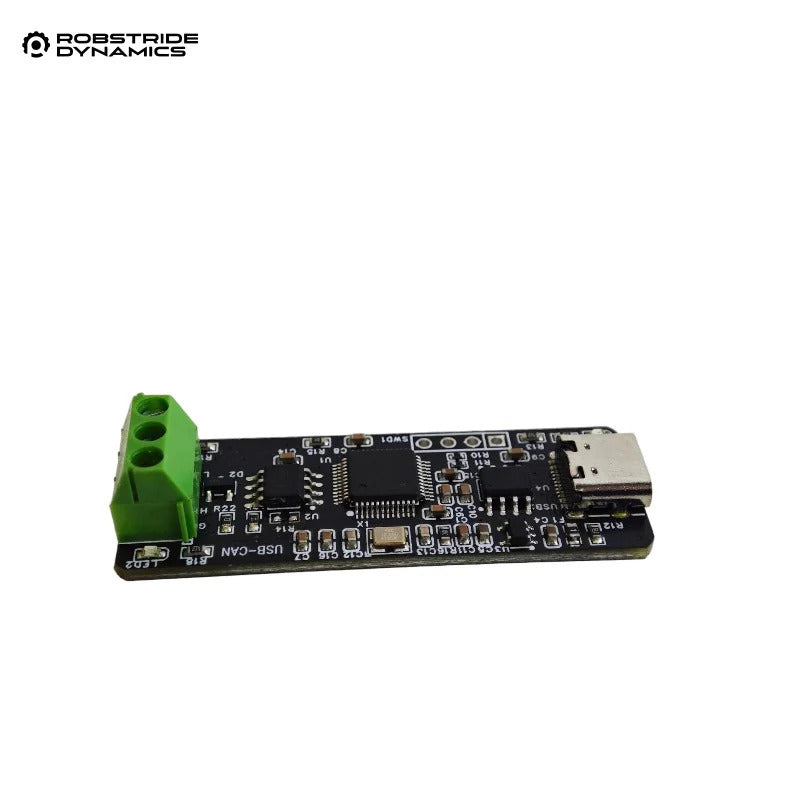

• Providing complete debug software, debug modules and routines

$145
Version

Care information
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

Free shipping. 12-Day delivery.

Application Scenarios
Humanoid Robots Robotic Arms Exoskeletons Quadruped Robots AGV Vehicles ARU Robots

Technical Specifications

Parameter Value
Model ROBSTRIDE 02
Rated Voltage 48 VDC
Operating Voltage Range 24–60 VDC
Rotation Direction CW / CCW
Dimensions 78.5 × 78.5 × 45.5 mm
Weight 405 g ± 5 g
Electrical Connectors XT30PB
Operating Temperature Range -20 °C to +50 °C
Operating Humidity Range 5% to 85% RH, non-condensing
Storage Temperature Range -30 °C to +70 °C
Insulation Class Class B
No-Load Speed 410 rpm ±10%
No-Load Current 0.5 A RMS
Rated Torque 6 N·m
Rated Speed (at Rated Torque) 360 rpm ±10%
Phase Current at Rated Load (Peak) 7 A pk ±10%
Peak Torque 17 N·m
Maximum Phase Current (Peak) 23 A pk ±10%
Insulation Resistance (Stator Winding) DC 500VAC, 100MΩ
Hi-Pot Test (Stator to Frame) 600VAC, 1s, 2mA
Motor Back-EMF Constant 0.096 Vrms/rpm ±10%
Torque Constant 1.22 N·m / A RMS
CAN Bus Bit Rate 1 Mbps
Encoder Resolution 14-bit
Encoder Type Dual Magnetic Encoders
Number of Magnetic Encoders 2
Number of Poles 28
Number of Phases 3
Drive Method FOC
Gear Ratio 7.75:1
Terminal Resistance 0.58 Ω
Terminal Inductance 187–339 µH
