Intel RealSense

Intel RealSense LiDAR Camera L515 High-Resolution LiDAR Depth Camera for Robotics and 3D Scanning

• Ideal for robotics, 3D scanning, logistics, and volumetric measurement
• World's smallest high-resolution LiDAR depth camera
• MEMS-based solid-state LiDAR technology for high precision sensing
• Ultra-low power consumption below 3.5W during depth streaming
• Integrated RGB camera and IMU for advanced scanning workflows
$760
Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

Free shipping. 12-Day delivery.

Developer Support

Intel RealSense LiDAR Camera L515 Guide ▶

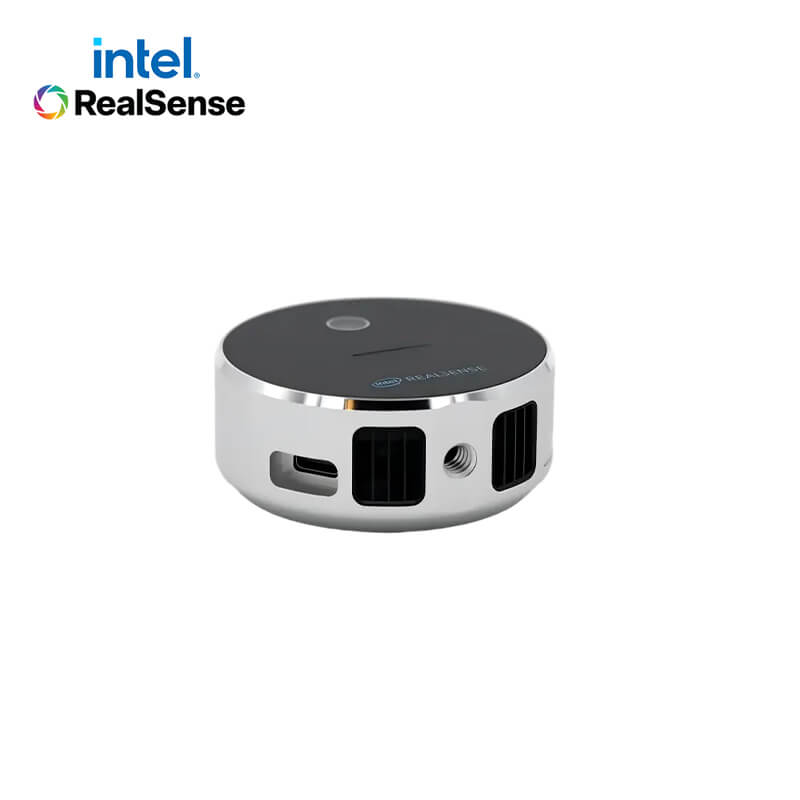

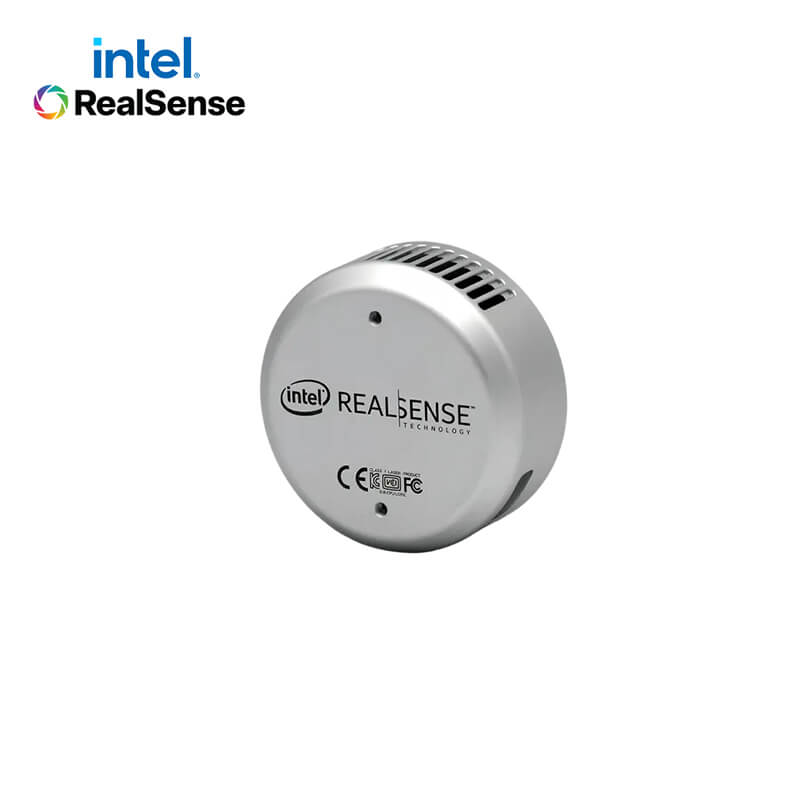

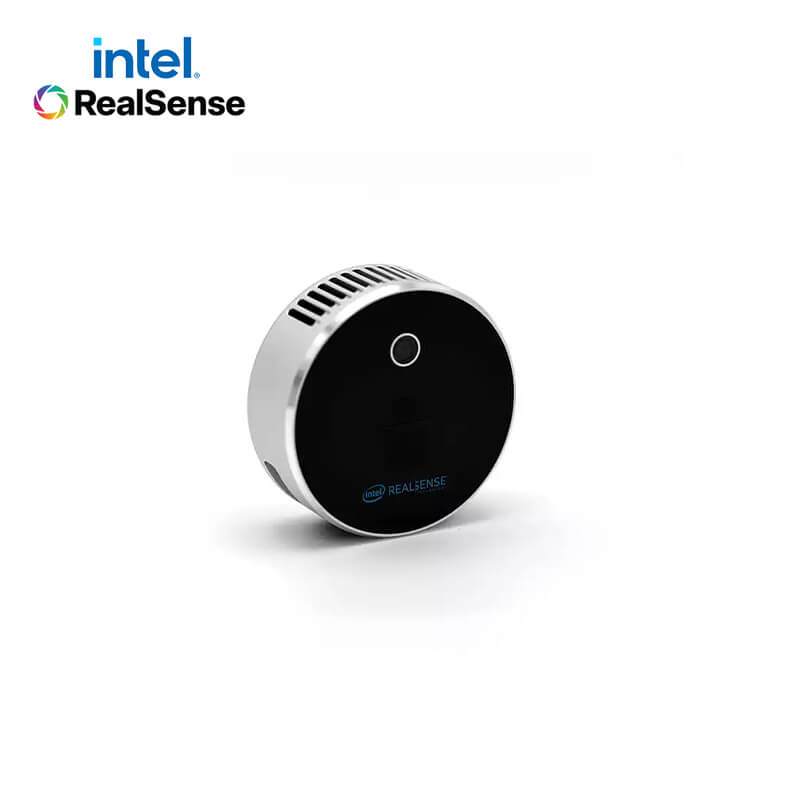

Intel RealSense LiDAR Camera L515

The Intel RealSense LiDAR Camera L515 is the world's smallest high-resolution LiDAR depth camera, designed for robotics, industrial measurement, and professional 3D scanning applications.

Powered by Intel's proprietary MEMS mirror scanning technology, the L515 delivers exceptional depth precision and edge fidelity while consuming less than 3.5W during depth streaming, making it one of the most power-efficient LiDAR cameras available.

Compared with traditional stereo depth cameras, the L515 provides significantly improved depth accuracy across its entire operating range, enabling more reliable perception for robotic grasping, bin picking, obstacle detection, and autonomous systems.

The combination of a high-quality RGB camera, integrated IMU, and high-resolution LiDAR sensor makes the L515 particularly suitable for handheld scanning, digital twins, volumetric measurement, and industrial inspection workflows.

Powered by the open-source Intel RealSense SDK 2.0, the L515 offers seamless integration across operating systems, development environments, and robotics frameworks.

Features

  • MEMS LiDAR Technology delivers high-resolution depth sensing with exceptional power efficiency.
  • Ultra-Low Power Consumption operates below 3.5W during depth streaming.
  • Optimized for Robotics improves object detection, bin picking, and robotic manipulation.
  • Industry-Leading Edge Fidelity provides superior separation between objects and backgrounds.
  • Intel RealSense SDK 2.0 Support enables easy deployment across robotics and computer vision applications.
Intel RealSense LiDAR Camera L515 High-Resolution LiDAR Depth Camera for Robotics and 3D Scanning
▤ PARAMETER ⌃
Use Environment
Indoor
Image Sensor Technology
Laser Scanning
Ideal Range
0.25 m to 9 m (range affected by reflectivity)
Depth Technology
LiDAR
Minimum Depth Distance
~25 cm
Depth Accuracy
~5 mm to ~14 mm through 9 m
Depth Field of View (FOV)
70° × 55° (±3°)
Depth Output Resolution
Up to 1024 × 768
Depth Frame Rate
30 fps
RGB Frame Rate
30 fps
RGB Frame Resolution
1920 × 1080
RGB Sensor Technology
Rolling Shutter
RGB Sensor FOV (H × V)
70° × 43° (±3°)
RGB Sensor Resolution
2 MP
Vision Processor Board
RealSense Vision ASIC
Optical Board
Laser; MEMS Mirror
Form Factor
Camera Peripheral
Dimensions
61 mm × 26 mm
Connectors
USB-C 3.1 Gen 1
Mounting Mechanism
One 1/4-20 UNC thread mounting point; Two M3 thread mounting points; Tripod
