Livox

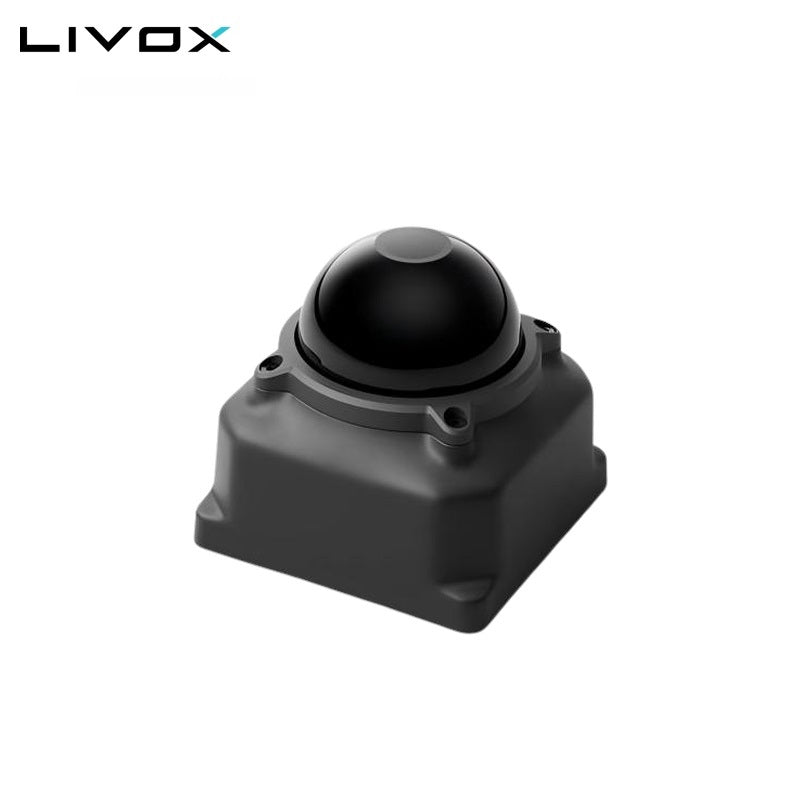

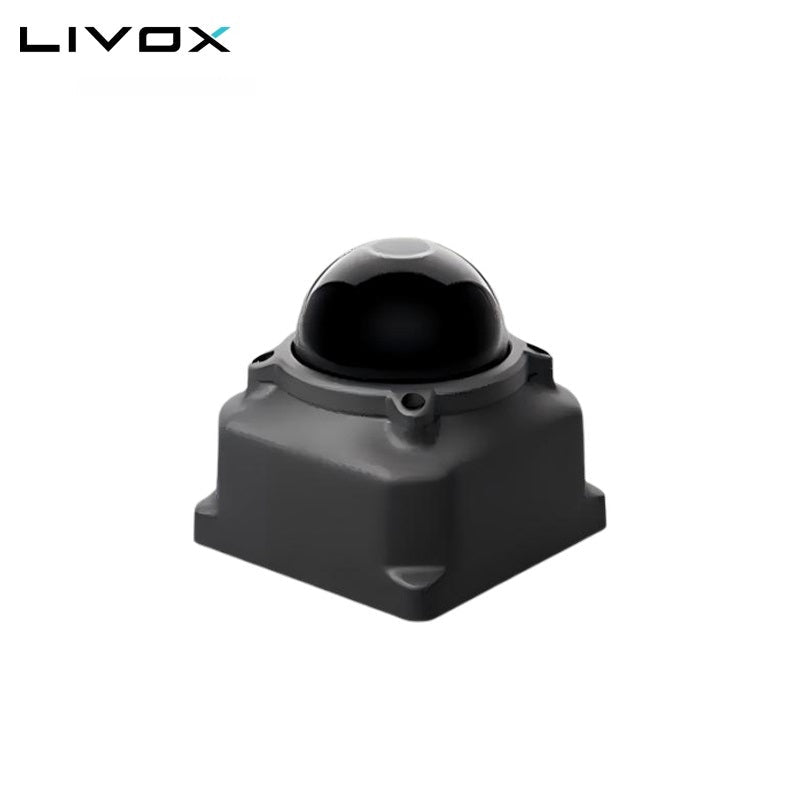

Livox MID-360L LiDAR

  • 360-degree horizontal field of view with a -10-degree to 34-degree vertical field of view for broad environmental coverage.
  • Detects targets up to 45 m at 10% reflectivity, with a 100 m cut-off range and a 0.1 m close-proximity blind zone.
  • Outputs 100,000 points per second with range precision of 3 cm or better at 10 m.
  • Built-in ICM40609 IMU, 100 BASE-TX Ethernet, IEEE 1588 PTP v2, and GPS time synchronization support robotics integration.
  • Compact 245 g, IP67-rated enclosure operates from -20°C to 65°C with 4.2 W power consumption.
$600
Version
Accessory Kit

Care information

Install securely to prevent vibration or impact during operation. Operate within the specified voltage range and avoid exposure to moisture beyond the rated protection level. Do not stare directly into the laser aperture.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Bulk pricing and exclusive academic discounts are available for universities and research institutions.

Developer Support

Livox MID-360L 3D model package for mechanical integration.stp ▶ Livox MID-360L field-of-view model for integration planning.stp ▶ Livox MID-360L dimensional drawing for mechanical integration.pdf ▶ Livox MID-360L product overview and technical specifications.pdf ▶ Livox MID-360L setup, operation, and safety manual.pdf ▶

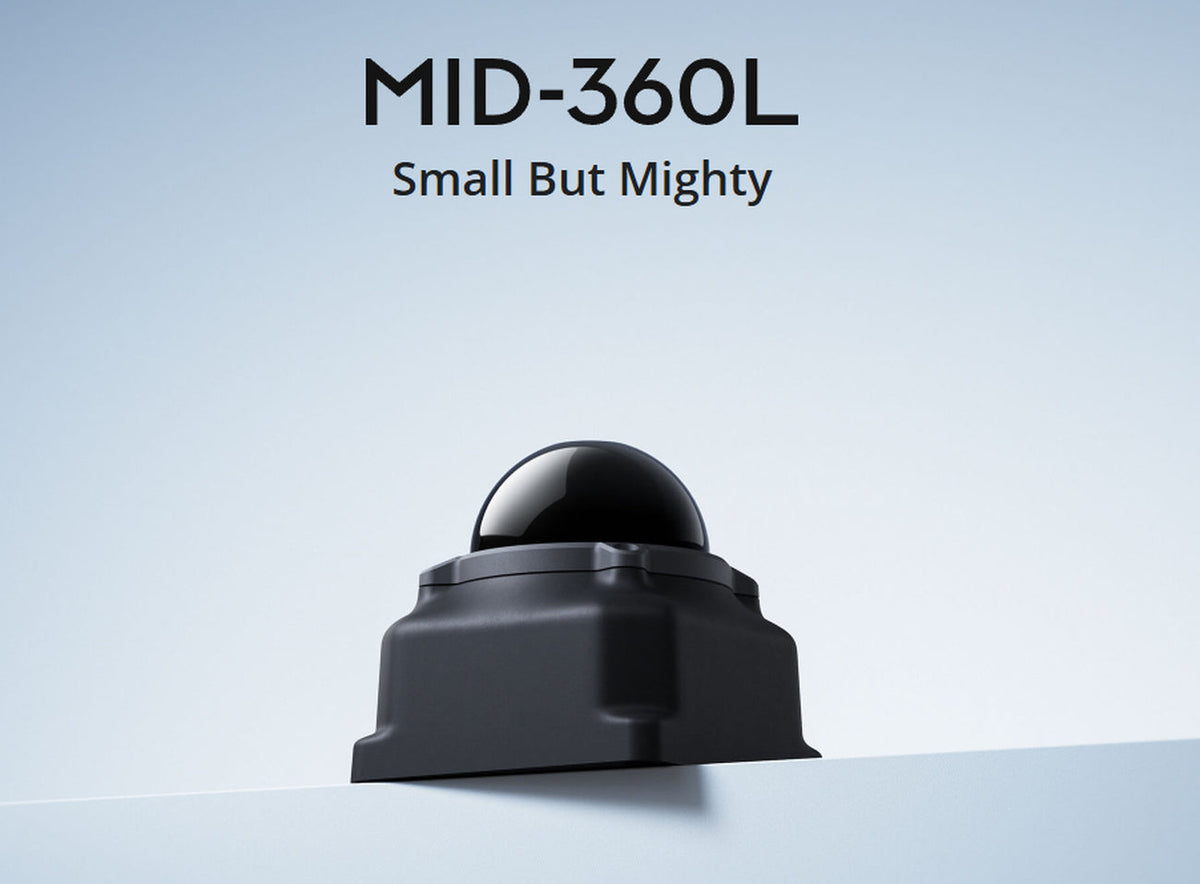

Livox MID-360L LiDAR detail image 1

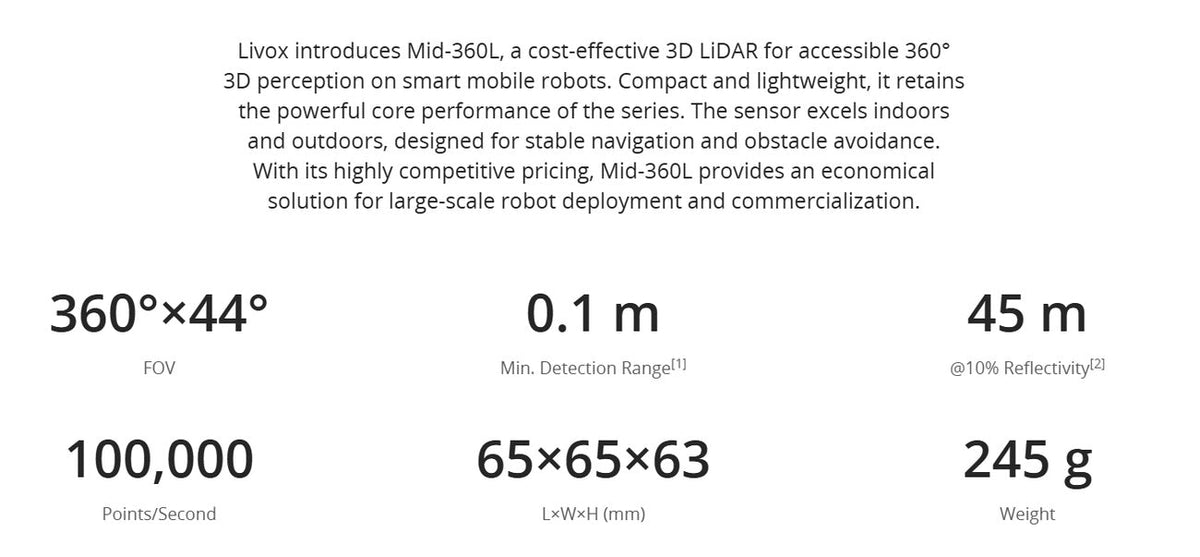

Livox MID-360L LiDAR detail image 2
Livox MID-360L LiDAR detail image 3

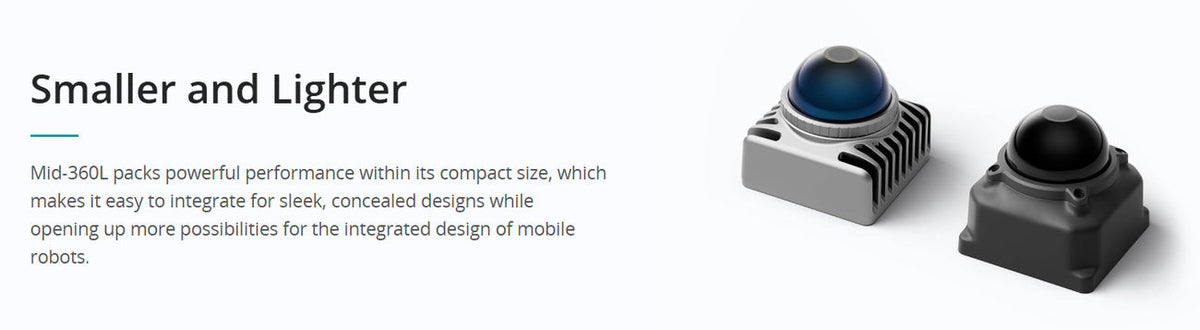

Livox MID-360L LiDAR detail image 4
Livox MID-360L LiDAR detail image 5

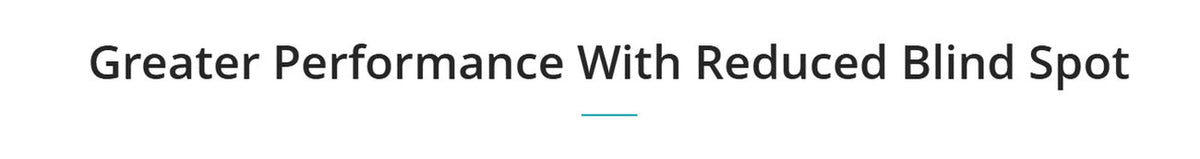

Livox MID-360L LiDAR detail image 6

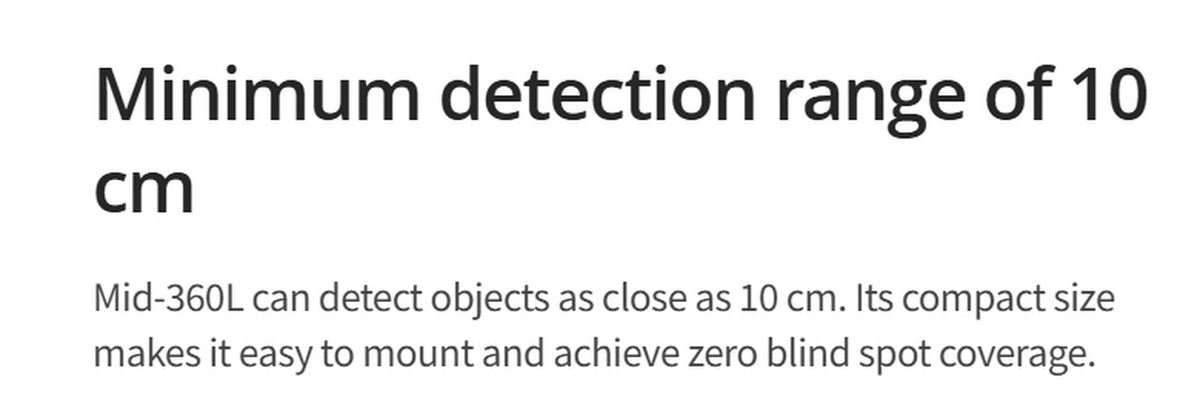

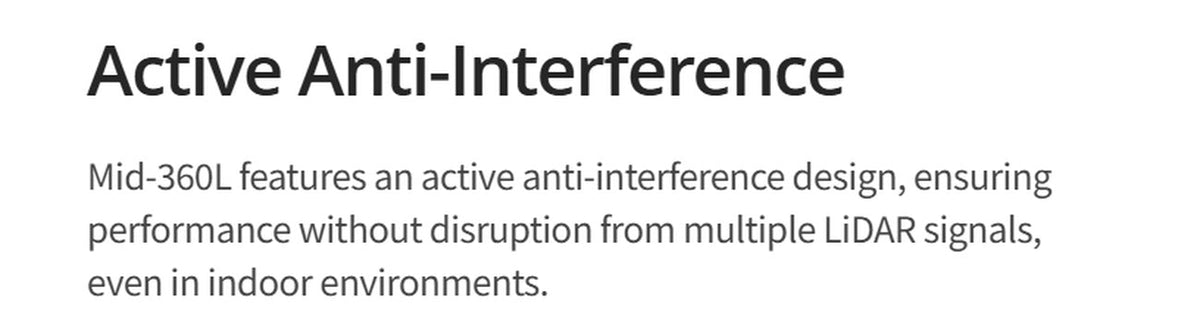

Livox MID-360L LiDAR detail image 7

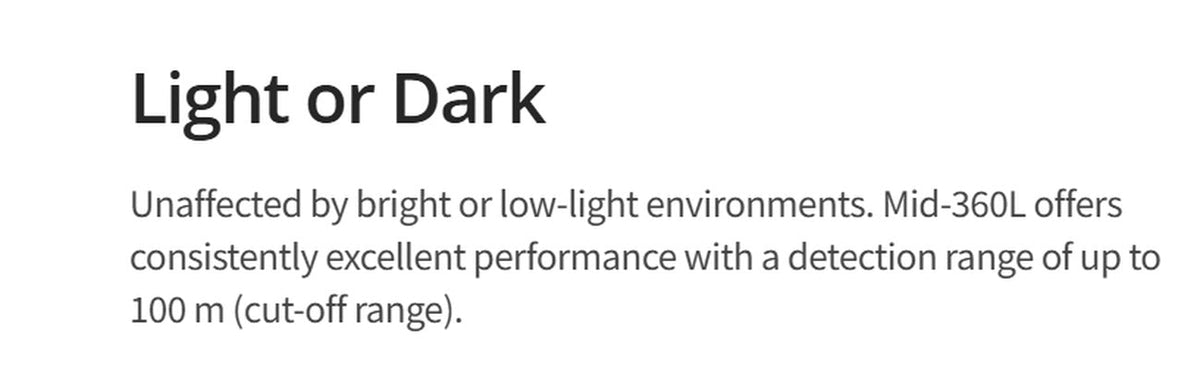

Livox MID-360L LiDAR detail image 8
Livox MID-360L LiDAR detail image 9
Livox MID-360L LiDAR detail image 10
Livox MID-360L LiDAR detail image 11

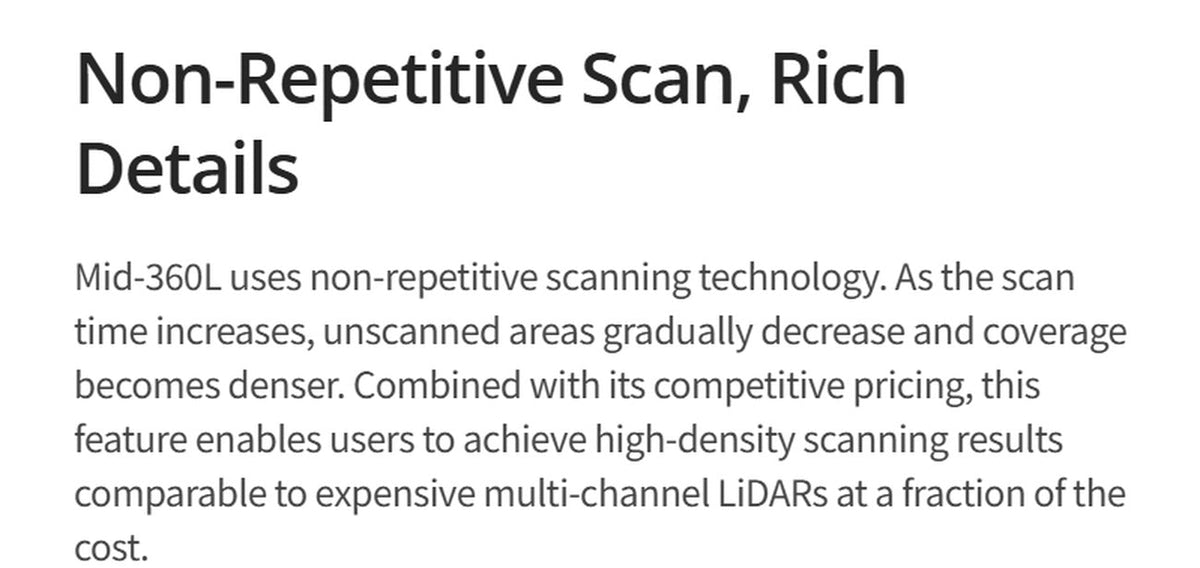

Livox MID-360L LiDAR detail image 12

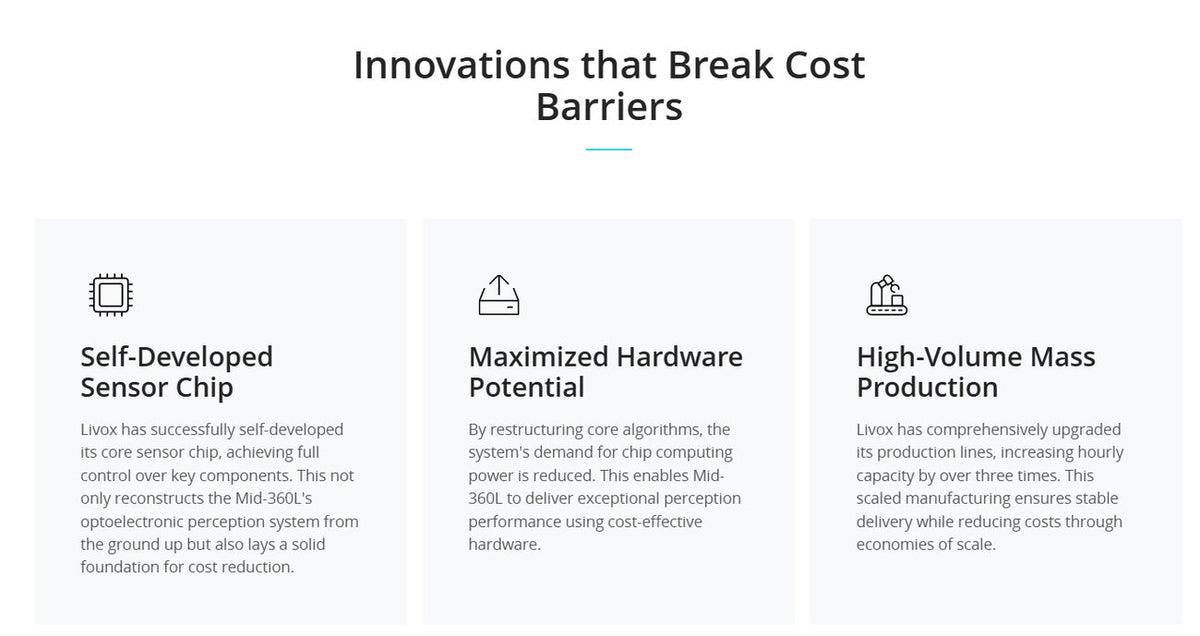

Livox MID-360L LiDAR detail image 13
▤ PARAMETER ⌃
Parameter
Value
Model
Mid-360L
Laser Wavelength
905 nm
Laser Safety ¹
Class 1 (IEC60825-1:2014) (Eye Safety)
Detection Range (@ 100 klx)
45 m@10% reflectivity (typical value) 100 m (cut-off range)
Close Proximity Blind Zone ²
0.1 m
FOV
Horizontal: 360°, Vertical: -10°~34° (typical value)
Range Precision ³ (1σ)
≤3 cm ⁴ (@10 m) ≤5 cm ⁵ (@0.2 m)
Angular Precision (1σ)
<0.3°
Point Rate
100,000 points/s (first return)
Frame Rate
10 Hz (typical value)
Data Port
100 BASE-TX Ethernet
Data Synchronization
IEEE 1588-2008 (PTP v2), GPS (UTC time + PPS pulse)
Anti-Interference Function
Available
False Alarm Rate (@ 100 klx) ⁶
<0.01%
IMU
Built-in IMU Model: ICM40609
Operating Temperature ⁷
-20° C to 65° C (-4° F to 149° F)
IP Rating
IP67
Power
4.2 W
Power Supply Voltage Range
12 ~ 27 V DC
Dimensions
65×65×63 mm
Weight
245 g
