AgileX

AgileX PiPER 6-DOF Robotic Arm | Research Robot Arm for Education & Automation

  • 6-DOF robotic arm platform for education, research, and robot development.
  • 1.5 kg payload with integrated controller and CAN communication.
  • Supports drag teaching, offline trajectory programming, API, and PC workflows.
  • Available in PiPER and PiPER X versions with optional accessories.
  • Designed for robotic arms, humanoids, exoskeletons, quadrupeds, AGV vehicles, and ARU robots.
$1,999
Version
Accessory Kit

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

AgileX PiPER robotic arm STP model archive for CAD and mechanical design ▶ AgileX PiPER with gripper STP model archive for CAD and mechanical integration ▶ AgileX PiPER X robotic arm STP model archive for CAD and mechanical design ▶ AgileX teach pendant STEP CAD model for accessory integration ▶ AgileX gripper STEP CAD model for end-effector integration ▶ AgileX flange STEP CAD model for mounting and mechanical integration ▶ AgileX PiPER user manual: setup, operation, specifications, and support information ▶ AgileX PiPER X user manual: setup, operation, specifications, and support information ▶

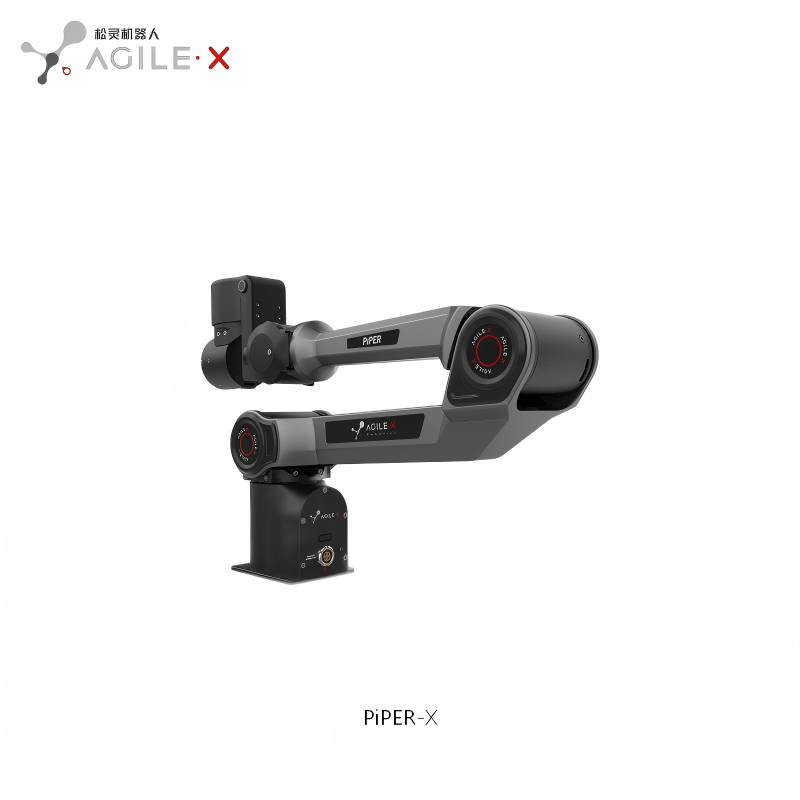

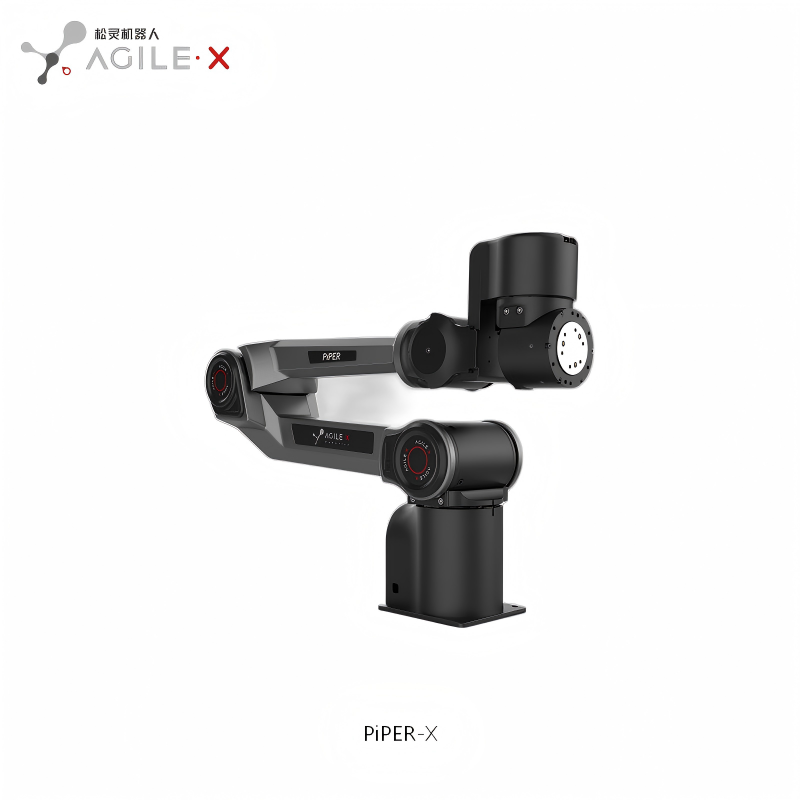

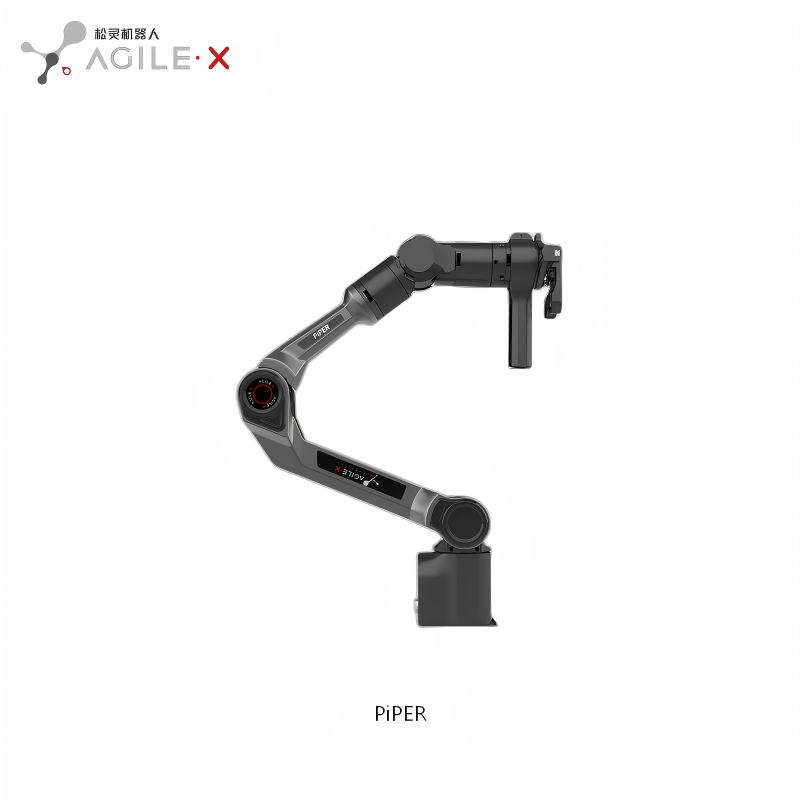

AgileX PiPER 6-DOF Robotic Arm

The AgileX PiPER is a 6-DOF robotic arm designed for robotics education, research, and engineering development. It supports robotic arm, humanoid robot, exoskeleton, quadruped, AGV, and ARU robot application scenarios.

Available as PiPER and PiPER X, the platform includes an integrated controller, CAN communication, DC 24 V input, drag teaching, offline trajectory programming, API, and PC workflows.

Features

  • **6-DOF Robotic Arm Platform:** Supports development and lab use with a 1.5 kg payload.
  • **Integrated Controller and CAN Communication:** Built for robotics integration and control workflows.
  • **Programming Flexibility:** Supports drag teaching, offline trajectory, API, and PC programming.
  • **PiPER and PiPER X Options:** Choose the arm version and accessory kit configuration needed for the project.
  • **Robotics Application Range:** Suitable for robotic arms, humanoids, exoskeletons, quadrupeds, AGV vehicles, and ARU robots.
AgileX PiPER Robotic Arm detail image 1

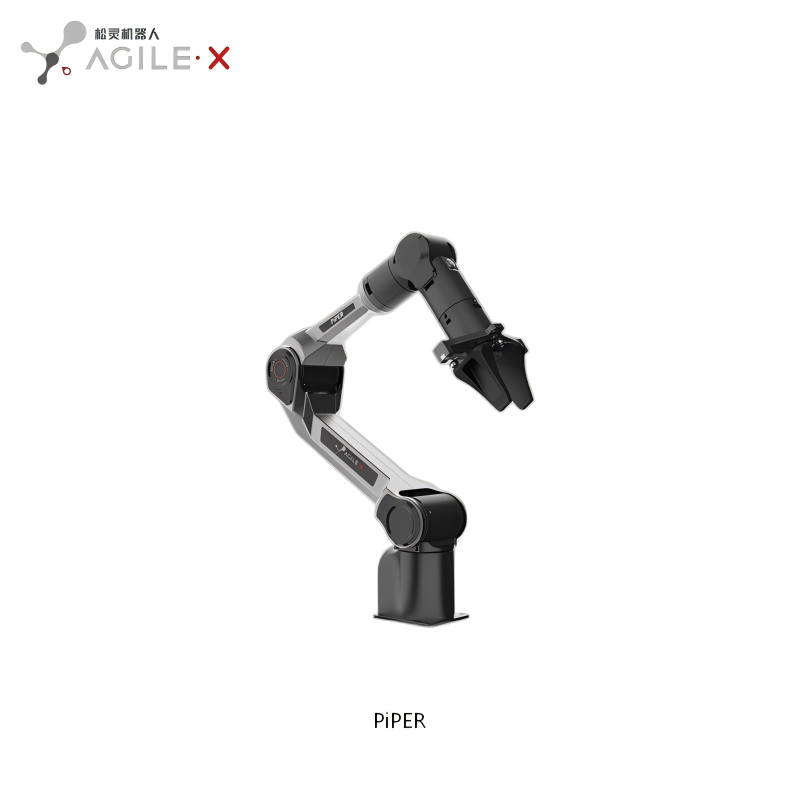

AgileX PiPER Robotic Arm detail image 2

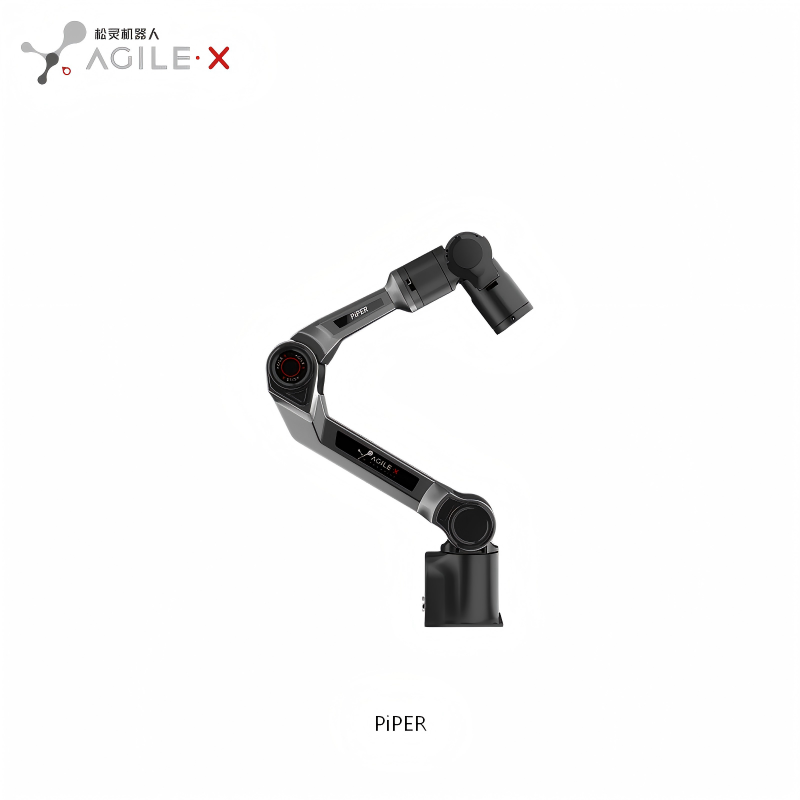

AgileX PiPER Robotic Arm detail image 3
AgileX PiPER Robotic Arm detail image 4
AgileX PiPER Robotic Arm detail image 5
AgileX PiPER Robotic Arm detail image 6
AgileX PiPER Robotic Arm detail image 7
AgileX PiPER Robotic Arm detail image 8
AgileX PiPER Robotic Arm detail image 9
AgileX PiPER Robotic Arm detail image 10
AgileX PiPER Robotic Arm detail image 11
AgileX PiPER Robotic Arm detail image 12
AgileX PiPER Robotic Arm detail image 13
AgileX PiPER Robotic Arm detail image 14
▤ Technical Specifications ⌃
Parameter
PiPER X
PiPER
Model
PiPER X
PiPER
DOF
6
6
Payload
1.5 kg
1.5 kg
Weight
4.5 kg
4.2 kg
Repeatability
±0.1 mm
±0.1 mm
Reach
669.59 mm
626 mm
Input Voltage
DC 24 V
DC 24 V
Material
Aluminum and plastic housing
Aluminum alloy body with polymer shell
Controller
Integrated
Integrated
Communication
CAN
CAN
Programming
Drag teaching / Offline trajectory / API / PC
Drag teaching / Offline trajectory / API / PC
External Interface
Power ×1, CAN ×1
Power ×1, CAN ×1
Base Installation Dimensions
70 mm × 70 mm × M5 × 4
70 mm × 70 mm × M5 × 4
