OCServo

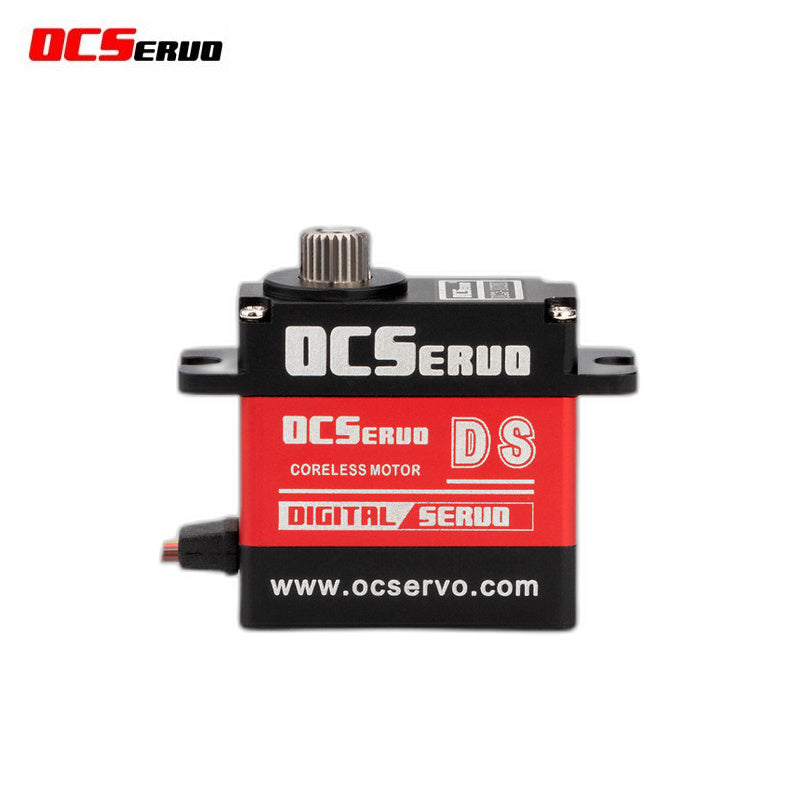

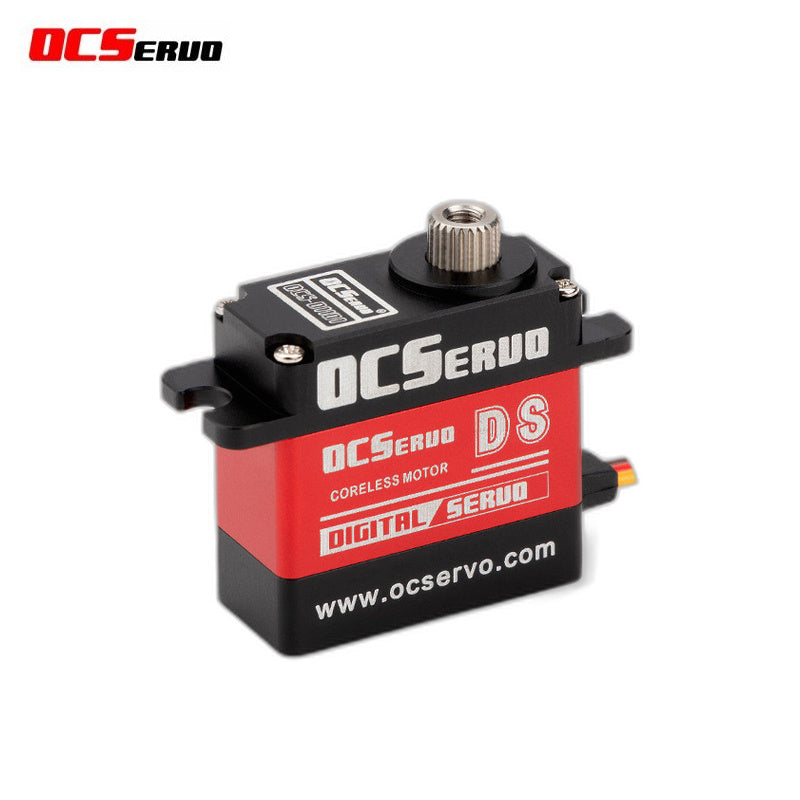

OCServo OCS-D1101 Servo Motor

  • Peak stall torque (kg·cm): 6V: 6.0; 7.4V: 8.0; 8.4V: 11.0
  • Operating Voltage: 6.0V / 7.4V / 8.4V
  • No load speed (sec/60°): 6V: 0.12; 7.4V: 0.10; 8.4V: 0.08
  • Motor Type: Coreless motor
  • Gear Type: Stainless Steel
$45
Version
Type

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

OCServo OCS-D1101 dimensional drawing.pdf ▶ OCServo OCS-D1101 technical specifications.pdf ▶
OCServo OCS-D1101 Servo Motor detail image

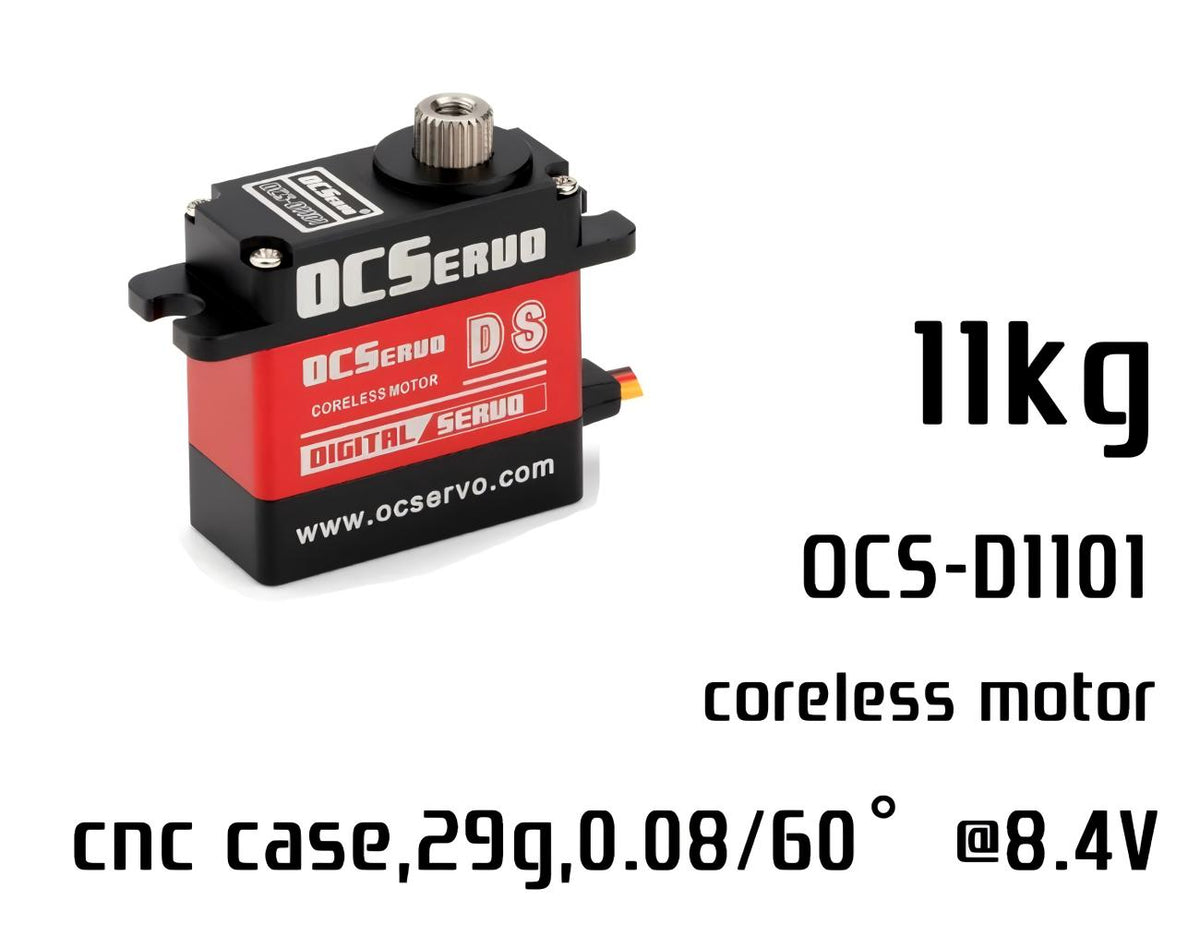

OCServo OCS-D1101 Servo Motor detail image
▤ PARAMETER ⌃
Product Name
8.4V11kg-cm High Voltage Digital Servo
Item No.
OCS-D1101
Storage Temperature Range
-20°C ~ 70°C
Operating Temperature Range
-15°C ~ 65°C
Test Temperature
25°C ± 5°C
Test Humidity
65% ± 10%
Size (mm)
12.7 × 28 × 27.6
Weight (g)
25 (excluding accessory)
Gear Type
Stainless Steel
Limit Angle
No
Bearings
2 Ball bearings
Output Spline
25T - Φ5.98mm
Horn Type
Plastic POM
Case Material
Aluminium CNC
Connector Wire
180mm 3P
Motor Type
Coreless motor
Waterproof Performance
No
Operating Voltage
6.0V / 7.4V / 8.4V
No load speed (sec/60°)
6V: 0.12; 7.4V: 0.10; 8.4V: 0.08
Running current (at no load) (mA)
6V: 180; 7.4V: 250; 8.4V: 300
Peak stall torque (kg·cm)
6V: 6.0; 7.4V: 8.0; 8.4V: 11.0
Stall current (A)
6V: 1.7; 7.4V: 2.2; 8.4V: 2.5
Command Signal
PWM
Amplifier Type
Digital Controller
Pulse Width Range
800 ~ 2200 μs
Neutral Position
1500 μs
Running Degree
96° (when 1000~2000 μs)
Dead Band Width
2 μs
Rotating Direction
CCW (when 1000~2000 μs)
