FEETECH

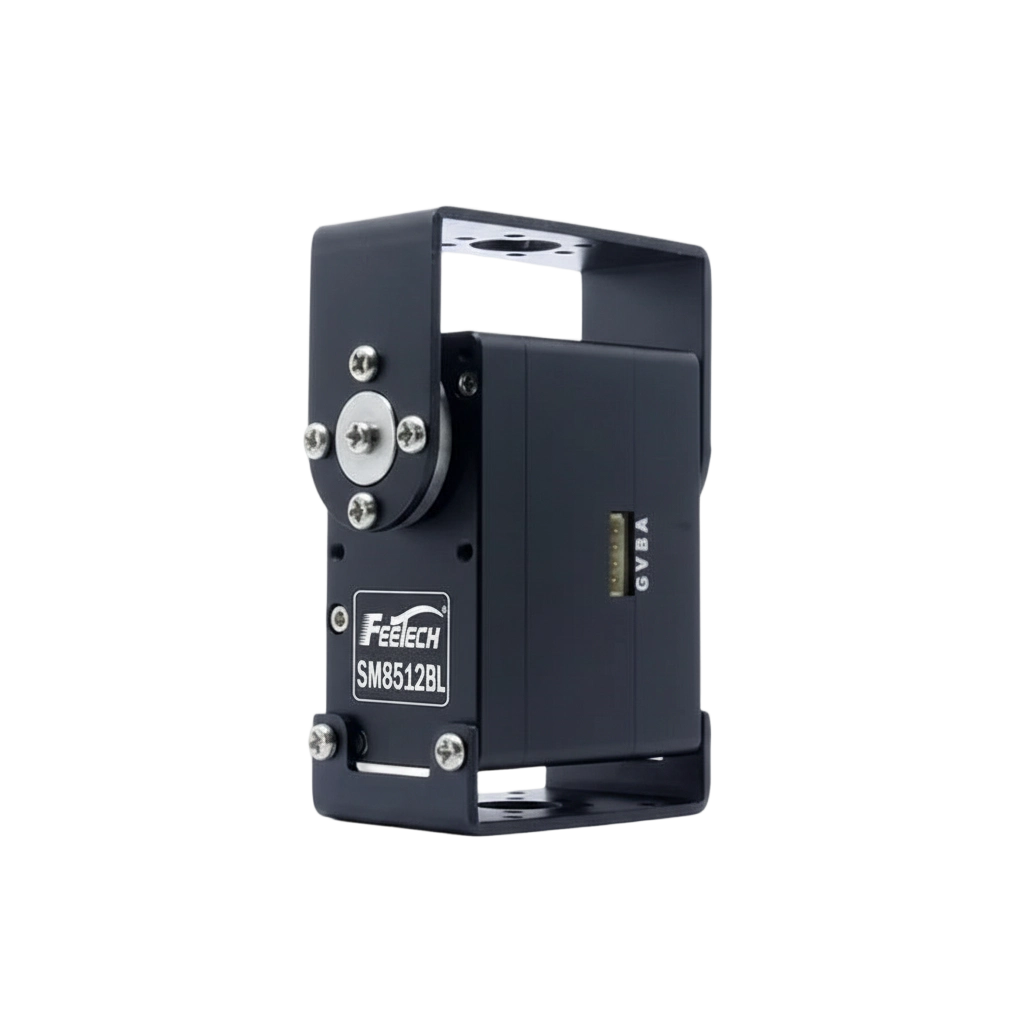

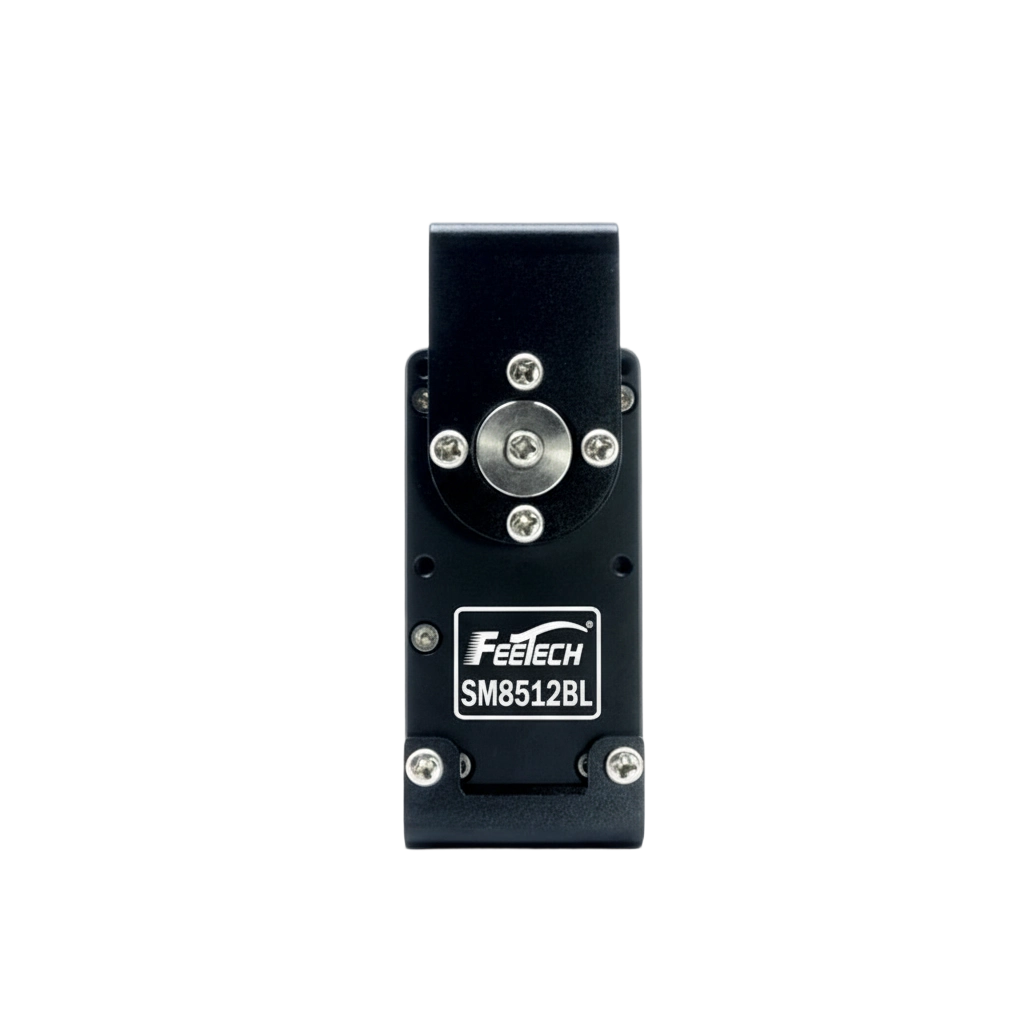

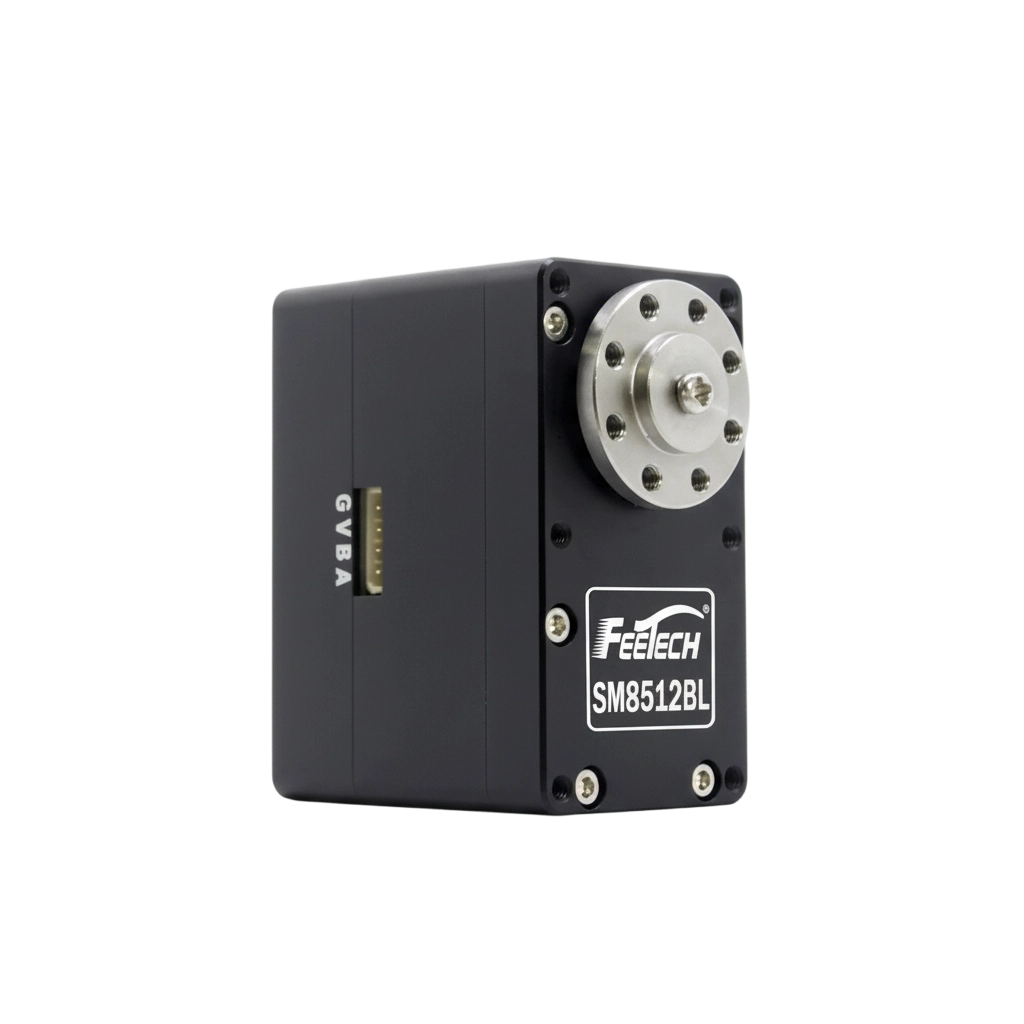

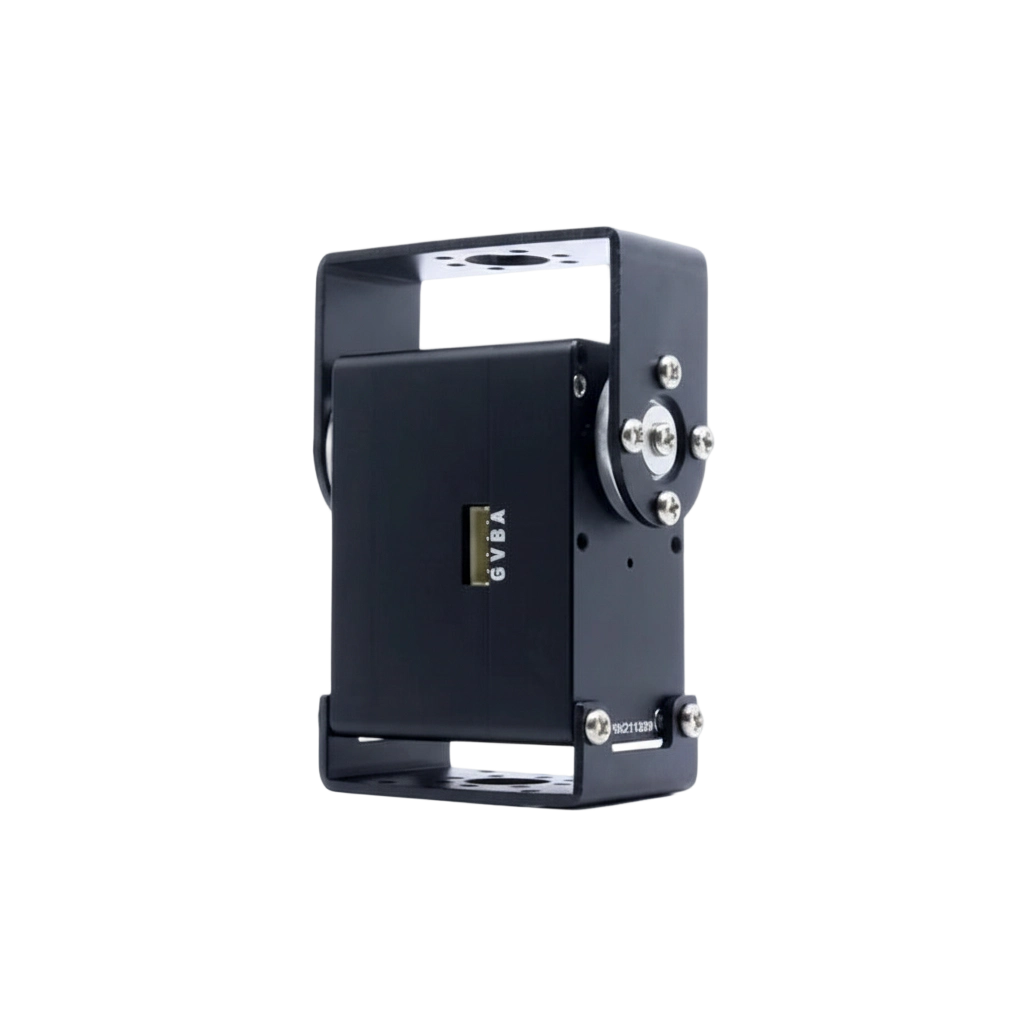

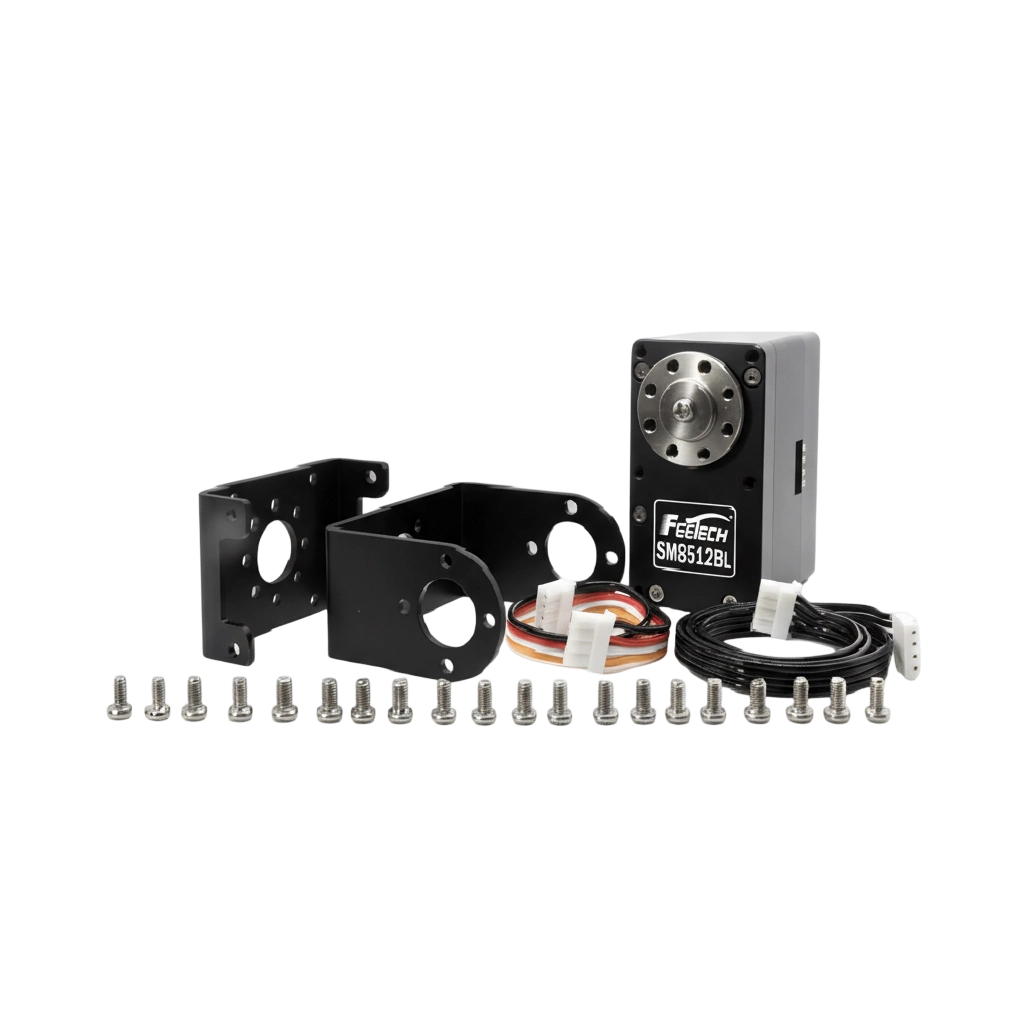

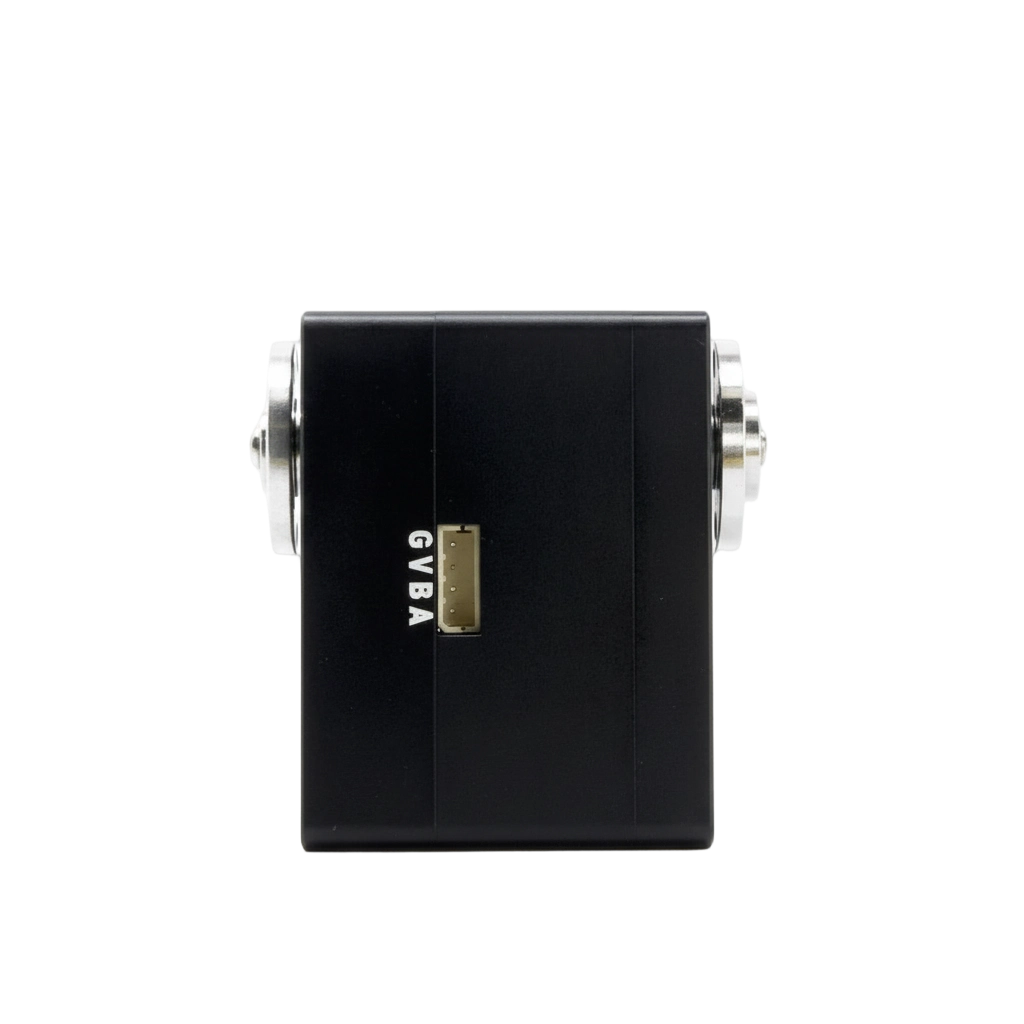

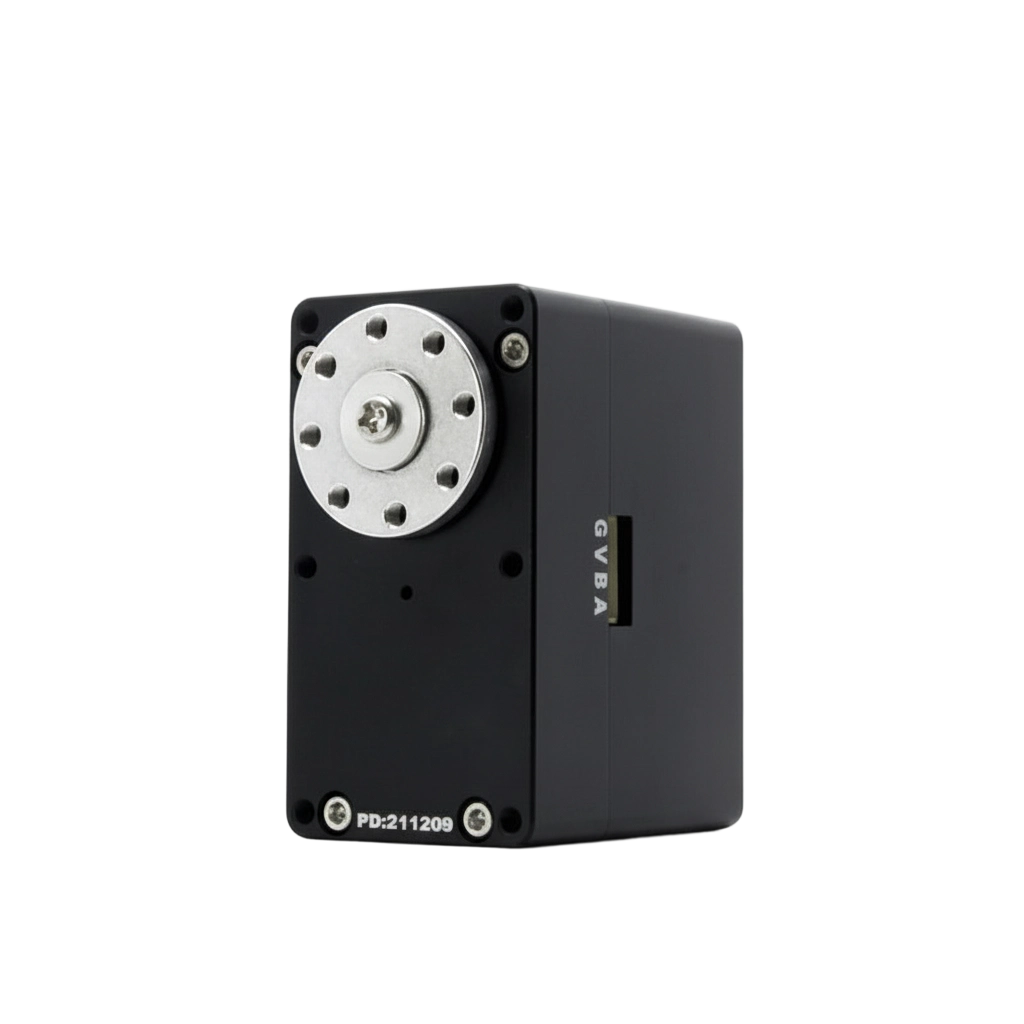

FEETECH SM8512BL Brushless Servo Motor for Robotics

Model: SM-8512BL

Product Name: 12V 85kg.cm Serial Control RS485 Servo

$262
Version
Protocol Type

Care Information

Operate this precision servo within the specified voltage and load limits, and avoid stall conditions or prolonged overload. Ensure correct wiring and secure mechanical mounting with proper alignment. Do not disassemble or expose the unit to excessive shock, moisture, or contaminants; installation should be performed by qualified personnel.

Shipping

Free shipping. 12-Day delivery.

Application Scenarios
Humanoid Robots Robotic Arms Exoskeletons Quadruped Robots AGV Vehicles ARU Robots
≡ PARAMETER ⌃
Operating Voltage
12V DC
Rated Voltage
12V DC
No-Load Speed
0.167 sec/60° @ 12V
No-Load Current
540 mA @ 12V
Rated Torque
28 kg·cm @ 12V
Peak Stall Torque
85 kg·cm @ 12V
Stall Current
7.9 A @ 12V
Rotation Range
360° (Continuous, 0-4095 steps)
Communication Interface
RS485 Serial Bus
Command Signal
Digital Packet
Protocol Standard
Half-Duplex Asynchronous Serial Communication
Communication Baud Rate
38400 bps – 1 Mbps
Device ID Range
0 – 253
Feedback Parameters
Load, Position, Speed, Input Voltage, Current, Temperature
Gear Type
Steel Gear
Mechanical Limit
No Limit
Bearing Type
Ball Bearings
Horn Gear Spline
15T (7.6 mm)
Horn Material
Aluminium
Case Material
Aluminium
Connector Wire Length
400 mm
Dimensions (L × W × H)
62 mm × 34 mm × 47 mm
Weight
215 ± 1 g
Operating Temperature Range
-20°C – 70°C
Storage Temperature Range
-30°C – 80°C

Technical Documentation

PDF
SM-8512BL-PRODUCT_SPECIFICATION.pdf
PDF
SM-8512BL_Mechanical_Installation_Drawing.pdf
STP
sm8512bl-20220225.stp
