DEEP Robotics

DEEP Robotics LYNX M20 Robot | Quadruped Robot Platform for Field Robotics and Embodied AI Development

  • DEEP Robotics quadruped robot platform for robotics research, field testing, embodied AI development, and education labs.
  • Suitable for teams building robot mobility, autonomous behavior, perception, and outdoor robotics workflows.
  • Designed for robotics developers, universities, and engineering teams evaluating quadruped robot applications.
  • Supports practical robot platform development for prototyping, demonstrations, automation, and lab experiments.
$49,000
Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

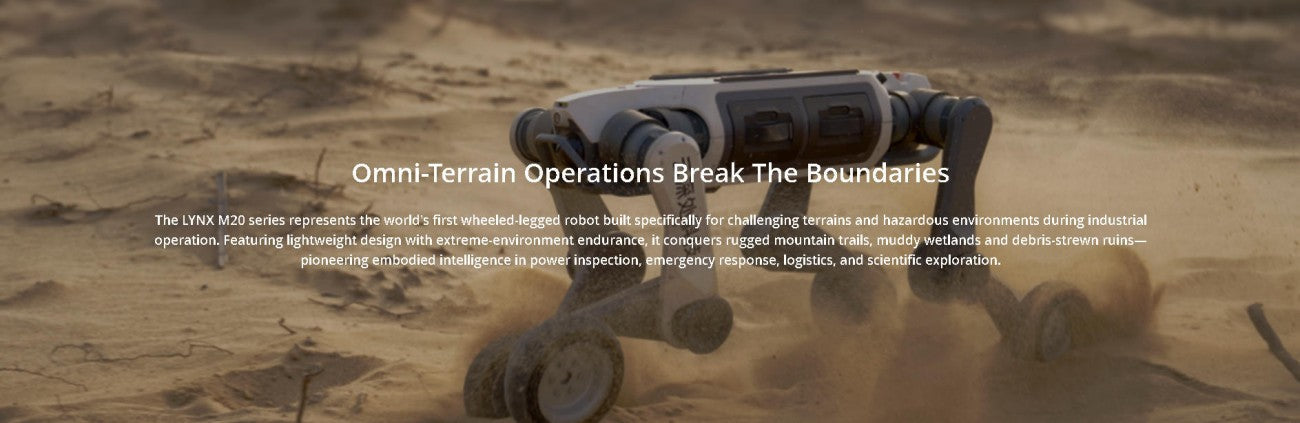

DEEP Robotics LYNX M20 Robot | Quadruped Robot Platform for Field Robotics and Embodied AI Development detail image 1

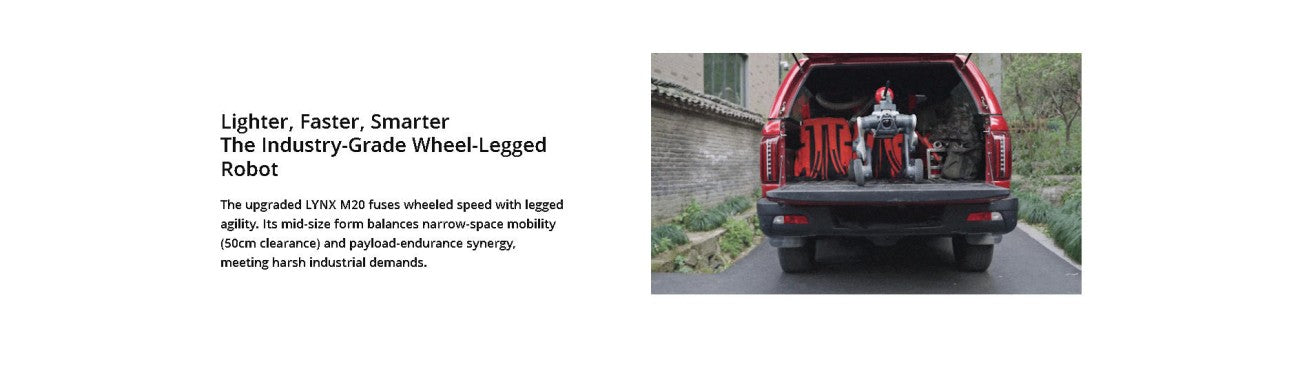

DEEP Robotics LYNX M20 Robot | Quadruped Robot Platform for Field Robotics and Embodied AI Development detail image 2

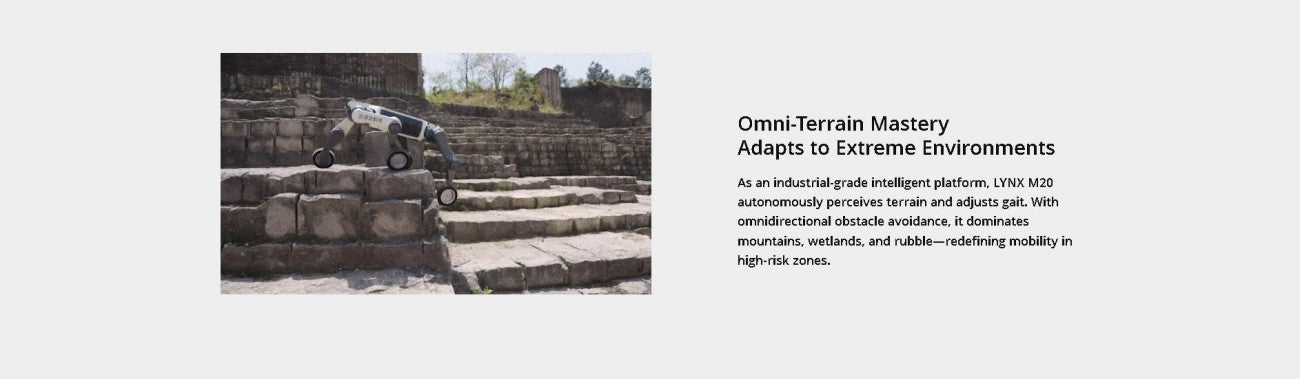

DEEP Robotics LYNX M20 Robot | Quadruped Robot Platform for Field Robotics and Embodied AI Development detail image 3

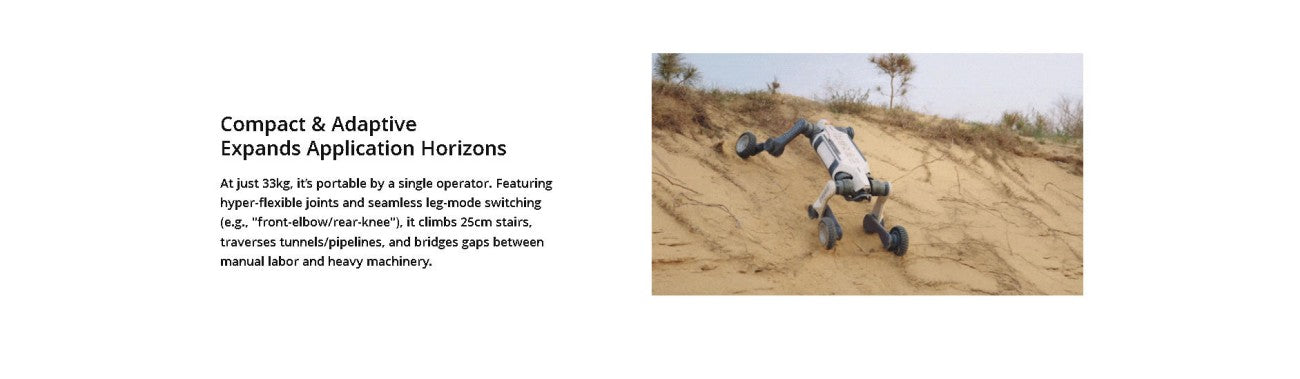

DEEP Robotics LYNX M20 Robot | Quadruped Robot Platform for Field Robotics and Embodied AI Development detail image 4

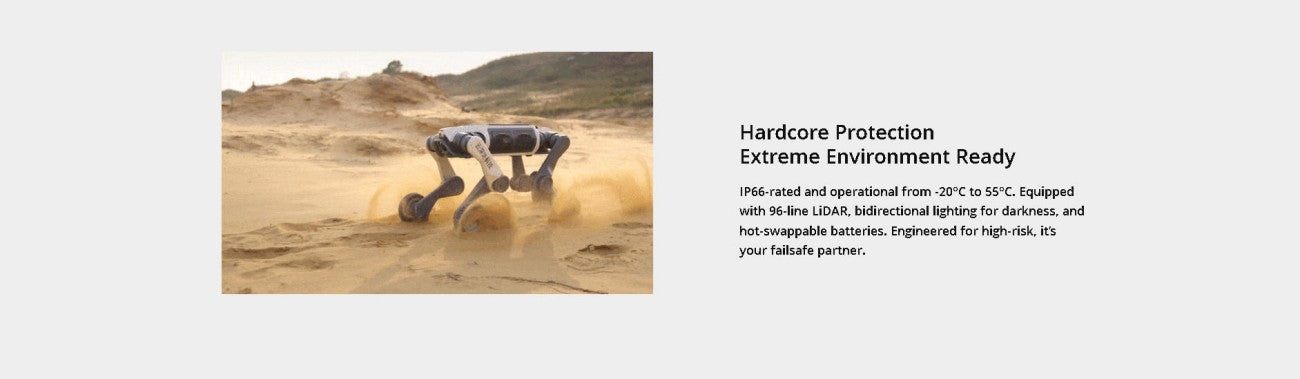

DEEP Robotics LYNX M20 Robot | Quadruped Robot Platform for Field Robotics and Embodied AI Development detail image 5

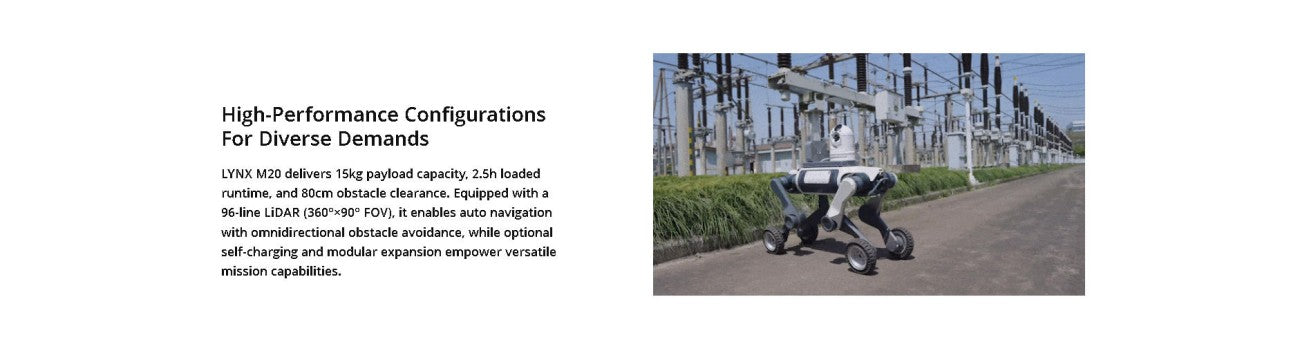

DEEP Robotics LYNX M20 Robot | Quadruped Robot Platform for Field Robotics and Embodied AI Development detail image 6

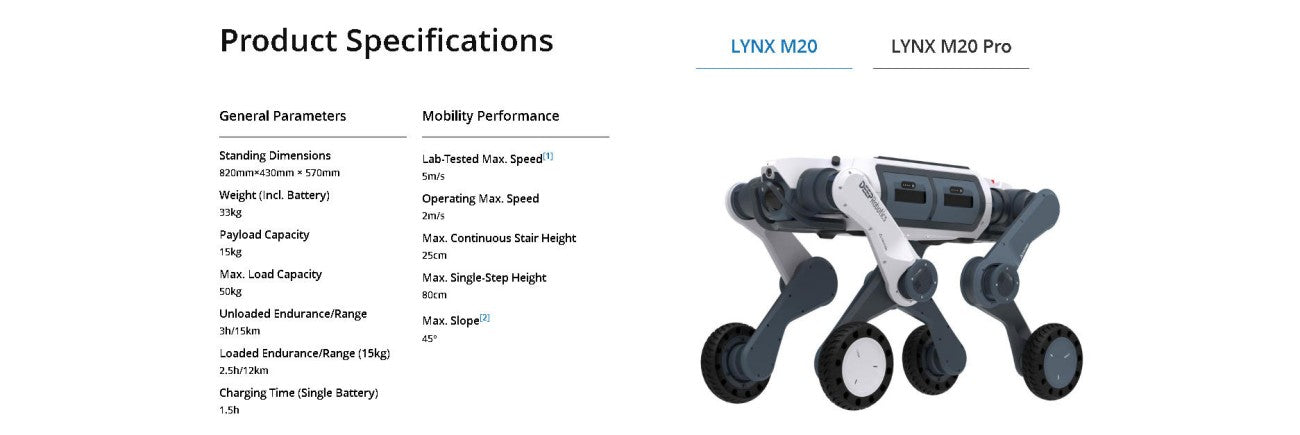

DEEP Robotics LYNX M20 Robot | Quadruped Robot Platform for Field Robotics and Embodied AI Development detail image 7

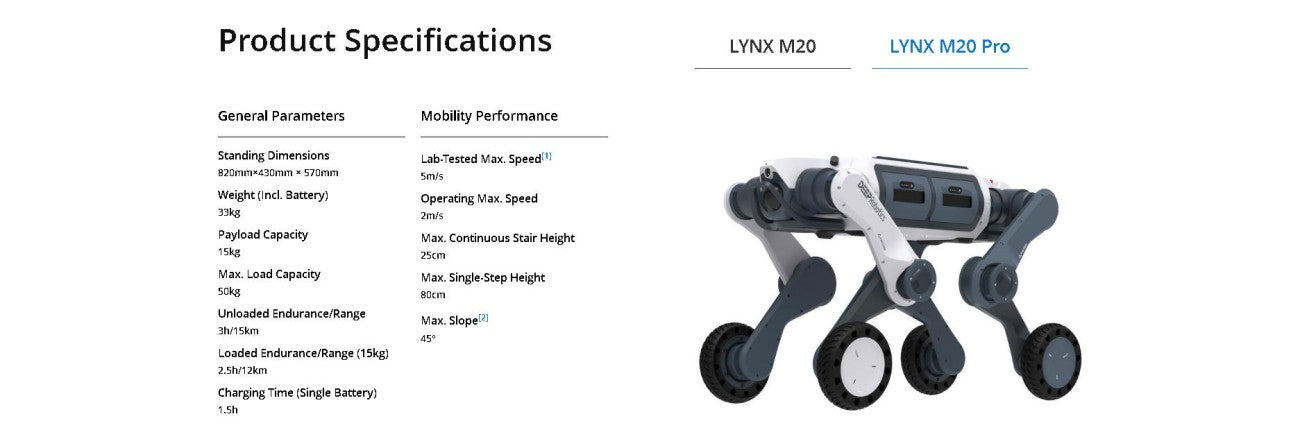

DEEP Robotics LYNX M20 Robot | Quadruped Robot Platform for Field Robotics and Embodied AI Development detail image 8
▤ PARAMETER ⌃
Standing Dimensions
LYNX M20: 820mm×430mm × 570mm LYNX M20 Pro: 820mm×430mm × 570mm
Weight (Incl. Battery)
LYNX M20: 33kg LYNX M20 Pro: 33kg
Payload Capacity
LYNX M20: 15kg LYNX M20 Pro: 15kg
Max. Load Capacity
LYNX M20: 50kg LYNX M20 Pro: 50kg
Unloaded Endurance/Range
LYNX M20: 3h/15km LYNX M20 Pro: 3h/15km
Loaded Endurance/Range (15kg)
LYNX M20: 2.5h/12km LYNX M20 Pro: 2.5h/12km
Charging Time (Single Battery)
LYNX M20: 1.5h LYNX M20 Pro: 1.5h
Lab-Tested Max. Speed[1]
LYNX M20: 5m/s LYNX M20 Pro: 5m/s
Operating Max. Speed
LYNX M20: 2m/s LYNX M20 Pro: 2m/s
Max. Continuous Stair Height
LYNX M20: 25cm LYNX M20 Pro: 25cm
Max. Single-Step Height
LYNX M20: 80cm LYNX M20 Pro: 80cm
Max. Slope[2]
LYNX M20: 45° LYNX M20 Pro: 45°
Computing Power
LYNX M20: Dual octa-core 64-bit industrial processors (16GB+128GB)×2 LYNX M20 Pro: Dual octa-core 64-bit industrial processors (16GB+128GB)×3
LiDAR ×2
LYNX M20: 96line, 360°×90°, ~860000pts/s LYNX M20 Pro: 96line, 360°×90°, ~860000pts/s
Wide-Angle Cameras ×2
LYNX M20: √ LYNX M20 Pro: √
Protection Rating
LYNX M20: IP66 LYNX M20 Pro: IP66
Operating Temperature
LYNX M20: -20℃~55℃ LYNX M20 Pro: -20℃~55℃
SLAM Mapping and Positioning
LYNX M20: \ LYNX M20 Pro: √
Autonomous Navigation
LYNX M20: \ LYNX M20 Pro: √
Omnidirectional obstacle avoidance[3]
LYNX M20: √ LYNX M20 Pro: √
Point cloud surround view[4]
LYNX M20: √ LYNX M20 Pro: √
Front/rear bidirectional lighting
LYNX M20: √ LYNX M20 Pro: √
RF image transmission
LYNX M20: √ LYNX M20 Pro: √
OTA upgrades
LYNX M20: √ LYNX M20 Pro: √
Electrical Ports
LYNX M20: 72V power input, Gigabit Ethernet LYNX M20 Pro: 24/72V power input, Gigabit Ethernet, USB3.0
