JUXIE INTELLIGENT CE-HM-R58 Series Motor

  • Suitable for robotics development, automation prototypes, education labs, and research platforms.
  • Designed for compact robot hardware integration where controlled motion and torque output are required.
  • Useful for robot joint modules, mobile robots, humanoid projects, and precision motion systems.
$1,600
Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

HM-R58_Product_structure_diagram.pdf: JUXIE INTELLIGENT CE-HM-R58 Series Motor installation dimension drawing for mechanical design reference. ▶

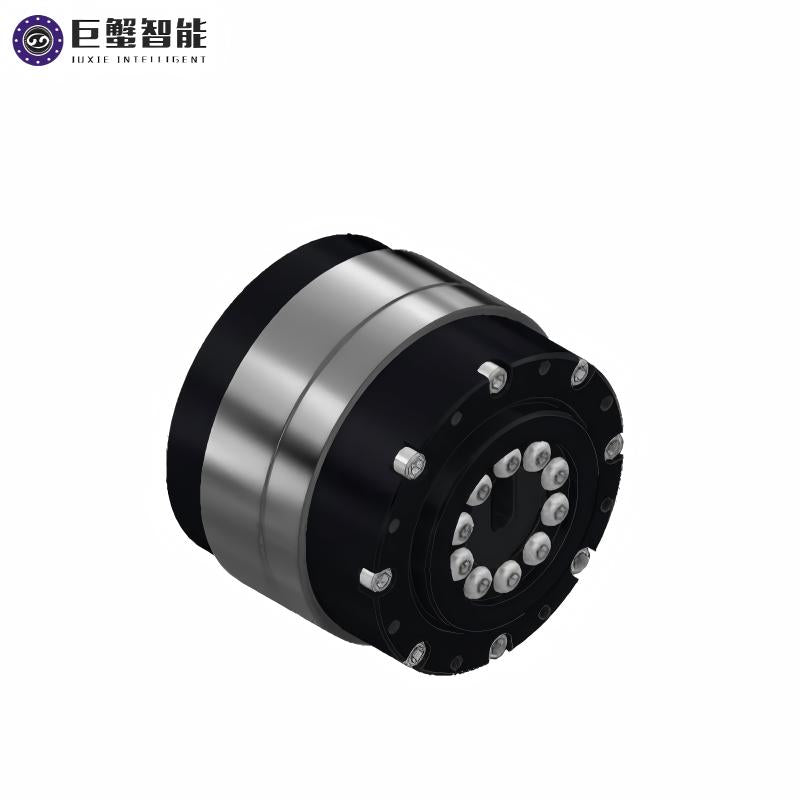

JUXIE INTELLIGENT CE-HM-R58 Series Motor

The JUXIE INTELLIGENT CE-HM-R58 Series Motor is a robot servo motor for robotics development, actuator integration, automation prototypes, and research platforms. It is intended for engineering teams building compact robotic joints, motion modules, and robot hardware systems.

Features

  • **Robot actuator integration:** Suitable for robotic joints, motion modules, and servo-driven hardware.
  • **Robotics development:** Supports education, research, prototyping, and automation projects.
  • **Motion system use:** Built for compact designs where torque output and controlled movement matter.
  • **Engineering reference:** Product-specific documentation and CAD resources are attached when provided by the source page.
JUXIE INTELLIGENT CE-HM-R58 Series Motor | Robot Servo Motor for Robotics Development detail image 1

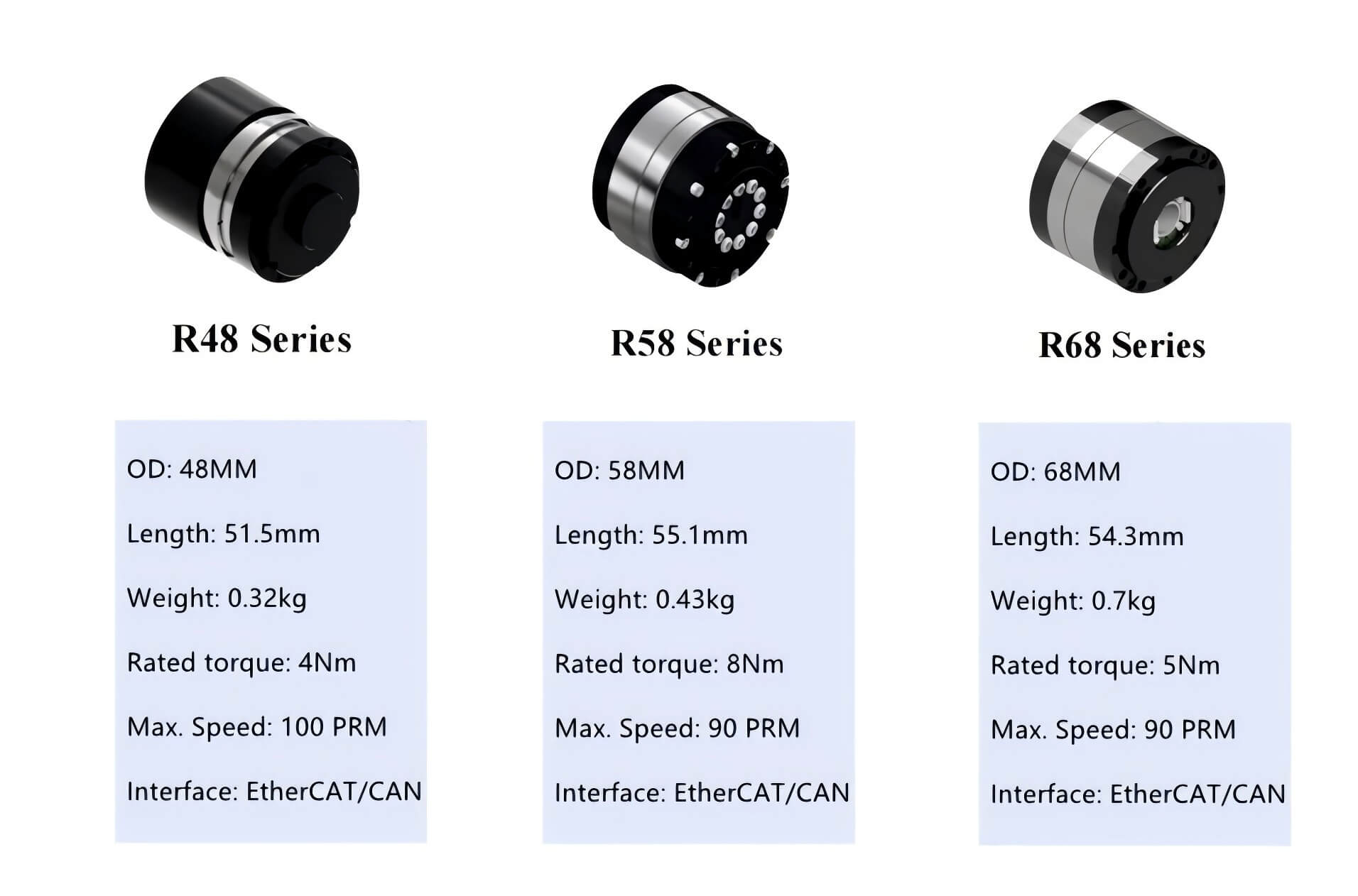

JUXIE INTELLIGENT CE-HM-R58 Series Motor | Robot Servo Motor for Robotics Development detail image 2
JUXIE INTELLIGENT CE-HM-R58 Series Motor | Robot Servo Motor for Robotics Development detail image 3
▤ Technical Specifications ⌃
Parameter Value Value
Configuration 51:1 101:1
Output Speed(RPM) 60 30
Rated Torque(Nm) 10 20
Peak Torque(Nm) 25 45
Backlash(Arcsec) 15 15
Rated Voltage(V) 48 48
Rated Power(W) 95 95
Rated Speed(RPM) 3000 3000
Rated Current(A) 3.5 3.5
Peak Current(A) 10 10
Éncoder Dual Encoders Single-turn Absolute Value: 19-bit per turn Dual Encoders Single-turn Absolute Value: 19-bit per turn
Driver Interface: EtherCAT/CAN Current Loop: 50KHz Speed Loop: 10KHz Interface: EtherCAT/CAN Current Loop: 50KHz Speed Loop: 10KHz
Overall Dimensions R58* 52.1mm R58* 52.1mm
Overall Weight 0.5kg 0.5kg
Typical Applications Head, Wrist Joints, Elbow Joint Head, Wrist Joints, Elbow Joint
