EYOU

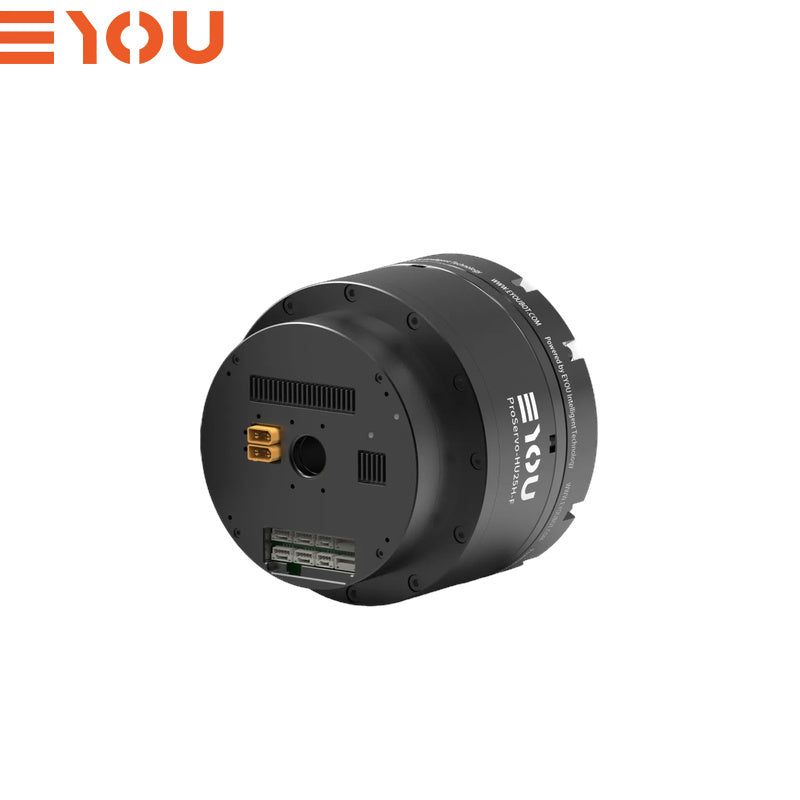

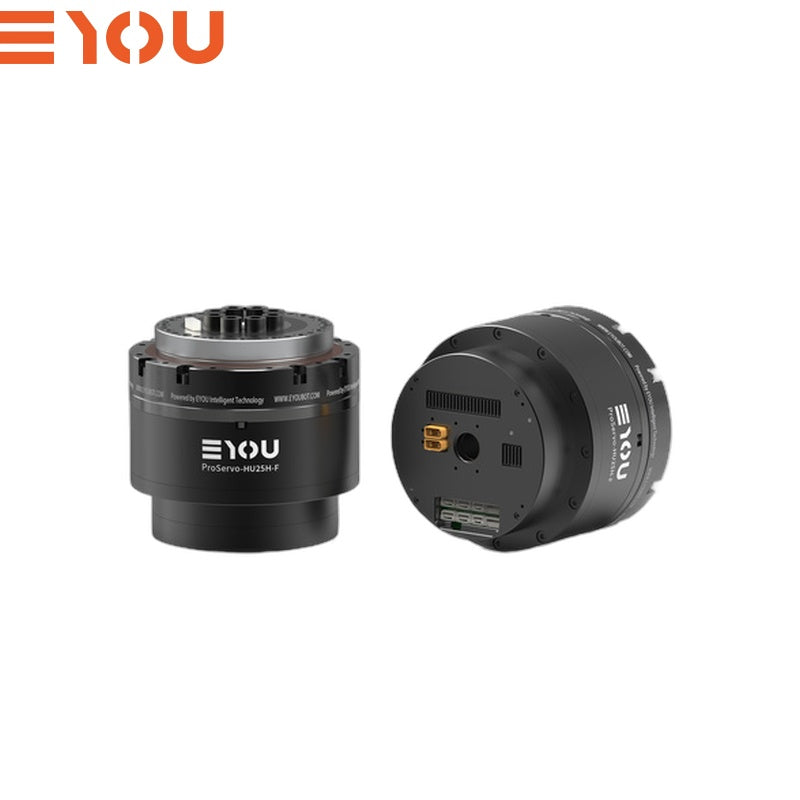

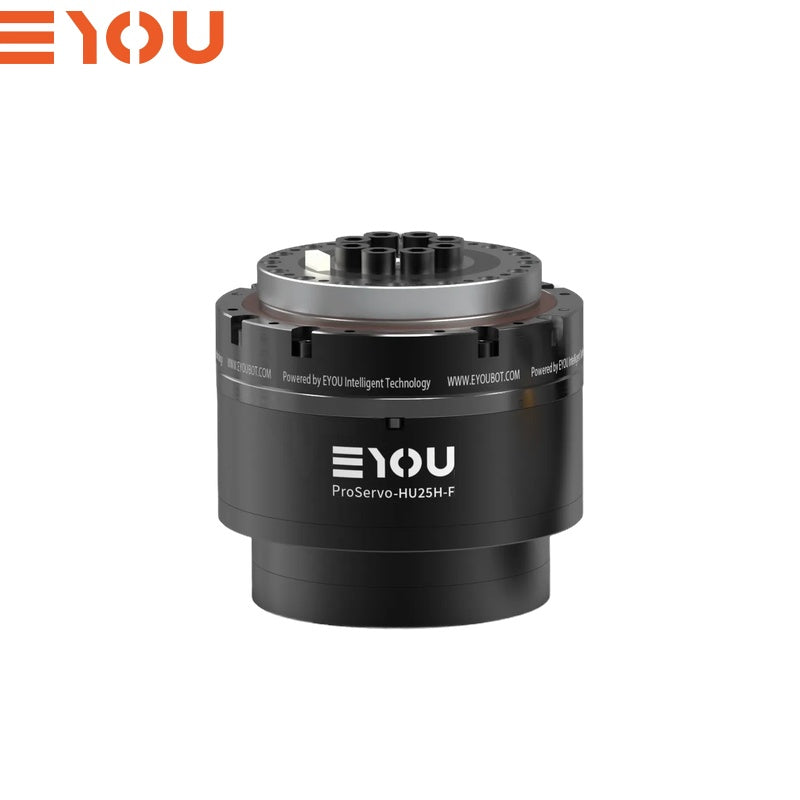

EYOU PHU25H-110-F Motor | Robot Servo Motor for Robotics Development

  • EYOU robot servo motor for robot joints, motion-control systems, automation hardware, and robotics development.
  • Suitable for engineering teams building research robots, education platforms, prototype mechanisms, and embedded motion systems.
  • Designed for practical integration in robot servo assemblies, compact actuators, and motion-control hardware.
  • Useful for robotics labs, automation projects, and robot hardware development where reliable components are required.
$730
Version
Brake
Ratio

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

EYOU PHU25H-110-F Motor CAD model for mechanical integration.stp ▶ EYOU PHU25H-110-F Motor dimension drawing for installation reference.pdf ▶ EYOU PHU25H-110-F Motor user manual for setup and integration.pdf ▶ EYOU PHU25H-110-F Motor product documentation for robotics integration.pdf ▶ EYOU PHU25H-110-F Motor user manual for setup and integration.pdf ▶

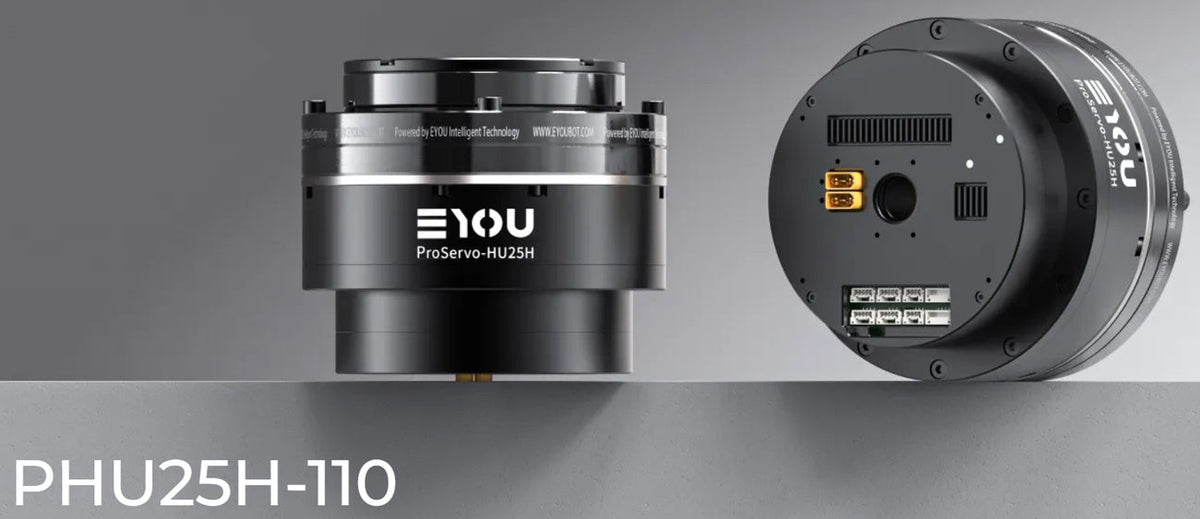

EYOU PHU25H-110-F Motor | Robot Servo Motor for Robotics Development detail image 1

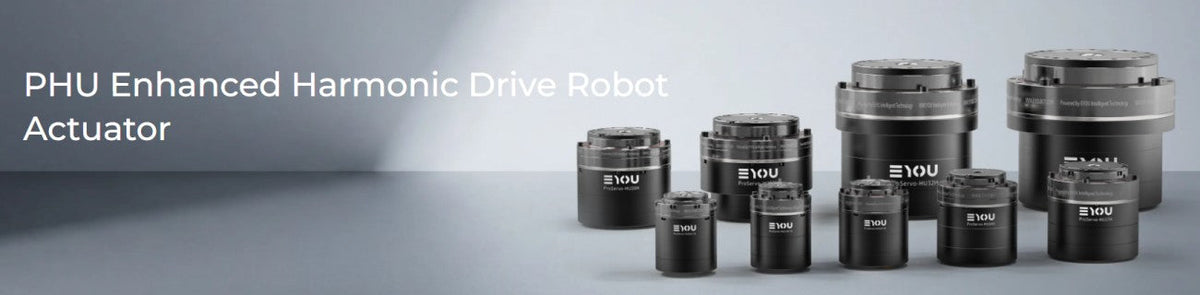

EYOU PHU25H-110-F Motor | Robot Servo Motor for Robotics Development detail image 2
EYOU PHU25H-110-F Motor | Robot Servo Motor for Robotics Development detail image 3

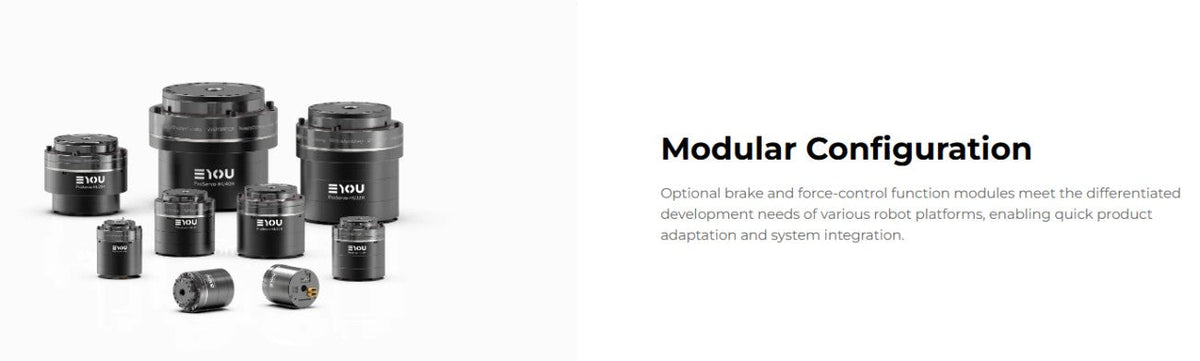

EYOU PHU25H-110-F Motor | Robot Servo Motor for Robotics Development detail image 4
EYOU PHU25H-110-F Motor | Robot Servo Motor for Robotics Development detail image 5

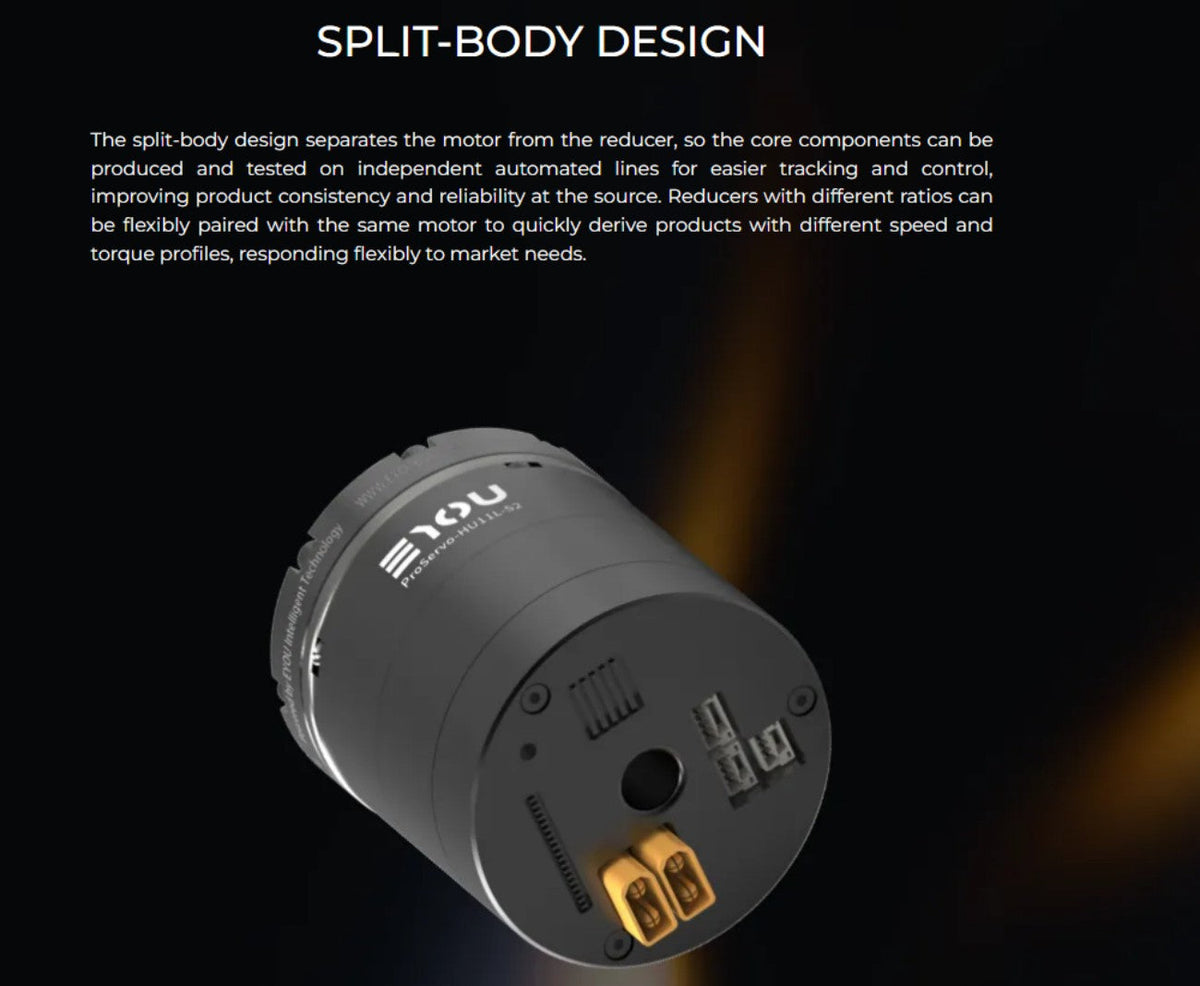

EYOU PHU25H-110-F Motor | Robot Servo Motor for Robotics Development detail image 6
EYOU PHU25H-110-F Motor | Robot Servo Motor for Robotics Development detail image 7

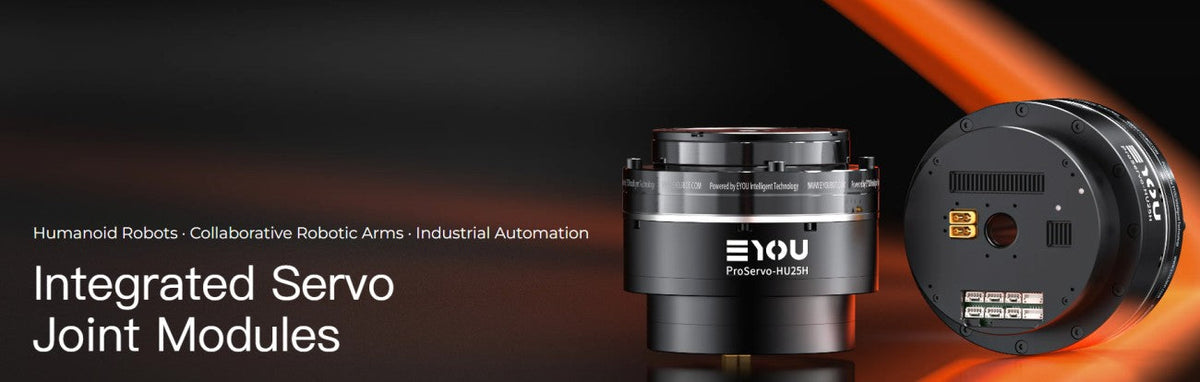

EYOU PHU25H-110-F Motor | Robot Servo Motor for Robotics Development detail image 8

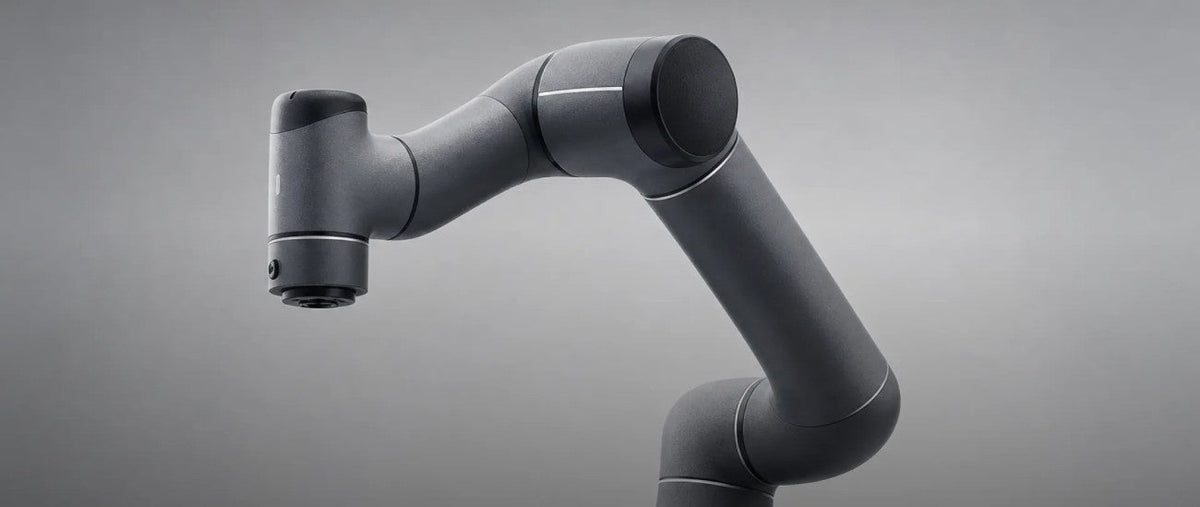

EYOU PHU25H-110-F Motor | Robot Servo Motor for Robotics Development detail image 9
▤ PARAMETER ⌃
Module Model
PHU-25H-110-F
Reducer Type
Harmonic
Motor Rated Power (W)
586
Motor Rated Torque (N·m)
1.6
Motor Peak Torque (N·m)
4.8
Reduction Ratio
80 / 100 / 120
Joint Rated Power (W) - Life Constraint
204 / 176 / 147
Rated Torque at 2000rpm Input (N·m)
78 / 84 / 84
Average Load Torque at Output (N·m)
107 / 133 / 133
Peak Torque at Output (N·m)
169 / 194 / 207
Max Allowable External Torque at Output (Instantaneous) (N·m)
315 / 351 / 376
Backlash (Arcsec)
≤20 / ≤20 / ≤20
Rated Speed at Output (rpm) - Life Constraint
25 / 20 / 17
Peak Speed at Output (rpm)
44 / 36 / 30
Brake (B/N)
B/N
Dimensions (Outer Diameter × Axial) (mm)
Φ110 × 106
Weight (kg) (B/N)
2.97 / 2.78
Hollow Diameter (mm)
13
Housing Appearance (Process Color)
Black Anodized (Non-sandblasted)
Reducer Appearance (Process Color)
Outer Ring Blackened
Radial (dynamic/static) Allowable Load at Output (N)
900
Axial (dynamic/static) Allowable Load at Output (N)
900
Output Bending Moment (N·m)
243
Reducer Torsional Stiffness (N·m/rad)
46000 / 46000 / 46000
Reducer Input Inertia (kg·mm²) (B)
251.975 / 251.975 / 251.975
Equivalent Joint Output Inertia (kg·mm²) (B)
1612640 / 2519750 / 3628440
Torque Sensor Range (N·m)
220
Torque Sensor Accuracy (%F.S)
≤±0.5
Torque Sensor Resolution (%F.S)
0.1
Torque Sensor Overload Limit (%F.S)
300
Torque Sensor Sampling Frequency (kHz) - Digital
8
Torque Closed-loop Bandwidth (Hz)
30
Impedance Control Frequency (kHz)
1
Rated Operating Voltage (VDC)
48
Operating Voltage Range (VDC)
24~48
Driver
Built-in
Encoder/Bit (bit)
Dual Absolute / Motor side 19Bit & Reducer side 19Bit
Driver Interface (see terminal model description)
Power (DC in DC out), CAN FD (In,Out), EtherCAT (In,Out), STO (1,2)
Communication Protocol (see communication description)
EtherCAT / CANopen
Control Modes
Profile Position (PP), Profile Velocity (PV), Profile Torque (PT), Cyclic Synchronous Position (CSP), Force Control (CSF), etc.
Operating Ambient Temperature (°C)
-10~60
Housing Operating Temperature (°C)
≤60
Noise (dB)
≤60
Life (h)
>10000
