RobotEra

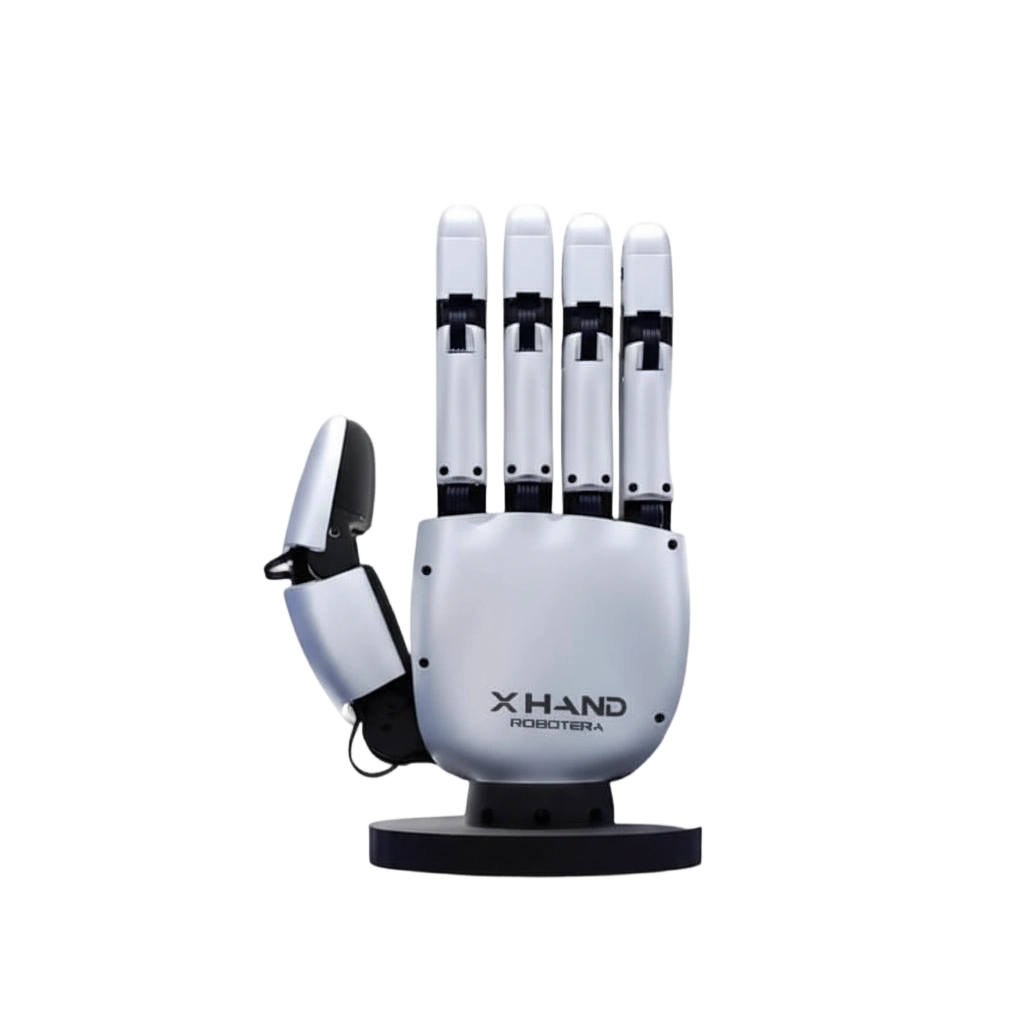

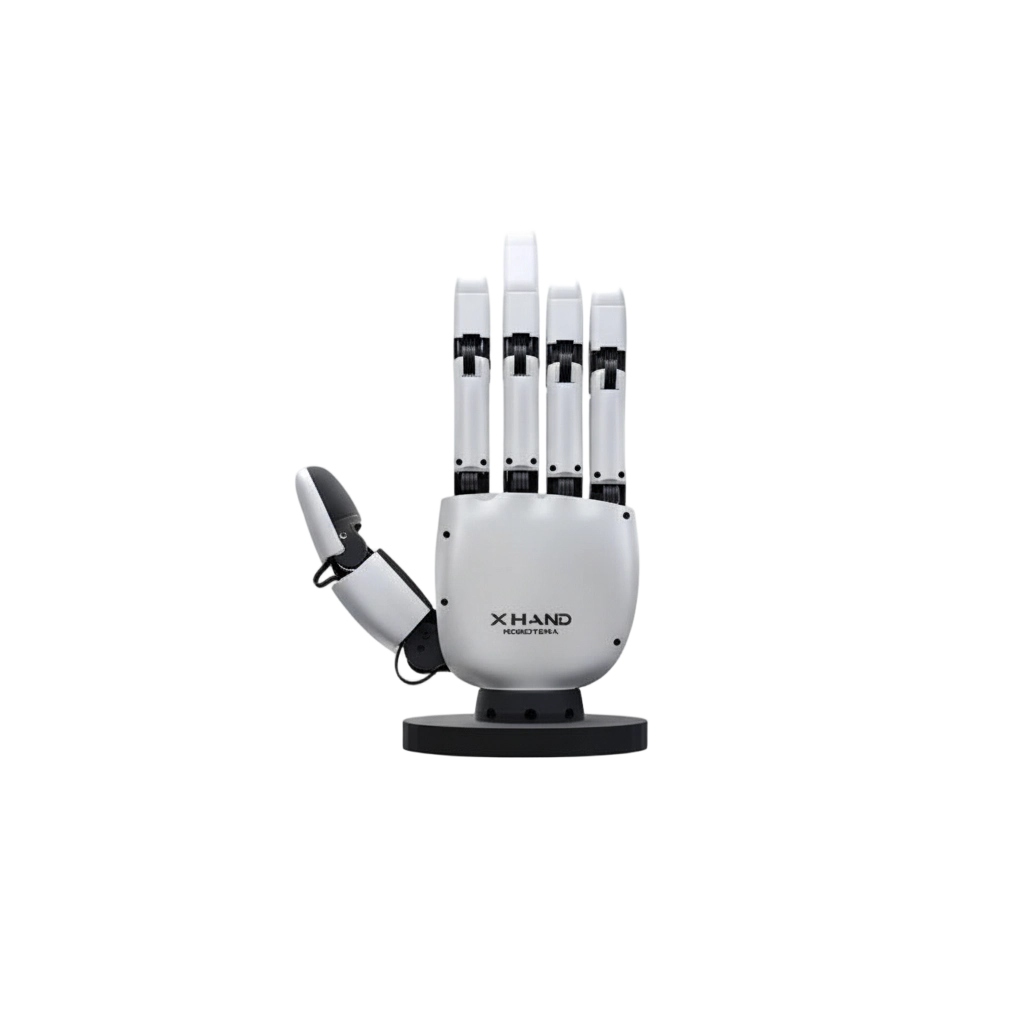

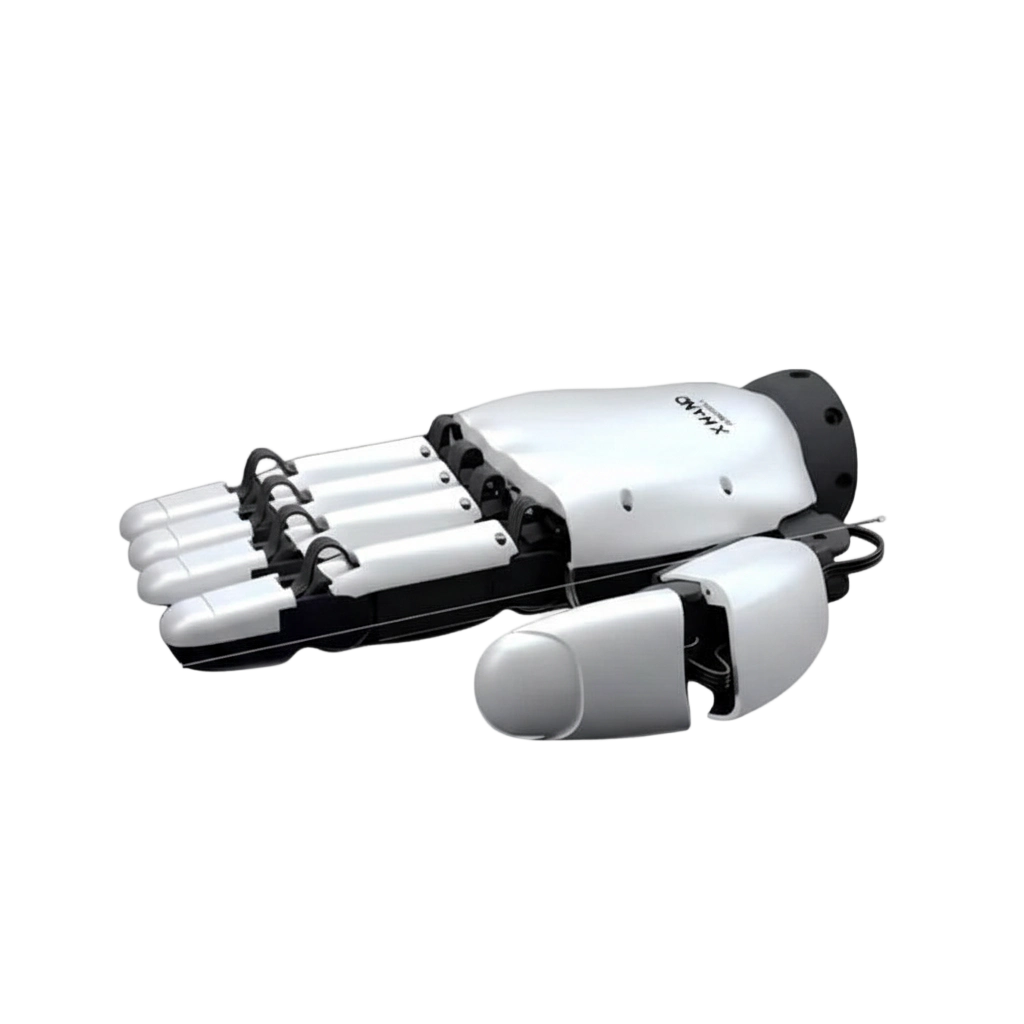

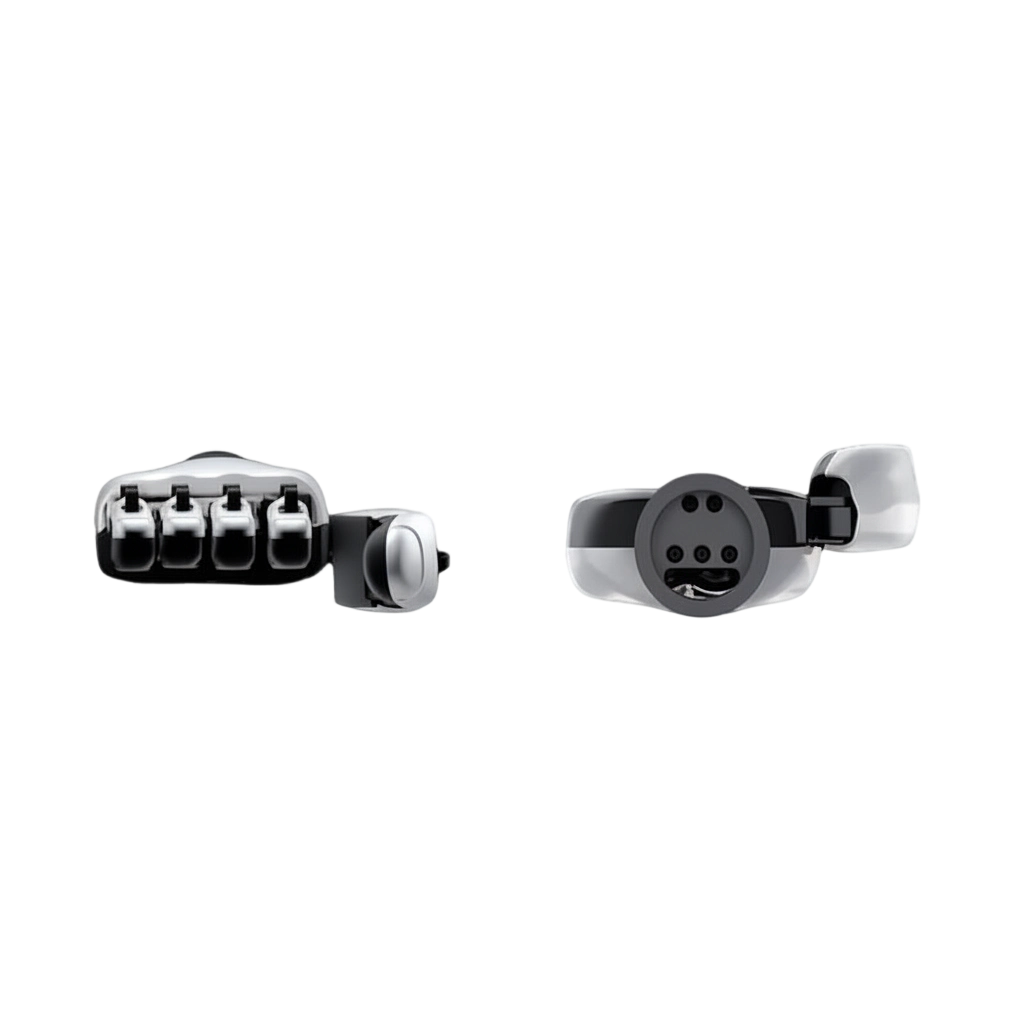

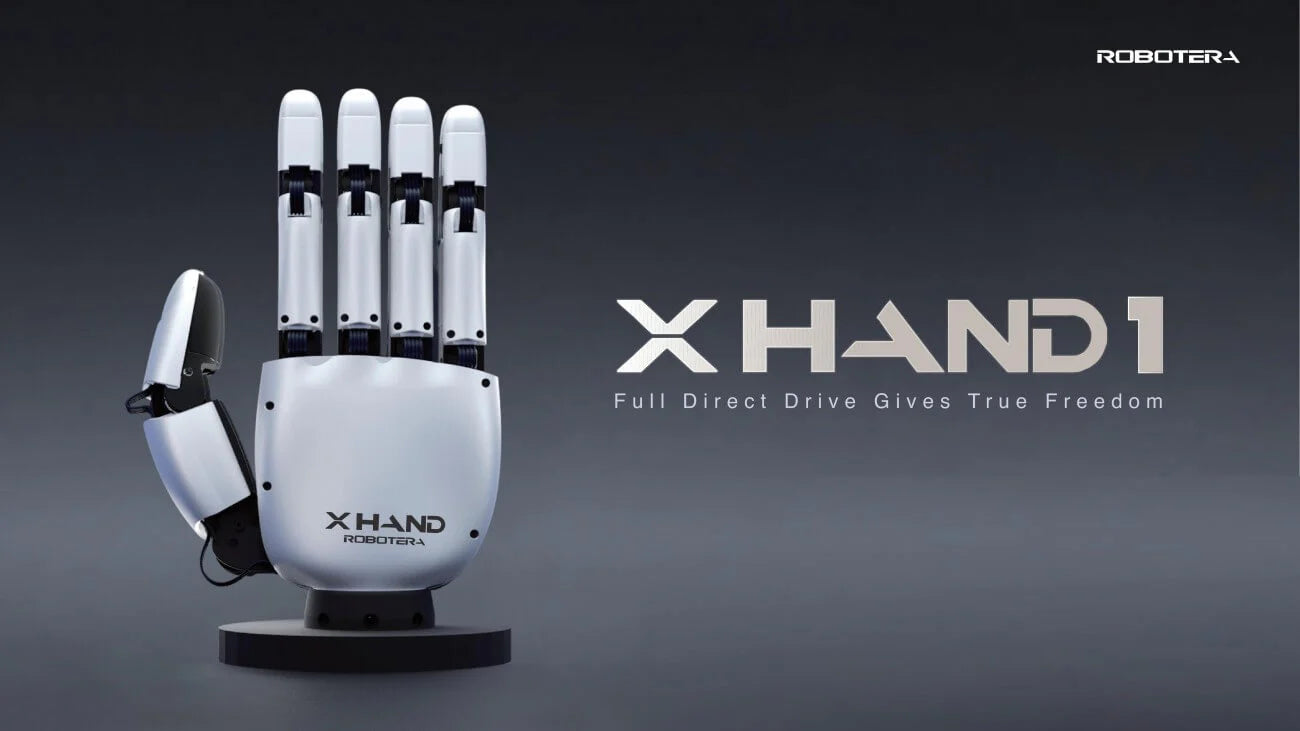

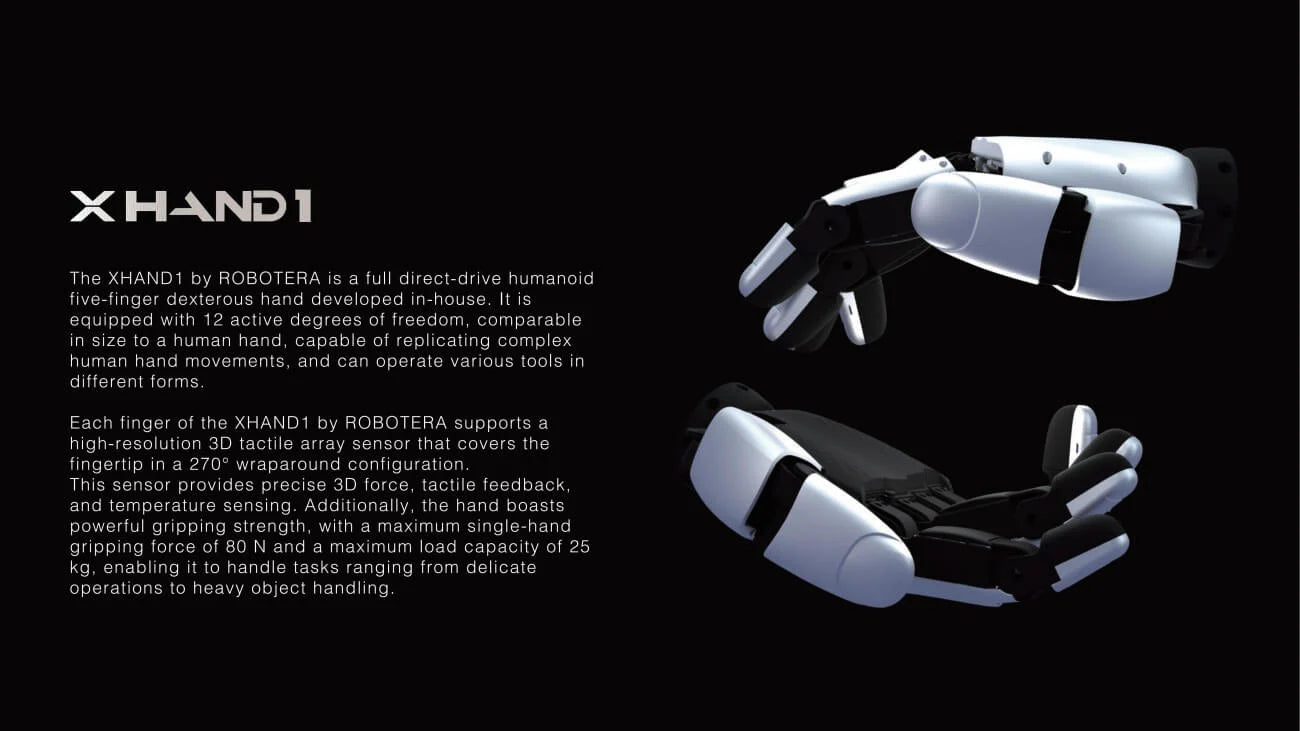

RobotEra XHAND 1 Robotic Hand Module for Humanoid Integration

$16,800
Version
Model

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

Free shipping. 12-Day delivery.

▤ PARAMETER ⌃
Weight
1100 g
Dimensions (L × W × T)
191 × 94 × 47 mm (Adult hand size)
Active Degrees of Freedom (Total)
12
Passive Degrees of Freedom (Total)
0
DoF Allocation
Thumb ×3; Index ×3; Middle ×2; Ring ×2; Little ×2

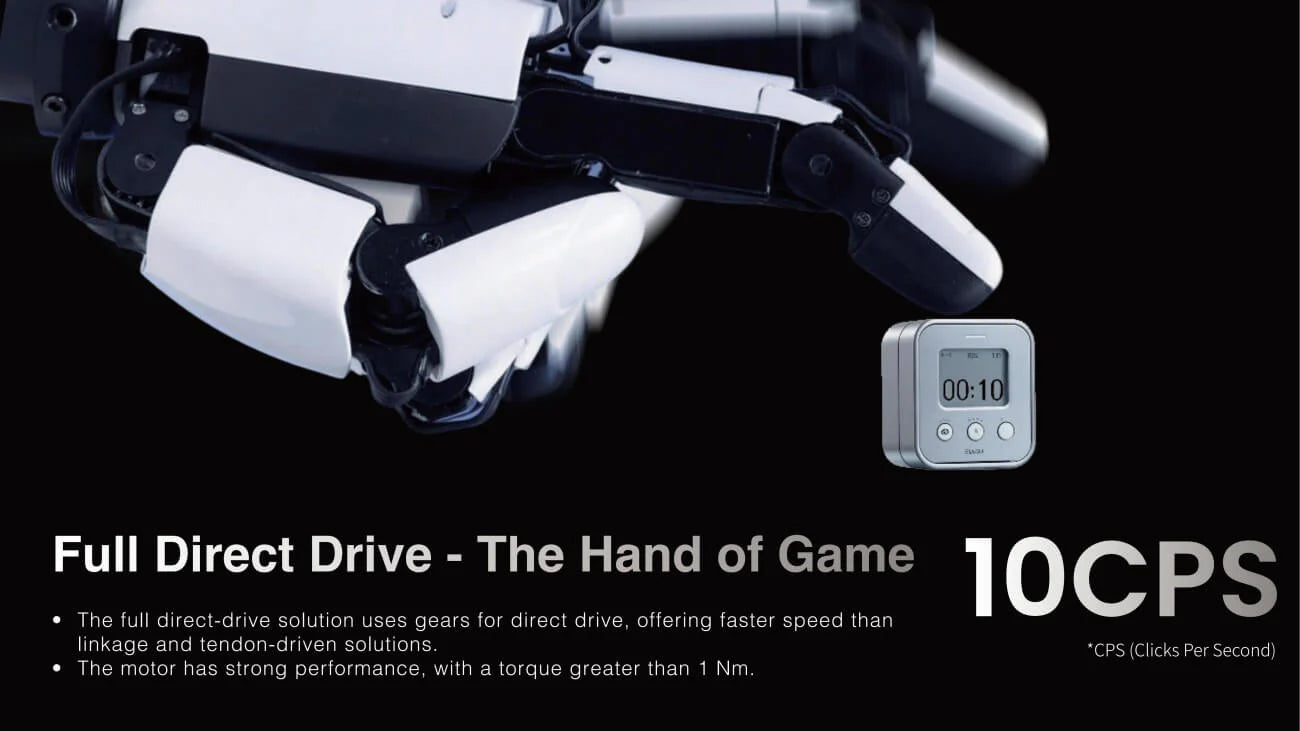

Thumb Actuation
3 Gear-driven Force-controlled Joint Modules
Four-Finger Actuation
9 Gear-driven Force-controlled Joint Modules
Fingertip Configuration
Round / Rounded Fingertips
Index Finger Lateral Swing
-15° to +15°
Fingertip Repeat Positioning Accuracy
±0.20 mm

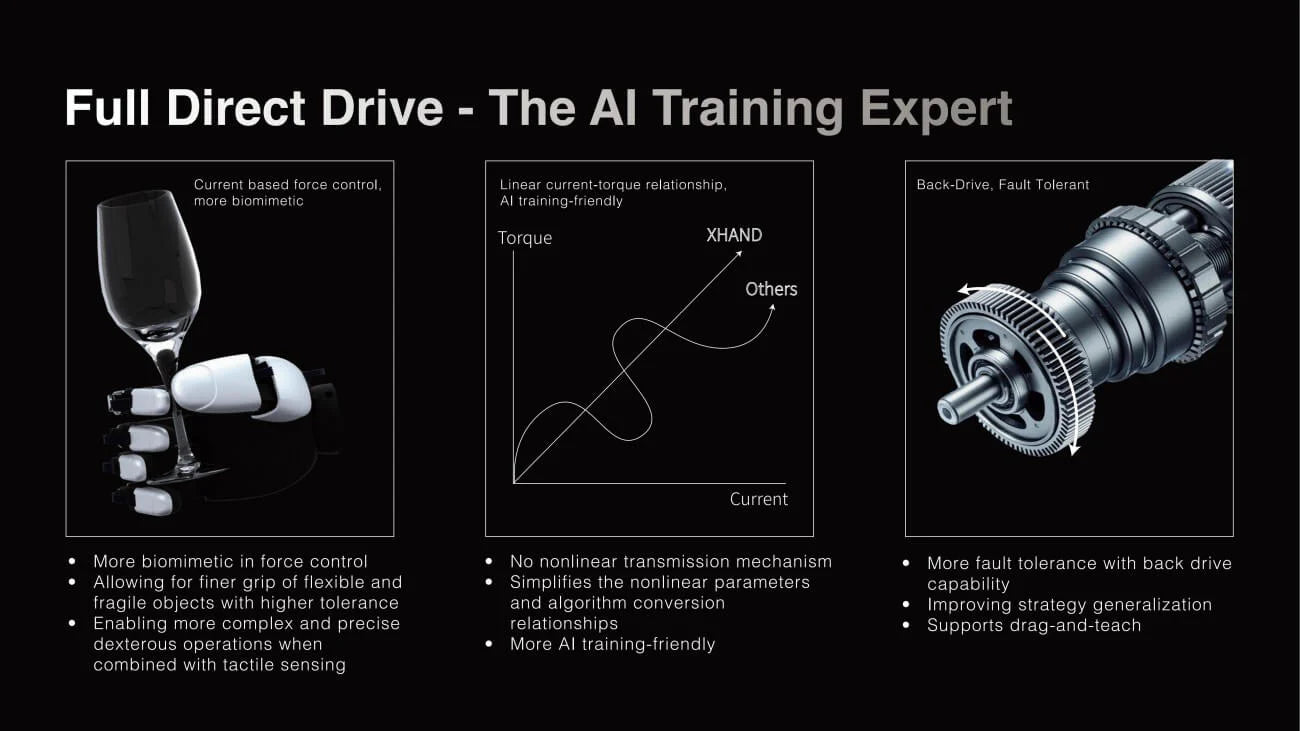

Control Modes
Position Control (Low/High Damping), Current-loop Force Control, Hybrid Force-Position Control
Fingertip Force
15 N

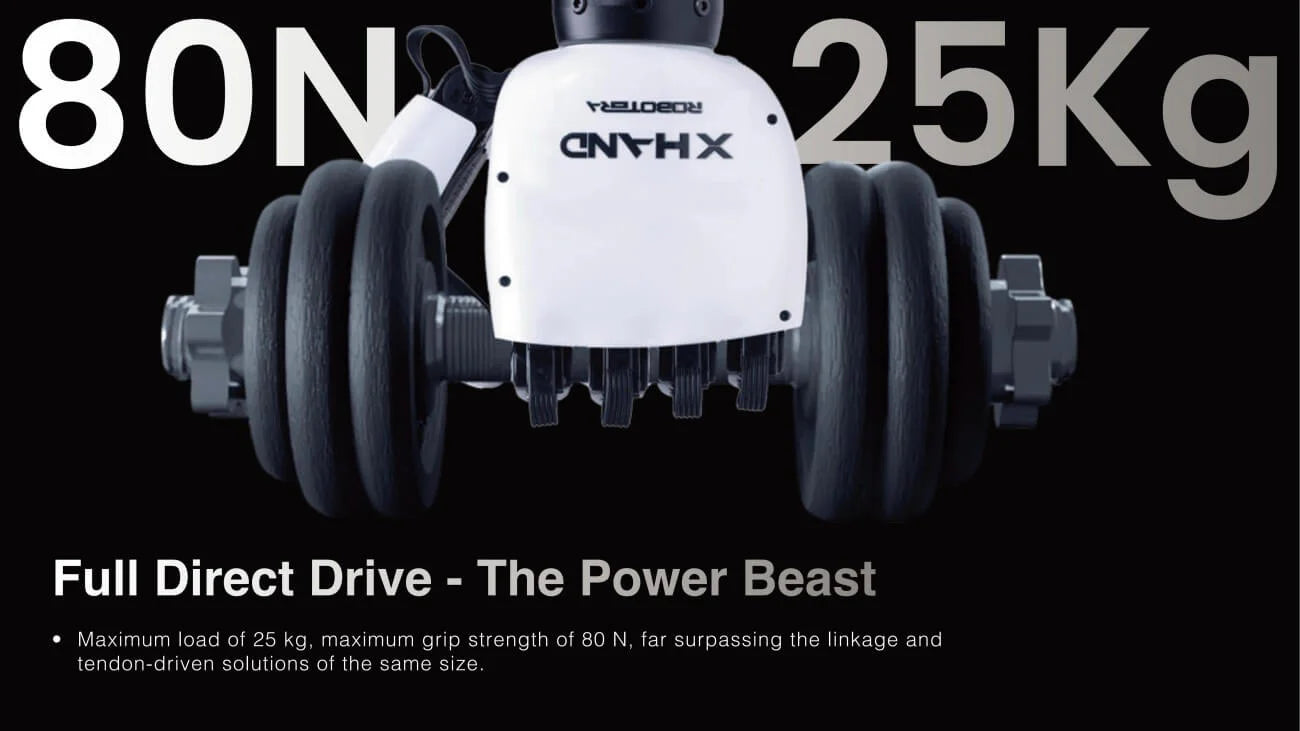

Maximum Grip Strength (Whole Hand)
80 N
Maximum Grasp Weight (Palm Down)
16 kg
Maximum Grasp Weight (Palm Up)
25 kg
Thumb Maximum Opposition
Reaches Little Finger
Open/Close Repetition Speed
>2 Hz
Back-drive Damping (Backdrivable)
≤0.1 N·m

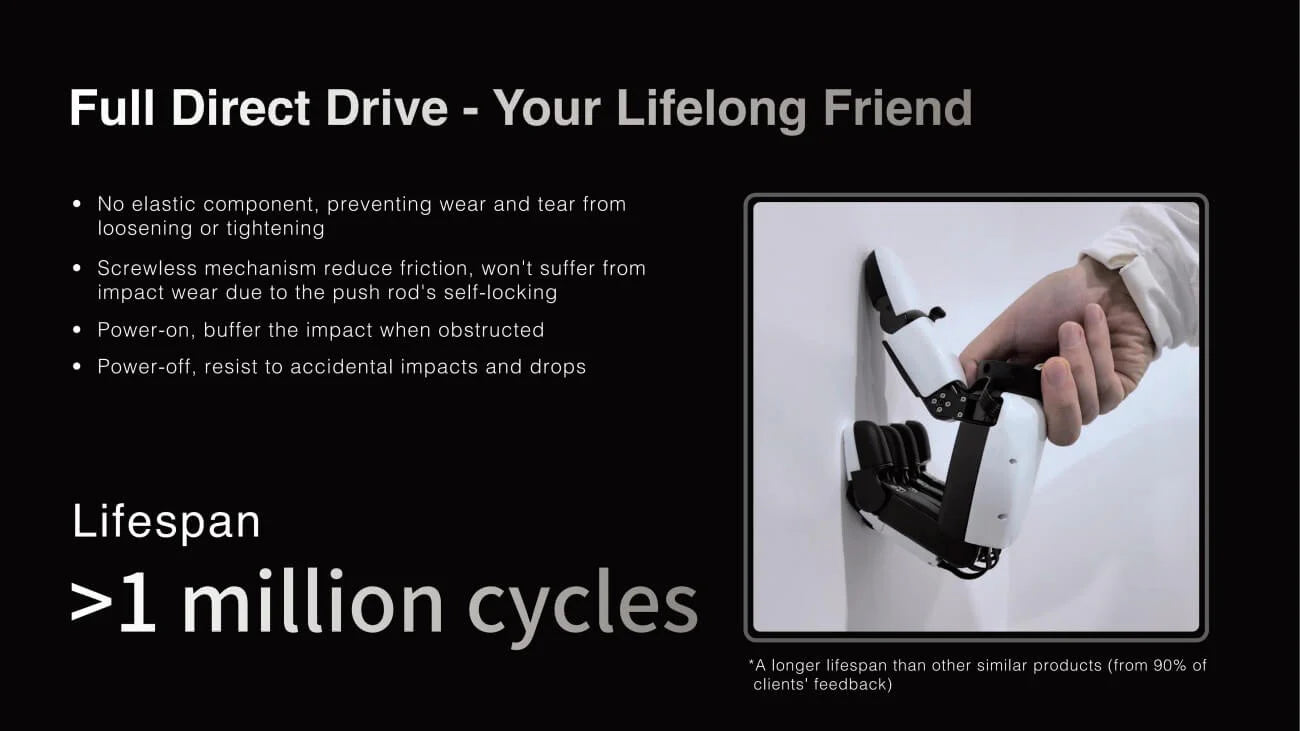

No-load Grasp Cycles
1,000,000 cycles

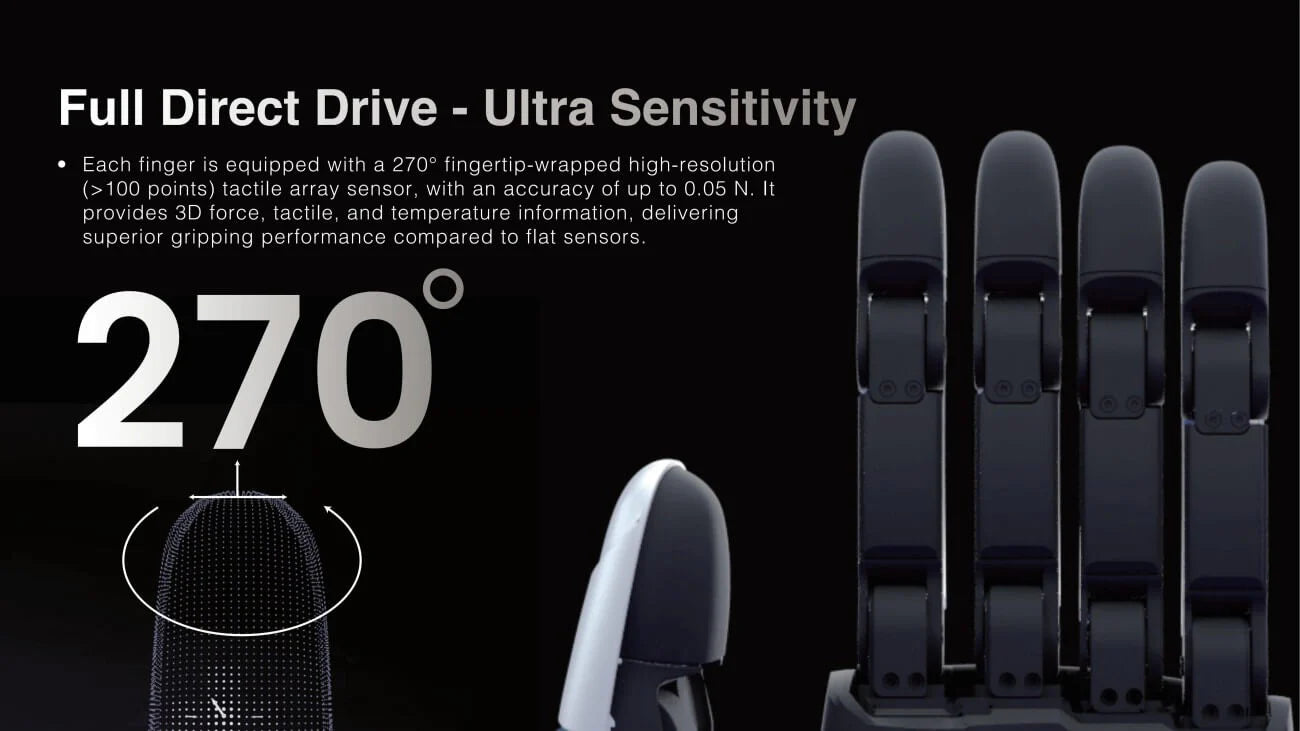

Tactile Coverage
270° Encircling Fingertip Coverage (Five Fingers)
Number of Tactile Sensors
Five 270° 3D Encircling Tactile Array Sensors (One per Fingertip)
Tactile Resolution (Whole Hand)
12 × 10 (per fingertip, 270° coverage) × 5
Tactile Sensing Dimensions
Three-dimensional Force Sensing (Normal + Tangential X/Y Forces)
Sensing Parameters
Fingertips: 120 3D force array points; Joints: Position, Velocity, Temperature, Current (Torque)
Whole-hand Control Frequency
83 Hz
Communication Interface
RS485 (USB), EtherCAT
Communication Rate (EtherCAT)
100 MHz
Communication Rate (RS485)
3 MHz
Working Voltage
24 – 72 V DC
Static Current
0.15 A @ 48 V (7 W)
Maximum Current
2.5 A @ 48 V (120 W)
Operating Temperature Range
-20 °C – 60 °C

Technical Documentation

STP
Xhand_adapter_stp.STEP
PDF
XHand_Control_ROS_Documentation_1.1.1.pdf
MH2.25_left_stp.zip
MH2.25_right_stp.zip
PDF
X-Hand_1_User_Quick_Start_Instructions_1.0.pdf
PDF
X-Hand_1_Product_Manual_1.0.pdf
