HIGH TORQUE

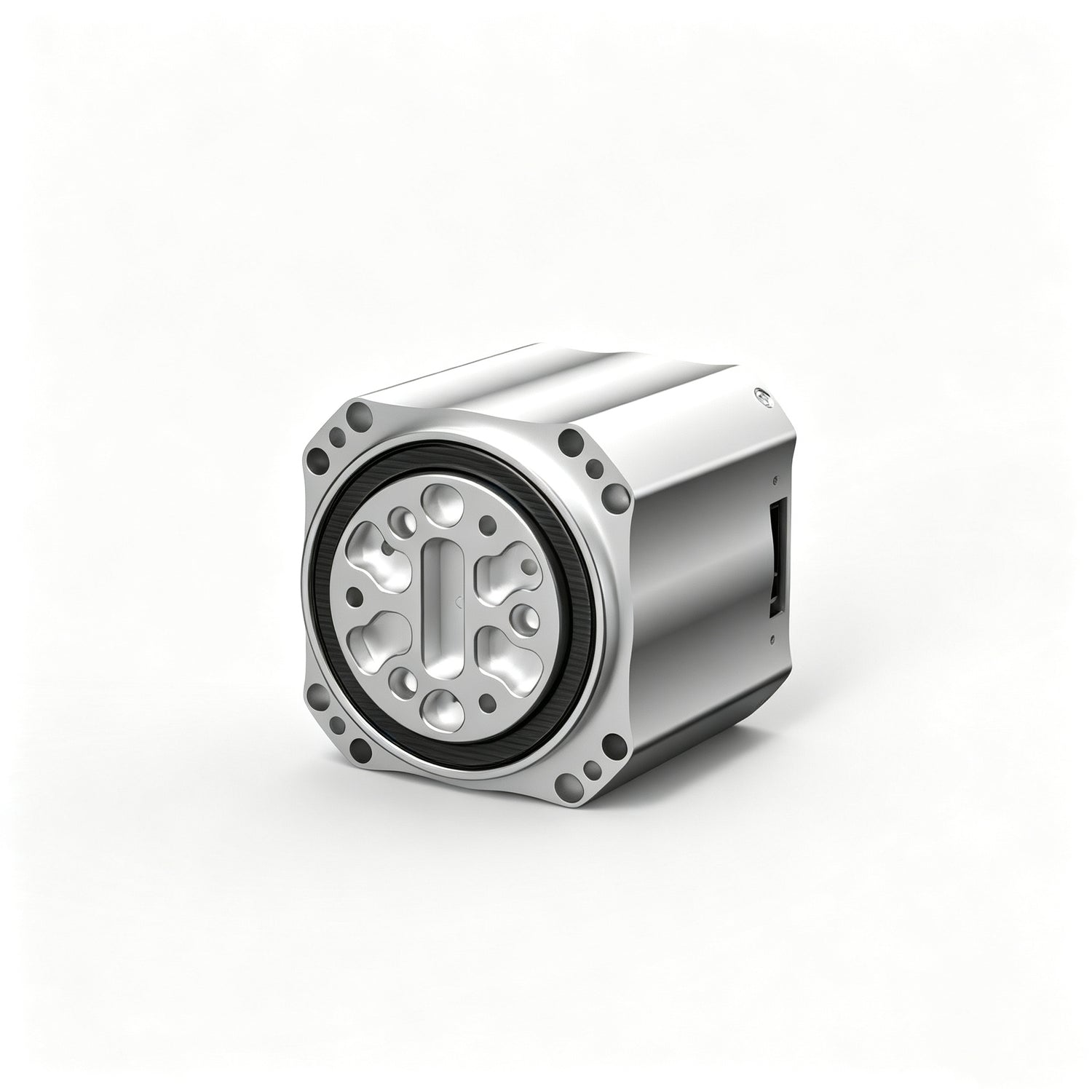

HIGH TORQUE HTDW-5036-02-CNE Planetary Joint Module

  • Designed for humanoid robots, robotic arms, and robotics research platforms.
  • Compact planetary joint module with integrated motor and gearbox design.
  • 36:1 reduction ratio provides efficient torque output for robotic motion.
  • Cross roller bearing structure improves joint stability and load performance.
  • CANFD/CAN communication supports flexible integration with robotic systems.

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

HIGH TORQUE HTDW-5036-02-CNE Planetary Joint Module

The HIGH TORQUE HTDW-5036-02-CNE is a compact planetary joint module designed for humanoid robots, robotic arms, and advanced robotics platforms. It integrates a motor, planetary gearbox, cross roller bearing structure, encoder feedback, and communication interface into a complete robotic joint solution for precise and stable motion control.

Compact Joint Module Design

The HTDW-5036-02-CNE features an integrated motor and gearbox structure, providing a compact actuator solution for robotic systems where space efficiency, lightweight design, and simplified mechanical integration are important.

36:1 Planetary Reduction System

Equipped with a 36:1 reduction ratio, the module delivers enhanced torque output and stable transmission performance for robotic joints. It is suitable for applications requiring controlled motion, precise positioning, and reliable torque response.

Cross Roller Bearing Structure

The integrated cross roller bearing design improves joint rigidity and load handling capability, making the HTDW-5036-02-CNE suitable for robotic platforms requiring stable operation and accurate joint movement.

Encoder Feedback and Motion Control

The module integrates encoder feedback for precise position control and real-time motion feedback. Combined with CANFD/CAN communication, it enables flexible integration into humanoid robots, robotic arms, and custom robotics development platforms.

Robotics Research and Development Applications

With its compact structure, integrated control capability, and reliable joint performance, the HTDW-5036-02-CNE is designed for robotics research, educational platforms, humanoid robot development, and next-generation automation applications.

HIGH TORQUE HTDW-5036-02-CNE Planetary Joint Module
▤ PARAMETER ⌃

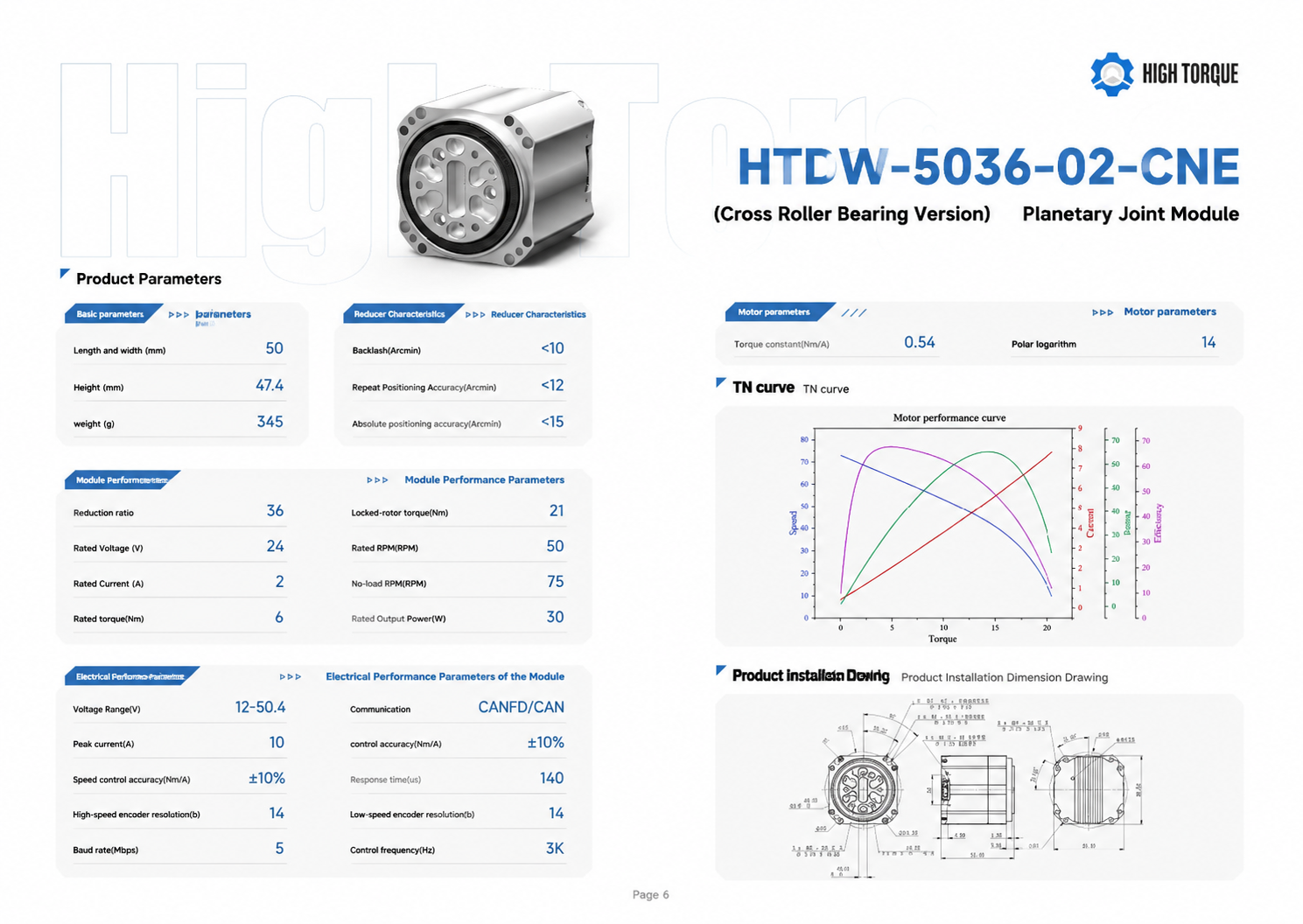

Product Parameters
Parameter Category Parameter Value
Basic Parameters Length and Width 50 mm
Height 47.4 mm
Weight 345 g
Reducer Characteristics Backlash <10 Arcmin
Repeat Positioning Accuracy <12 Arcmin
Absolute Positioning Accuracy <15 Arcmin
Module Performance Parameters Reduction Ratio 36
Rated Voltage 24 V
Rated Current 2 A
Rated Torque 6 Nm
Locked-Rotor Torque 21 Nm
Rated RPM 50 RPM
No-Load RPM 75 RPM
Rated Output Power 30 W
Electrical Performance Parameters of the Module Voltage Range 12–50.4 V
Peak Current 10 A
Speed Control Accuracy ±10%
High-Speed Encoder Resolution 14 bit
Baud Rate 5 Mbps
Communication CAN FD/CAN
Torque Control Accuracy ±10%
Response Time 140 μs
Low-Speed Encoder Resolution 14 bit
Control Frequency 3 kHz
