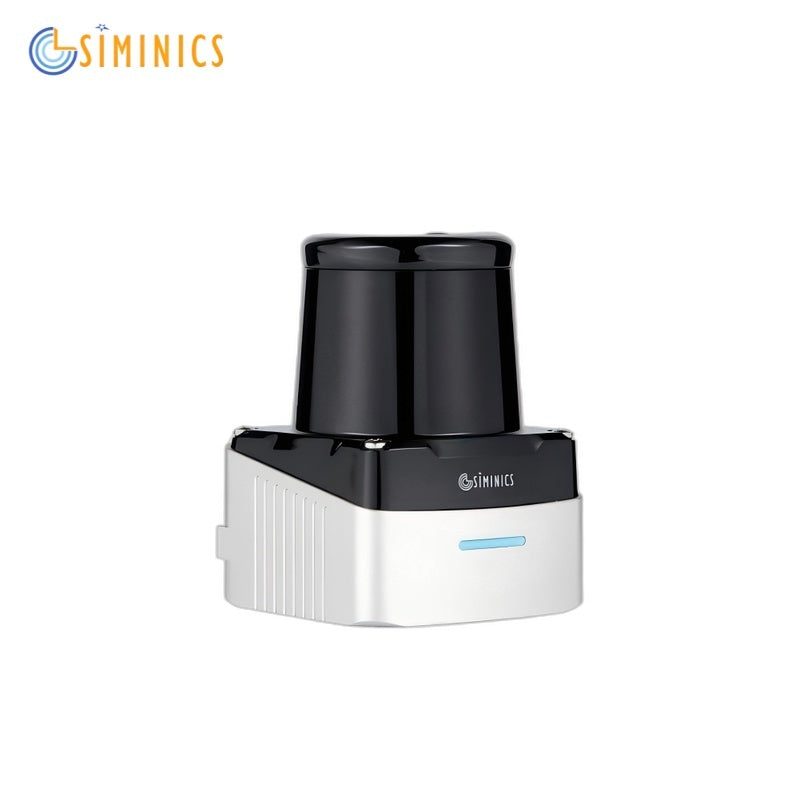

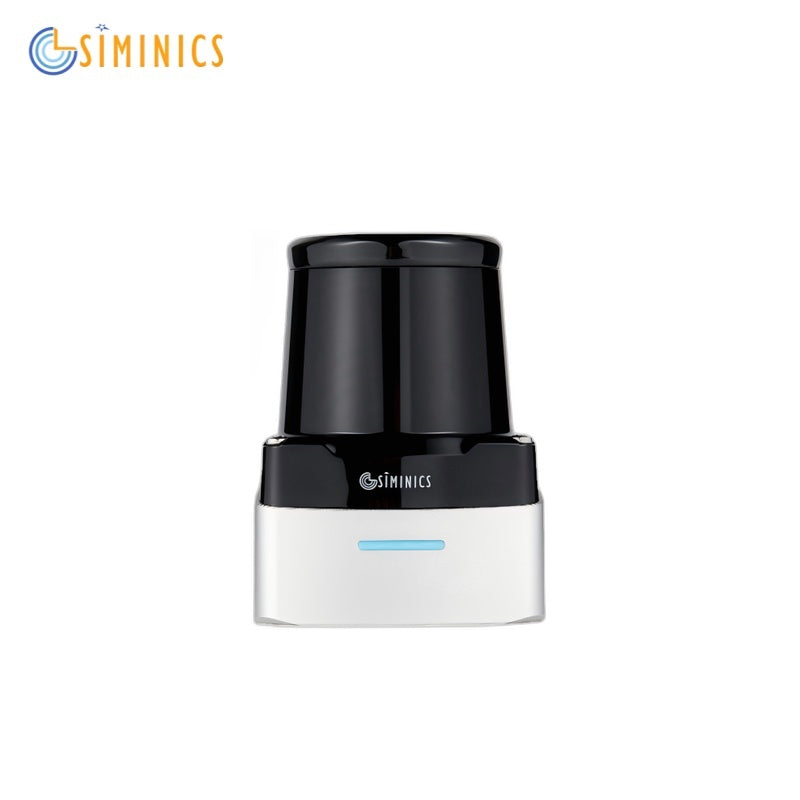

SIMINICS PAVO2 LiDAR | Robot LiDAR Sensor for Robotics & Mapping

  • Detection Range @90% Reflectivity: 50m
  • Suitable for mobile robots, autonomous platforms, robotics research, education labs, and automation systems.
  • Designed for robot sensing workflows that require reliable ranging, perception, and environmental awareness.
  • Useful for developers building SLAM, localization, obstacle detection, and autonomous robotics applications.
$1,379
Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

SIMINICS PAVO2 LiDAR CAD model for mechanical integration.stp ▶ SIMINICS PAVO2 LiDAR dimension drawing for installation reference.pdf ▶

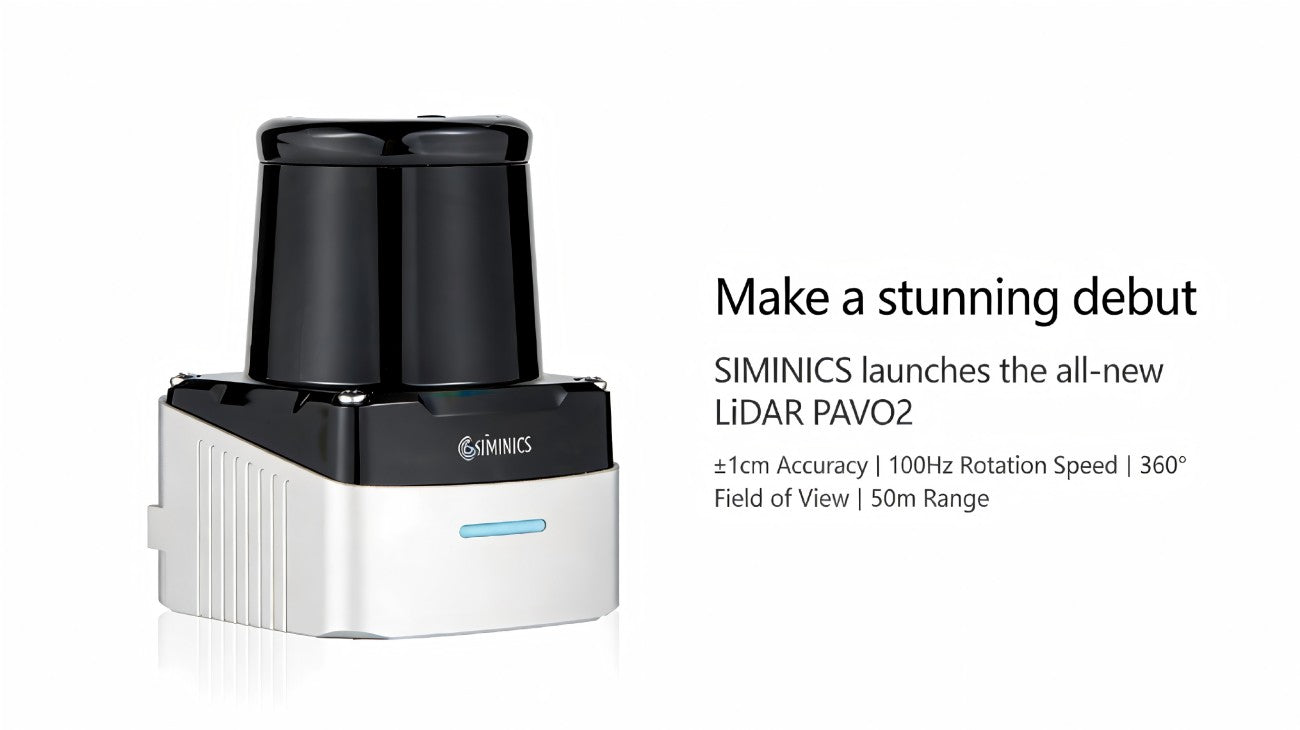

SIMINICS PAVO2 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 1
SIMINICS PAVO2 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 2

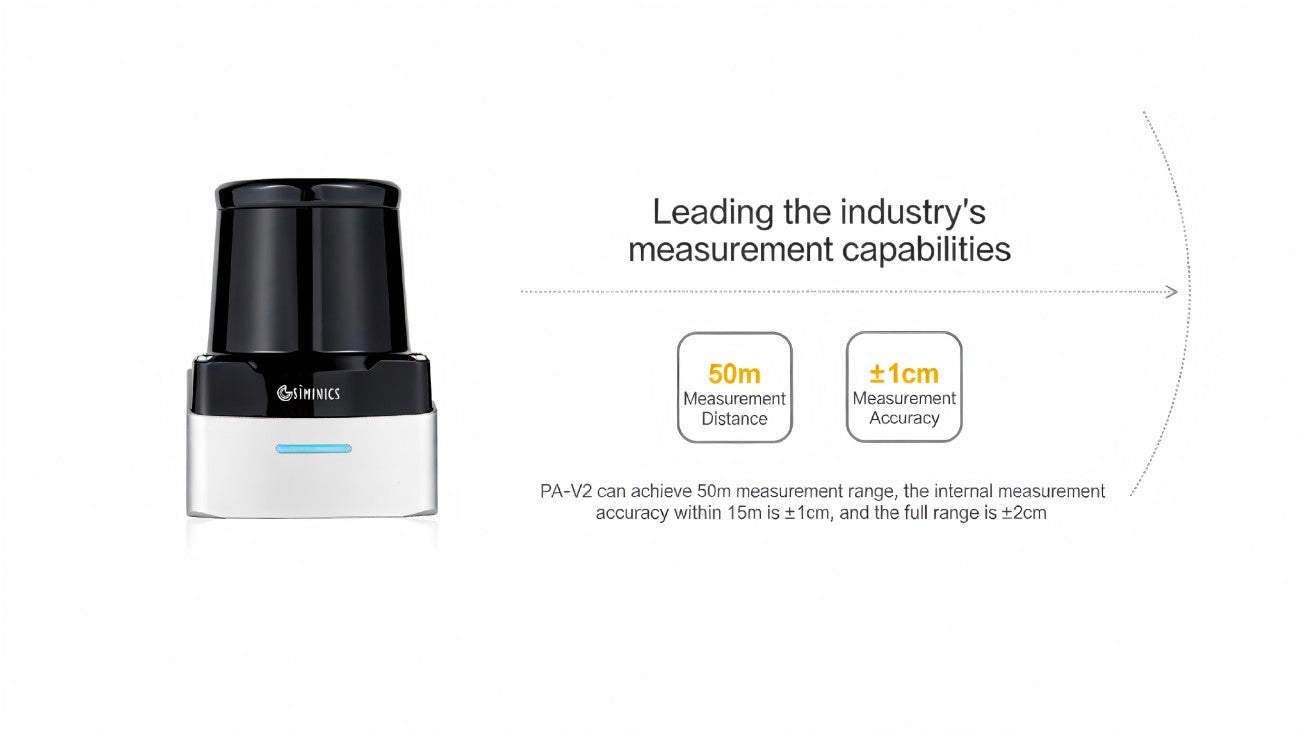

SIMINICS PAVO2 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 3
SIMINICS PAVO2 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 4

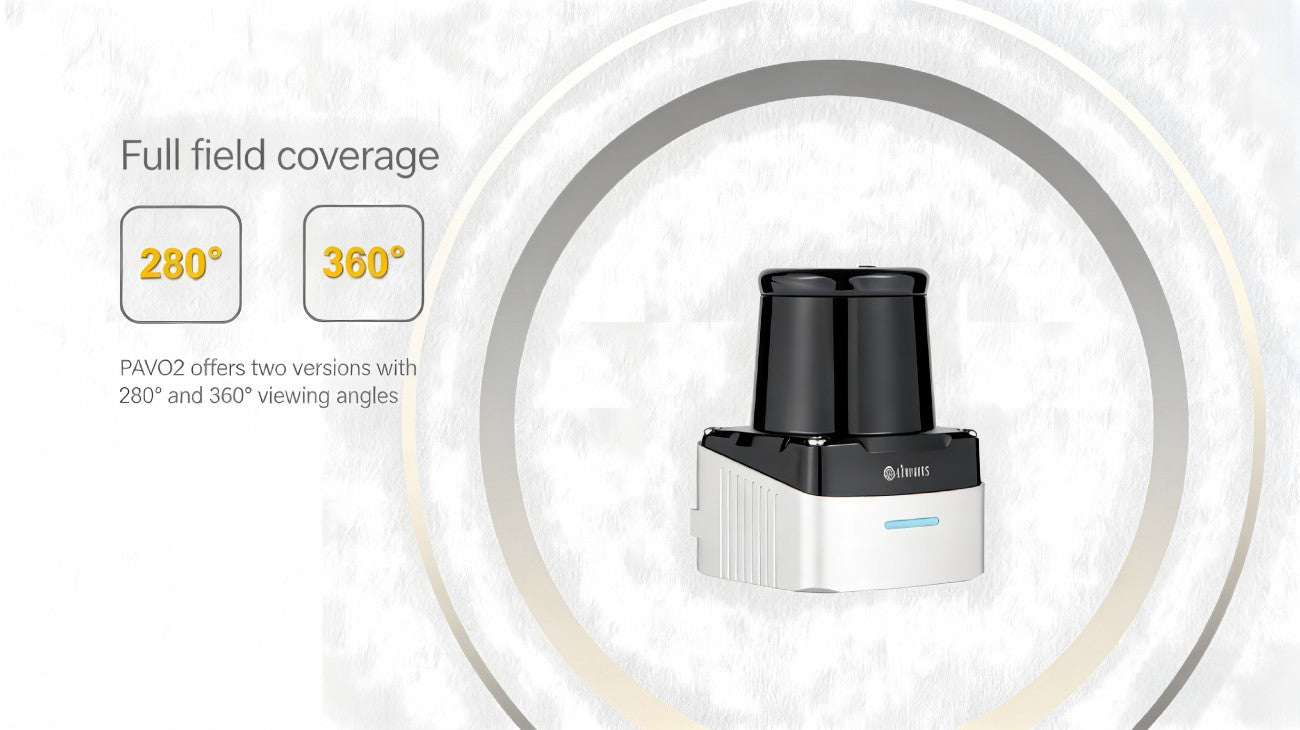

SIMINICS PAVO2 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 5

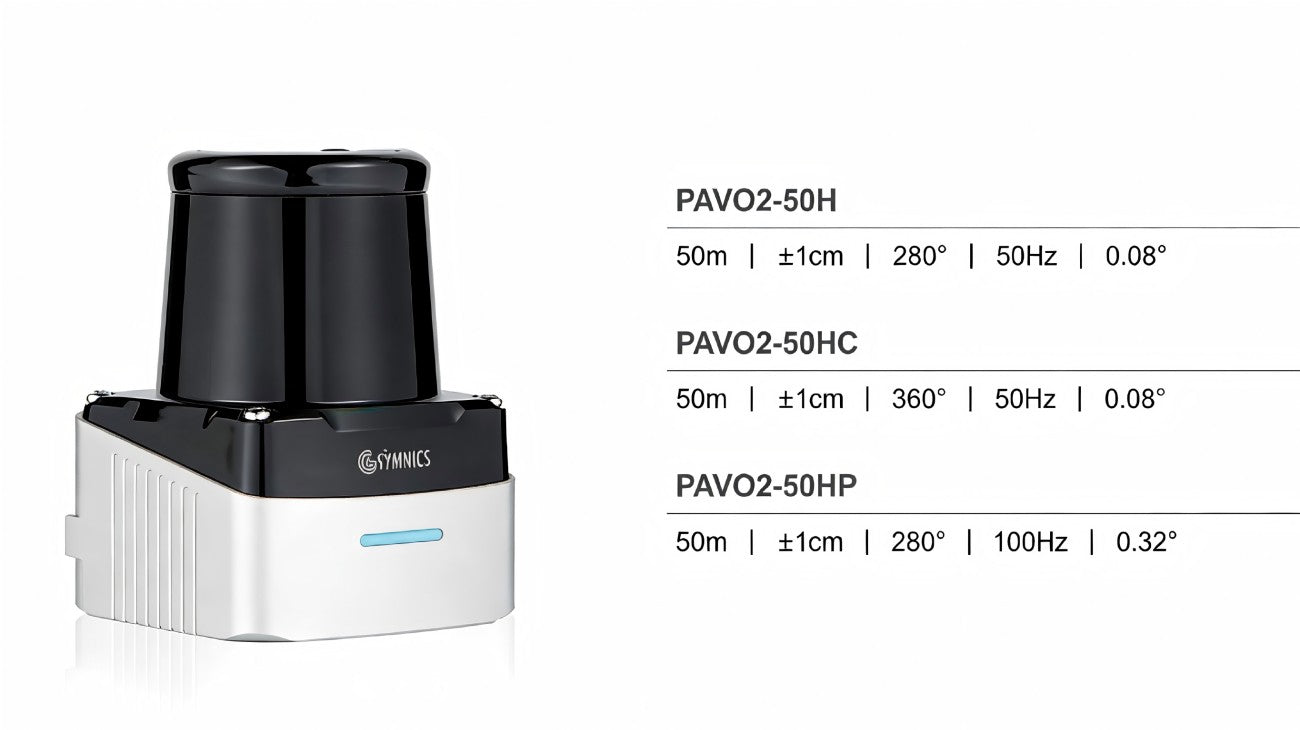

SIMINICS PAVO2 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 6
▤ Technical Specifications ⌃
Parameter PAVO2‑LS‑50H PAVO2‑LS‑50HC PAVO2‑LS‑50HP
Detection Range @90% Reflectivity 50m 50m 50m
Detection Range @10% Reflectivity 20m 20m 20m
Ranging Accuracy ±20mm ±20mm ±20mm
Short Range Accuracy (0.1m~15m) ±10mm ±10mm ±10mm
Scanning Range 280° 360° 280°
Vertical Field of View ±0.5° ±0.5° ±0.5°
Scan Frame Rate 25Hz/50Hz 100Hz -
Min Angular Resolution 0.08°/0.16°/0.32° 0.32° -
Supply Voltage 9V-26V 9V-26V 9V-26V
Operating Current 0.25A @12V 0.25A @12V 0.25A @12V
Laser Source 905nm, Class 1 905nm, Class 1 905nm, Class 1
Power Consumption 3W (MAX) 3W (MAX) 3W (MAX)
Data Interface Ethernet 100BASE-TX Ethernet 100BASE-TX Ethernet 100BASE-TX
Startup Time <20s <20s <20s
Ambient Light Immunity >80,000 LUX >80,000 LUX >80,000 LUX
Operating Temperature -10°C ~ 55°C -10°C ~ 55°C -10°C ~ 55°C
Storage Temperature -30°C ~ 75°C -30°C ~ 75°C -30°C ~ 75°C
Humidity <80% <80% <80%
Operating Life 5 years (motor life) 5 years (motor life) 5 years (motor life)
Vibration Test 10-55Hz, 0.75mm amplitude, X/Y/Z axes, 2h each; 50-200Hz, 196m/s² (20G), sweep 2min/cycle, X/Y/Z axes, 2h each 10-55Hz, 0.75mm amplitude, X/Y/Z axes, 2h each; 50-200Hz, 196m/s² (20G), sweep 2min/cycle, X/Y/Z axes, 2h each 10-55Hz, 0.75mm amplitude, X/Y/Z axes, 2h each; 50-200Hz, 196m/s² (20G), sweep 2min/cycle, X/Y/Z axes, 2h each
Ingress Protection IP67 IP67 IP67
Dimensions 60×60×80mm 60×60×80mm 60×60×80mm
Weight 250g (without cable) 250g (without cable) 250g (without cable)
