EYOU

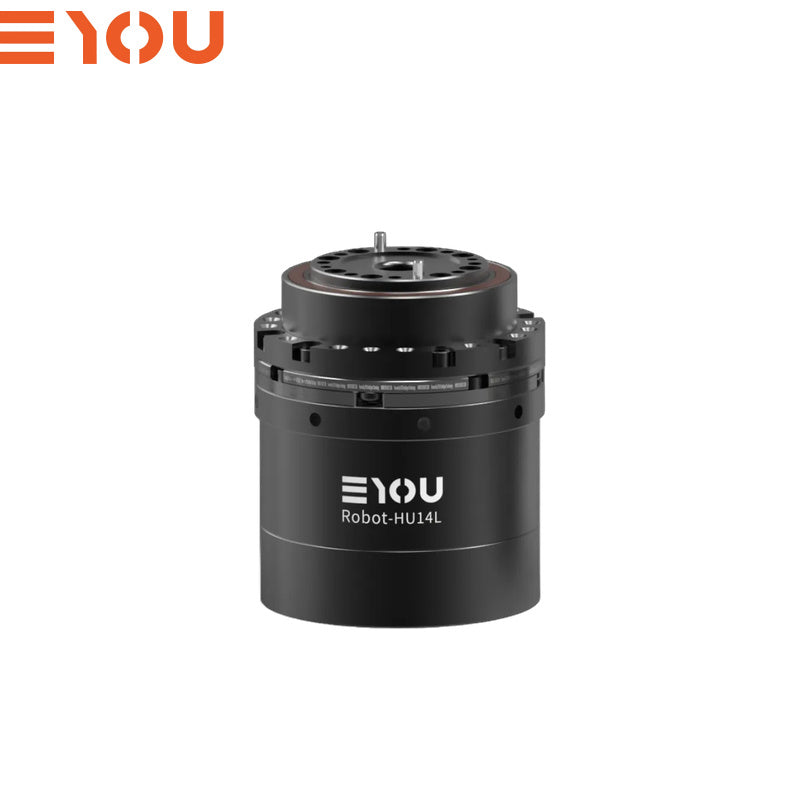

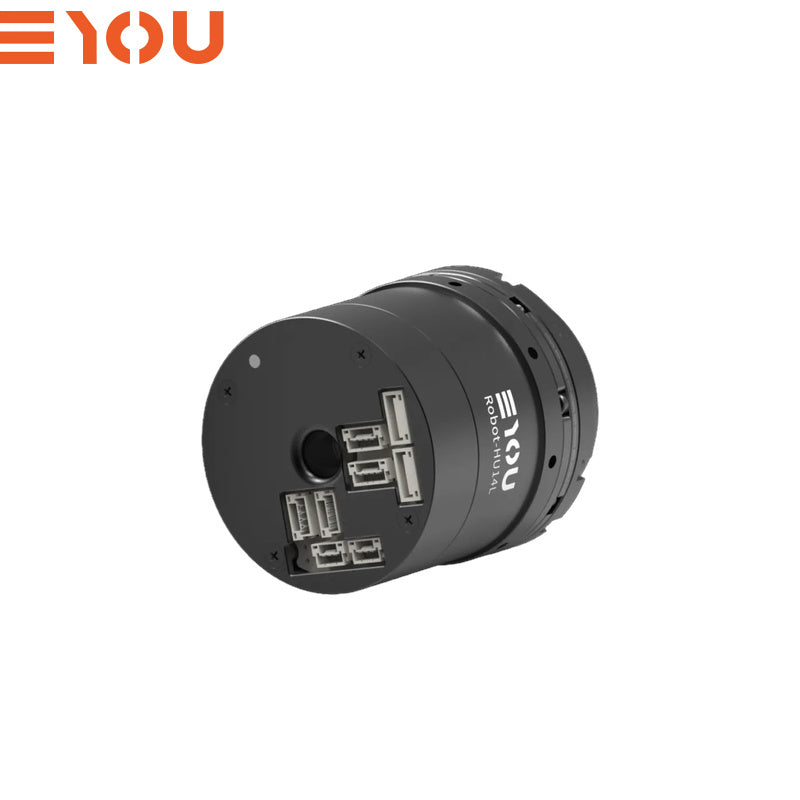

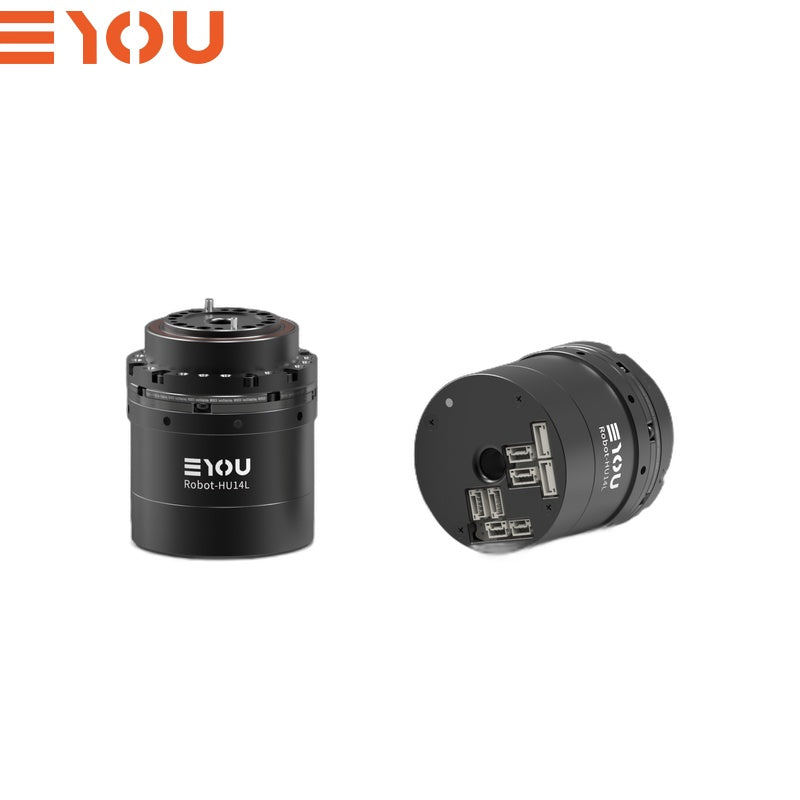

EYOU RHU14L-52 Motor | Robot Servo Motor for Robotics Development

  • EYOU robot servo motor for robot joints, motion-control systems, automation hardware, and robotics development.
  • Suitable for engineering teams building research robots, education platforms, prototype mechanisms, and embedded motion systems.
  • Designed for practical integration in robot servo assemblies, compact actuators, and motion-control hardware.
  • Useful for robotics labs, automation projects, and robot hardware development where reliable components are required.
$400
Version
Brake
Ratio

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

▤ PARAMETER ⌃
Module Model
RHU14L-52
Reducer Type
Harmonic
Motor Rated Power (W)
46
Motor Rated Torque (N·m)
0.11
Motor Peak Torque (N·m)
0.33
Reduction Ratio
50 / 80 / 100
Joint Rated Power (W) - Life Constraint
15 / 14 / 11
Rated Torque at 2000rpm Input (N·m)
3.7 / 5.4 / 5.4
Average Load Torque at Output (N·m)
4.8 / 7.7 / 7.7
Peak Torque at Output (N·m)
12 / 16 / 19
Max Allowable External Torque at Output (Instantaneous) (N·m)
24 / 35 / 35
Backlash (Arcsec)
≤20 / ≤20 / ≤20
Rated Speed at Output (rpm) - Life Constraint
40 / 25 / 20
Peak Speed at Output (rpm)
99 / 62.5 / 50
Brake (B/N)
B/N
Dimensions (Outer Diameter × Axial) (mm)
Φ52×65
Weight (kg) (B/N)
0.397 / 0.382
Hollow Diameter (mm)
8
Housing Appearance (Process Color)
Black Anodized (Non-sandblasted)
Reducer Appearance (Process Color)
Outer Ring Blackened
Radial (dynamic/static) Allowable Load at Output (N)
180
Axial (dynamic/static) Allowable Load at Output (N)
180
Output Bending Moment (N·m)
12
Reducer Torsional Stiffness (N·m/rad)
5000
Reducer Input Inertia (kg·mm²) (B)
7.71 / 7.71 / 7.71
Equivalent Joint Output Inertia (kg·mm²) (B)
19275 / 49344 / 77100
Rated Operating Voltage (VDC)
48
Operating Voltage Range (VDC)
24~48
Driver
Built-in
Encoder/Bit (bit)
Dual Absolute / Motor side 17Bit & Reducer side 19Bit
Driver Interface (see terminal model description)
Power (DC in DC out), CAN FD (In,Out), EtherCAT (In,Out), STO (1,2)
Communication Protocol (see communication description)
EtherCAT / CANopen
Control Modes
Profile Position (PP), Profile Velocity (PV), Profile Torque (PT), Cyclic Synchronous Position (CSP), Cyclic Synchronous Velocity (CSV), etc.
Operating Ambient Temperature (°C)
-20~60
Housing Temperature Rise (°C)
≤60
Noise (dB)
≤60
Life (h)
>10000
