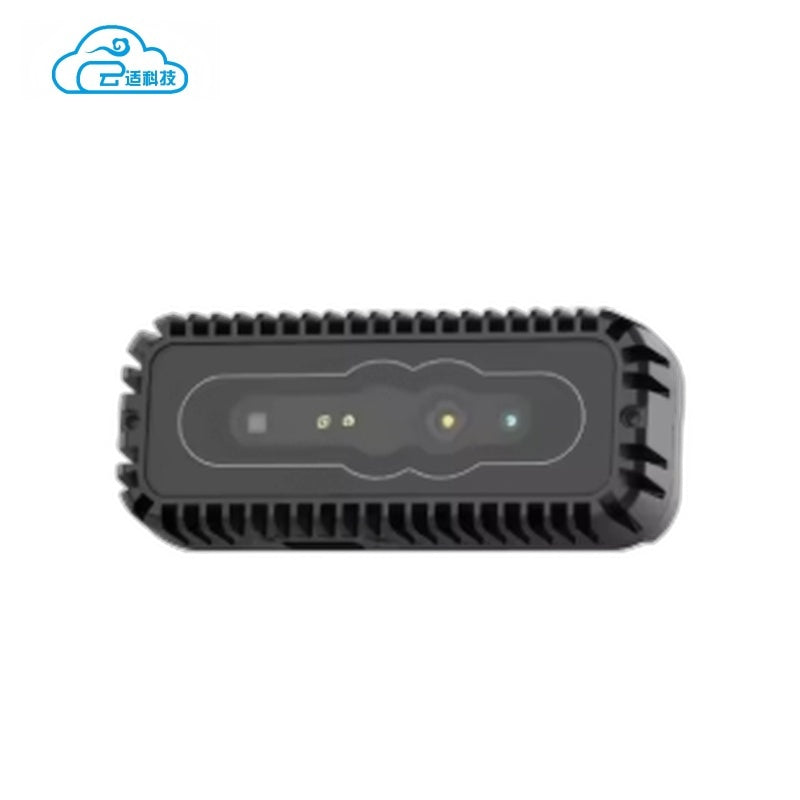

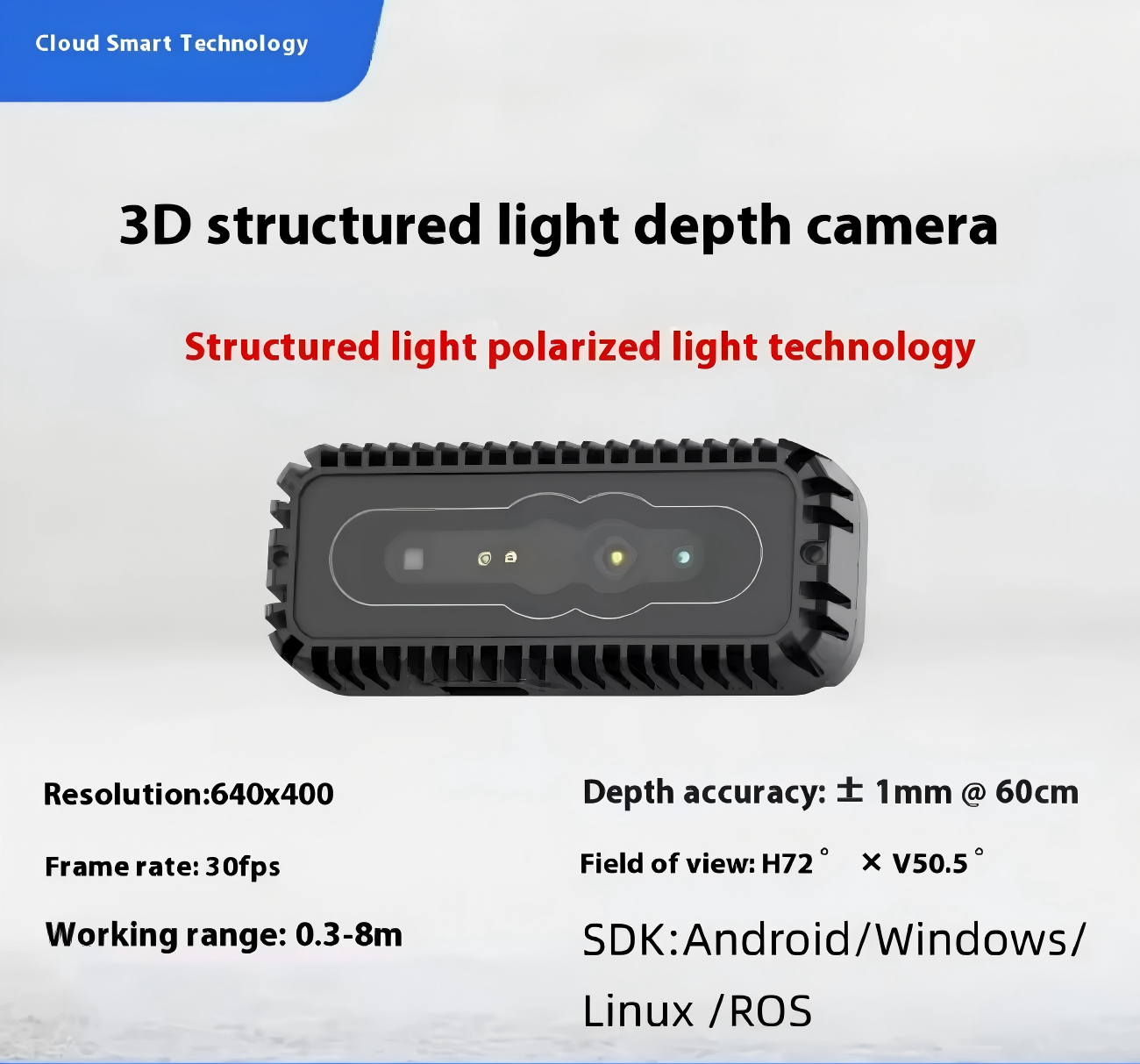

Yunshis iHawk100Q Camera | RGBD Depth Camera for Robotics & AI Vision

  • Imaging resolution: 640 × 400 @ 30 fps 640 × 400 @ 30 fps
  • Depth sensing specification: ±1 mm @ 60 cm ±1 mm @ 60 cm
  • Frame rate: 640 × 400 @ 30 fps 640 × 400 @ 30 fps
  • Interface: Micro USB 2.0 Micro USB 2.0
  • Field of view: 72° (±3°) × 50.5° (±3°) 72° (±3°) × 50.5° (±3°)
$270
Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

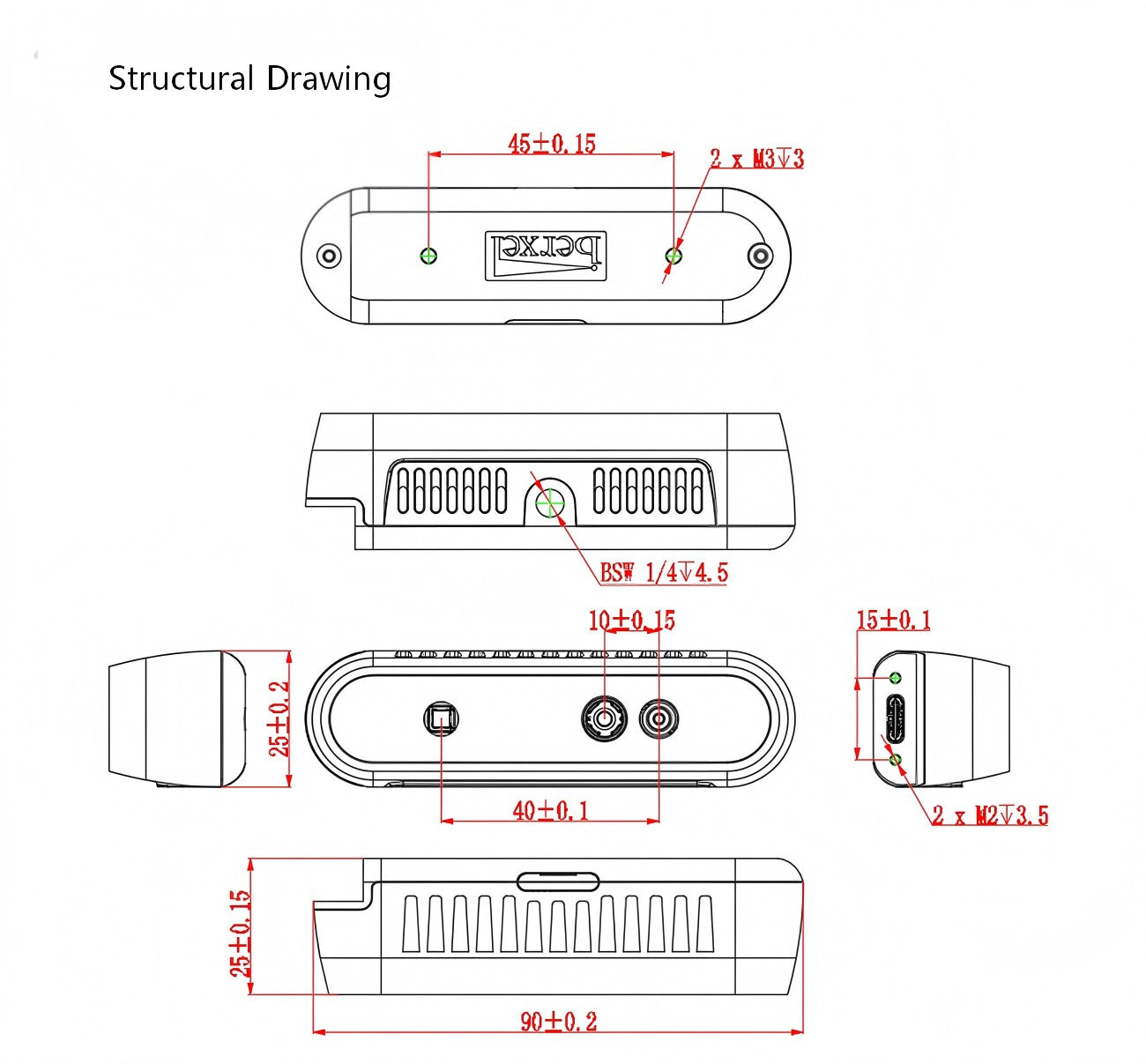

Yunshis iHawk100Q Camera drawing: mechanical dimensions and installation reference ▶ Yunshis iHawk100Q Camera STEP CAD model for mechanical integration and development ▶
Yunshis iHawk100Q Camera | RGBD Depth Camera for Robotics & AI Vision Yunshis iHawk100Q Camera | RGBD Depth Camera for Robotics & AI Vision Yunshis iHawk100Q Camera | RGBD Depth Camera for Robotics & AI Vision Yunshis iHawk100Q Camera | RGBD Depth Camera for Robotics & AI Vision Yunshis iHawk100Q Camera | RGBD Depth Camera for Robotics & AI Vision Yunshis iHawk100Q Camera | RGBD Depth Camera for Robotics & AI Vision Yunshis iHawk100Q Camera | RGBD Depth Camera for Robotics & AI Vision Yunshis iHawk100Q Camera | RGBD Depth Camera for Robotics & AI Vision
▤ Technical Specifications ⌃
Parameter
Value
Model
iHawk100Q
Baseline
40 mm

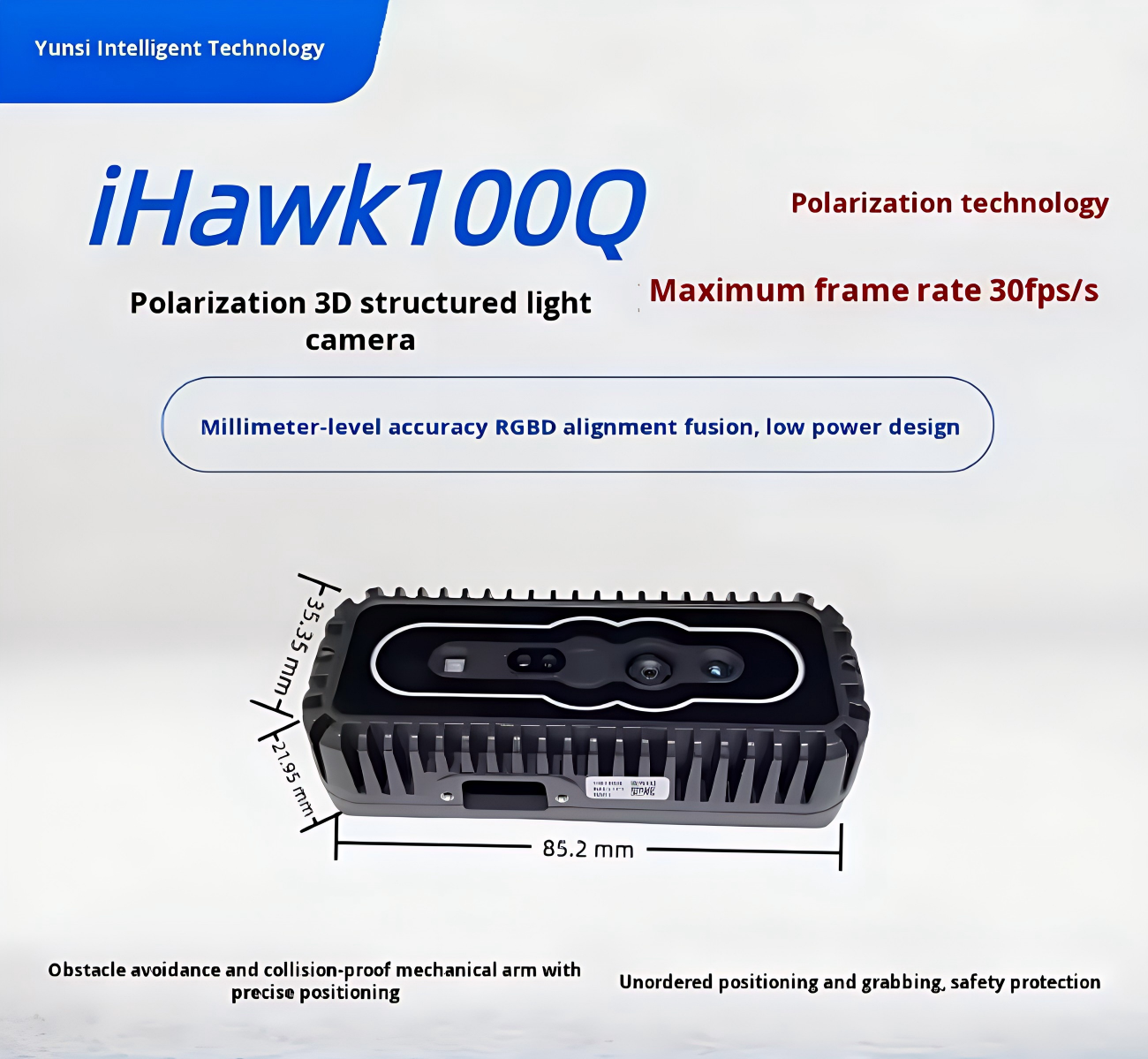

Dimensions
85.2 × 35.35 × 21.95 mm
Measurement Range
0.3–8.0 m
Depth Accuracy
±1 mm at 60 cm
Power Consumption
Average 2.5 W; peak current <2 A
Interface
Micro USB 2.0
Power Supply
USB 5 V
Laser Wavelength
940 nm
Operating Temperature
-10°C to 60°C
Resolution and Frame Rate
640 × 400 at 30 fps
Effective Field of View
72° (±3°) × 50.5° (±3°)
Image Format
Color image: MJPEG; depth image: RAW16
