Benewake

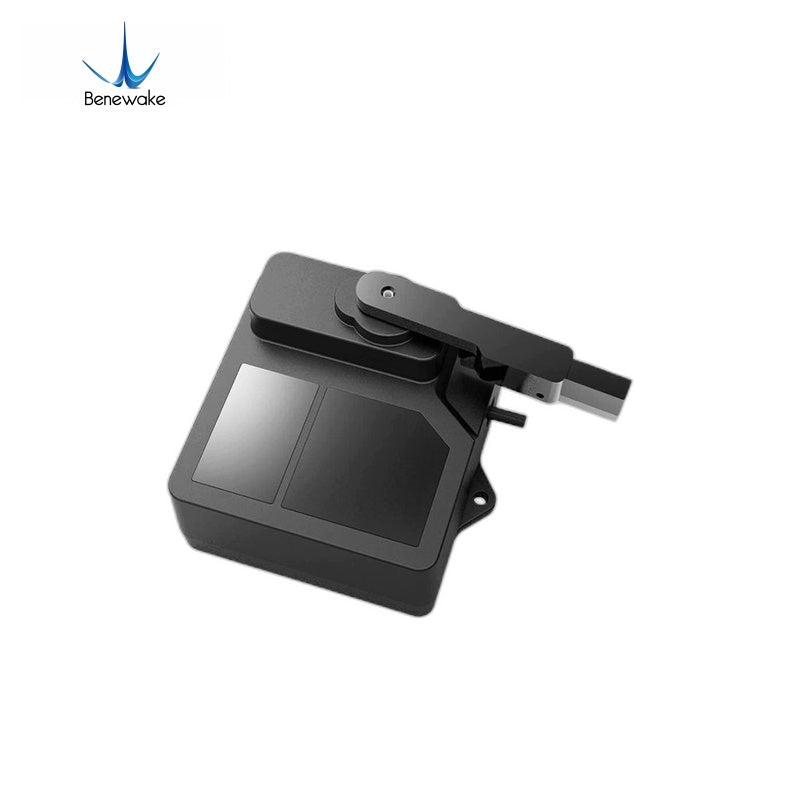

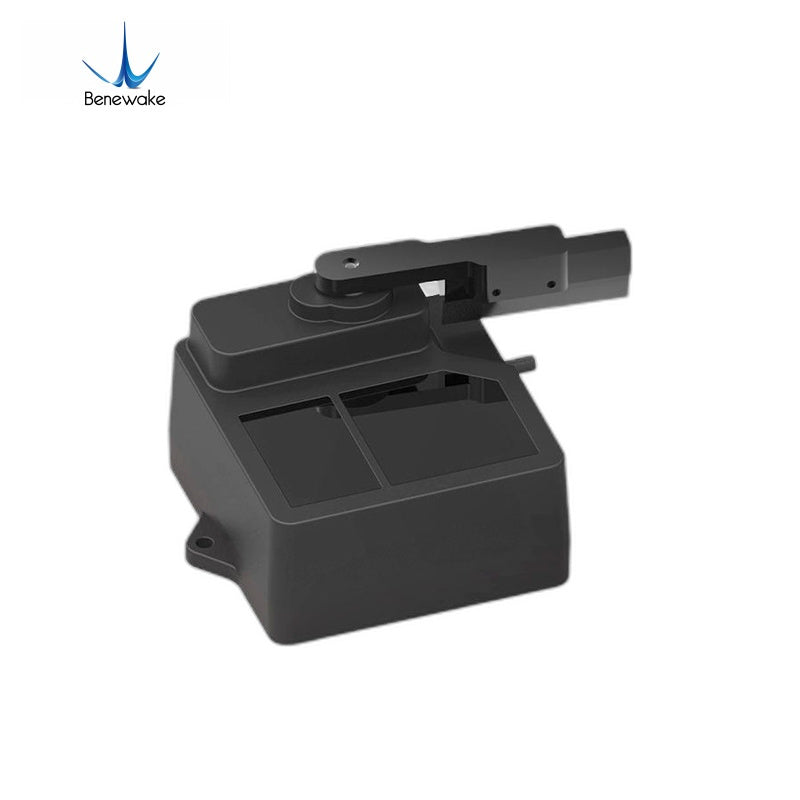

Benewake TF02-Pro-W LiDAR | Robot LiDAR Sensor for Robotics & Mapping

  • Operating Range (Indoor 0Klux): 0.1m~25m @90% reflectivity 0.1m~12m @10% reflectivity
  • Suitable for mobile robots, autonomous platforms, robotics research, education labs, and automation systems.
  • Designed for robot sensing workflows that require reliable ranging and environmental perception.
  • Useful for developers building SLAM, localization, obstacle detection, and autonomous robotics applications.
$175
Version
Communication Interface

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

Benewake TF02-Pro-W datasheet with technical specifications.pdf ▶ Benewake TF02-Pro-W user manual for setup and integration.pdf ▶ Benewake TF02-Pro-W 485 datasheet with technical specifications.pdf ▶ Benewake TF02-Pro-W 485 user manual for setup and integration.pdf ▶ Benewake TF02-Pro-W 485 dimension drawing for installation reference.pdf ▶ Benewake TF02-Pro-W dimension drawing for installation reference.pdf ▶

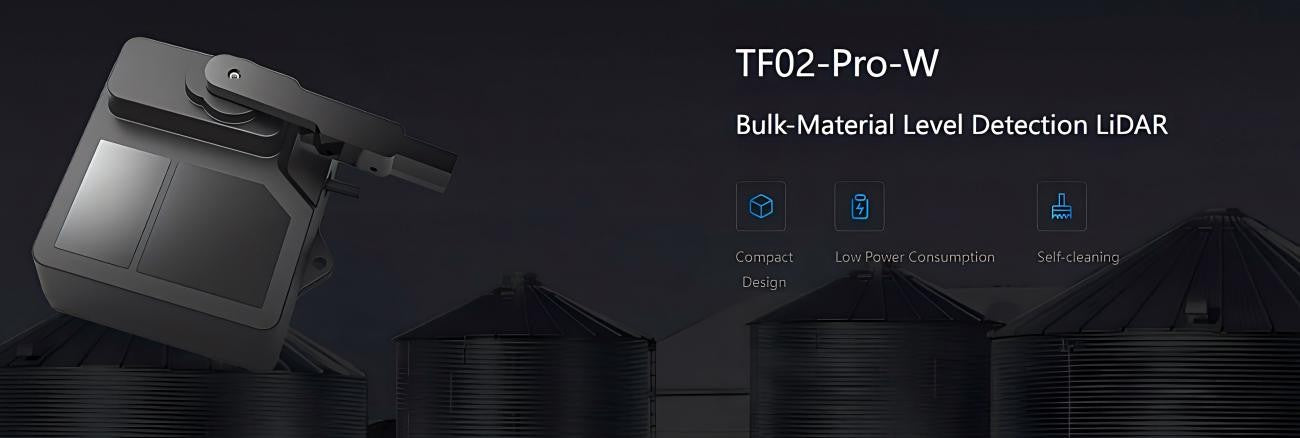

Benewake TF02-Pro-W LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 1

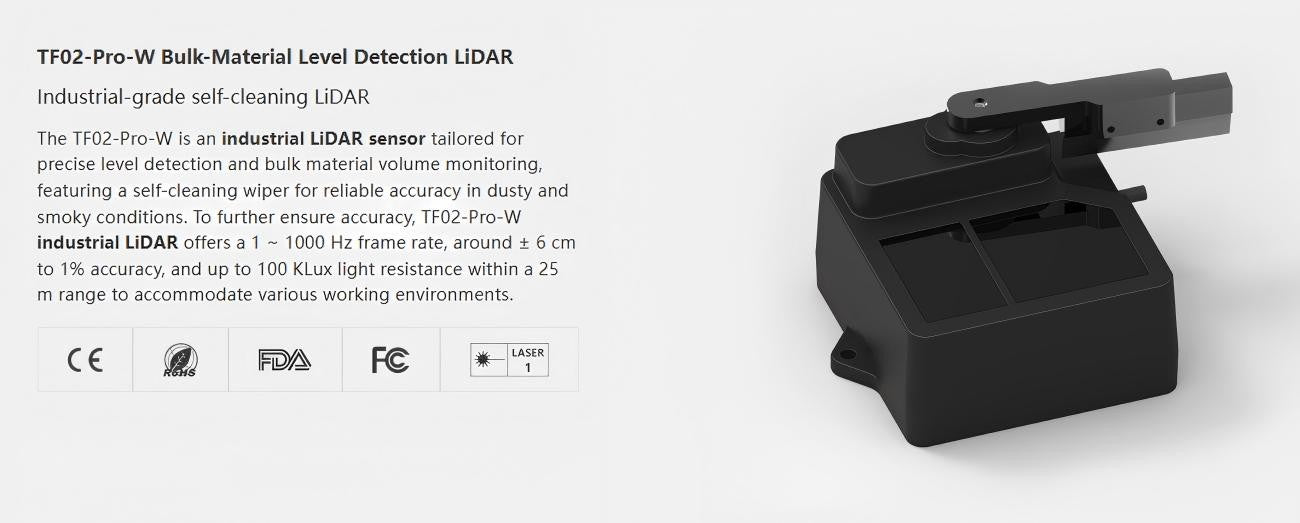

Benewake TF02-Pro-W LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 2

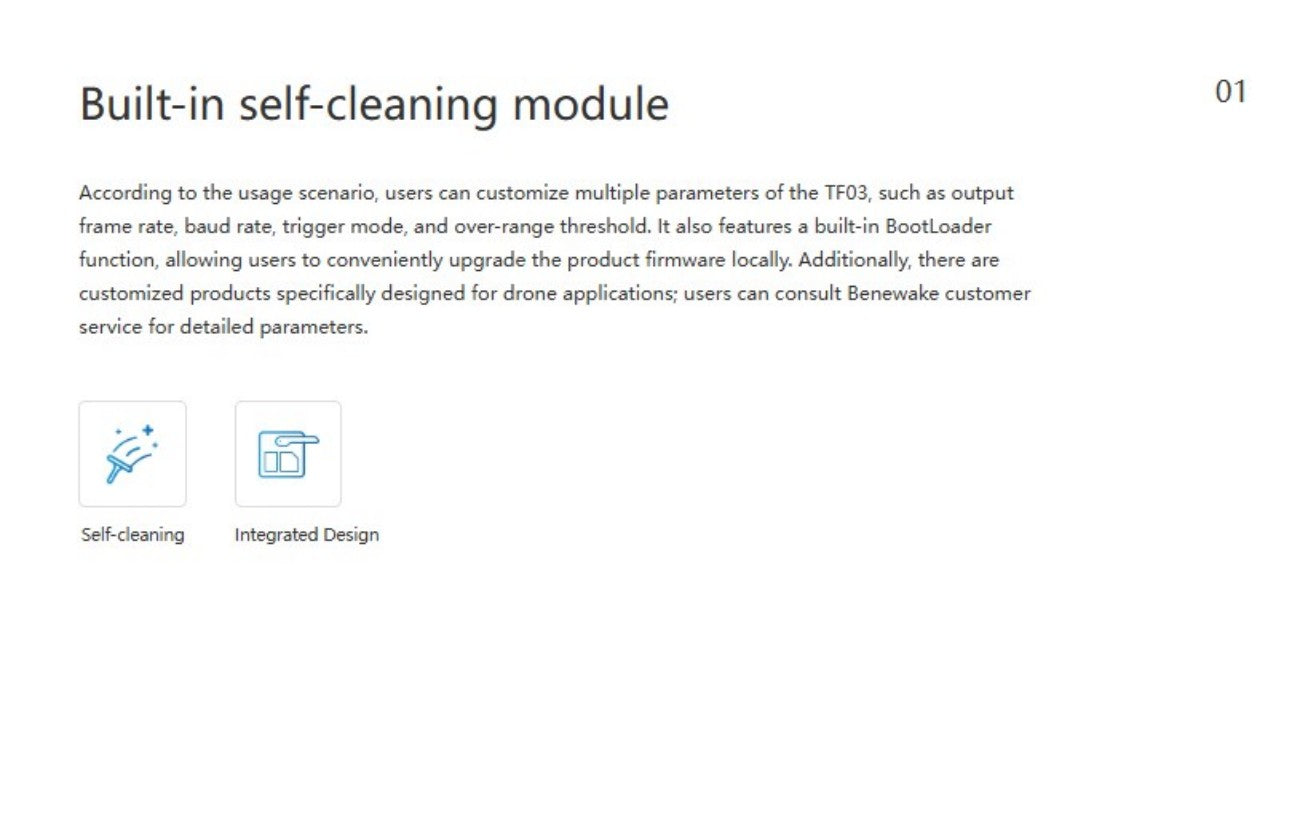

Benewake TF02-Pro-W LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 3

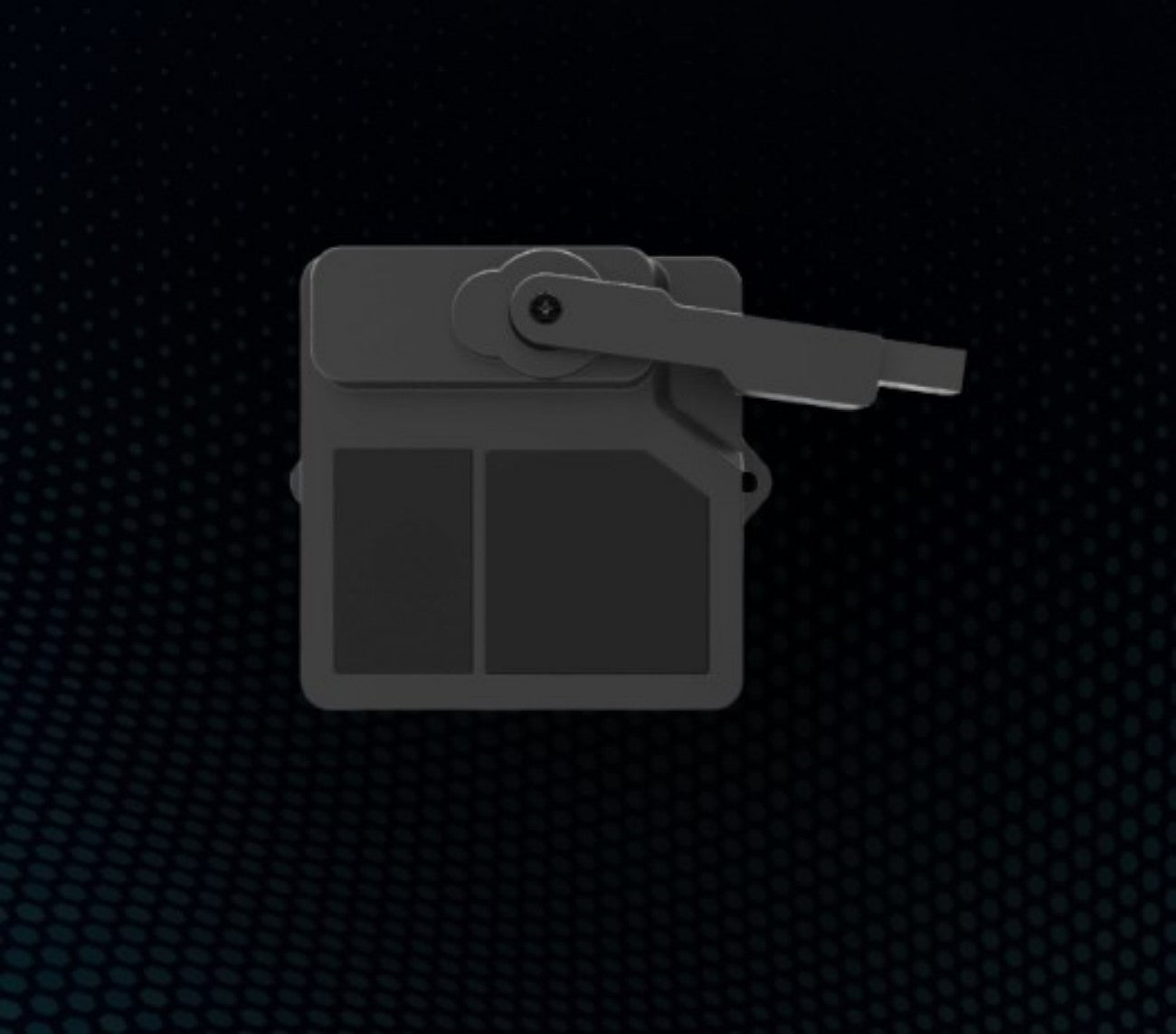

Benewake TF02-Pro-W LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 4

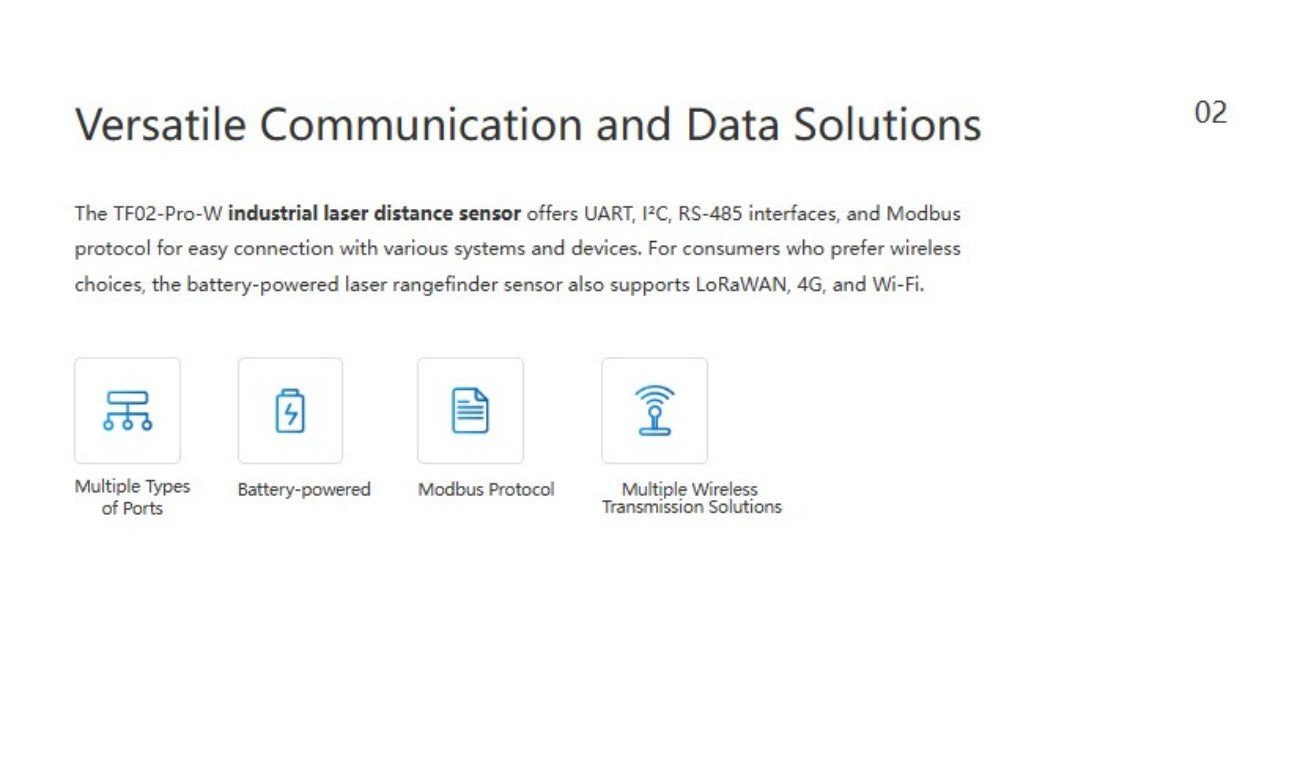

Benewake TF02-Pro-W LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 5

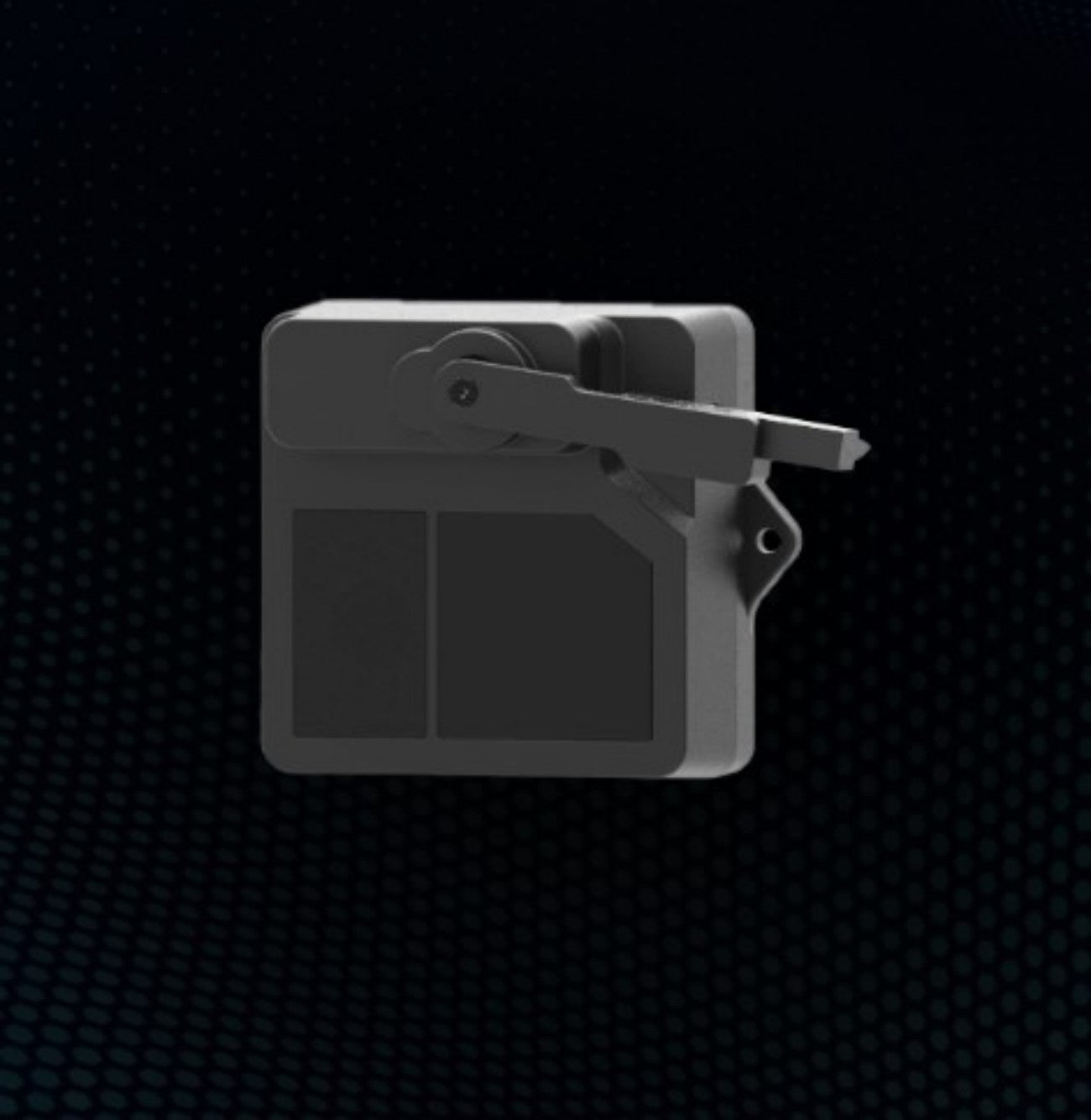

Benewake TF02-Pro-W LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 6

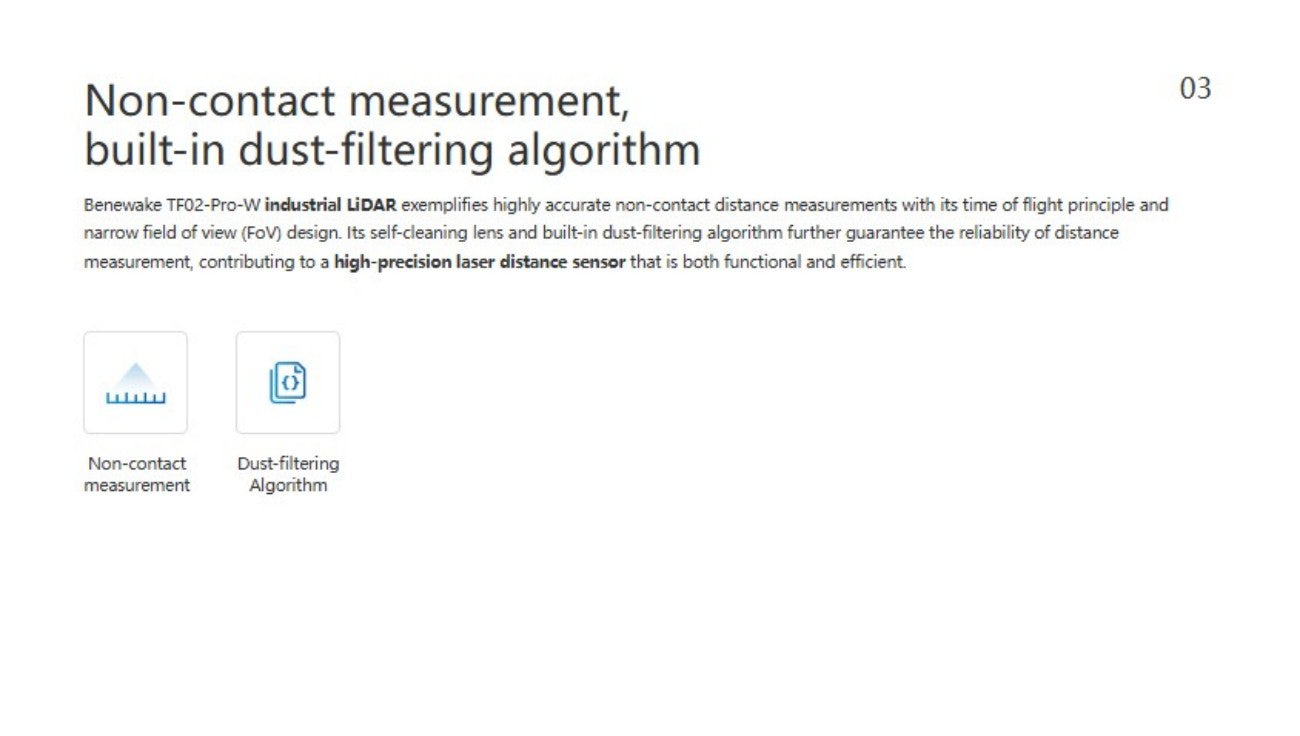

Benewake TF02-Pro-W LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 7

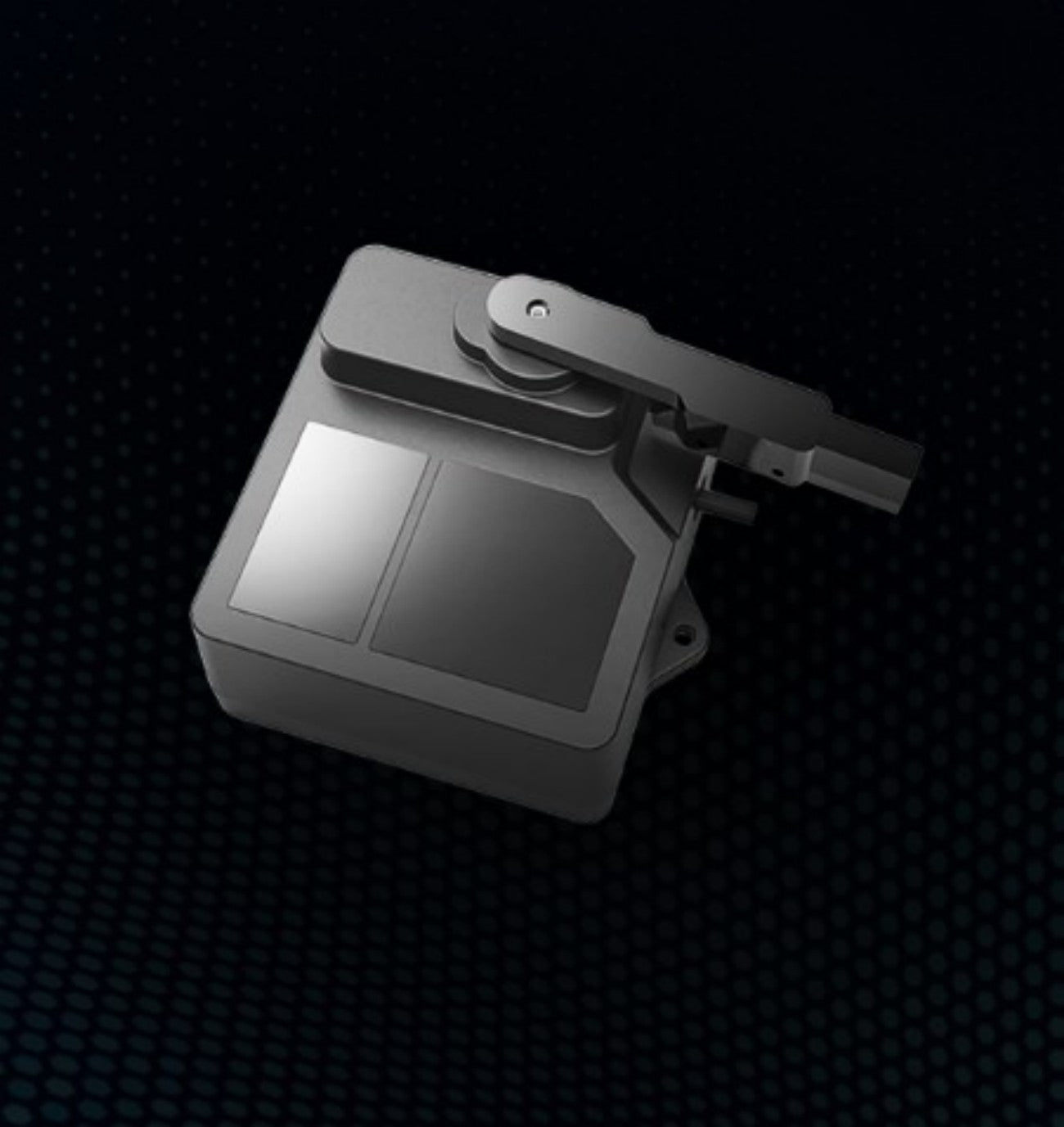

Benewake TF02-Pro-W LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 8
▤ Technical Specifications ⌃
Parameter TF02-Pro-W TF02-Pro-W-485
Operating Range (Indoor 0Klux) 0.1m~25m @90% reflectivity 0.1m~12m @10% reflectivity 0.1m~25m @90% reflectivity 0.1m~12m @10% reflectivity
Operating Range (Outdoor 100Klux) 0.1m~25m @90% reflectivity 0.1m~12m @10% reflectivity 0.1m~25m @90% reflectivity 0.1m~12m @10% reflectivity
Accuracy ±6cm @ (0.1m~6m) ; ±1% @ (6m~25m) ±6cm @ (0.1m~6m) ; ±1% @ (6m~25m)
Distance resolution 1cm 1cm
Frame rate 1Hz~1000Hz (adjustable, default 100Hz) 1Hz~1000Hz (adjustable, default 100Hz)
Repeatability 1σ: <2cm (0.1m~25m @90% reflectivity) 1σ: <2cm (0.1m~25m @90% reflectivity)
Ambient light immunity 100Klux 100Klux
Enclosure rating IP5X IP5X
Photobiological safety Class 1 (IEC60825) Class 1 (IEC60825)
Central wavelength 850nm 850nm
Light source VCSEL VCSEL
Field of View (FoV) 30° 3°
Supply voltage DC 5V DC 7V~30V
Average current ≤400mA ≤200mA @12V
Power consumption ≤2W ≤4.8W
Peak current 1A 400mA @12V
Communication level LVTTL (3.3V) RS-485
Default baud rate 115200 (adjustable) 115200
Data bit 8 8
Stop bit 1 1
Parity None None
I²C max transmission rate 400kbps -
I²C master/slave mode Slave -
I²C default address 0x10 -
I²C address range 0x01~0x7F -
Dimension (L×H×W) 85mm × 59mm × 43mm 85mm × 59mm × 43mm
Housing PC/ABS PC/ABS
Operating temperature -20°C ~ 60°C -20°C ~ 60°C
Storage temperature -30°C ~ 80°C -30°C ~ 80°C
Weight (with cables) 90g 92g
Cable length 120cm 120cm
