CmdRob

CmdRob L90I Motor

  • CmdRob motor for robot joint development, actuator integration, and automation hardware.
  • Available configurations support compact servo actuator and motion-control component selection.
  • Suitable for engineering teams building robot joints, test platforms, automation systems, and lab prototypes.
  • Designed for practical robot hardware integration where reliable motion components matter.
$1,360
Version
Reduction Ratio
Bus communication protocol

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

CmdRob L90I Motor dimension drawing for installation reference.pdf ▶ CmdRob L90I Motor dimension drawing for installation reference.pdf ▶ CmdRob L90I Motor CAD model for mechanical integration.stp ▶ CmdRob L90I Motor CAD model for mechanical integration.stp ▶

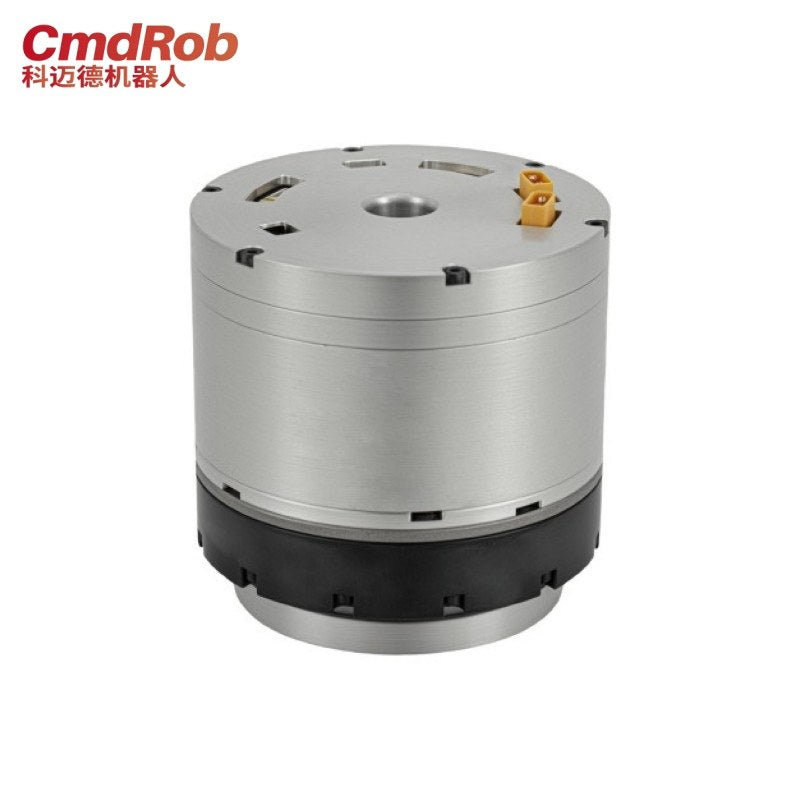

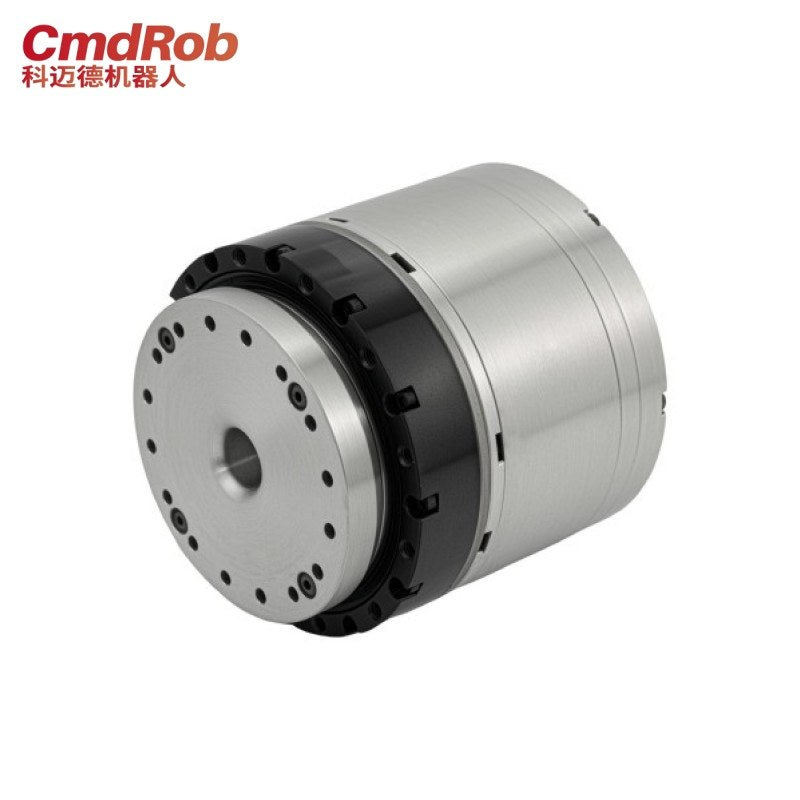

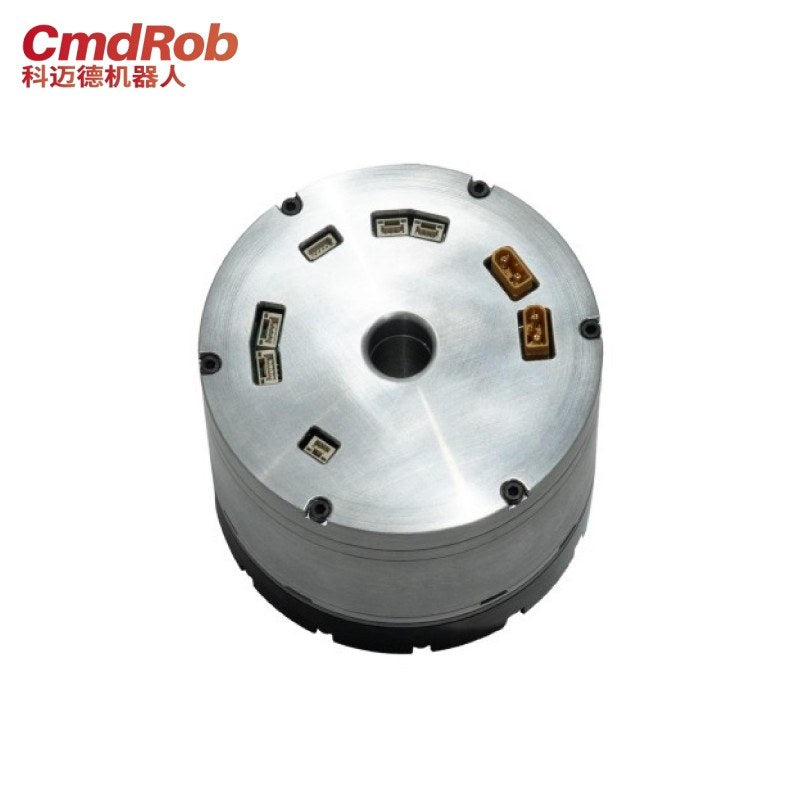

CmdRob L90I Motor

The CmdRob L90I Motor is a CmdRob motor for robotics development, robot joint hardware, actuator systems, automation projects, and engineering lab integration.

Features

  • **Robot joint integration:** Suitable for servo systems, actuator builds, and motion hardware.
  • **Configuration options:** Supports model selection for robot actuator and motion-control development.
  • **Engineering use:** Designed for robotics developers, automation engineers, education labs, and prototype teams.
  • **Component-focused design:** Useful for compact robot hardware and integrated motor applications.

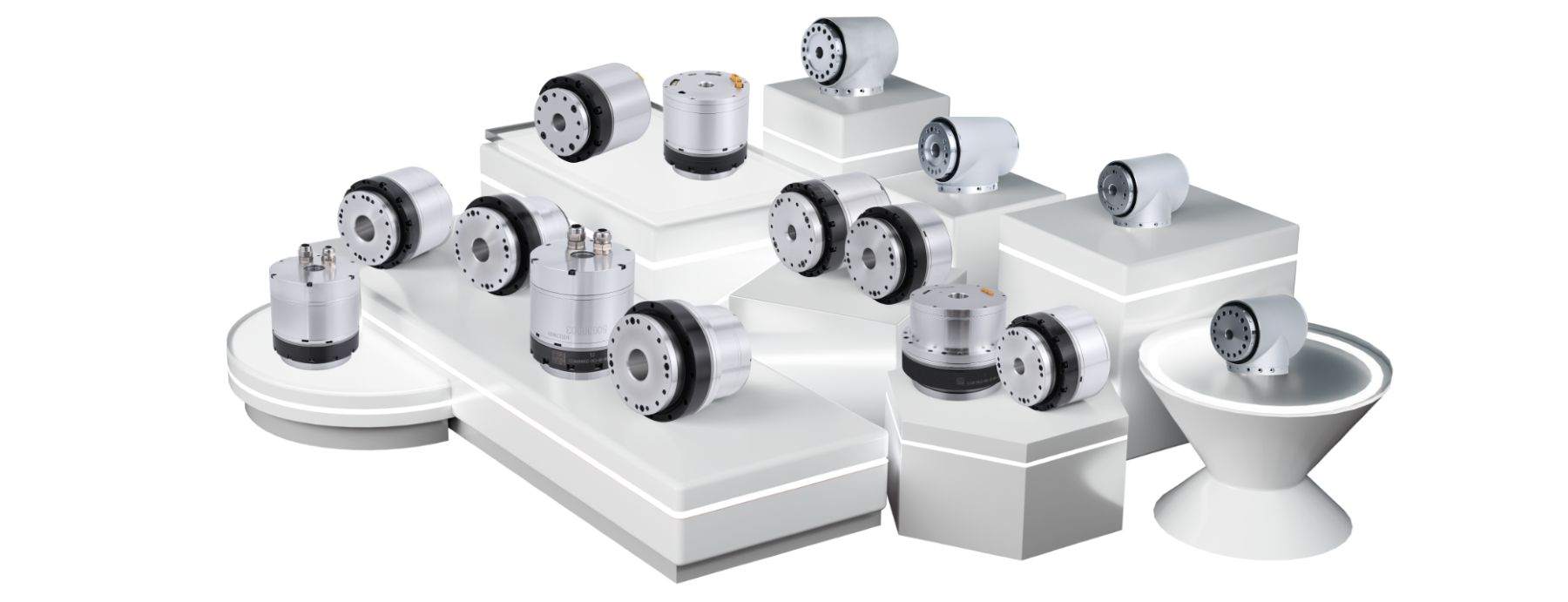

CmdRob L90I Motor detail image 1

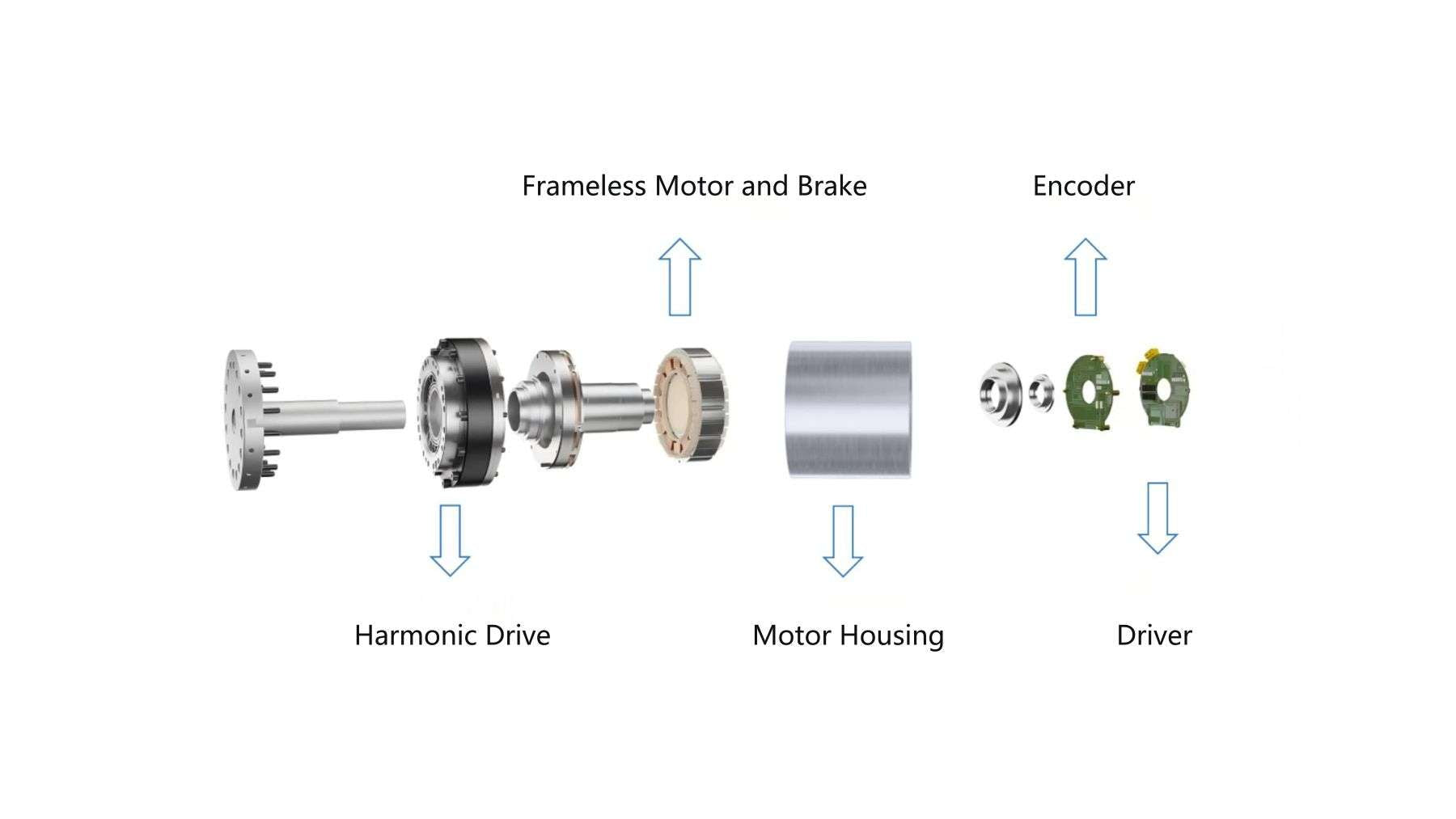

CmdRob L90I Motor detail image 2

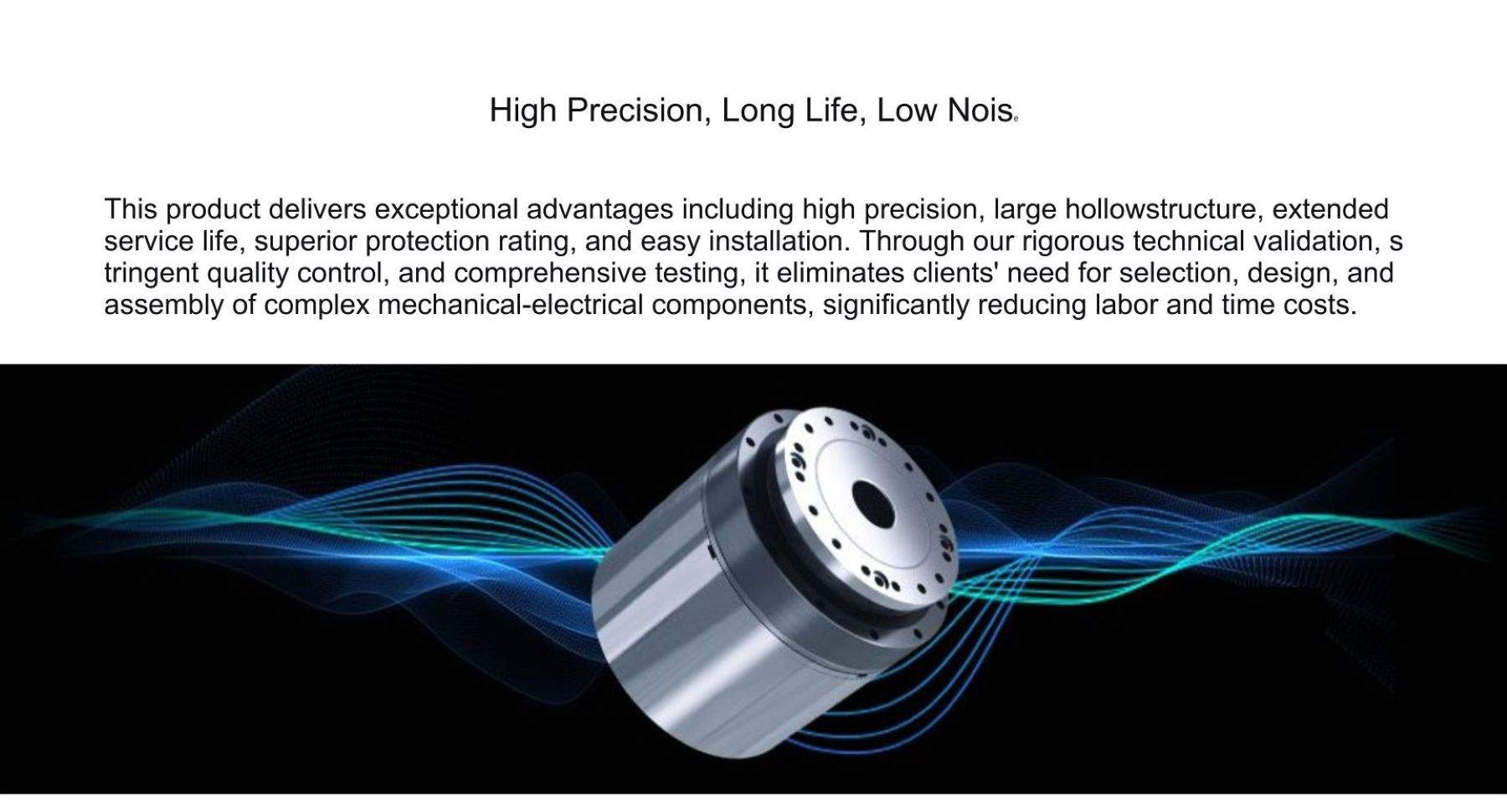

CmdRob L90I Motor detail image 3

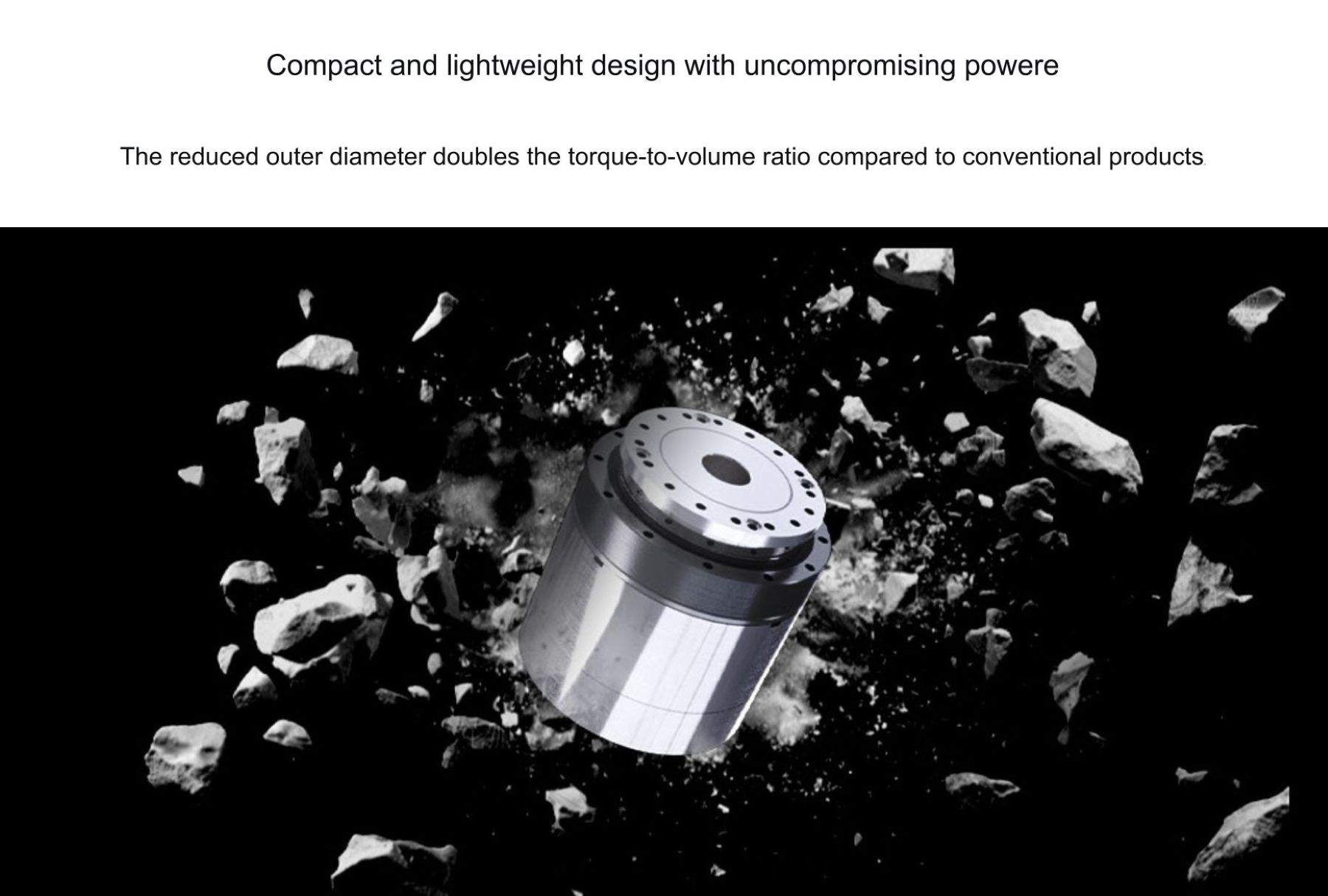

CmdRob L90I Motor detail image 4
CmdRob L90I Motor detail image 5
Application Scenarios
Humanoid Robots Robotic Arms Exoskeletons Quadruped Robots AGV Vehicles ARU Robots
▤ PARAMETER ⌃
Reduction Ratio
L90I: 51 L90I: 81 L90I: 101 L90I: 121
Input Voltage
L90I: 48 (±10%)V L90I: 48 (±10%)V L90I: 48 (±10%)V L90I: 48 (±10%)V
Maximum Torque
L90I: 127N.m L90I: 165N.m L90I: 191N.m L90I: 191N.m
12.96kgf.m
L90I: 16.84kgf.m L90I: 19.49kgf.m L90I: 19.49kgf.m
Average Load Torque
L90I: 44N.m L90I: 61N.m L90I: 64N.m L90I: 64N.m
4.49kgf.m
L90I: 6.22kgf.m L90I: 6.53kgf.m L90I: 6.53kgf.m
Start-Stop Peak Torque
L90I: 73N.m L90I: 96N.m L90I: 107N.m L90I: 113N.m
7.45kgf.m
L90I: 9.80kgf.m L90I: 10.92kgf.m L90I: 11.53kgf.m
Maximum Speed
L90I: 78.4r/min L90I: 49.4r/min L90I: 39.6r/min L90I: 33.1r/min
Rated Speed
L90I: 58.8r/min L90I: 37.0r/min L90I: 29.7r/min L90I: 24.8r/min
Motor Torque Constant
L90I: 0.10N·m/A L90I: 0.11N·m/A L90I: 0.11N·m/A L90I: 0.11N·m/A
0.0112kgf·m/A
L90I: 0.0112kgf·m/A L90I: 0.0112kgf·m/A L90I: 0.0112kgf·m/A
Maximum Current
L90I: 19.59A L90I: 15.15A L90I: 13.54A L90I: 11.94A
Allowable Continuous Current
L90I: 11.81A L90I: 9.63A L90I: 8.10A L90I: 6.76A
Back EMF Constant
L90I: 6.78V/krpm L90I: 6.78V/krpm L90I: 6.78V/krpm L90I: 6.78V/krpm
Phase Resistance (20°C)
L90I: 0.11Ω L90I: 0.11Ω L90I: 0.11Ω L90I: 0.11Ω
Phase Inductance
L90I: 0.24mH L90I: 0.24mH L90I: 0.24mH L90I: 0.24mH
Moment of Inertia
L90I: 106.3(kg·mm²) L90I: 106.3(kg·mm²) L90I: 106.3(kg·mm²) L90I: 106.3(kg·mm²)
106.3*10^-4(kgf·cm·s²)
L90I: 106.3*10^-4(kgf·cm·s²) L90I: 106.3*10^-4(kgf·cm·s²) L90I: 106.3*10^-4(kgf·cm·s²)
Repeatable Positioning Accuracy(1)
L90I: 20arc-sec L90I: 20arc-sec L90I: 20arc-sec L90I: 20arc-sec
Positioning Accuracy(2)
L90I: 60arc-sec L90I: 60arc-sec L90I: 60arc-sec L90I: 60arc-sec
Bus Communication Protocol
L90I: Canopen / EtherCAT L90I: Canopen / EtherCAT L90I: Canopen / EtherCAT L90I: Canopen / EtherCAT
Encoder Resolution(Single-turn)
L90I: 17-bit (131,072 pulses/rev) L90I: 17-bit (131,072 pulses/rev) L90I: 17-bit (131,072 pulses/rev) L90I: 17-bit (131,072 pulses/rev)
Encoder Resolution(Multi-turn)
L90I: 16-bit (-32,768 to +32,767 revs) L90I: 16-bit (-32,768 to +32,767 revs) L90I: 16-bit (-32,768 to +32,767 revs) L90I: 16-bit (-32,768 to +32,767 revs)
Output Shaft Resolution
L90I: 6,684,672pulses/rev L90I: 10,616,832pulses/rev L90I: 13,238,272pulses/rev L90I: 15,859,712pulses/rev
Mass
L90I: 2kg L90I: 2kg L90I: 2kg L90I: 2kg
Ambient Environmental Conditions
L90I: Operating Temperature: 0 to 40 °C / Storage Temperature: -20 to 60 °C Operating/Storage Humidity: 20 to 80%RH (non-condensing) Vibration Resistance: 25 m/s² (Frequency: 10 to 400 Hz) Shock Resistance: 300 m/s² Environment: Free from dust, metal powder, corrosive gases, flammable gases, oil mist, etc. Usage: Indoor use, avoid direct sunlight Altitude: Below 1000 m L90I: Operating Temperature: 0 to 40 °C / Storage Temperature: -20 to 60 °C Operating/Storage Humidity: 20 to 80%RH (non-condensing) Vibration Resistance: 25 m/s² (Frequency: 10 to 400 Hz) Shock Resistance: 300 m/s² Environment: Free from dust, metal powder, corrosive gases, flammable gases, oil mist, etc. Usage: Indoor use, avoid direct sunlight Altitude: Below 1000 m L90I: Operating Temperature: 0 to 40 °C / Storage Temperature: -20 to 60 °C Operating/Storage Humidity: 20 to 80%RH (non-condensing) Vibration Resistance: 25 m/s² (Frequency: 10 to 400 Hz) Shock Resistance: 300 m/s² Environment: Free from dust, metal powder, corrosive gases, flammable gases, oil mist, etc. Usage: Indoor use, avoid direct sunlight Altitude: Below 1000 m L90I: Operating Temperature: 0 to 40 °C / Storage Temperature: -20 to 60 °C Operating/Storage Humidity: 20 to 80%RH (non-condensing) Vibration Resistance: 25 m/s² (Frequency: 10 to 400 Hz) Shock Resistance: 300 m/s² Environment: Free from dust, metal powder, corrosive gases, flammable gases, oil mist, etc. Usage: Indoor use, avoid direct sunlight Altitude: Below 1000 m
Design Life（H）
L90I: 10000 L90I: 10000 L90I: 10000 L90I: 10000
Motor Insulation
L90I: Insulation Resistance: 500 MΩ or greater Dielectric Strength: AC 1500 V / 1 min Insulation Class: Class F (155°C) L90I: Insulation Resistance: 500 MΩ or greater Dielectric Strength: AC 1500 V / 1 min Insulation Class: Class F (155°C) L90I: Insulation Resistance: 500 MΩ or greater Dielectric Strength: AC 1500 V / 1 min Insulation Class: Class F (155°C) L90I: Insulation Resistance: 500 MΩ or greater Dielectric Strength: AC 1500 V / 1 min Insulation Class: Class F (155°C)
Mounting Orientation
L90I: Omnidirectional Mounting L90I: Omnidirectional Mounting L90I: Omnidirectional Mounting L90I: Omnidirectional Mounting
Protection Rating
L90I: Totally Enclosed, Non-Ventilated (IP54) L90I: Totally Enclosed, Non-Ventilated (IP54) L90I: Totally Enclosed, Non-Ventilated (IP54) L90I: Totally Enclosed, Non-Ventilated (IP54)
