ROBSTRIDE

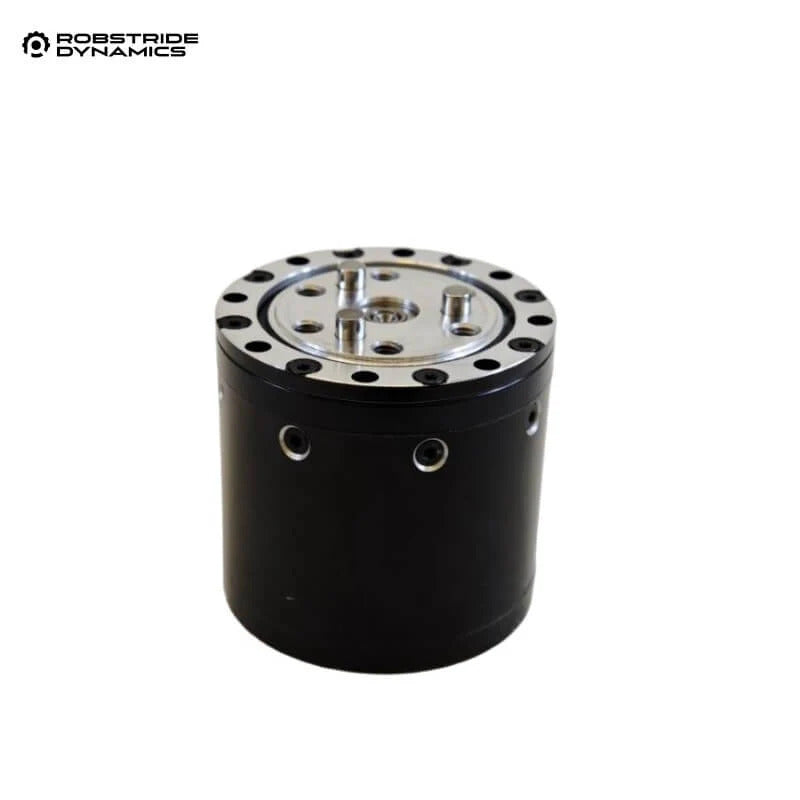

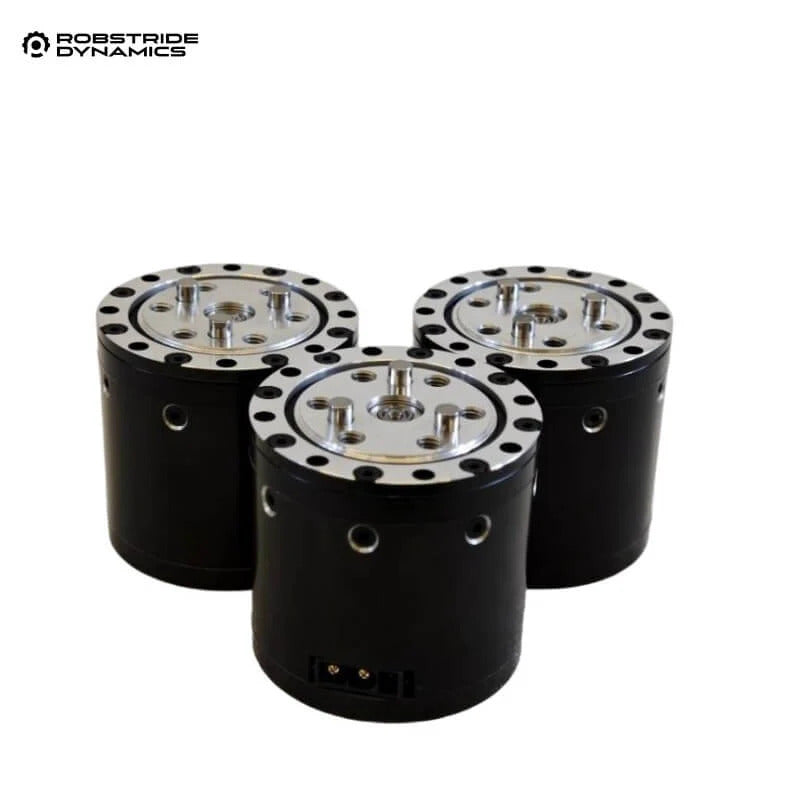

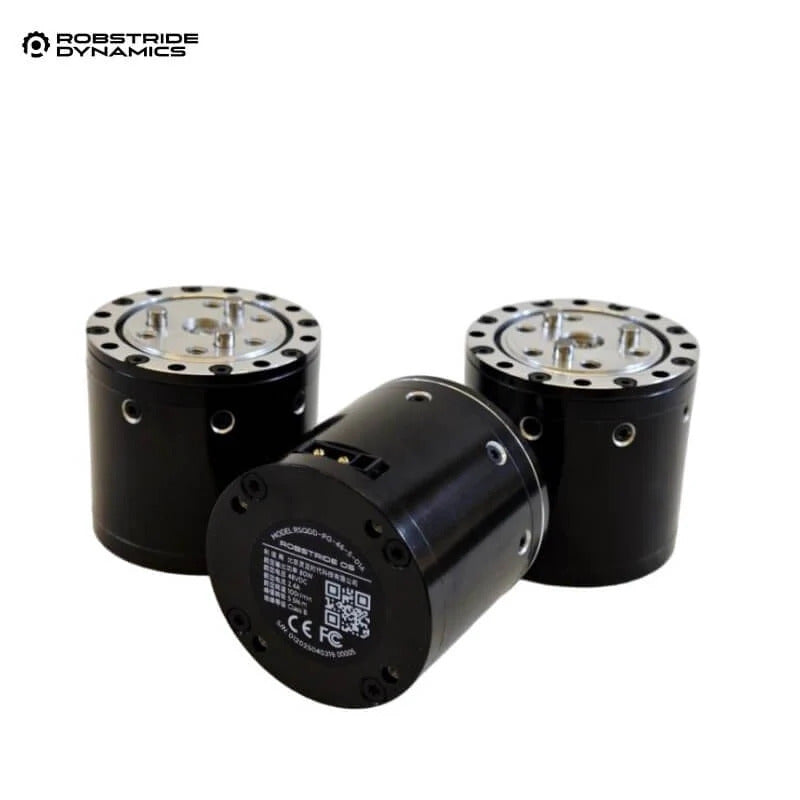

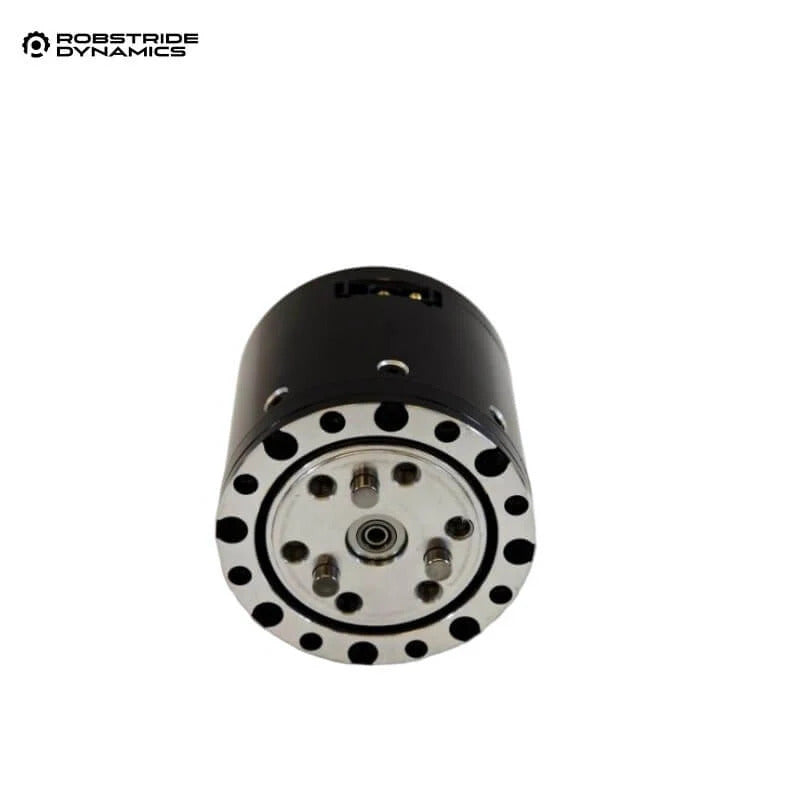

RobStride 05 QDD Motor Actuator | High Torque Robot Servo Motor

• Integrated motor, reducer, and driver in one compact module
• 5.5 N·m peak torque with only 191g lightweight design
• 7.75:1 reduction ratio for stable robotic joint motion
• Dual magnetic encoders support accurate position feedback

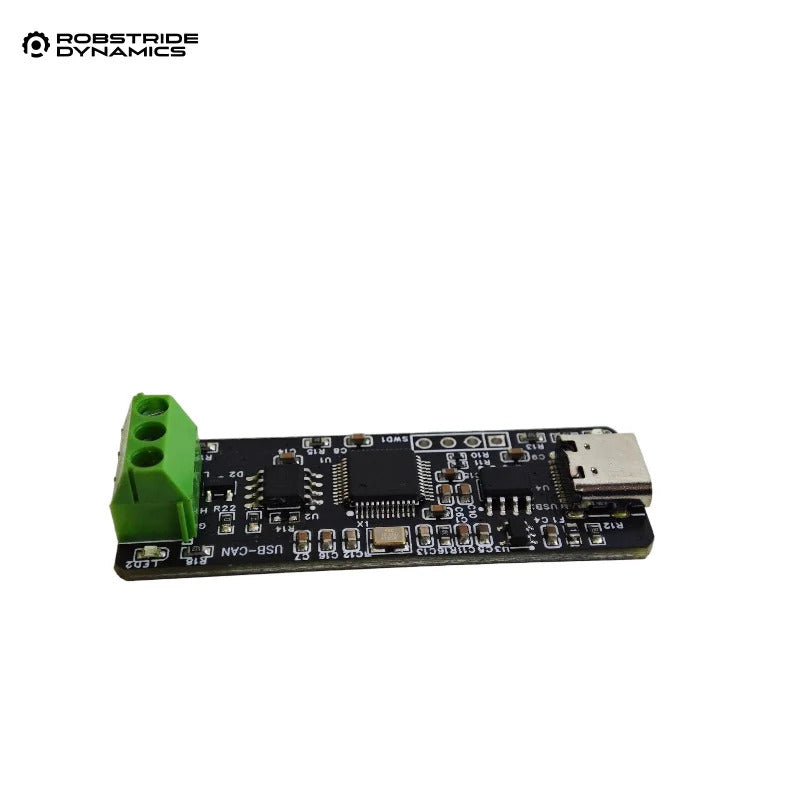

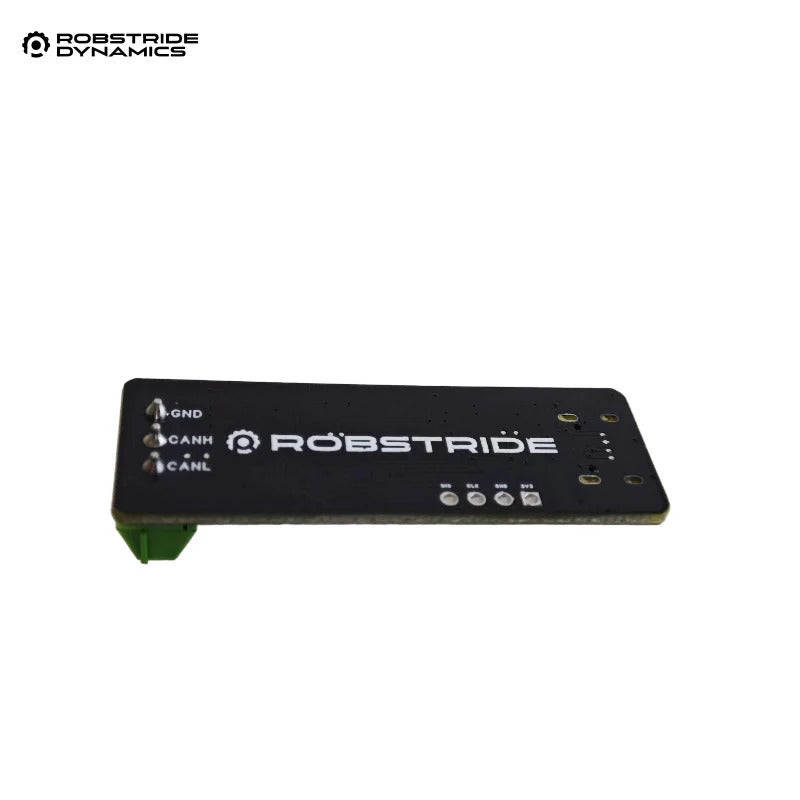

• Includes debugging software for easier development and deployment

$110
Version

Care information
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

Free shipping. 12-Day delivery.

Developer Support

ROBSTRIDE 05 MOTOR ▶ ROBSTRIDE 05 Instruction for using the Studio ▶ ROBSTRIDE 05 User Manual ▶
Application Scenarios
Humanoid Robots Robotic Arms Exoskeletons Quadruped Robots AGV Vehicles ARU Robots

Technical Specifications

Parameter Value
Model ROBSTRIDE 05
Rated Voltage 48 VDC
Operating Voltage Range 15–60 VDC
Rated Load (CW) 1.6 N·m
Rotation Direction CW / CCW
Using Temperature 25 ± 5°C
Size 46 × 46 × 44 mm
Weight 191 g ± 10 g
Operating Temperature Range -20°C to +50°C
Operating Humidity Range 5% to 85% RH, non-condensing
Storage Temperature Range -30°C to +70°C
Insulation Class Class B
Using Humidity 65%
No-Load Speed 480 rpm ±10%
No-Load Current 0.14 Arms
Rated Load 1.6 N·m
Rated Load Speed 100 rpm ±10%
Rated Load Phase Current (Peak) 2.4 Apk ±10%
Peak Load 5.5 N·m
Max Load Phase Current (Peak) 11 Apk ±10%
Insulation Resistance / Stator Winding DC 500VAC, 100M Ohms
Hi-Pot Test (Stator to Frame) 600VAC, 1s, 2mA
Motor Back-EMF Constant 7.4 Vrms/kRPM ±10%
Torque Constant 0.94 N·m/Arms
Encoder Type Magnetic Encoder
Wire Design Single Port Wiring
Number of Encoders 2
Number of Poles 20
Number of Phases 3
Drive Method FOC
Reduction Ratio 7.75:1
CAN Bus Bit Rate 1 Mbps
Encoder Resolution 14-bit
