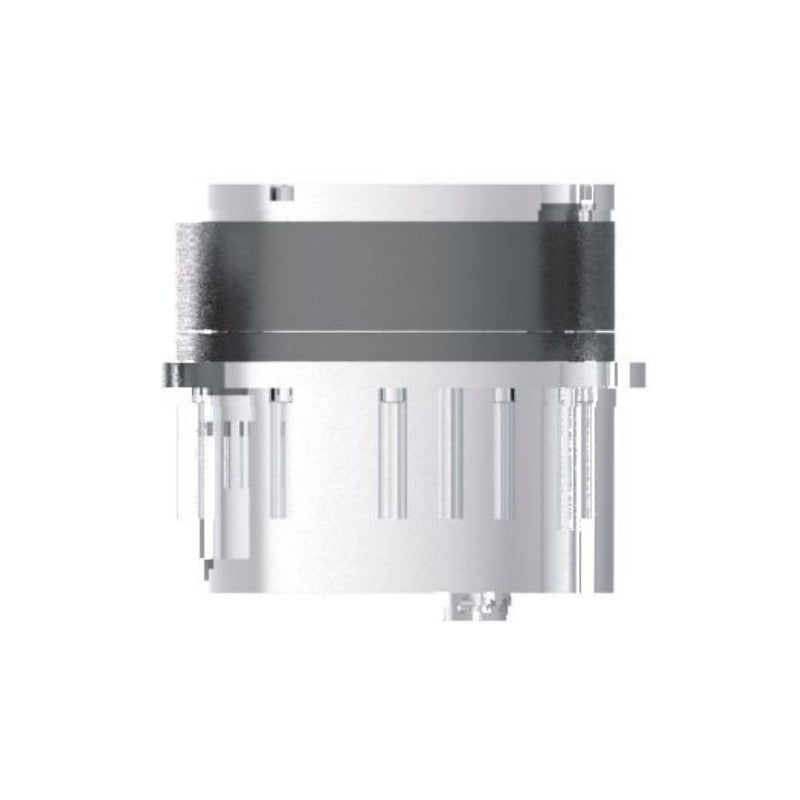

CRABNOVA R120 Robot Joint Module

  • Designed for humanoid robot waist and hip joints, with integrated 600 Nm force sensing on the FBT-I model.
  • Supports EtherCAT and CANopen, with CAN FD available on the FBT-I model.
  • Uses dual encoders with a 19-bit single-turn absolute encoder for precise position feedback.
  • Features a 161:1 reduction ratio with 11 RPM output speed for stable high-torque motion.
  • Delivers 180 Nm rated torque and up to 450 Nm peak torque, with the MAX model reaching 300 Nm rated and 600 Nm peak torque.
$1,180
Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Bulk pricing and exclusive academic discounts are available for universities and research institutions.

Developer Support

CRABNOVA Robot Joint Product Overview.pdf ▶
CRABNOVA R120 Robot Joint Module
CRABNOVA R120 Robot Joint Module
CRABNOVA R120 Robot Joint Module
▤ PARAMETER ⌃
CE-RB-R120-161-FBN-I Technical Specifications
Parameter Specification
Configuration (Reduction Ratio) 161:1
Output Speed 11 RPM
Rated Torque 180 Nm
Peak Torque 450 Nm
Backlash 30 arcsec
Rated Voltage 48 V
Rated Power 720 W
Rated Speed 1800 RPM
Rated Current 15 A
Peak Current 45 A
Encoder Dual encoders, single-turn absolute value: 19 bits per single turn
Drive Interface: EtherCAT/CANOpen, Current Loop: 20 kHz, Speed Loop: 10 kHz
Brake Static torque (20°C): ≥3 Nm, release time ≤80 ms, pull-in time ≤50 ms
Overall Machine Dimensions R120 × 110.3 mm
Overall Machine Weight 4.1 kg
Embodied Domain Applications Waist/Hip
CE-RB-R120-161-MAX-FBN-I Technical Specifications
Parameter Specification
Configuration (Reduction Ratio) 161:1
Output Speed 11 RPM
Rated Torque 300 Nm
Peak Torque 600 Nm
Backlash 30 arcsec
Rated Voltage 48 V
Rated Power 763.2 W
Rated Speed 1800 RPM
Rated Current 15.9 A
Peak Current 38.1 A
Encoder Dual encoders, single-turn absolute value: 19 bits per single turn
Drive Interface: EtherCAT/CANOpen, Current Loop: 20 kHz, Speed Loop: 10 kHz
Brake Static torque (20°C): ≥3 Nm, release time ≤80 ms, pull-in time ≤50 ms
Overall Machine Dimensions R120 × 125 mm
Overall Machine Weight 4.6 kg
Embodied Domain Applications Waist/Hip
CE-RB-R120-161-FBT-I Technical Specifications
Parameter Specification
Configuration (Reduction Ratio) 161:1
Output Speed 11 RPM
Rated Torque 180 Nm
Peak Torque 450 Nm
Backlash 30 arcsec
Rated Voltage 48 V
Rated Power 720 W
Rated Speed 1800 RPM
Rated Current 15 A
Peak Current 45 A
Encoder Dual encoders, single-turn absolute value: 19 bits per single turn
Drive Interface: EtherCAT/CANOpen/CANFD, Current Loop: 20 kHz, Speed Loop: 10 kHz
Brake Static torque (20°C): ≥3 Nm, release time ≤80 ms, pull-in time ≤50 ms
Force Sensor Rated range: 600 Nm, Overload level: 150% of full scale, Communication method: RS485, Accuracy: ±0.25%
Overall Machine Dimensions R120 × 116.3 mm
Overall Machine Weight 4.1 kg
Embodied Domain Applications Waist/Hip
