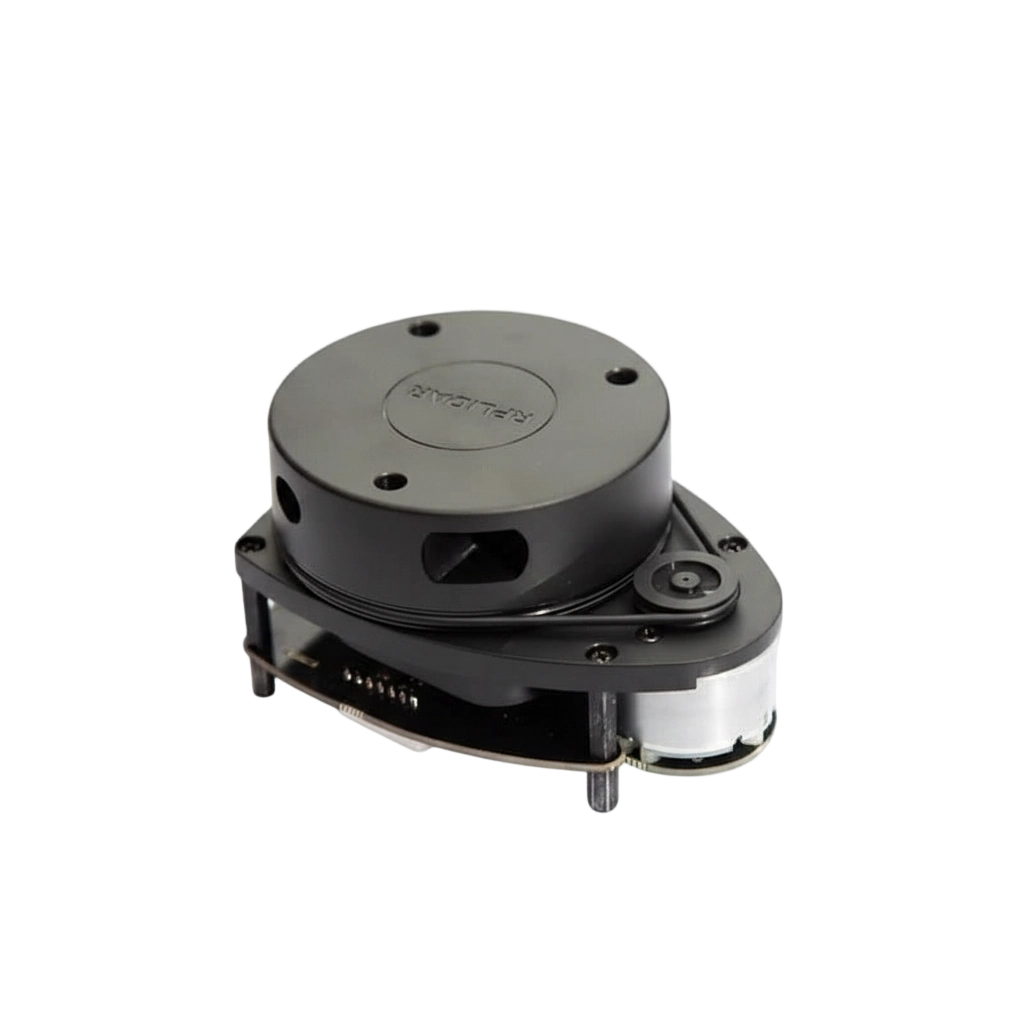

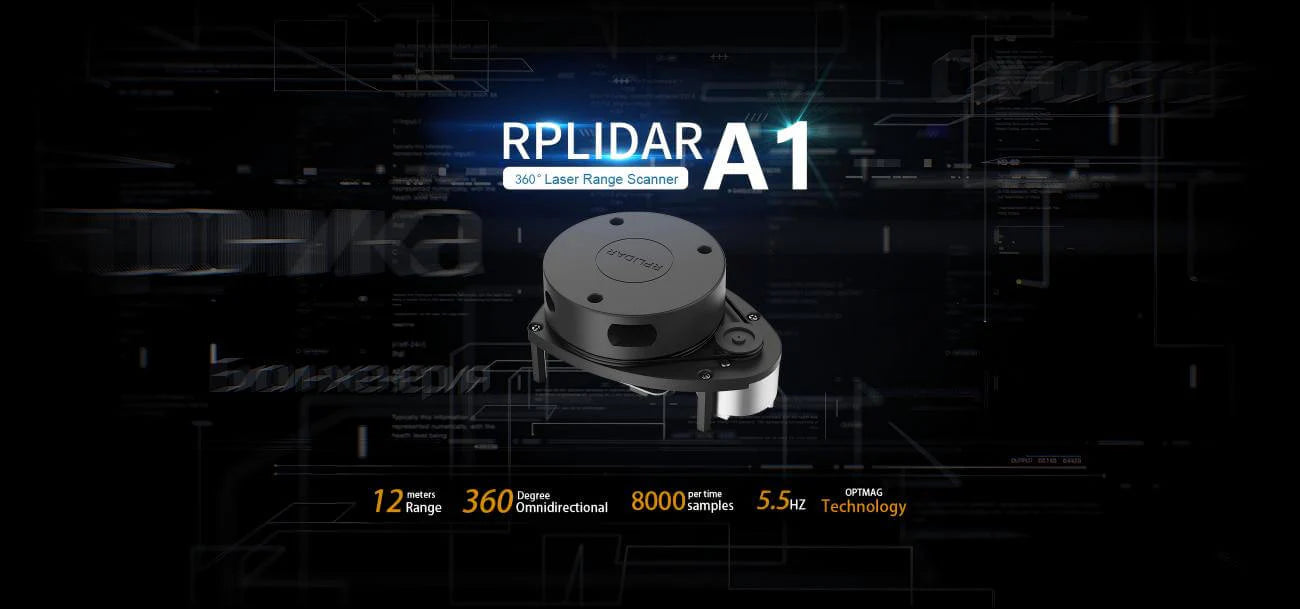

SLAMTEC RPLIDAR A1 360° LiDAR Sensor for SLAM Applications

Model: SLAMTEC RPLIDAR A1

Product Type: 2D 360° Laser Scanning LiDAR Sensor

$150

Care information

Avoid operating in high humidity, dusty environments, or under strong direct light. Do not touch the rotating parts during operation, and avoid direct eye exposure to the laser aperture.

Shipping

Free shipping. 12-Day delivery.

Technical Specifications

Parameter Value

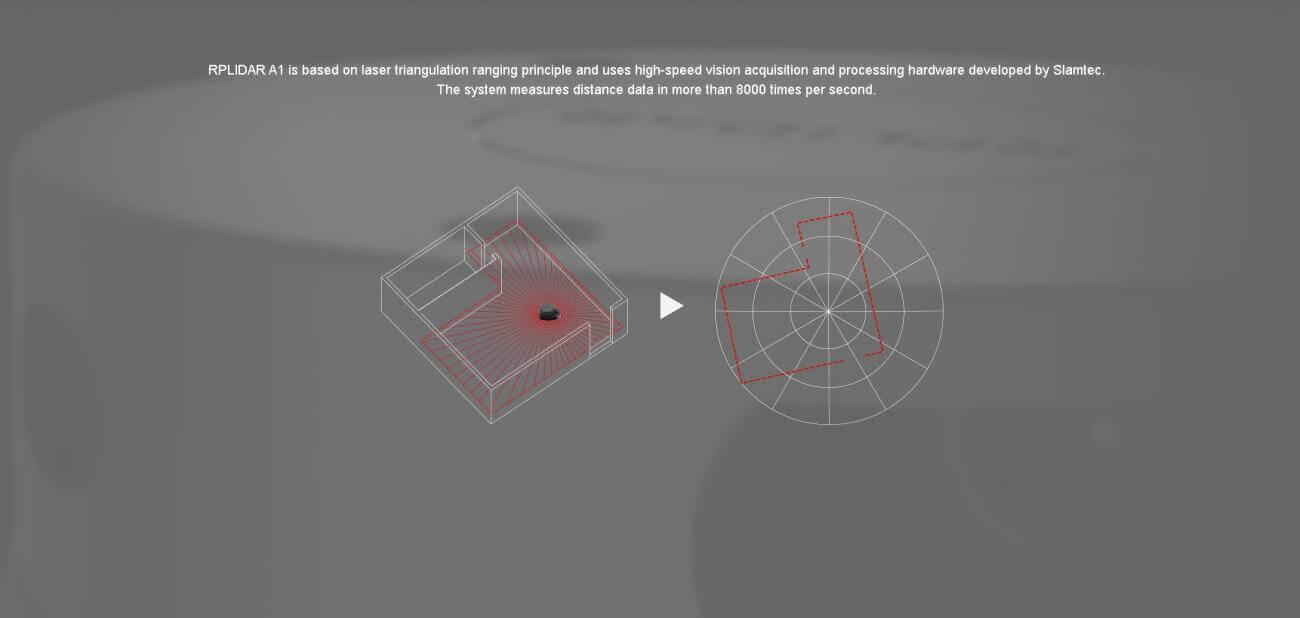

Measurement Principle Triangulation Ranging

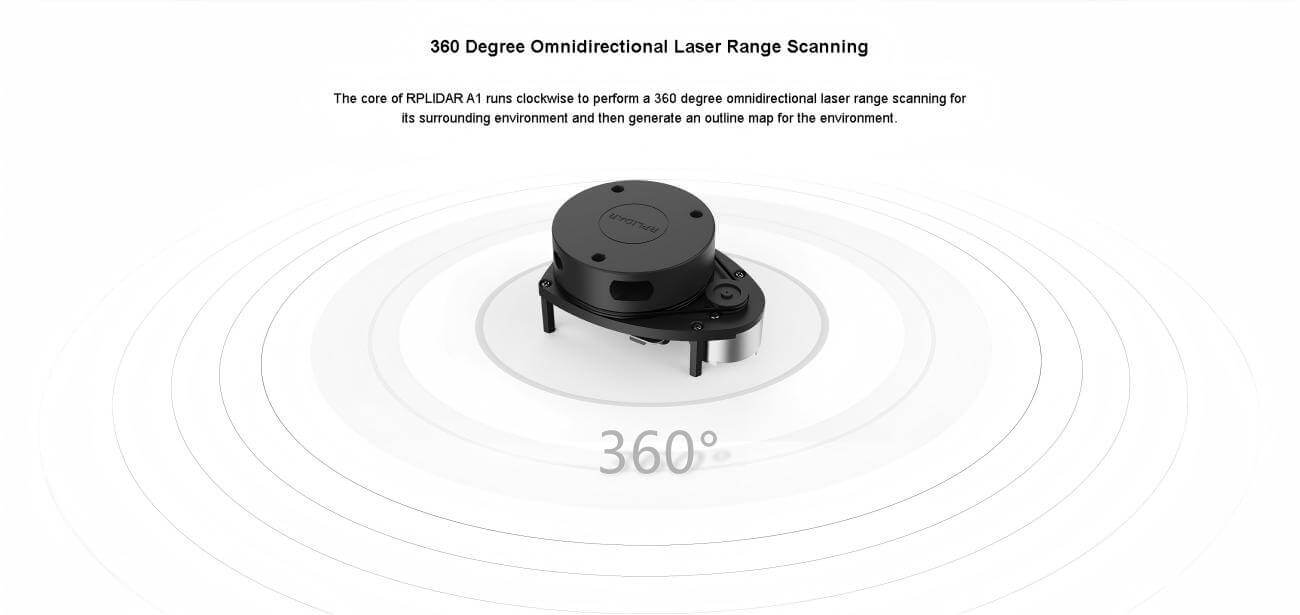

Scanning Angle 360° Continuous Rotation
Distance Range 0.15 – 12 m
Distance Resolution <0.5 mm (<1.5 m); <1% of distance (full range)
Distance Accuracy ±3 cm (Typical)
Angular Resolution ≤1° @ 5.5 Hz

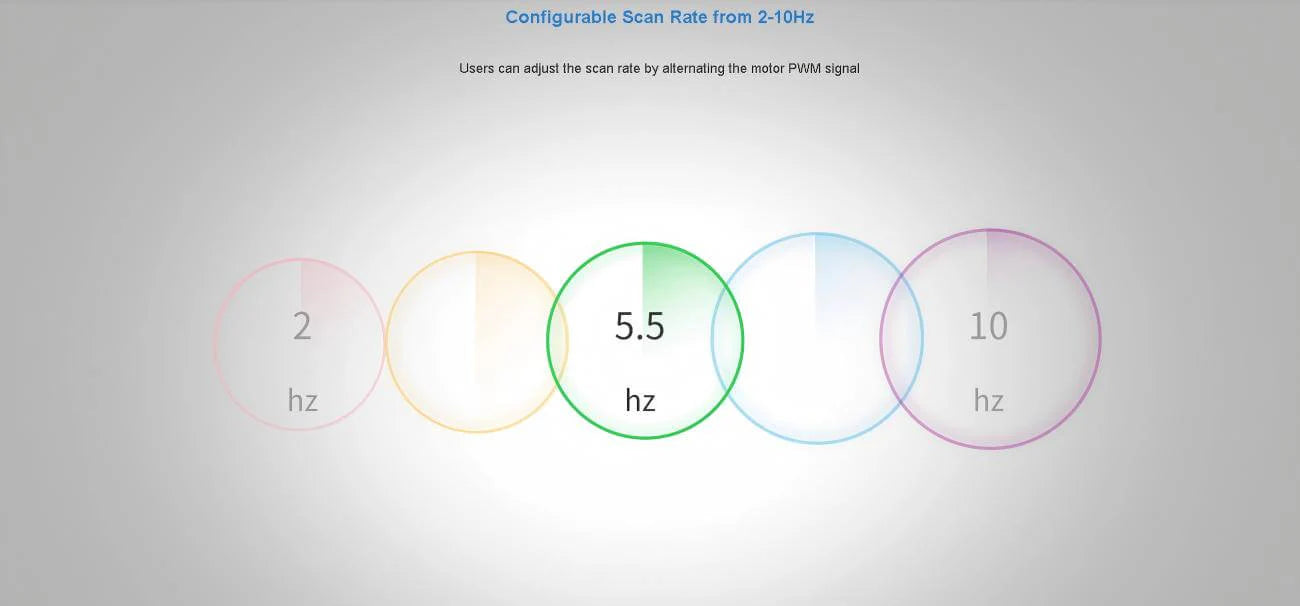

Scan Rate 5.5 Hz (Typical)
Sample Rate ≥8000 Hz
Sample Duration 0.125 ms
Scan Field Flatness -1.5° – +1.5°
Laser Wavelength 785 nm
Laser Output Power 3 mW
Laser Pulse Width 110 μs
Laser Safety Classification IEC 60825-1 Class 1
Communication Interface TTL UART
Baud Rate 115200 bps
Data Format 8N1
Supply Voltage 5 V DC
Voltage Ripple ≤20 mV
Startup Current 500 mA
Operating Current 300 mA @ 5 V
Sleep Mode Current 80 mA @ 5 V
Motor Voltage 5 V DC
Motor Current 100 mA @ 5 V
Operating Temperature Range 0 – 40 °C
Weight 170 g
Dimensions (Diameter × Height) 70 mm × 38 mm

Technical Documentation

PDF
RPLIDAR_A1_Introduction_and_Datasheet.pdf
PDF
RPLIDAR_A1_Dev_Kit_Structure_diagram.pdf
PDF
RPLIDAR_A1_Core_Structure_diagram.pdf

Optimized Sampling Architecture for Reliable Mapping

Mapping efficiency and accuracy depend heavily on LiDAR sampling performance. With refined optical design and enhanced signal processing algorithms, RPLIDAR A1 delivers up to 8000 samples per second, providing stable and responsive performance for cost-effective SLAM applications.

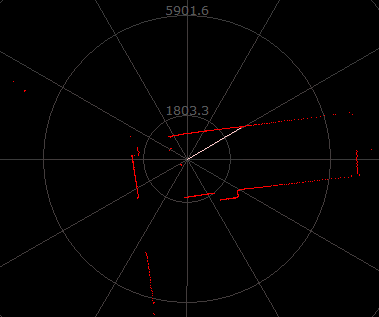

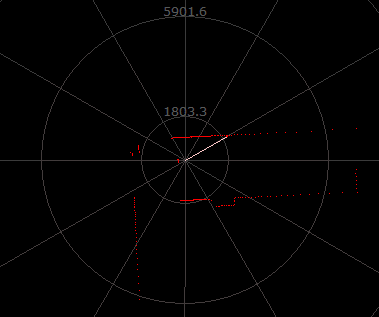

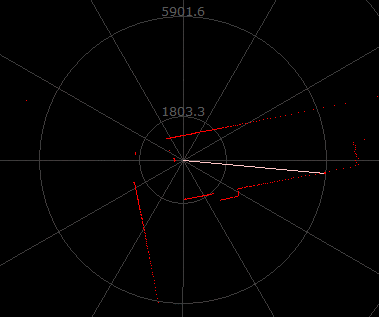

Performance comparison under different operating environments.
