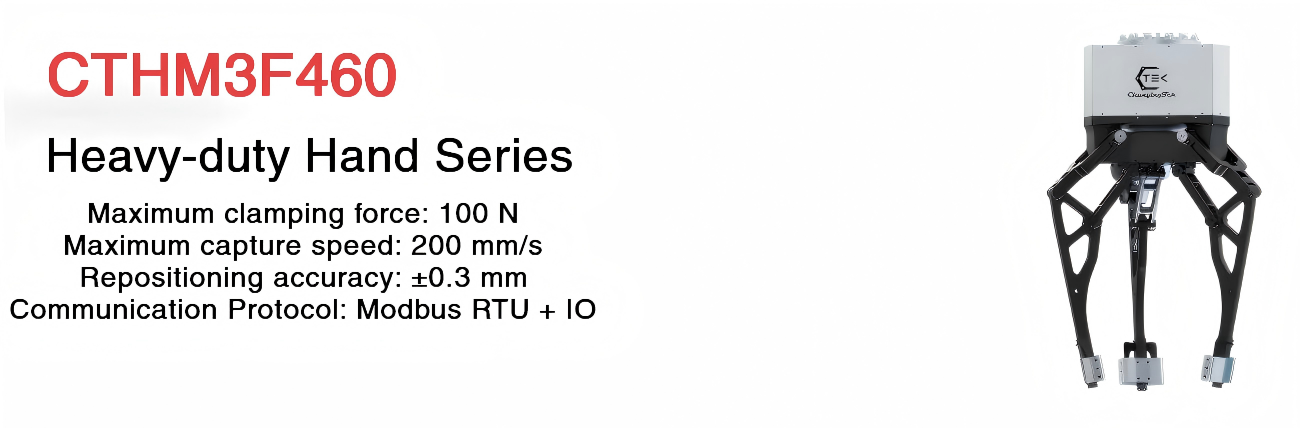

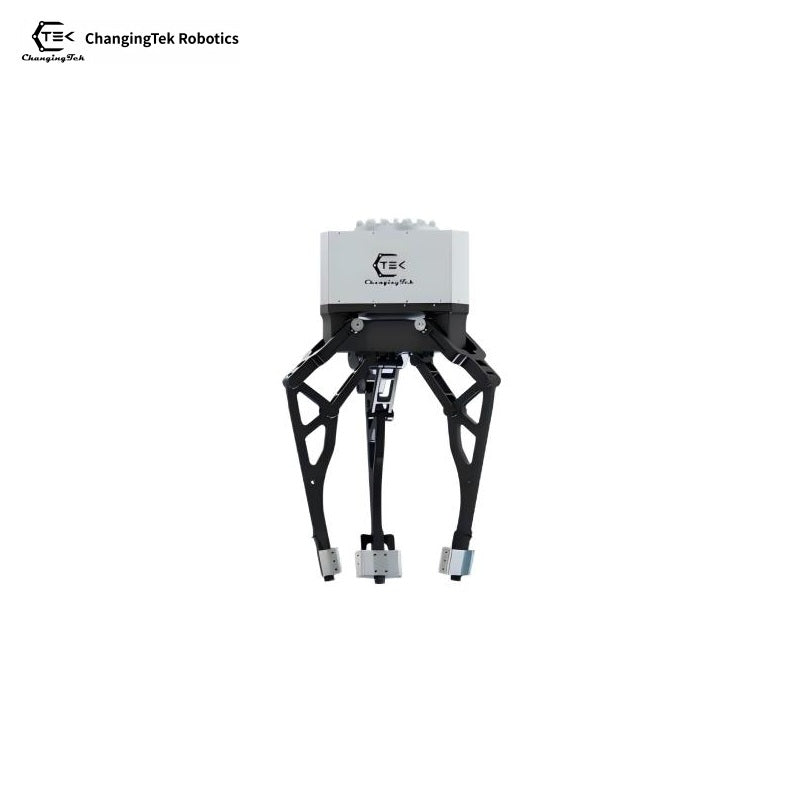

ChangingTek Robotics CTHM3F460 Gripper | Servo Robot Gripper for Automation

  • Servo-drive robot gripper with 460 mm maximum stroke
  • Up to 100 N maximum gripping force for automation handling
  • +/-0.3 mm repeat positioning accuracy for precision robot gripping
  • 200 mm/s maximum gripping speed for controlled motion

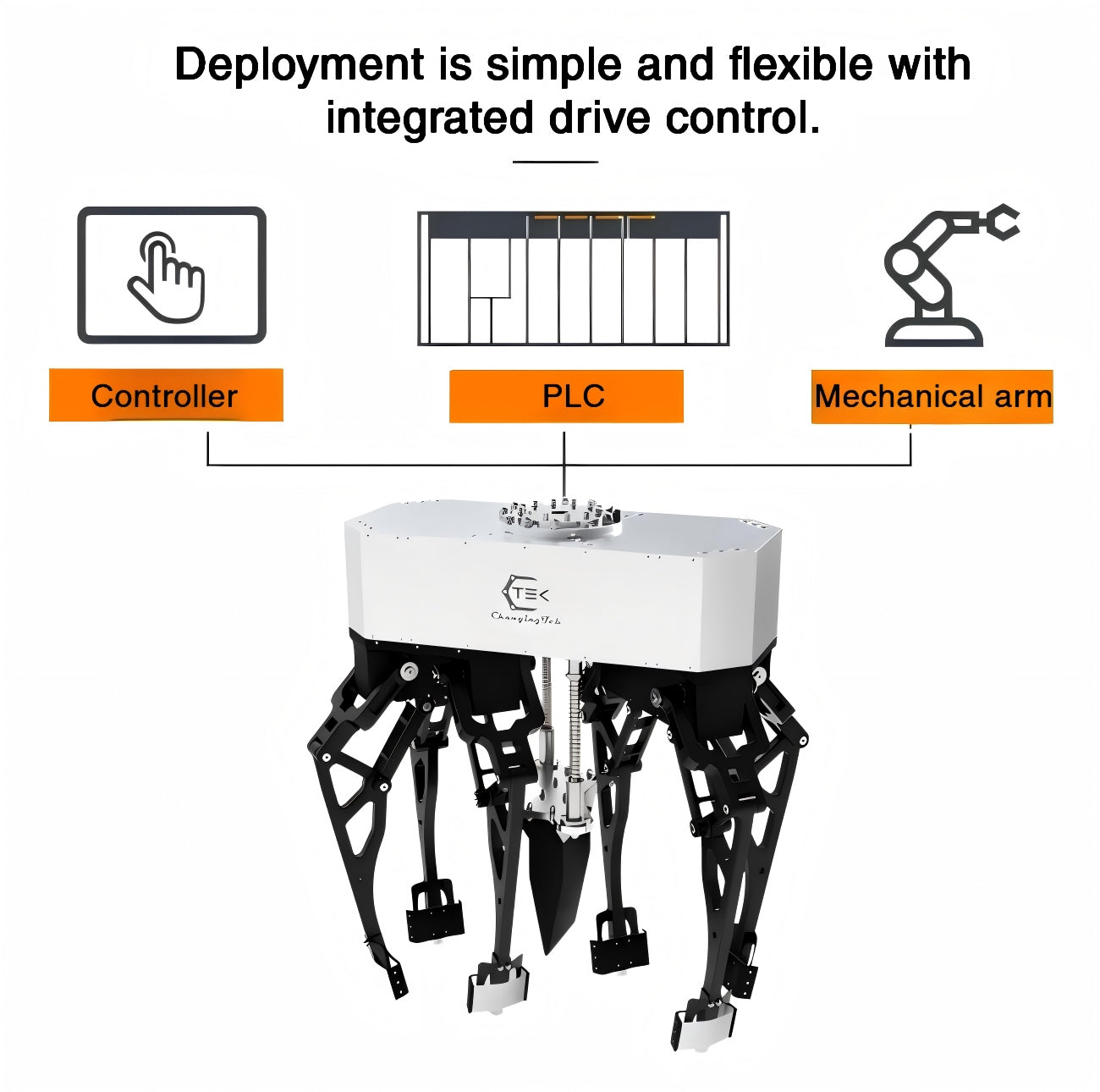

  • Supports industrial communication for robot arm and automation integration
$24,500
Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

ChangingTek CTHM3F460 dimensional drawing with mounting dimensions and mechanical views ▶
ChangingTek Robotics CTHM3F460 Gripper | Servo Robot Gripper for Automation ChangingTek Robotics CTHM3F460 Gripper | Servo Robot Gripper for Automation ChangingTek Robotics CTHM3F460 Gripper | Servo Robot Gripper for Automation ChangingTek Robotics CTHM3F460 Gripper | Servo Robot Gripper for Automation ChangingTek Robotics CTHM3F460 Gripper | Servo Robot Gripper for Automation ChangingTek Robotics CTHM3F460 Gripper | Servo Robot Gripper for Automation ChangingTek Robotics CTHM3F460 Gripper | Servo Robot Gripper for Automation
▤ PARAMETER ⌃
Parameter
Value
Product Name
ChangingTek Robotics CTHM3F460 Gripper
Actuation & Motion - Drive Type
Servo Drive
Actuation & Motion - Max. Stroke
460 mm
Actuation & Motion - Max. Gripping Force
100 N
Actuation & Motion - Max. Gripping Speed
200 mm/s
Actuation & Motion - Repeat Positioning Accuracy
+/-0.3 mm
Actuation & Motion - Control Accuracy (Position/Force)
1 mm / 1 N
Load & Physical - Max. Payload
60 kg
Load & Physical - Self Weight
35 kg
Electrical & Control - Max. Current
25 A
Electrical & Control - Operating Voltage
24 V
Electrical & Control - Programmable Parameters
Position, Speed, Force
Electrical & Control - Feedback Parameters
Position, Dimension, Current
Electrical & Control - Communication Protocol
I/O, Modbus RTU, TCP/IP
Environmental - Recommended Operating Environment (Temperature/Humidity)
0~40 deg C , <=85%RH (Non-condensing)
