TTBOT

TTBOT HP8B Motor | Robot Servo Motor for Robotics Development

  • TTBOT robot servo motor for robot joints, actuator assemblies, automation hardware, and robotics development.
  • Suitable for engineering teams building research robots, education platforms, prototypes, and motion-control systems.
  • Designed for practical integration in robot actuator, compact mechanism, and embedded control applications.
  • Useful for robotics labs, automation engineers, and hardware developers selecting motor components for robot platforms.
$1,160
Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

TTBOT HP8B Motor dimension drawing for installation reference.pdf ▶ TTBOT HP8B Motor CAD model for mechanical integration.stp ▶
TTBOT HP8B Motor | Robot Servo Motor for Robotics Development detail image 1
TTBOT HP8B Motor | Robot Servo Motor for Robotics Development detail image 2

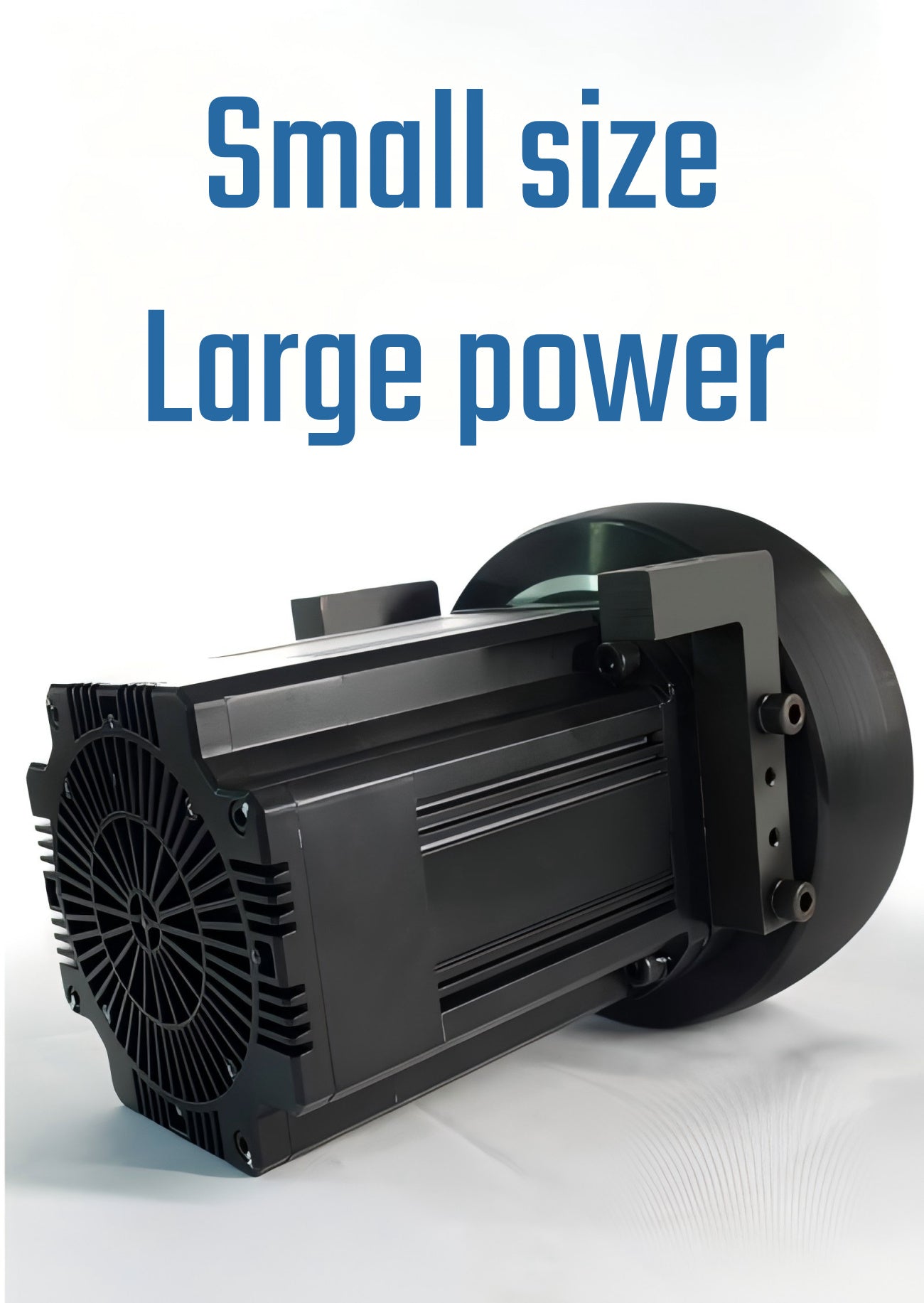

TTBOT HP8B Motor | Robot Servo Motor for Robotics Development detail image 3

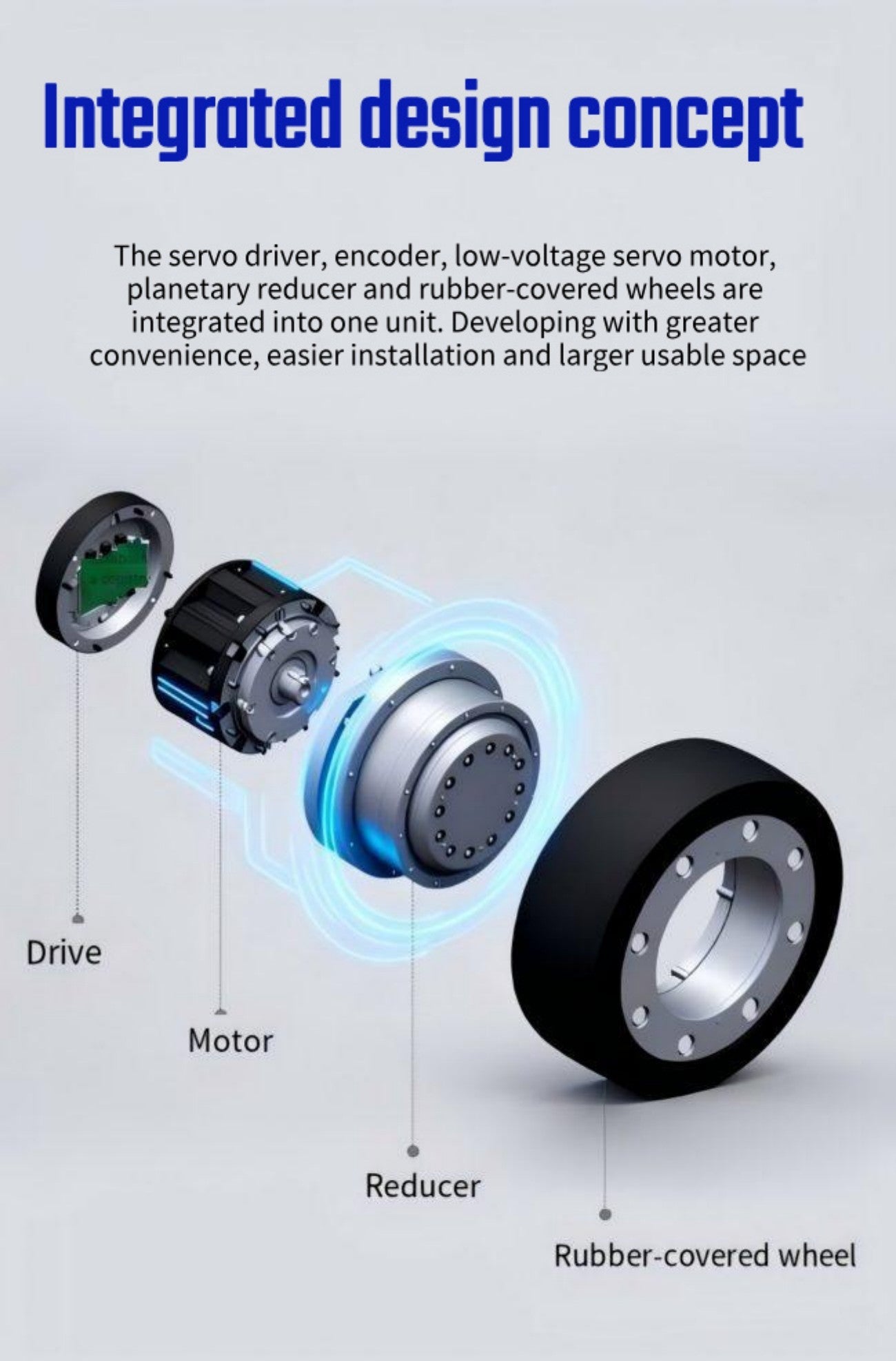

TTBOT HP8B Motor | Robot Servo Motor for Robotics Development detail image 4
TTBOT HP8B Motor | Robot Servo Motor for Robotics Development detail image 5
TTBOT HP8B Motor | Robot Servo Motor for Robotics Development detail image 6
▤ PARAMETER ⌃
Module Model
HP8B
Supply Voltage
48VDC
Motor Power
1580W
Rated Torque
73N.m
Peak Torque
190N.m
Rated Speed (Linear Speed)
125.0rpm (1.3m/s)
Peak Speed (Linear Speed)
187rpm (1.9m/s)
Communication
CAN
Encoder
15-bit single-turn absolute
Protection Grade
IP54
Operating Noise
≤65dBA(@1m 125rpm)
Weight
16.3kg
Operating Temperature
0~40℃
Rated Current
46.33Arms
Peak Current
90.40Arms
Reduction Ratio
1:16
Allowable Radial Load
8000N
Allowable Axial Load
2500N
Backlash
≤20arcmin

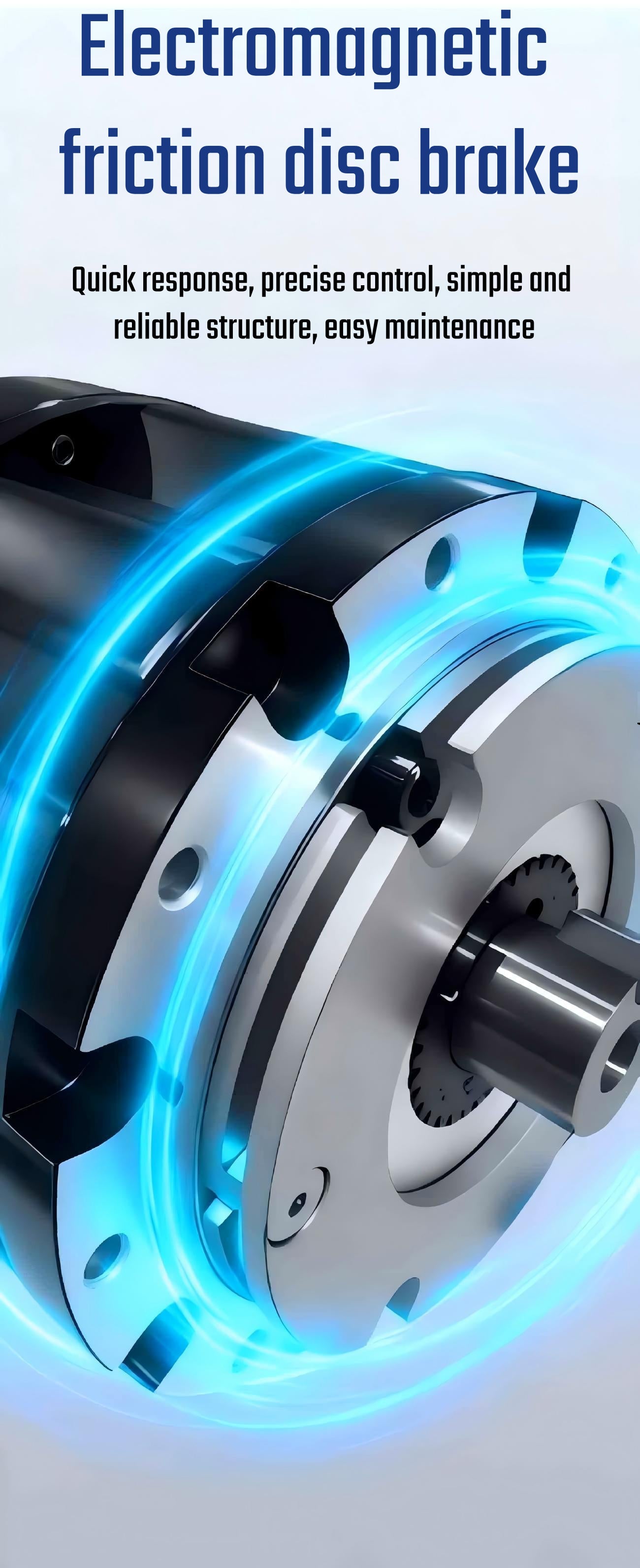

Brake Type
Electromagnetic friction disc
Brake Holding Torque
≥8.0N.m
External Brake Voltage
48VDC (Max.5min)
Material
Polyurethane (Black)

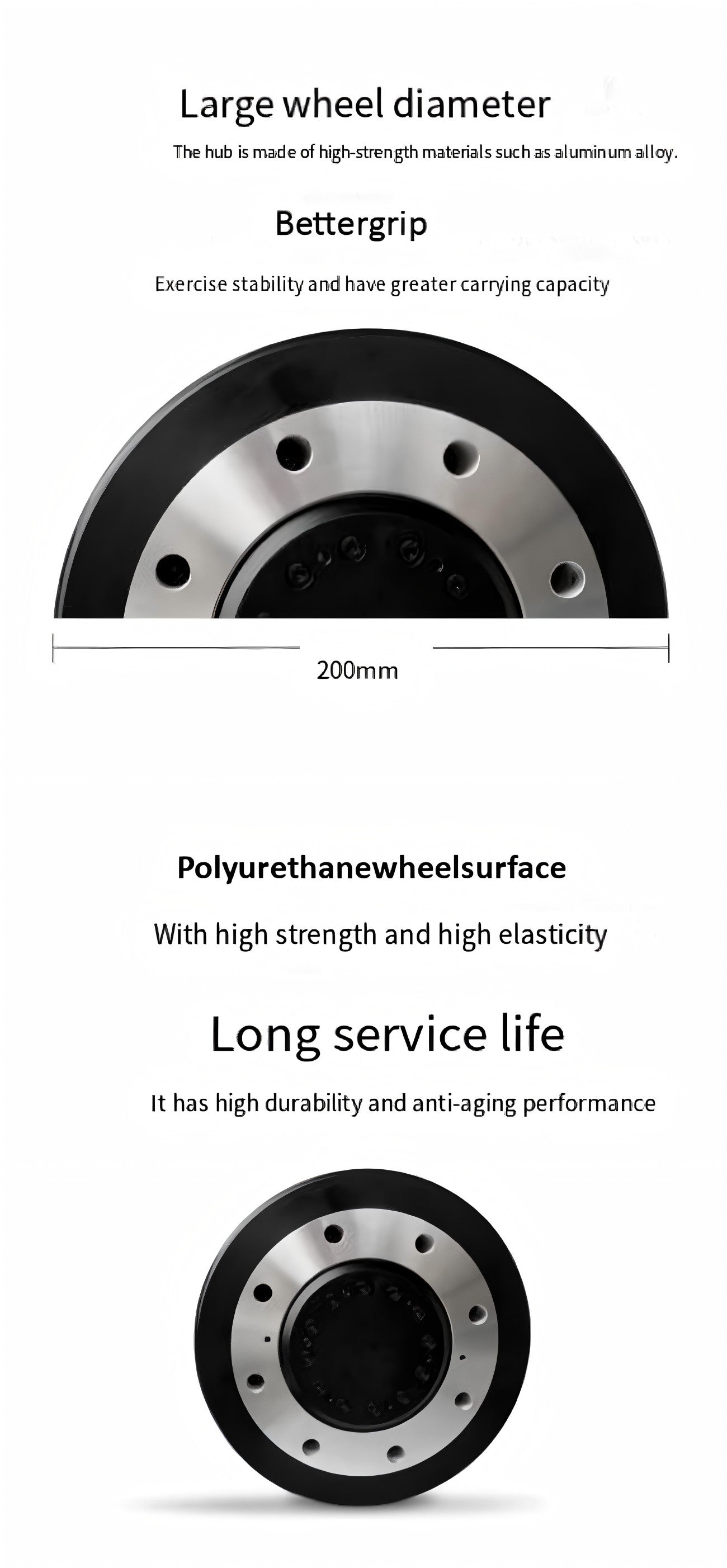

Wheel Diameter
200mm
Wheel Width
60mm
Antistatic Resistance
10^7-10^9 Ω
Cover Rubber Hardness
Shore A 95±3
