Seyond

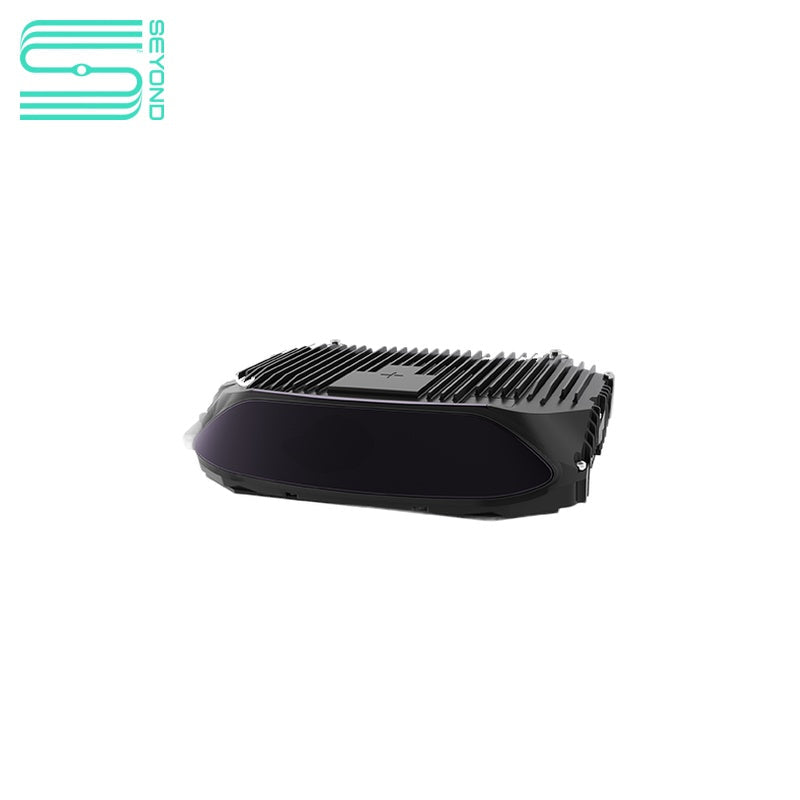

Seyond Falcon K2 LiDAR | Robot LiDAR Sensor for Robotics & Mapping

  • Range (Maximum): 500 m
  • Suitable for mobile robots, autonomous platforms, robotics research, education labs, and automation systems.
  • Designed for robot sensing workflows that require reliable ranging and environmental perception.
  • Useful for developers building SLAM, localization, obstacle detection, and autonomous robotics applications.
$9,700
Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

Seyond Falcon K2 LiDAR product documentation for robotics integration.pdf ▶ Seyond Falcon K2 LiDAR dimension drawing for installation reference.pdf ▶ Seyond Falcon K2 LiDAR CAD model for mechanical integration.stp ▶
Seyond Falcon K2 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 1
Seyond Falcon K2 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 2
Seyond Falcon K2 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 3
Seyond Falcon K2 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 4
▤ PARAMETER ⌃
Range (Maximum)
500 m
Range (Minimum)
1.5 m
Detection Range (10% Lambertian @10Hz)
250m @100klx sunlight, POD>90%
Detection Range Accuracy
Based on average of 50 measurements on static target
Detection Range Precision
≤2cm (1 standard deviation)
Detection Range Resolution
0.5 cm
Vertical Scanning Lines
1500 lines/sec
FOV in non-ROI (H×V)
120° × 25°
FOV in ROI (H×V)
120° × 9.6°
Angular Resolution in non-ROI (H×V)
0.2° × 0.24°
Angular Resolution in ROI (H×V)
0.1°×0.15° (1°×4.8°), 0.1°×0.1° (2°×4.8°)
Angular Accuracy
±0.1°
Frame Rate
10 FPS
Returns
Up to 2 returns
Laser Safety Class
Class 1 (IEC 60825-1:2014)
Laser Wavelength
1550 nm
Beam Divergence (Full Angle)
0.1°
Data Transmission
1000Base-T1 Ethernet (UDP, TCP/IP)
Points Per Second
1,370,000 pts/sec @1 return
Data Rate
2,740,000 pts/sec @2 returns
Data Output
11.69MB/s @1 return
Data Output
17.45MB/s @2 returns
Data Content
Radius, azimuth, reflectivity, timestamp, frame ID, return mode, working mode, fault state, CRC verification, etc.
Interface
TCP and HTTP APIs
Time Synchronization
IEEE1588 (PTP), IEEE 802.1as(gPTP), NTP
Power Consumption
20 W
Operating Voltage
9 to 32V DC
Standard Voltage
12V DC
Connector
Proprietary pluggable connector (Power + Automotive Ethernet + CAN)
Dimensions (H×W×D)
58.9 mm × 228 mm × 149.6 mm
Weight
1.7 kg
Mounting
4×M4×18 screws, located in bushings
Operating Temperature
-40°C to +85°C
Storage Temperature
-40°C to +105°C
Ingress Protection
IP67 (body), IP69K (window)
Shock
IEC 60068-2-27
Vibration
IEC 60068-2-64
Optional Wire Harness
5m cable (power & Ethernet)
Optional Converter
MetAdaptor
Optional Mount
Metal bracket
Available Drivers
ROS / ROS2
