MyActuator

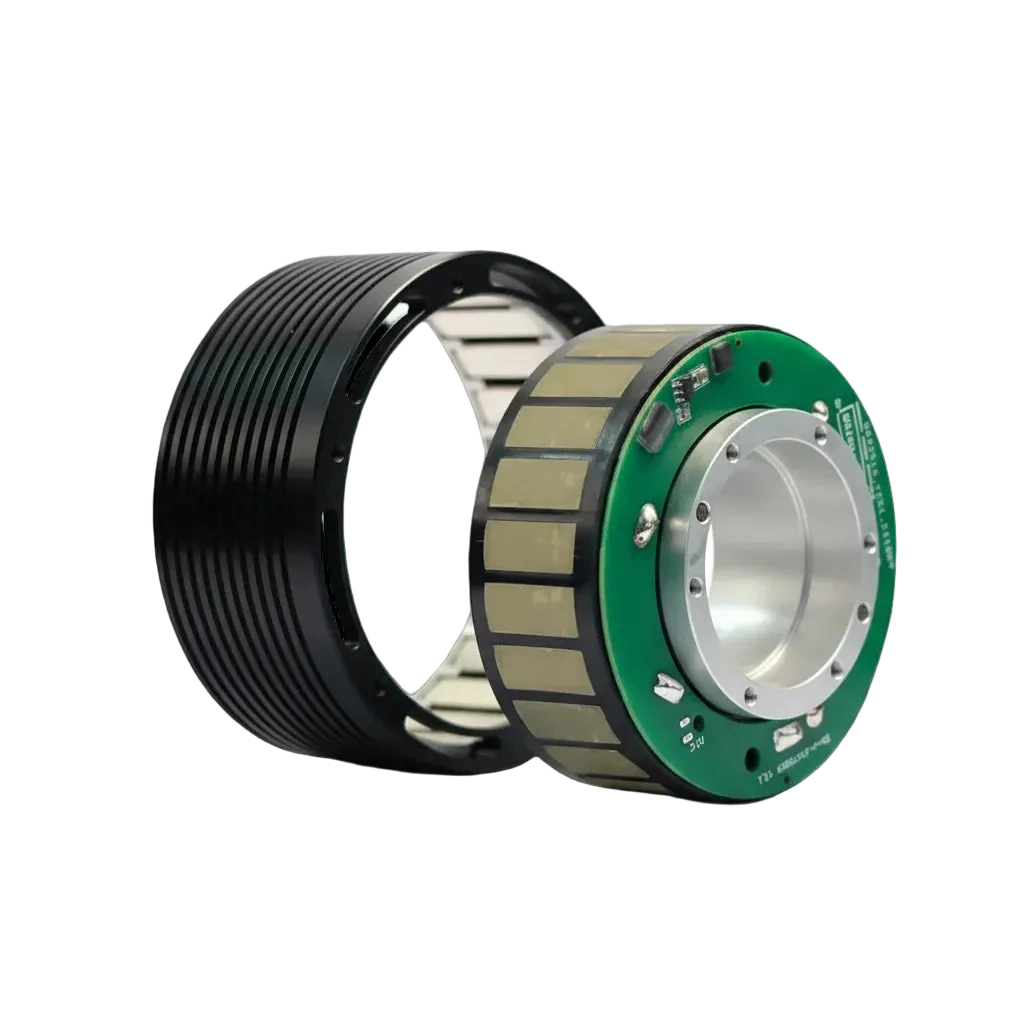

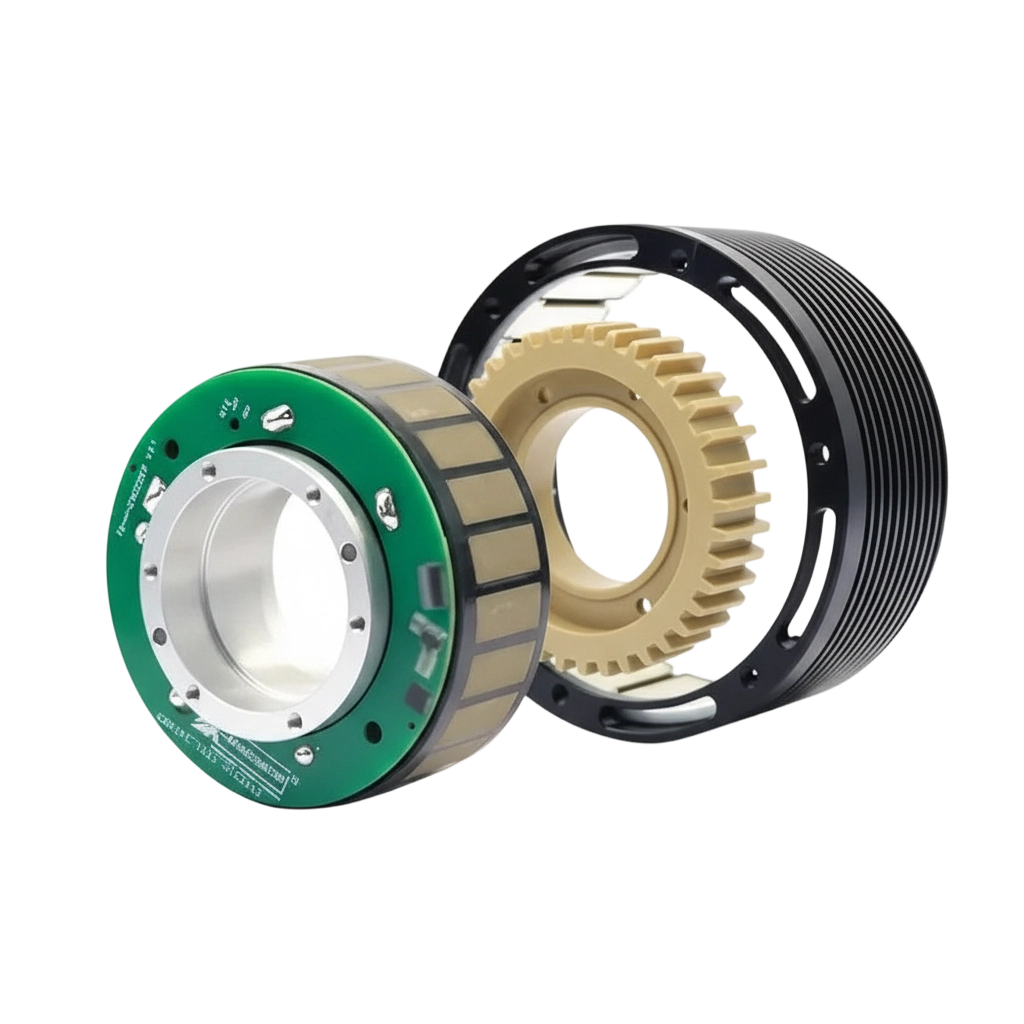

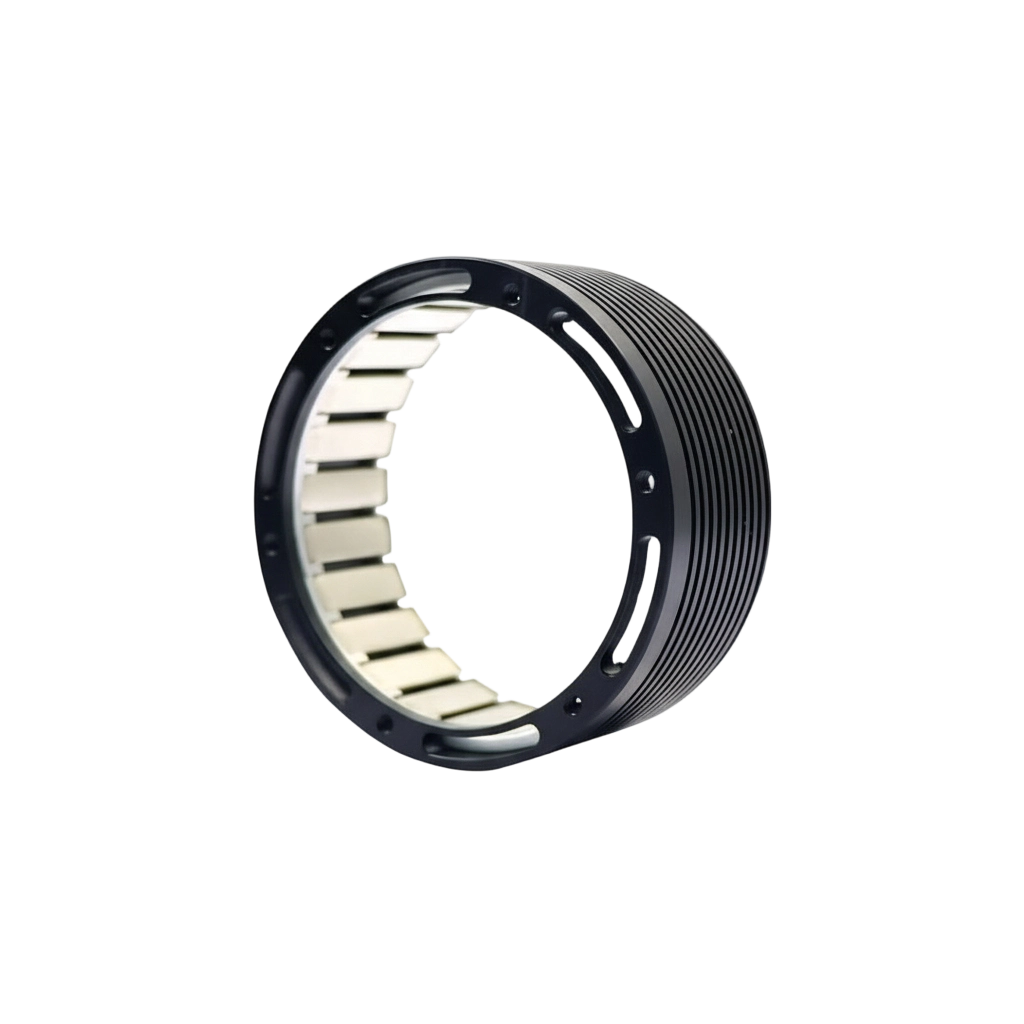

MyActuator RMD-FLO-90 BLDC Actuator for Humanoid Robots | OEM

Model: RMD-FLO-90
Product Type: Direct Drive Brushless Actuator (BLDC)

$230

Care information

Avoid operating in high humidity, dusty environments, or under strong direct light. Do not touch the rotating parts during operation, and avoid direct eye exposure to the laser aperture.

Shipping

Free shipping. 12-Day delivery.

Application Scenarios
Humanoid Robots Robotic Arms Exoskeletons Quadruped Robots AGV Vehicles ARU Robots

Technical Specifications

Parameter Value
Rated Voltage 48 V DC
No-Load Current 0.35 A
Rated Current (RMS) 6.6 A
Peak Current (RMS) 19.8 A
Rated Speed 1600 RPM
Rated Torque 1.5 N·m
Peak Torque 3.75 N·m
Rated Output Power 252 W
Efficiency >83%
Back-EMF Constant (Ke) 21.1 V/KRPM
Torque Constant (Kt) 0.23 N·m/A
Phase Resistance 0.35 Ω
Phase Inductance 0.28 mH
Pole Pairs 17
Cogging Torque 0.064 N·m
Winding Connection 3-Phase, Y (Star)
Encoder Configuration Hall Sensor + Incremental Encoder
Insulation Class Class F
Weight 0.46 kg

Technical Documentation

STP
MyActuator_RMD_FLO_90.STEP
PDF
RMD-FLO-90-INSTALLATION_DRAWING.pdf
FLO Design 1
FLO Design 2
MYACTUATOR Design
RMD FLO 90 L
