HITBOT

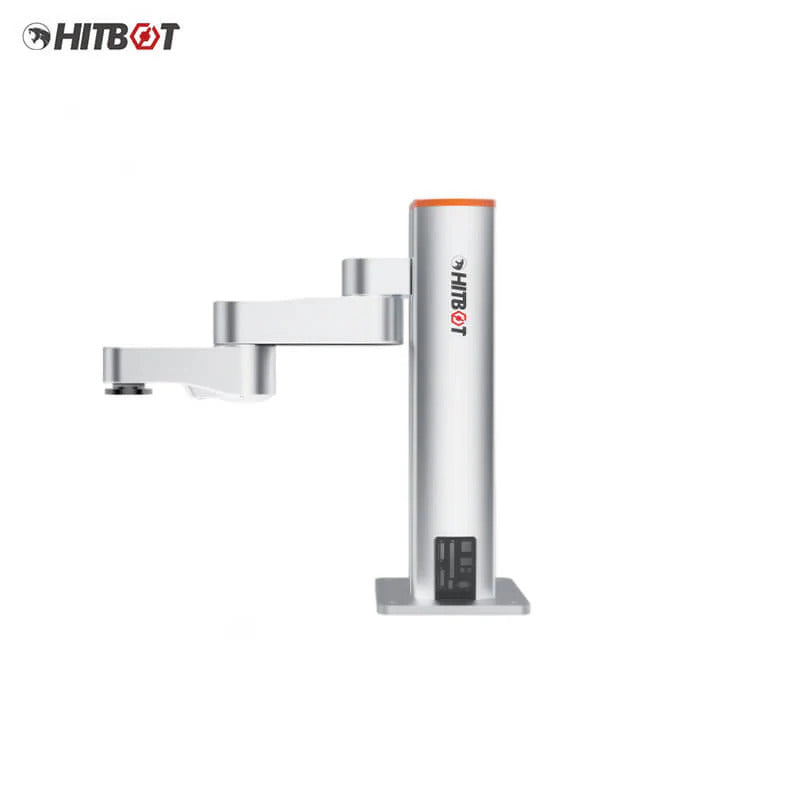

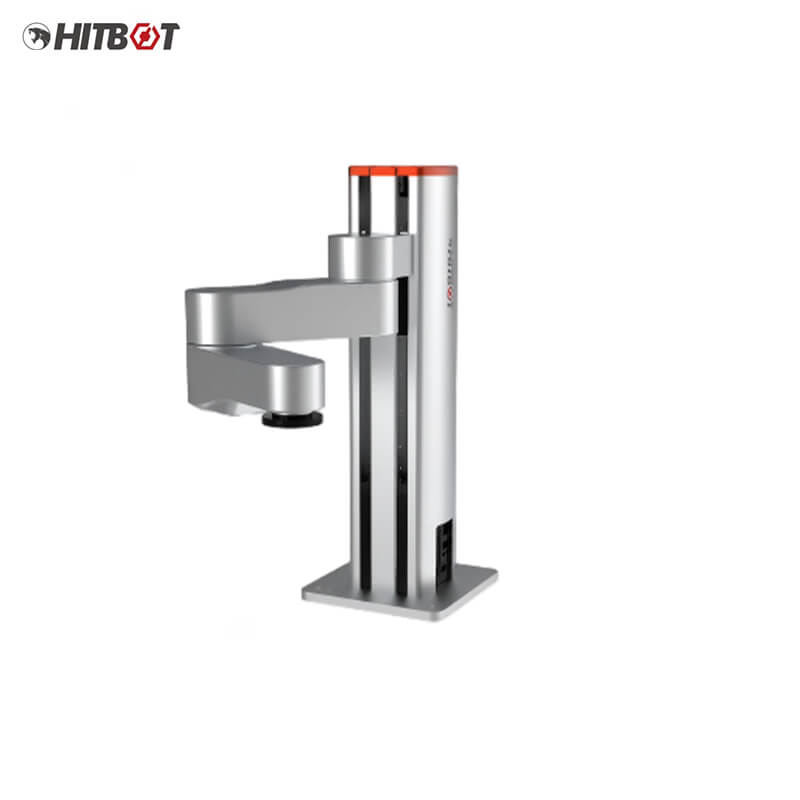

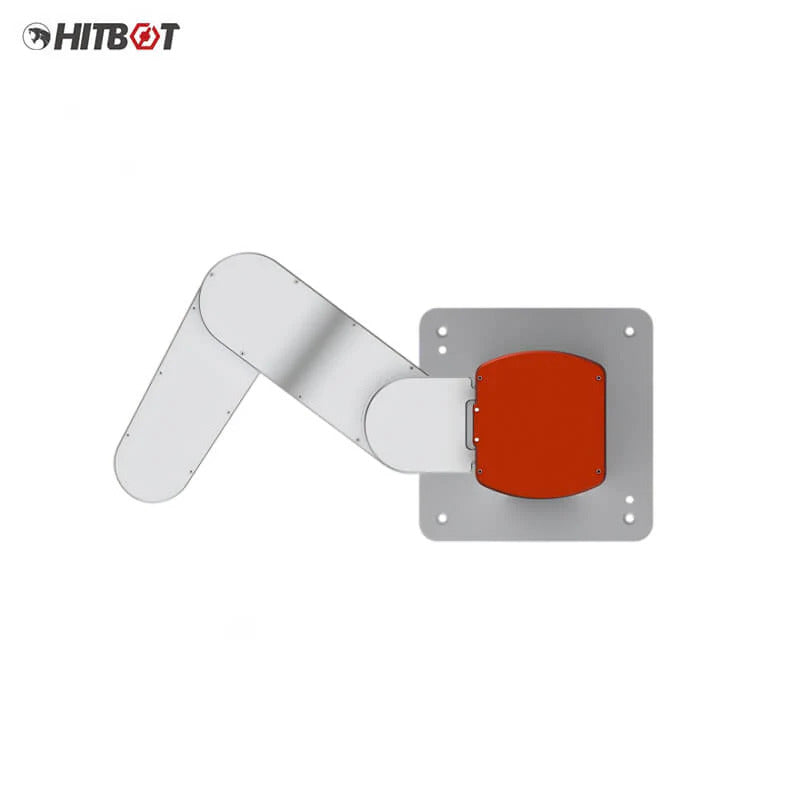

HITBOT Z-Arm 2442B Robotic Arm | Robotic Arm for Research & Automation

  • 4 robotic arm for robotics research and automation
  • Payload specification: 4kg
  • Repeatability specification: ±0.02mm
  • Suitable for education labs, research teams, and automation developers
$6,800
Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

HITBOT Z-Arm 2442B Robotic Arm technical documentation for product reference and integration ▶ HITBOT Z-Arm 2442B Robotic Arm technical documentation for product reference and integration ▶
HITBOT Z-Arm 2442B Robotic Arm | Robotic Arm for Research & Automation
▤ PARAMETER ⌃
Parameter
Value
Product Name
HITBOT Z-Arm 2442B Robotic Arm
Parameter
Value
1-axis arm length
220mm
1-axis rotation angle
±90°
2-axis arm length
200mm
2-axis rotation angle
±164° (optional: 15°~345°)
Z-axis stroke
240mm (height customizable)
R-axis rotation range
±1080° without mechanical limit / ±170° with mechanical limit
Linear speed
1600mm/s (4kg load)
Repeatability
±0.02mm
Standard payload
4kg
Max payload
5kg
Degrees of freedom (DOF)
4
Power supply
Rated power: 2000W; Input: 110-220V (50-60Hz); Output: DC48V
Communication
Ethernet
Customizable Z-axis height
0.1~0.5m
Electrical reserved interface
Standard: socket panel straight-through small tube lower cover plate, 2 x 23awg (unshielded) wire; Optional: socket panel straight-through flange, 2 x Φ4 air tubes
Operating environment
Humidity: 0 ~ 45°C; Temperature: 20 ~ 80% RH (non-condensing)
I/O, digital input (isolated)
9+3 + forearm expansion (8 in / 8 out, gripper dedicated port: pulse or 485)
I/O, digital output (isolated)
9+3 + forearm expansion (8 in / 8 out, gripper dedicated port: pulse or 485)
I/O, analog input (4-20mA)
/
I/O, analog output (4-20mA)
/
Overall height
683mm
Host weight
240mm stroke module weight approx. 27kg
Base dimensions
250 × 250 × 15mm
Base mounting hole spacing
200 × 200mm with four M8×20 screws
Collision detection
/
Lead-through teaching
/
Hard emergency stop
√
Debugging / online upgrade (USB port)
√
Cable specification
AC cable & DC cable: 2m, not suitable for drag chain
Cycle time
1.895s
