HIGH TORQUE

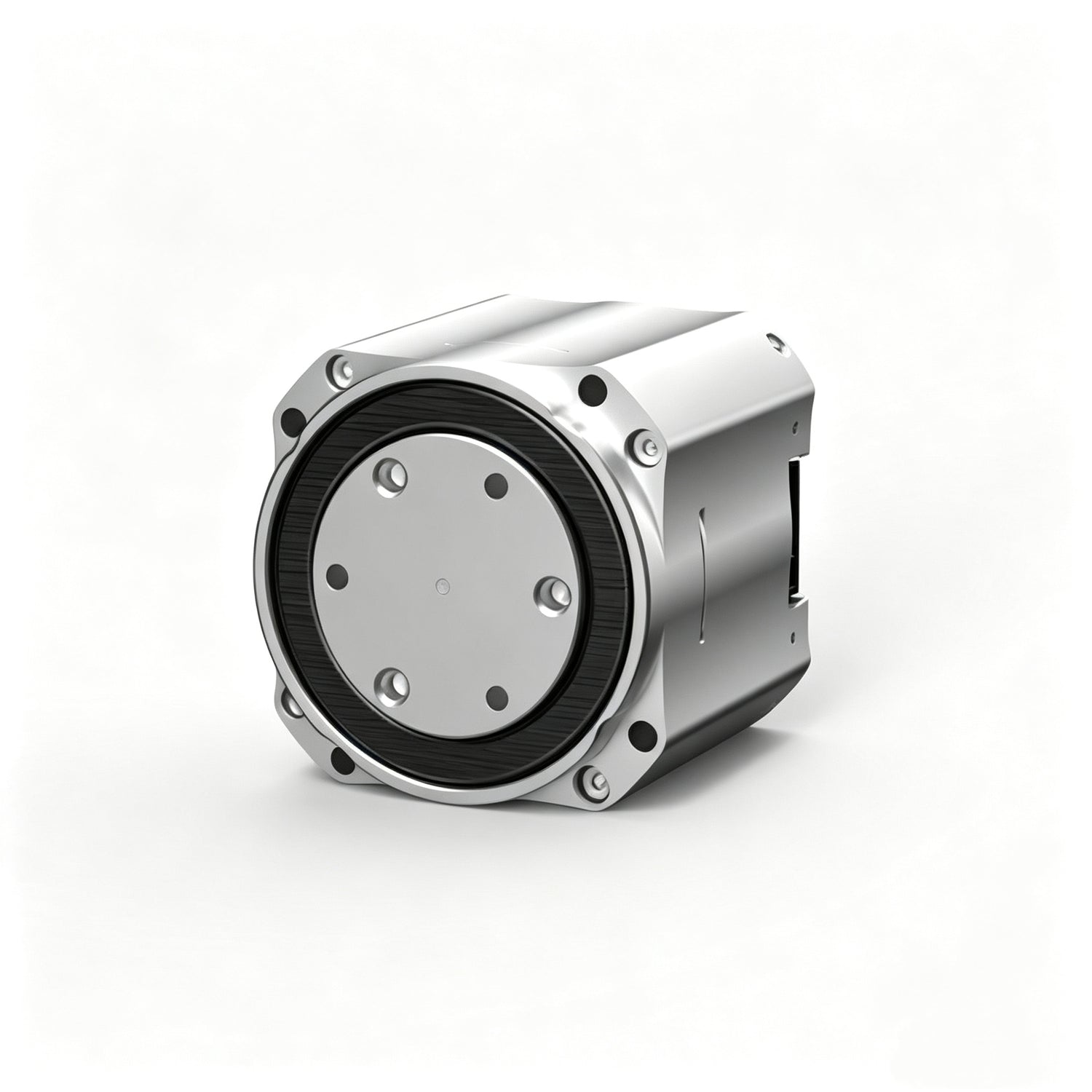

HIGH TORQUE HTDW-4438-30-NE-JC Planetary Joint Module

  • Compact 44 × 44.9 mm planetary joint module weighing only 237 g
  • 30:1 reduction ratio with 2 Nm rated torque and 10 Nm locked-rotor torque
  • Integrated 14-bit input and output encoder feedback for precise joint control
  • Supports CAN FD/CAN communication with up to 3 kHz control frequency
  • 12–50.4 V operating voltage range with flexible robotic system integration
  • Designed for robotic arms, humanoid robots, and compact robotic joint applications

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

HIGH TORQUE HTDW-4438-30-NE-JC Planetary Joint Module

The HIGH TORQUE HTDW-4438-30-NE-JC is a compact planetary joint module designed for robotic arms, humanoid robots, and other space-constrained robotic systems. It integrates a motor, 30:1 reduction mechanism, encoder feedback, and communication interface into a lightweight joint actuator, providing a practical solution for building precise and responsive robotic joints.

Compact Joint Module Design

With a compact 44 × 44.9 mm form factor and a weight of only 237 g, the HTDW-4438-30-NE-JC is designed for lightweight robotic structures where installation space and joint weight are important considerations. Its integrated configuration simplifies mechanical integration into robotic arms and articulated robot platforms.

30:1 Planetary Reduction

The joint module uses a 30:1 reduction ratio to provide increased torque output in a compact package. It delivers 2 Nm rated torque and up to 10 Nm locked-rotor torque, making it suitable for robotic joints requiring controlled torque output and compact mechanical integration.

High-Resolution Encoder Feedback

The HTDW-4438-30-NE-JC features 14-bit input and output encoder resolution, supporting feedback-based motion control and accurate joint positioning. The integrated encoder system enables the module to provide real-time joint feedback for robotic motion and control applications.

CAN FD/CAN Communication

The module supports CAN FD/CAN communication and a control frequency of up to 3 kHz, providing high-speed communication for responsive robotic joint control. Its 12–50.4 V operating voltage range allows integration into a variety of robotic power systems.

Key Specifications

  • Compact 44 × 44.9 mm joint module
  • Weight: 237 g
  • 30:1 reduction ratio
  • Rated torque: 2 Nm
  • Locked-rotor torque: 10 Nm
  • 14-bit input and output encoder resolution
  • CAN FD/CAN communication
  • Control frequency: up to 3 kH
  • Operating voltage: 12–50.4 V
  • Response time: 140 μs

Applications

The HIGH TORQUE HTDW-4438-30-NE-JC is suitable for robotic arms, humanoid robots, compact robot joints, research platforms, and custom robotic systems that require a lightweight integrated actuator with reduction gearing, encoder feedback, and high-speed communication.

HIGH TORQUE HTDW-4438-30-NE-JC Planetary Joint Module
▤ PARAMETER ⌃

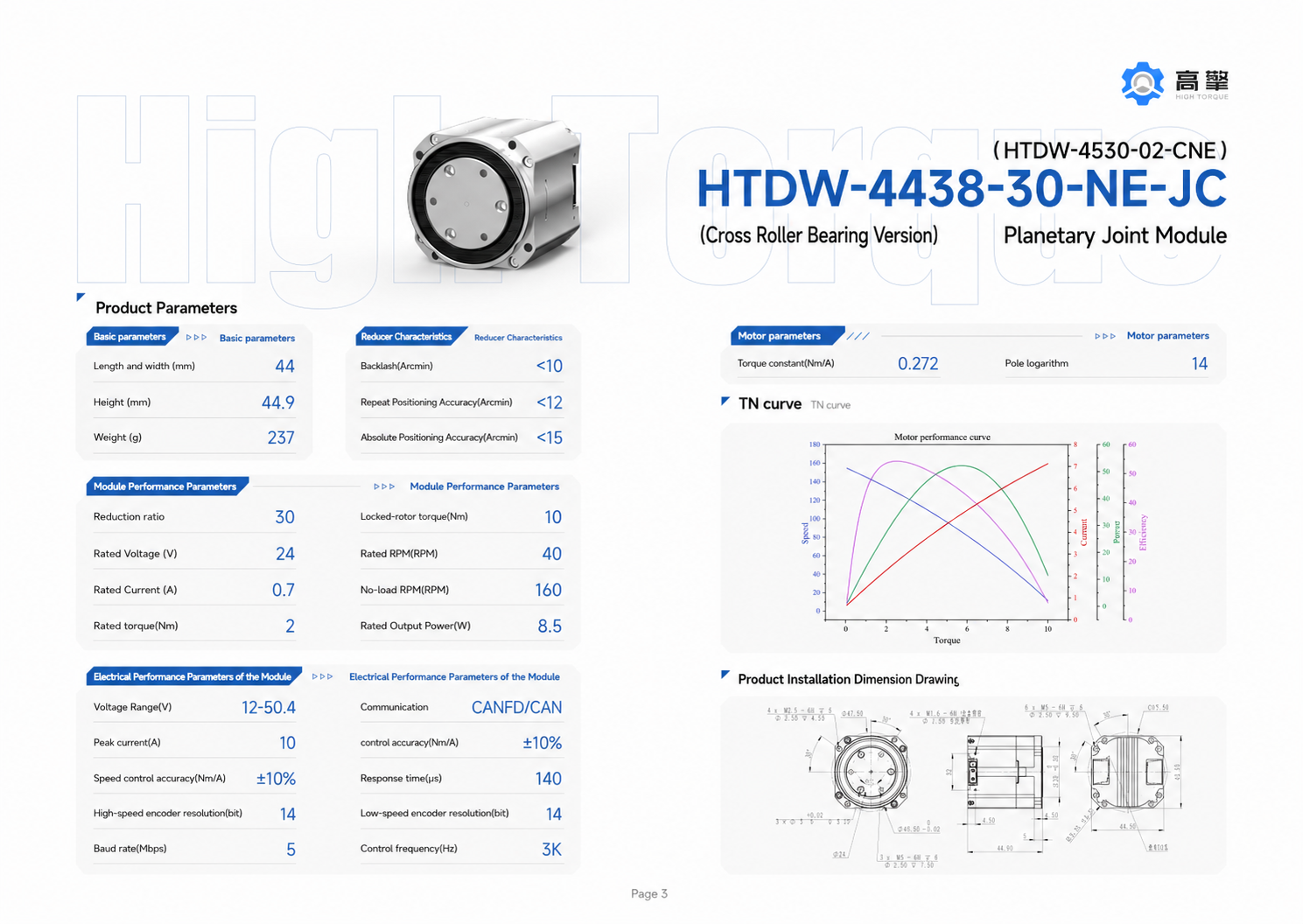

HTDW-4438-30-NE-JC Product Parameters
Parameter Category Parameter Value
Basic Parameters Length and Width 44 mm
Height 44.9 mm
Weight 237 g
Reducer Characteristics Backlash <10 Arcmin
Repeat Positioning Accuracy <12 Arcmin
Absolute Positioning Accuracy <15 Arcmin
Module Performance Parameters Reduction Ratio 30
Rated Voltage 24 V
Rated Current 0.7 A
Rated Torque 2 Nm
Locked-Rotor Torque 10 Nm
Rated RPM 40 RPM
No-Load RPM 160 RPM
Rated Output Power 8.5 W
Electrical Performance Parameters Voltage Range 12–50.4 V
Peak Current 10 A
Speed Control Accuracy ±10%
High-Speed Encoder Resolution 14 bit
Baud Rate 5 Mbps
Communication CAN FD/CAN
Torque Control Accuracy ±10%
Response Time 140 μs
Low-Speed Encoder Resolution 14 bit
Control Frequency 3 kHz
