OCServo

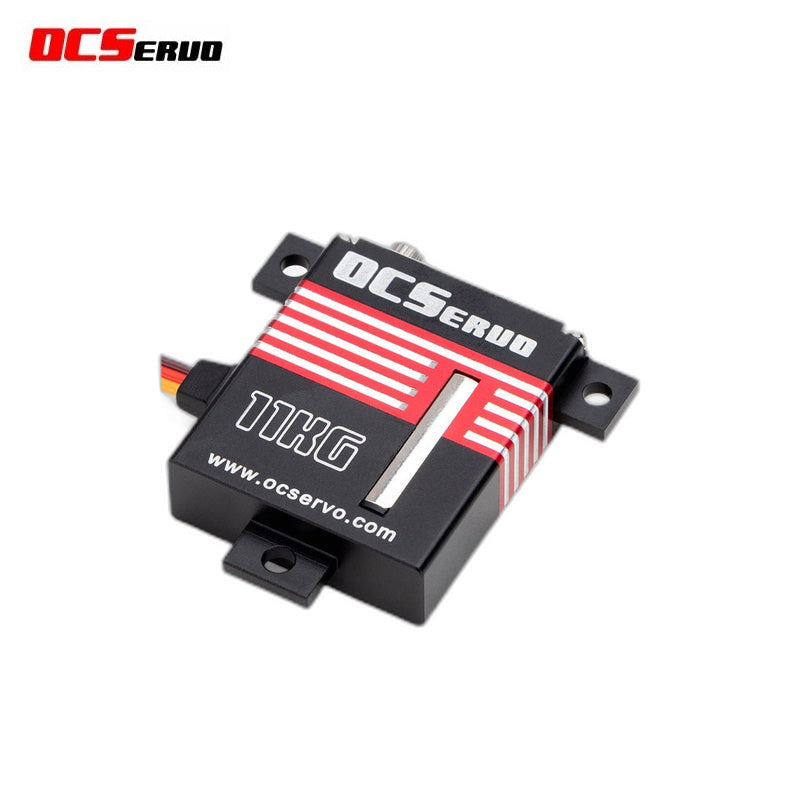

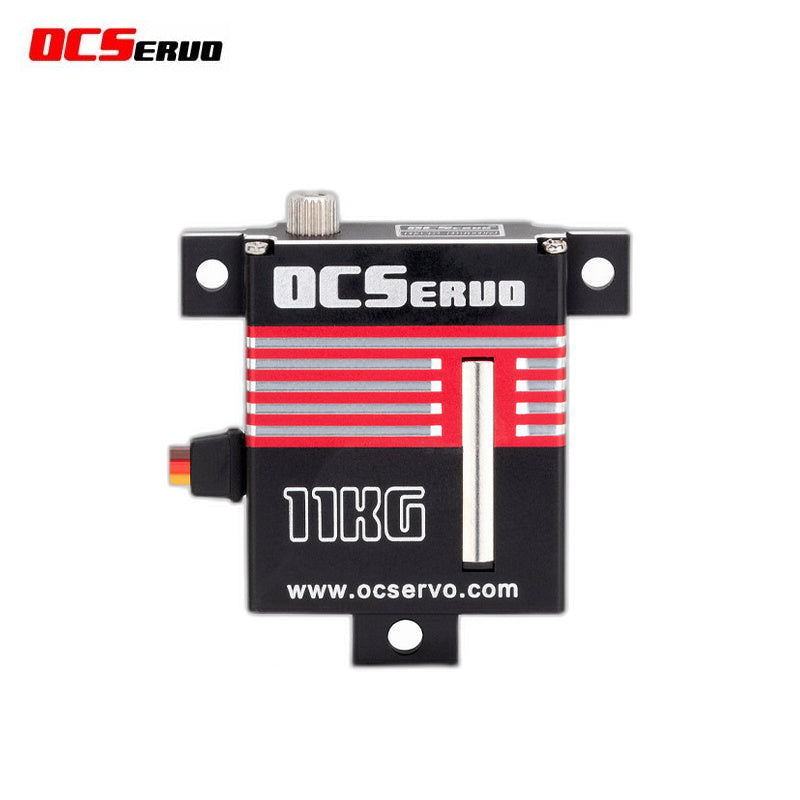

OCServo OCS-D1102 Servo Motor

  • Peak stall torque (kg·cm): 6V: 8.2; 7.4V: 9.5; 8.4V: 11.0
  • Operating Voltage: 6.0V / 7.4V / 8.4V
  • No load speed (sec/60°): 6V: 0.15; 7.4V: 0.13; 8.4V: 0.11
  • Motor Type: Coreless motor
  • Gear Type: Stainless Steel
$50
Version
Type

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

OCServo OCS-D1102 dimensional drawing.pdf ▶
OCServo OCS-D1102 Servo Motor detail image

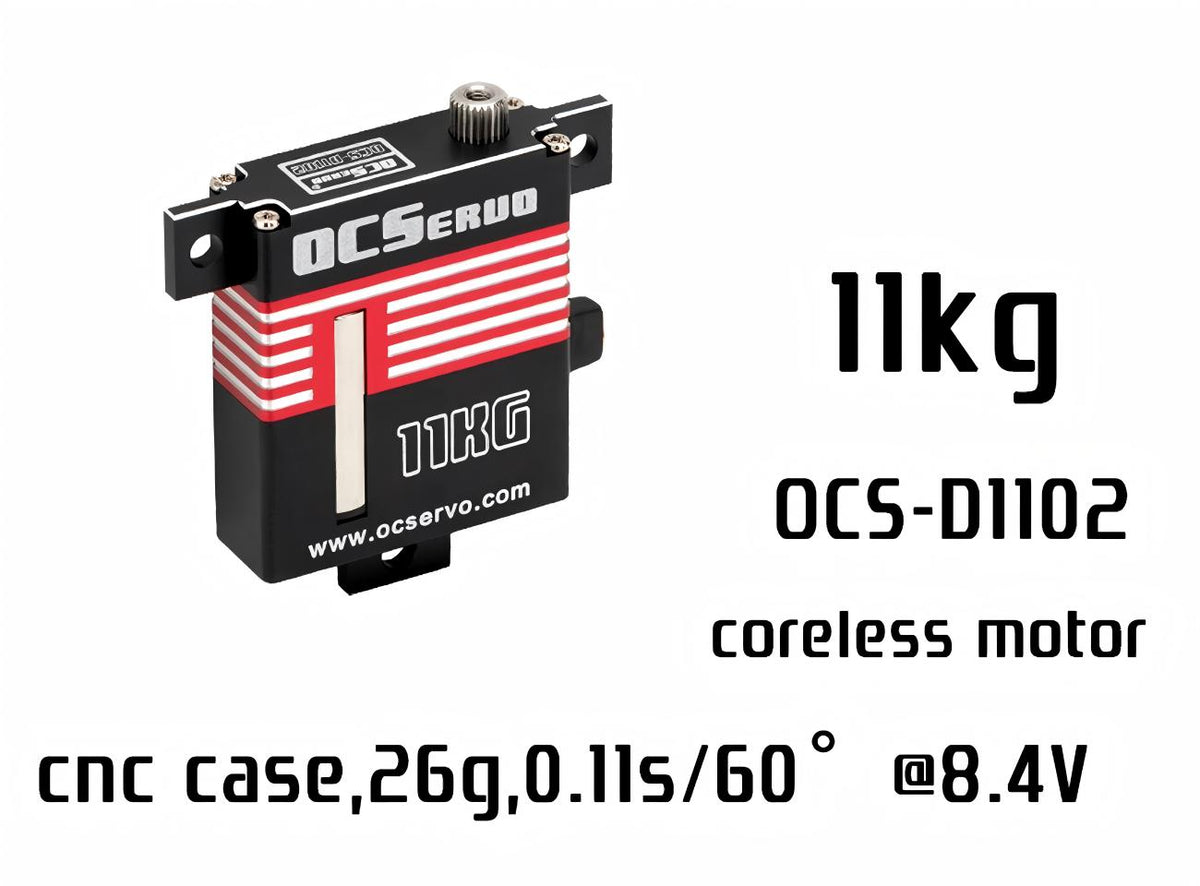

OCServo OCS-D1102 Servo Motor detail image
▤ PARAMETER ⌃
Product Name
8.4V11kg-cm High Voltage Digital Servo
Item No.
OCS-D1102
Storage Temperature Range
-20°C ~ 70°C
Operating Temperature Range
-15°C ~ 65°C
Test Temperature
25°C ± 5°C
Test Humidity
65% ± 10%
Size (mm)
10 × 30 × 35.5
Weight (g)
26 (excluding accessory)
Gear Type
Stainless Steel
Limit Angle
-
Bearings
2 Ball bearings
Output Spline
25T - Φ4.96mm
Horn Type
Plastic POM
Case Material
Aluminium CNC
Connector Wire
300mm 3P
Motor Type
Coreless motor
Waterproof Performance
No
Operating Voltage
6.0V / 7.4V / 8.4V
No load speed (sec/60°)
6V: 0.15; 7.4V: 0.13; 8.4V: 0.11
Running current (at no load) (mA)
6V: 170; 7.4V: 240; 8.4V: 300
Peak stall torque (kg·cm)
6V: 8.2; 7.4V: 9.5; 8.4V: 11.0
Stall current (A)
6V: 2.0; 7.4V: 2.5; 8.4V: 3.0
Command Signal
PWM
Amplifier Type
Digital Controller
Pulse Width Range
800 ~ 2200 μsec
Neutral Position
1500 μsec
Running Degree
96° (when 1000~2000 μsec)
Dead Band Width
2 μsec
Rotating Direction
CCW (when 1000~2000 μsec)
