Yunshis

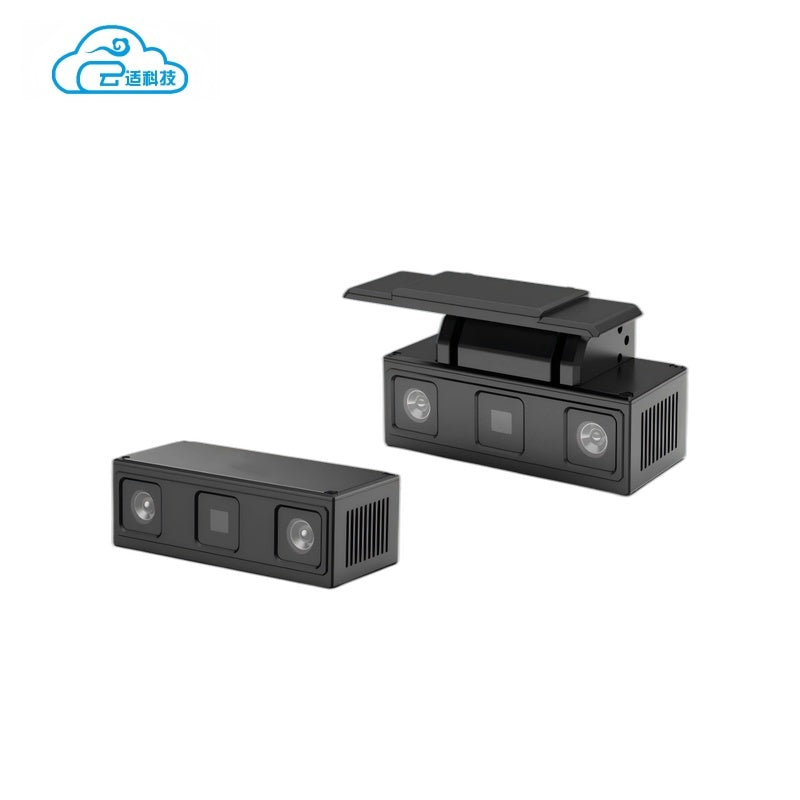

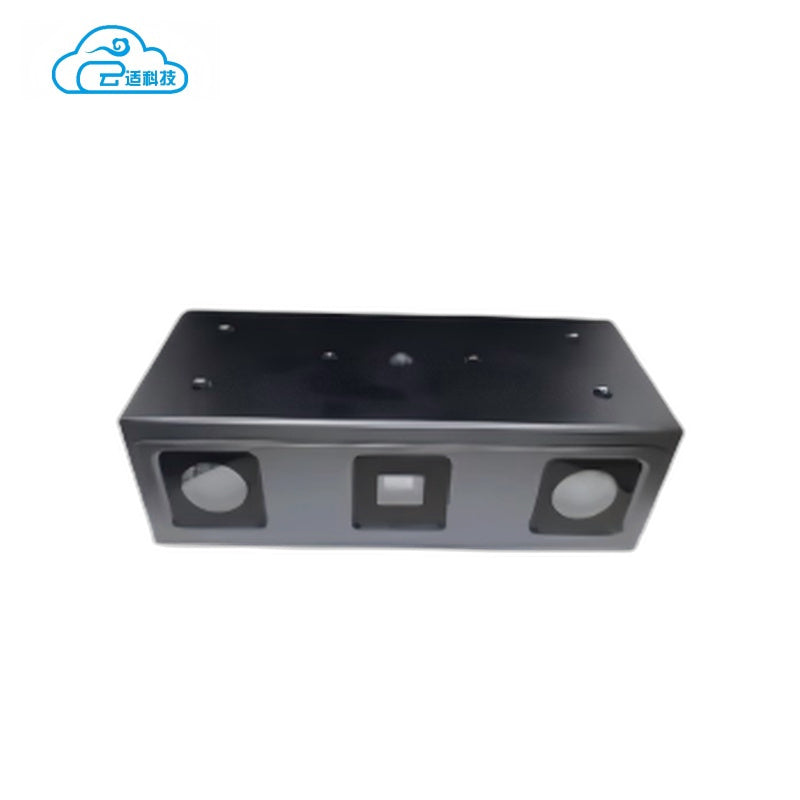

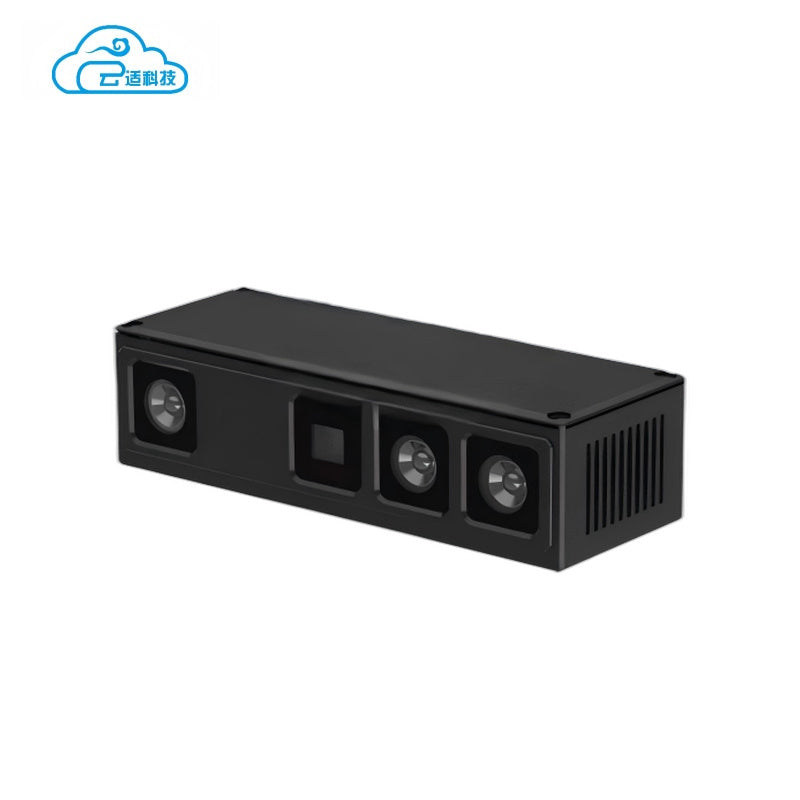

Yunshis Nano Camera | RGBD Depth Camera for Robotics & AI Vision

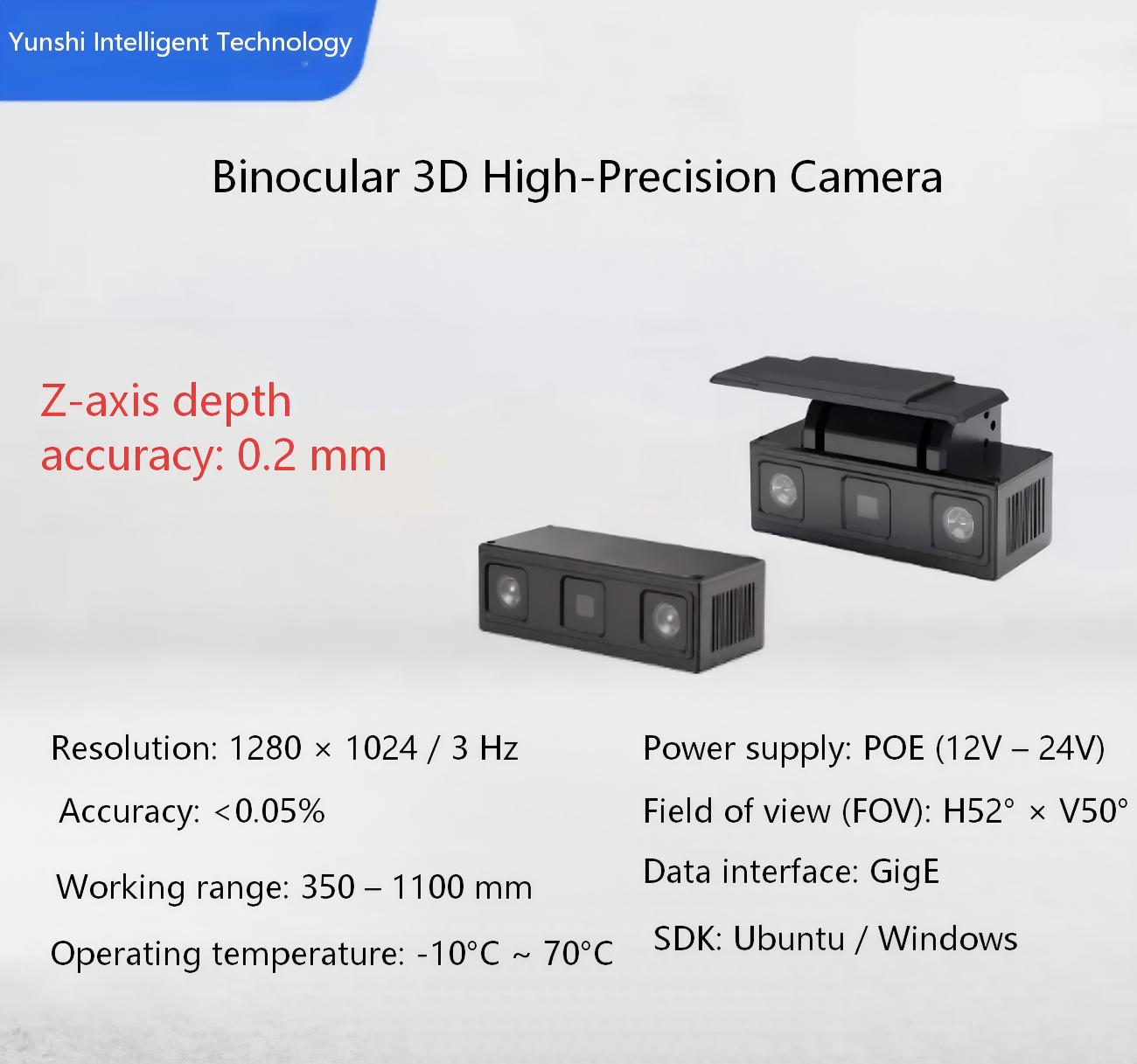

  • Imaging resolution: 1280 × 1024 1280 × 1024
  • Frame rate: <3 Hz <3 Hz
  • Interface: GigE GigE
  • Field of view: FOV: 52° × 50° (H × V) FOV: 52° × 50° (H × V)

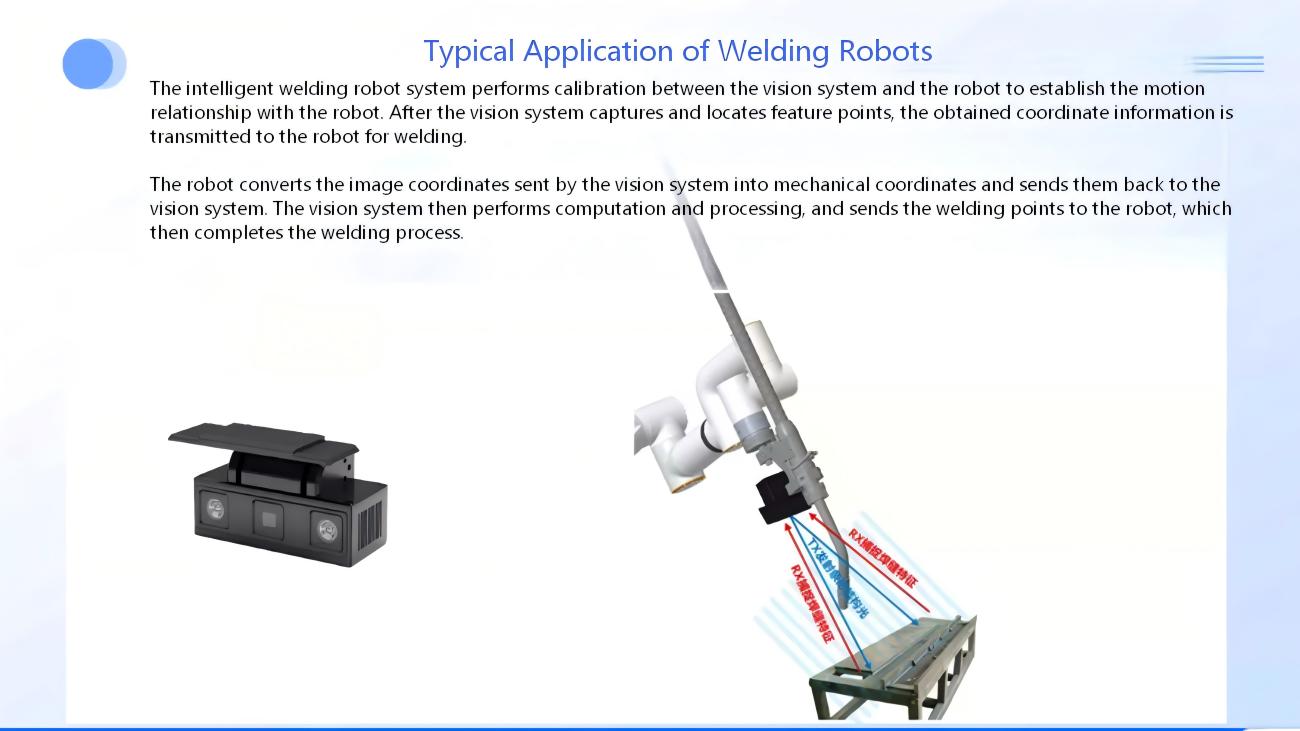

  • Designed for robot vision, AI perception, automation, and robotics development
$3,500
Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

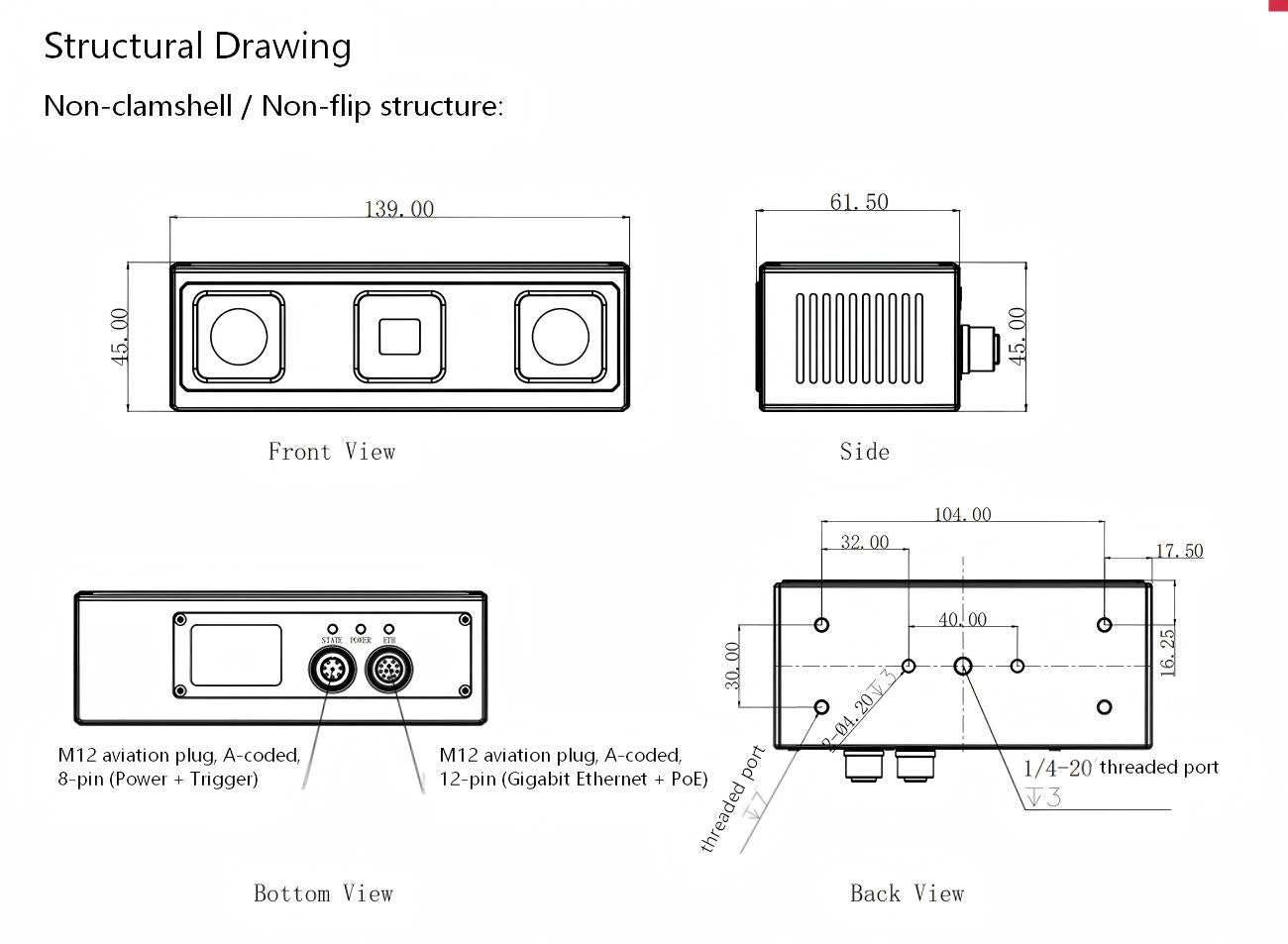

Yunshis Nano Camera drawing: mechanical dimensions and installation reference ▶
Yunshis Nano Camera | RGBD Depth Camera for Robotics & AI Vision Yunshis Nano Camera | RGBD Depth Camera for Robotics & AI Vision Yunshis Nano Camera | RGBD Depth Camera for Robotics & AI Vision Yunshis Nano Camera | RGBD Depth Camera for Robotics & AI Vision Yunshis Nano Camera | RGBD Depth Camera for Robotics & AI Vision Yunshis Nano Camera | RGBD Depth Camera for Robotics & AI Vision Yunshis Nano Camera | RGBD Depth Camera for Robotics & AI Vision

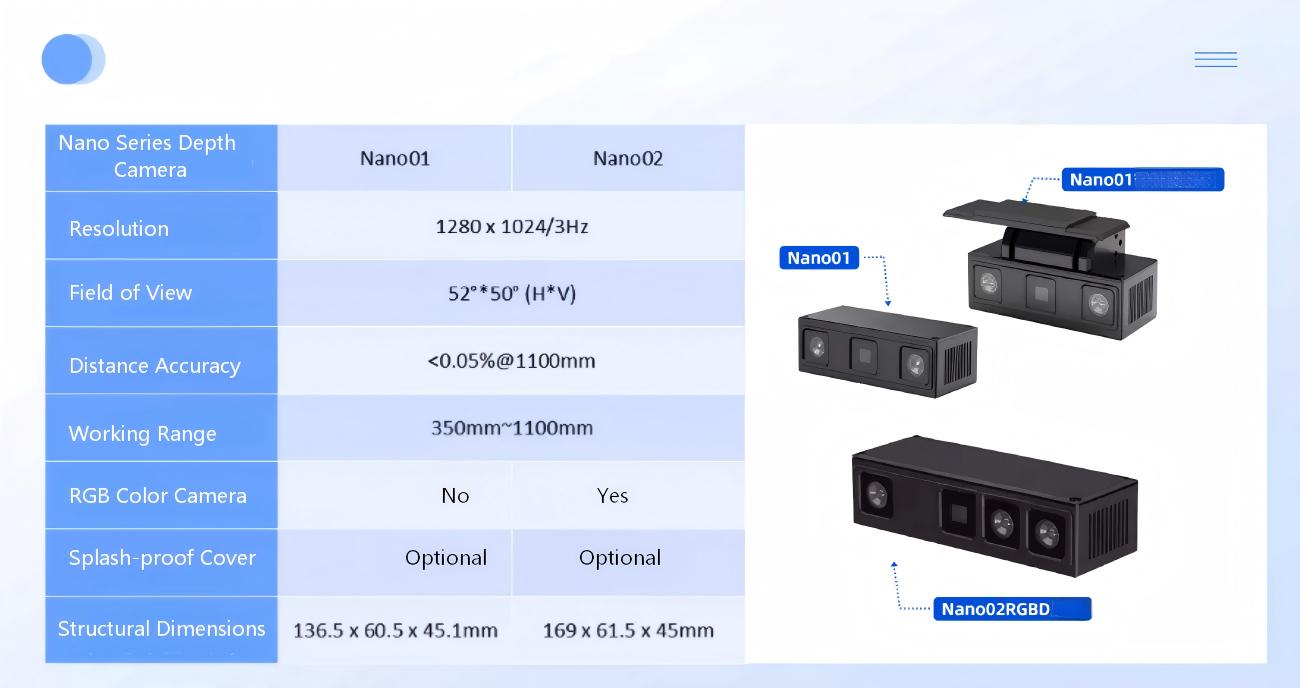

▤ PARAMETER ⌃
Parameter
Value
Model

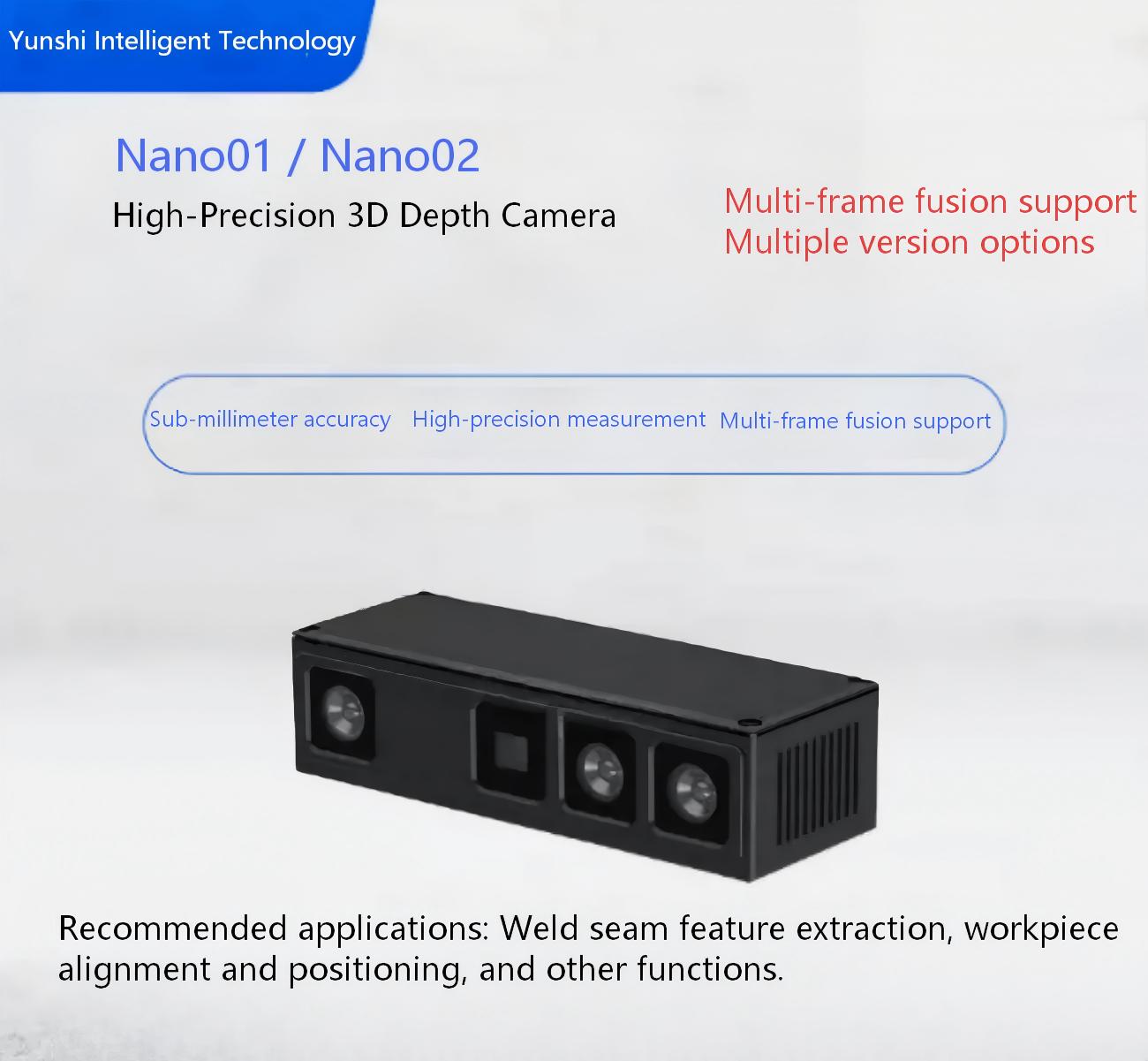

Nano01 Nano02
Field of View (FOV)
FOV: 52° × 50° (H × V) FOV: 52° × 50° (H × V)
Near Field of View
329 mm × 287 mm @ 350 mm 329 mm × 287 mm @ 350 mm
Far Field of View
1021 mm × 881 mm @ 1100 mm 1021 mm × 881 mm @ 1100 mm
Working Range
350 mm ~ 1100 mm (varies with environment) 350 mm ~ 1100 mm
Point Cloud Resolution
1280 × 1024 1280 × 1024
Accuracy
<0.05% @ 1100 mm <0.05% @ 1100 mm
Point Cloud Frame Rate
<3 Hz <3 Hz
Supported Power Modes
External Power: 12V — 24V, POE Power Supply External Power: 12V — 24V, POE Power Supply
Operating Current
1 A 1 A
Data Interface
GigE GigE
Trigger Mode
Software Trigger / Hardware Trigger Software Trigger / Hardware Trigger
Data Type
Raw Image (Monochrome), Depth, Point Cloud Raw Image (Monochrome), Depth, Point Cloud
Supported Operating Systems
Windows / Ubuntu Windows / Ubuntu
Operating Temperature
Operational: -10°C ~ 70°C, Recommended: 0°C ~ 50°C Operational: -10°C ~ 70°C, Recommended: 0°C ~ 50°C
Weight
482 g 550 g
Safety Class
Laser Class 3R Laser Class 3R
Product Dimension
136.5 × 60.5 × 45.1 mm (excluding electric protective cover) 169 × 61.5 × 45 mm
