EYOU

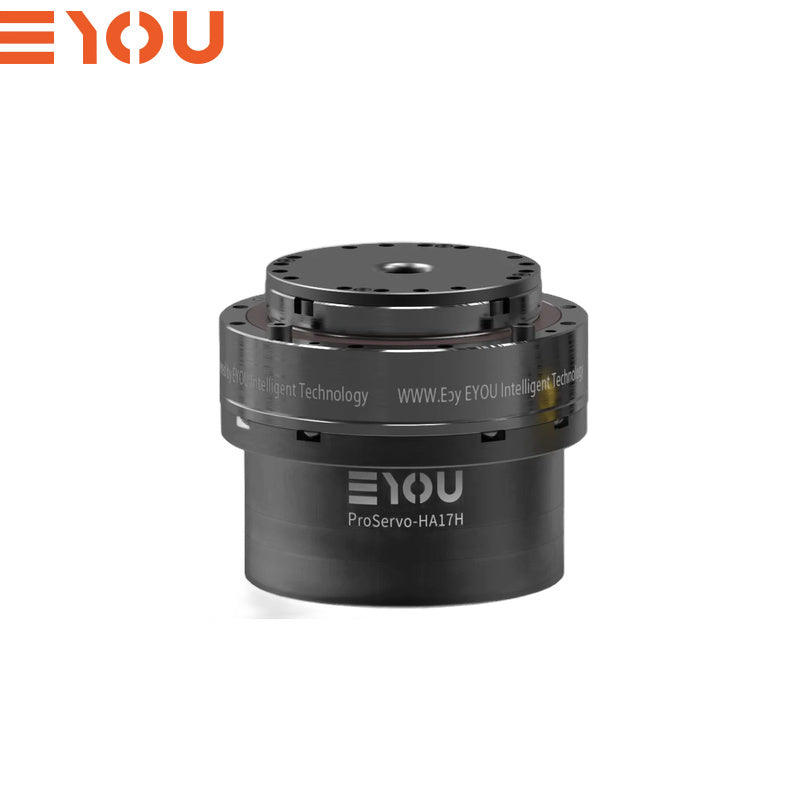

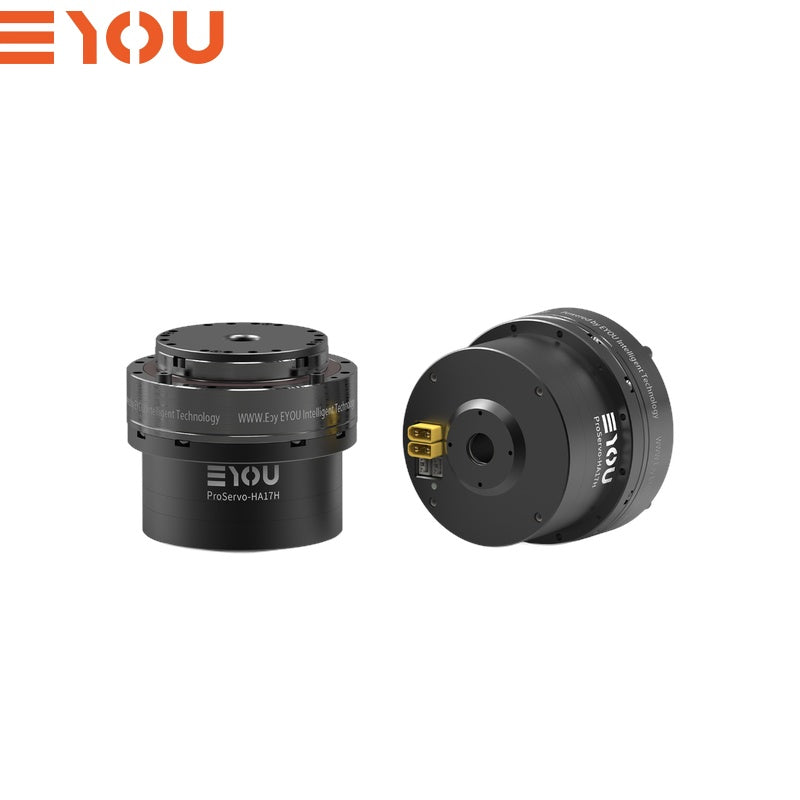

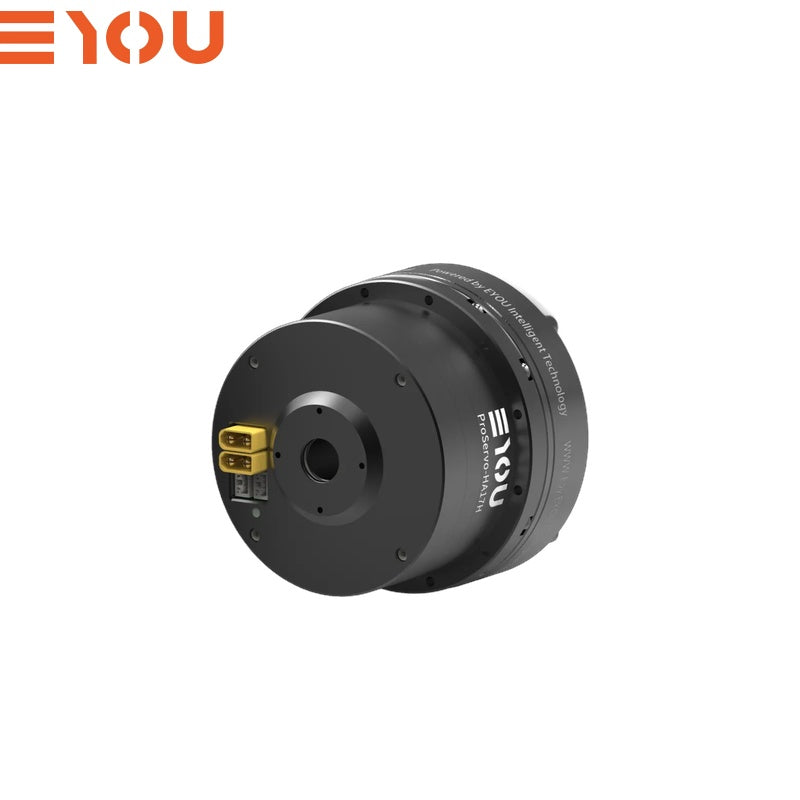

EYOU PHA17H-101-C Motor | Robot Servo Motor for Robotics Development

  • EYOU robot servo motor for robot joints, motion-control systems, automation hardware, and robotics development.
  • Suitable for engineering teams building research robots, education platforms, prototype mechanisms, and embedded motion systems.
  • Designed for practical integration in robot servo assemblies, compact actuators, and motion-control hardware.
  • Useful for robotics labs, automation projects, and robot hardware development where reliable components are required.
$970
Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

EYOU PHA17H-101-C Motor CAD model for mechanical integration.stp ▶ EYOU PHA17H-101-C Motor dimension drawing for installation reference.pdf ▶ EYOU PHA17H-101-C Motor product documentation for robotics integration.pdf ▶ EYOU PHA17H-101-C Motor user manual for setup and integration.pdf ▶

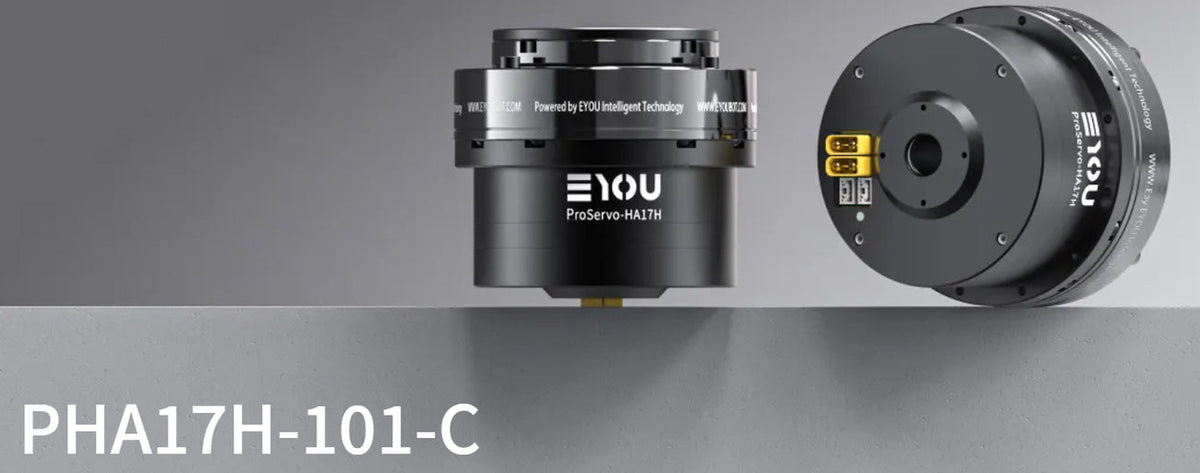

EYOU PHA17H-101-C Motor | Robot Servo Motor for Robotics Development detail image 1

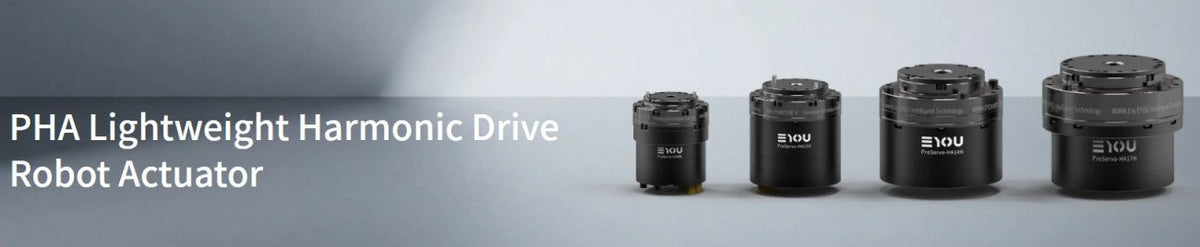

EYOU PHA17H-101-C Motor | Robot Servo Motor for Robotics Development detail image 2

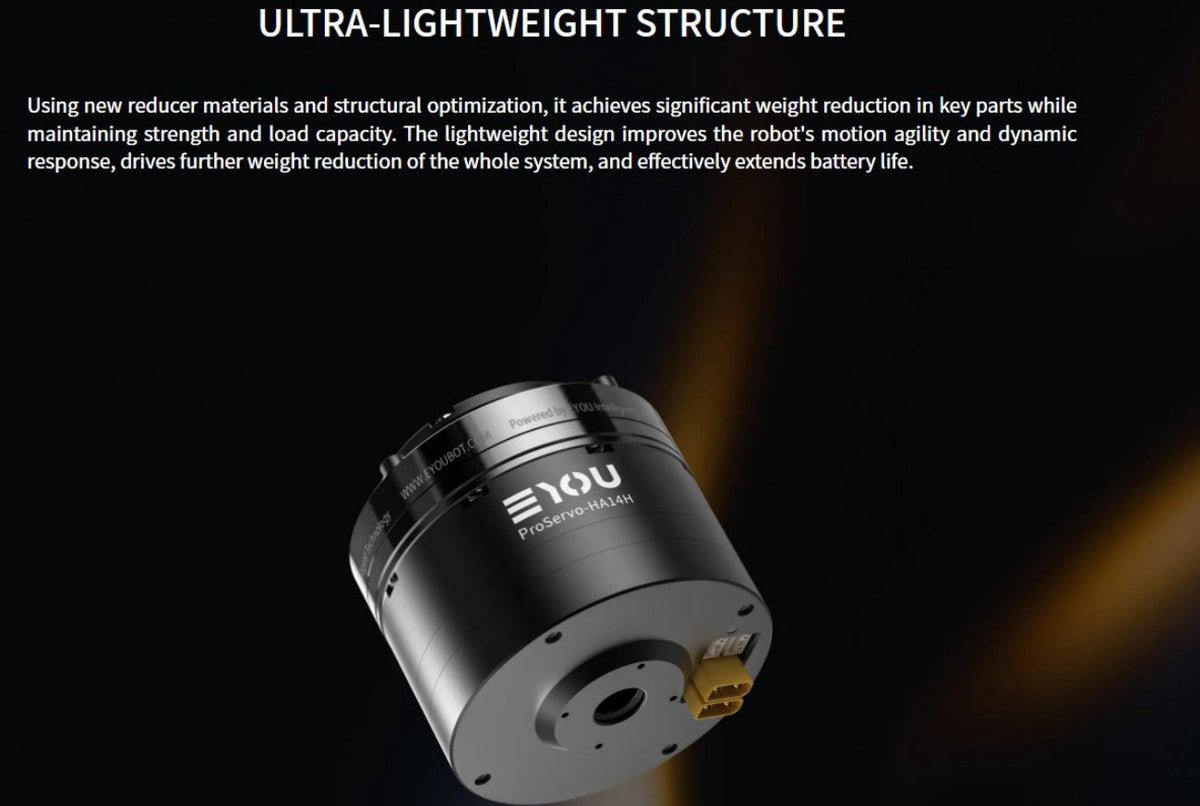

EYOU PHA17H-101-C Motor | Robot Servo Motor for Robotics Development detail image 3
EYOU PHA17H-101-C Motor | Robot Servo Motor for Robotics Development detail image 4
EYOU PHA17H-101-C Motor | Robot Servo Motor for Robotics Development detail image 5
EYOU PHA17H-101-C Motor | Robot Servo Motor for Robotics Development detail image 6

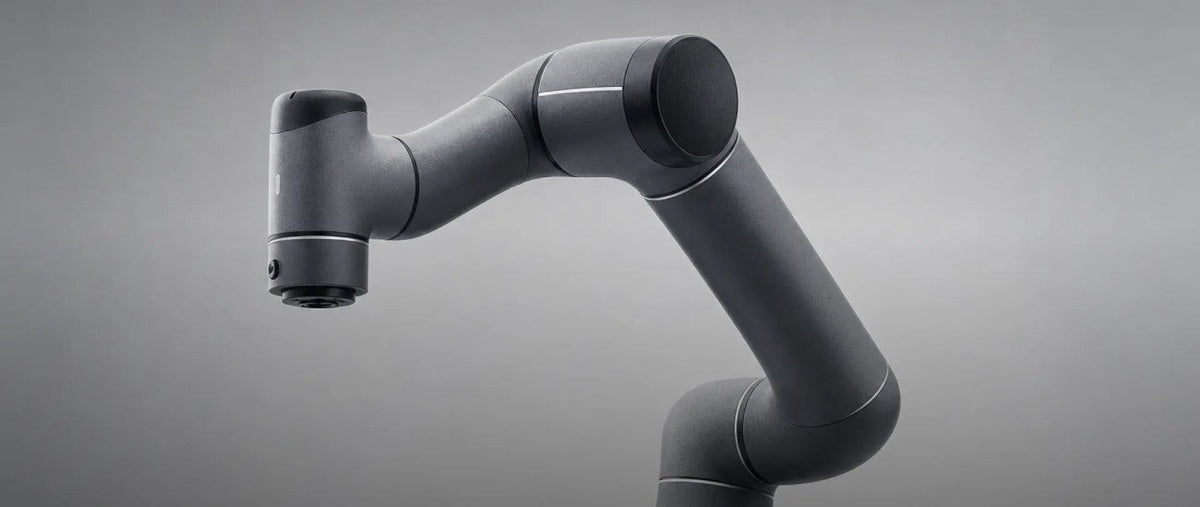

EYOU PHA17H-101-C Motor | Robot Servo Motor for Robotics Development detail image 7
▤ PARAMETER ⌃
Module Model
PHA17
Reducer Type
Harmonic
Motor Rated Power
188 W
Motor Rated Torque
0.45 N·m
Motor Peak Torque
1.35 N·m
Reduction Ratio
101
Joint Rated Power - Life Constraint
63 W
Rated Torque at 2000rpm Input
30 N·m
Average Load Torque at Output
49 N·m
Peak Torque at Output
66 N·m
Max Allowable External Torque at Output (Instantaneous)
134 N·m
Backlash
≤20 Arcsec
Rated Speed at Output - Life Constraint
20 rpm
Peak Speed at Output
33 rpm
Brake (B/N)
N
Dimensions (Outer Diameter × Axial)
Φ80 × 68 mm
Weight
0.9 kg
Hollow Diameter
10.8 mm
Housing Appearance (Process Color)
Matte Black Anodized
Reducer Appearance (Process Color)
Outer Ring Blackened
Radial (dynamic/static) Allowable Load at Output
400 N
Axial (dynamic/static) Allowable Load at Output
400 N
Output Bending Moment
72 N·m
Reducer Torsional Stiffness
13000 N·m/rad
Reducer Input Inertia
49 kg·mm²
Equivalent Joint Output Inertia
502909 kg·mm²
Rated Operating Voltage
48 VDC
Operating Voltage Range
24~48 VDC
Driver
Built-in
Encoder/Bit
Dual Absolute / Motor side 16Bit & Reducer side 16Bit
Driver Interface (see terminal model description)
Power (DC in DC out), CANFD (In,Out)
Communication Protocol (see communication description)
CANopen
Control Modes
Profile Position (PP), Profile Velocity (PV), Profile Torque (PT), Cyclic Synchronous Position (CSP), Cyclic Synchronous Velocity (CSV), etc.
Operating Ambient Temperature
-20~60 °C
Housing Temperature Rise
≤60 °C
Noise
≤60 dB
Life
>10000 h
