FAIRINO

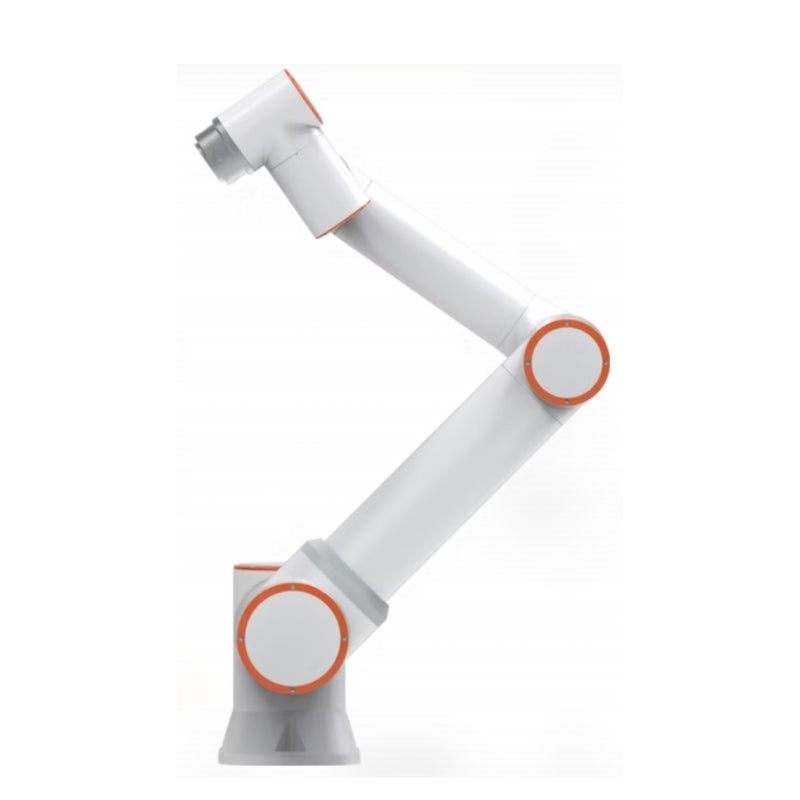

FAIRINO FR16 Collaborative Robot Arm

  • 16kg rated payload and 1034mm reach
  • 6-axis collaborative robot with ±0.03mm repeatability
  • 2m/s typical TCP speed with flexible mounting
  • Suitable for palletizing, machine tending, handling, assembly and inspection
$11,699

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

FAIRINO FR16 product overview, specification, technical drawings.pdf ▶

FAIRINO FR16 Collaborative Robot Arm

The FAIRINO FR16 is a 6-axis collaborative robot arm designed for higher-payload industrial automation applications. It provides a 16kg rated payload, 1034mm reach, and ±0.03mm pose repeatability according to ISO 9283.

16kg Payload and 1034mm Reach

FR16 combines a 16kg rated payload with a 1034mm working reach, providing a configuration for automation tasks that require higher payload capacity. The robot has a typical TCP speed of 2m/s.

6-Axis Collaborative Robot

The FR16 uses a six-axis articulated configuration with defined motion ranges across all six joints. Wrist 1, Wrist 2 and Wrist 3 support maximum speeds of up to 180°/s, while the base and shoulder support up to 120°/s.

Flexible Industrial Integration

FR16 supports a 10.1-inch teach pendant or mobile terminal Web App and can be mounted in different orientations. Its integrated I/O interfaces include digital I/O, analog I/O and high-speed pulse inputs for system integration.

Applications

FAIRINO lists the FR16 for applications including palletizing, CNC/machine tending, heavy pick & place, screwdriving, dispensing, sanding/deburring, assembly, inspection, and packaging.

FAIRINO FR16 Collaborative Robot Arm
FAIRINO FR16 Collaborative Robot Arm
▤ FR16 Specifications ⌃
Robot Arm Technical Specifications
Specification FR16
Payload 16kg (Max: 20kg)
Reach 1034mm
Degrees of Freedom 6 rotating joints
HMI 10.1 inch teach pendant (Optional) or mobile terminal Web App
Dual Arm Robotics Applications Mirror versions available to build dual arm robots
Pose Repeatability per ISO 9283 ±0.03mm
Base Working Range ±175°
Base Maximum Speed ±120°/s
Shoulder Working Range +85° / -265°
Shoulder Maximum Speed ±120°/s
Elbow Working Range ±160°
Elbow Maximum Speed ±180°/s
Wrist 1 Working Range +85° / -265°
Wrist 1 Maximum Speed ±180°/s
Wrist 2 Working Range ±175°
Wrist 2 Maximum Speed ±180°/s
Wrist 3 Working Range ±175° (Optional ±360°)
Wrist 3 Maximum Speed ±180°/s
Typical TCP Speed 1m/s
IP Classification IP54 (IP65 Optional)
Noise <65dB
Robot Mounting Any orientation
Digital Input / Output (DI) 2 / (DO) 2
Analog Input / Output (AI) 1 / (AO) 1
Tool I/O Power Supply 24V / 1.5A
Footprint 190mm
Weight ≈40kg
Operating Temperature 0 ~ 45°C
Operating Humidity 90%RH (non-condensing)
Materials Aluminium, Steel
Black Optional no
Payload Setting for Power Test FR16 payload setting: 16kg, Z-axis: 96mm
Typical Average Power 310W
Typical Peak Power 410W
