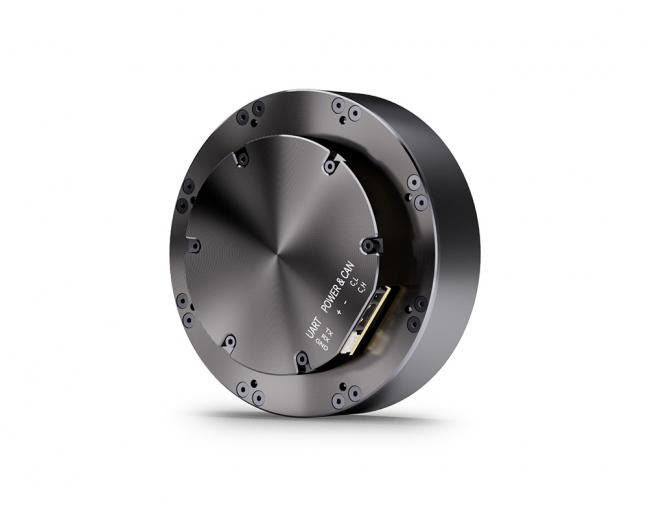

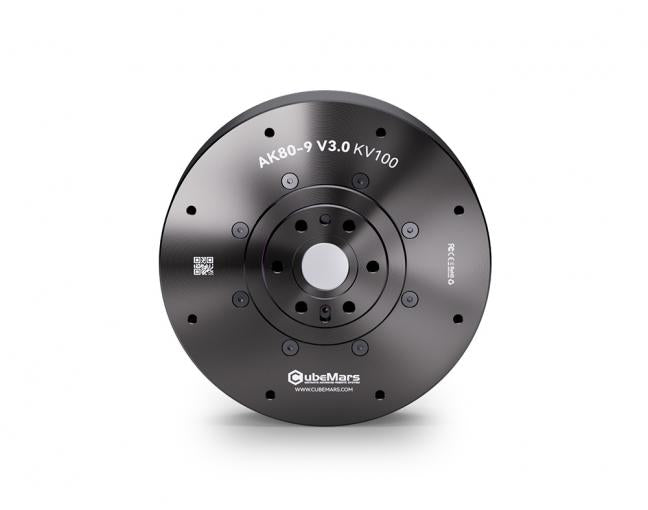

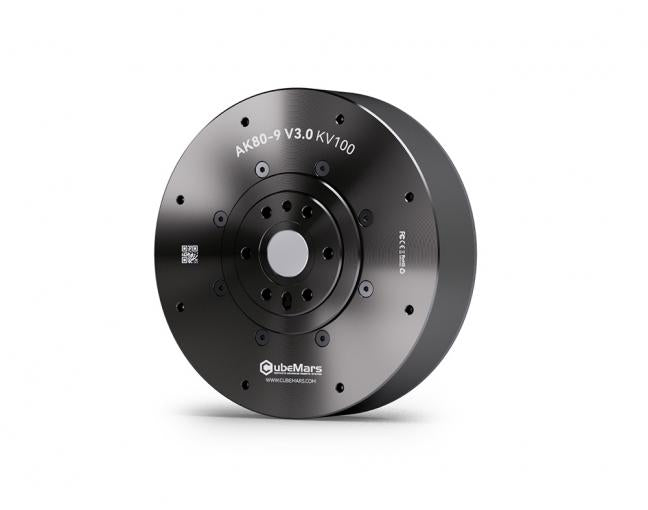

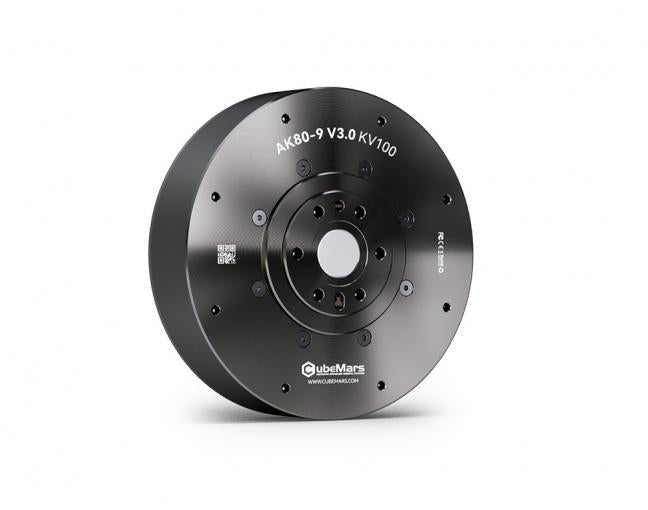

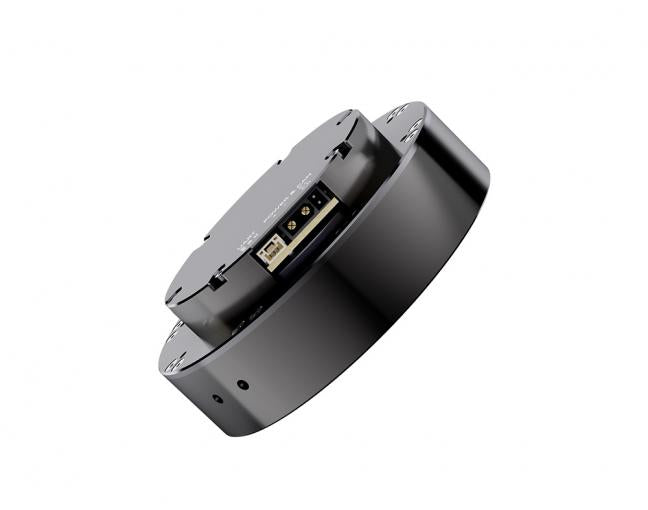

CubeMars AK80-9 Robotic Actuator | High Torque Robot Joint Motor

• Ideal for humanoid robots, legged robots, robot joints, and robotic arm systems
• Suitable for robotics research, educational projects, and advanced robot development
• Integrated actuator combining BLDC motor, planetary gearbox, encoder, and driver
• Peak torque up to 22Nm for demanding robotic applications
• Supports servo control and MIT hybrid control modes
• Auto PID identification for faster setup and simplified development
• Built-in protection against overcurrent, overvoltage, and overheating
$370
V3.0 KV100

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

Free shipping. 12-Day delivery.

CubeMars AK Series Robot Actuator Comparison

Swipe to compare →
CubeMars AK70-10 Robotic Actuator | High Torque Robot Actuator Motor
$455
CubeMars AK80-9 Robotic Actuator | High Torque Robot Joint Motor
$370
CubeMars AK60-6 Robotic Actuator | Compact Robot Joint Motor
$280
Peak Torque (Nm)
24.8
22
9
Rated Torque (Nm)
8.3
9
3
Rated Speed (rpm)
148/310
390
420
Reduction Ratio
10:1
9:1
6:1
Weight (g)
621
490
368
KV (rpm/V)
100
100
140
Peak Current (ADC)
23.2
28
22.7
Rated Voltage (V)
24/48
48
24
Encoder Resolution
14bit
16bit
14bit
Torque Density (Nm/kg)
47.6
44.9
24.46
CubeMars AK80-9 Robotic Actuator | High Torque Robot Joint Motor CubeMars AK80-9 Robotic Actuator | High Torque Robot Joint Motor
▤ PARAMETER ⌃
Application
Legged Robot, Exoskeleton, AGV
Driving Way
FOC
Operating Temperature
-20°C~50°C
Winding Type
Delta
Insulation Class
C
Pole Pairs
21
Reduction Ratio
9:1
Back Drive (Nm)
0.51
Backlash
15 arcmin
Rated Voltage (V)
48
Rated Torque (Nm)
9
Rated Speed (rpm)
390
Rated Current (ADC)
12
Peak Torque (Nm)
22
Peak Current (ADC)
28
KV (rpm/V)
100
KT (Nm/A)
0.095
KE (V/krpm)
10
Phase Resistance (mΩ)
160
Phase Inductance (μH)
116
Rotor Inertia (gcm²)
1118.3238
Motor Constant (Nm/√W)
0.2387
Mechanical Time Constant (ms)
0.725
Electrical Time Constant (ms)
-
Weight (g)
490
Torque Density (Nm/kg)
44.9

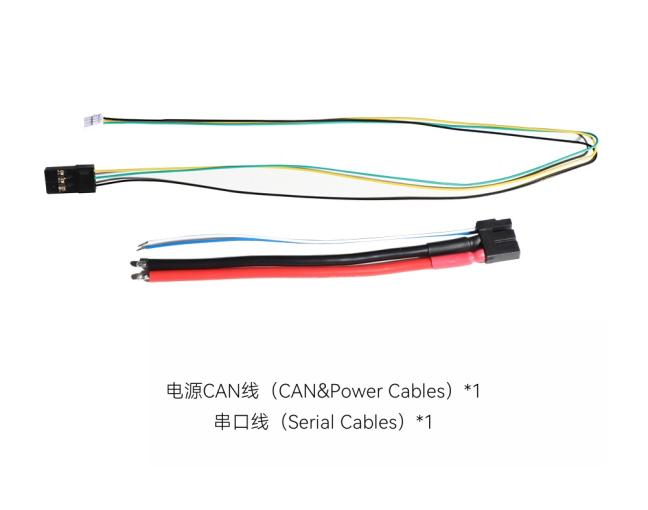

CAN Connector
-
UART Connector
A1257WR-S-3P
Power Connector
XT30PW-M
Encoder Type
Magnetic
Encoder Resolution
16bit
Number of Encoders
1
