SteadyWin

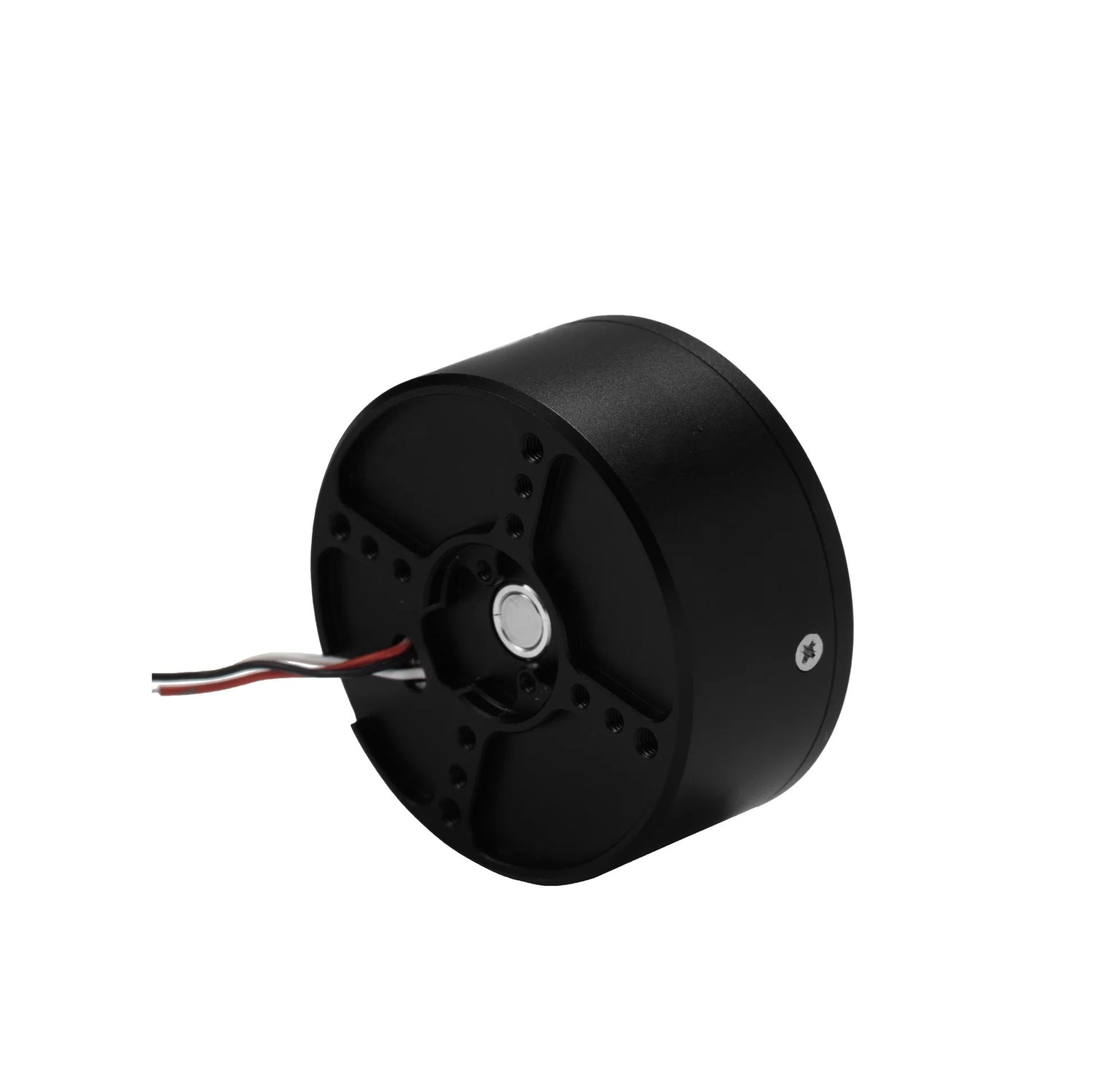

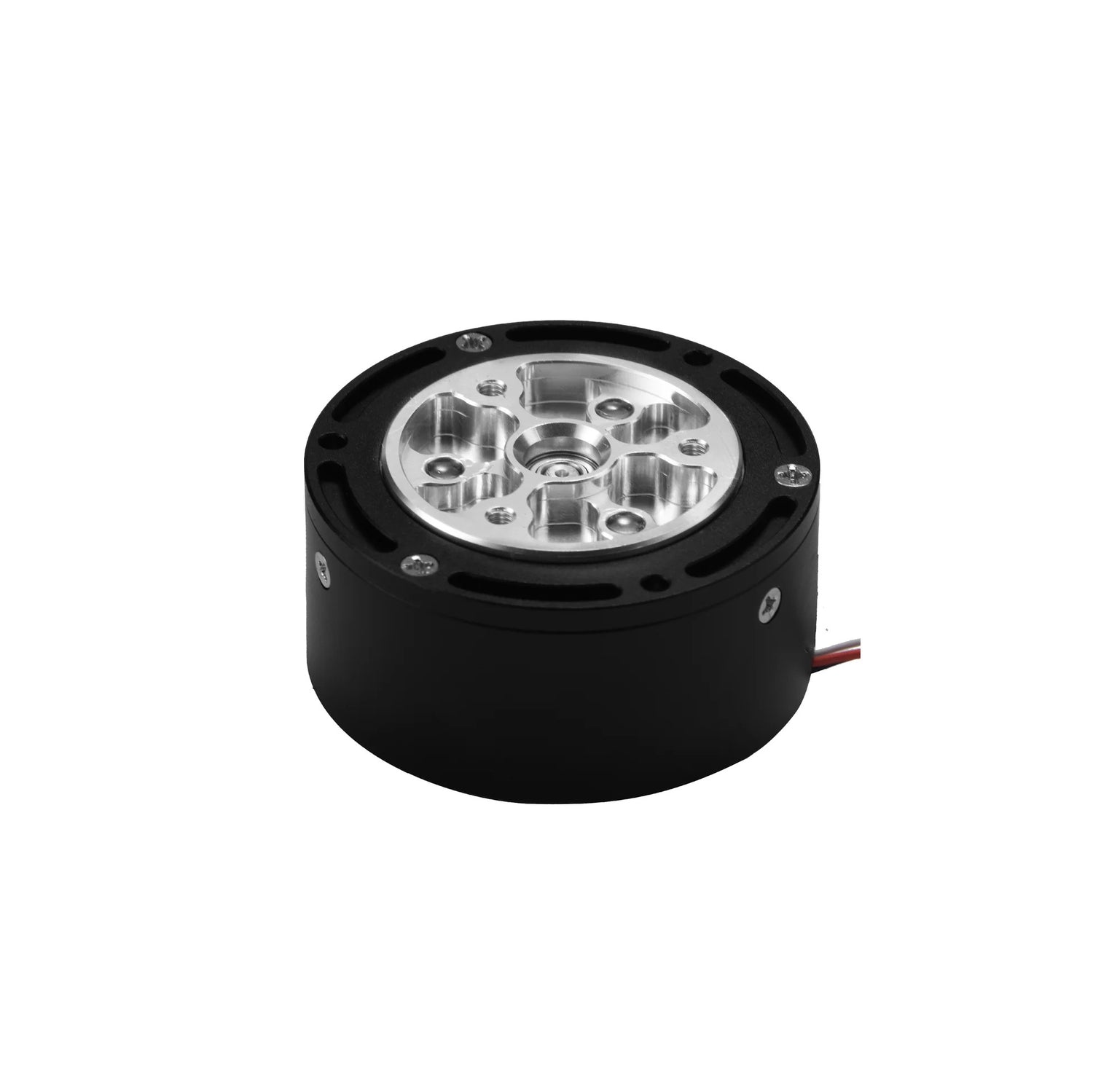

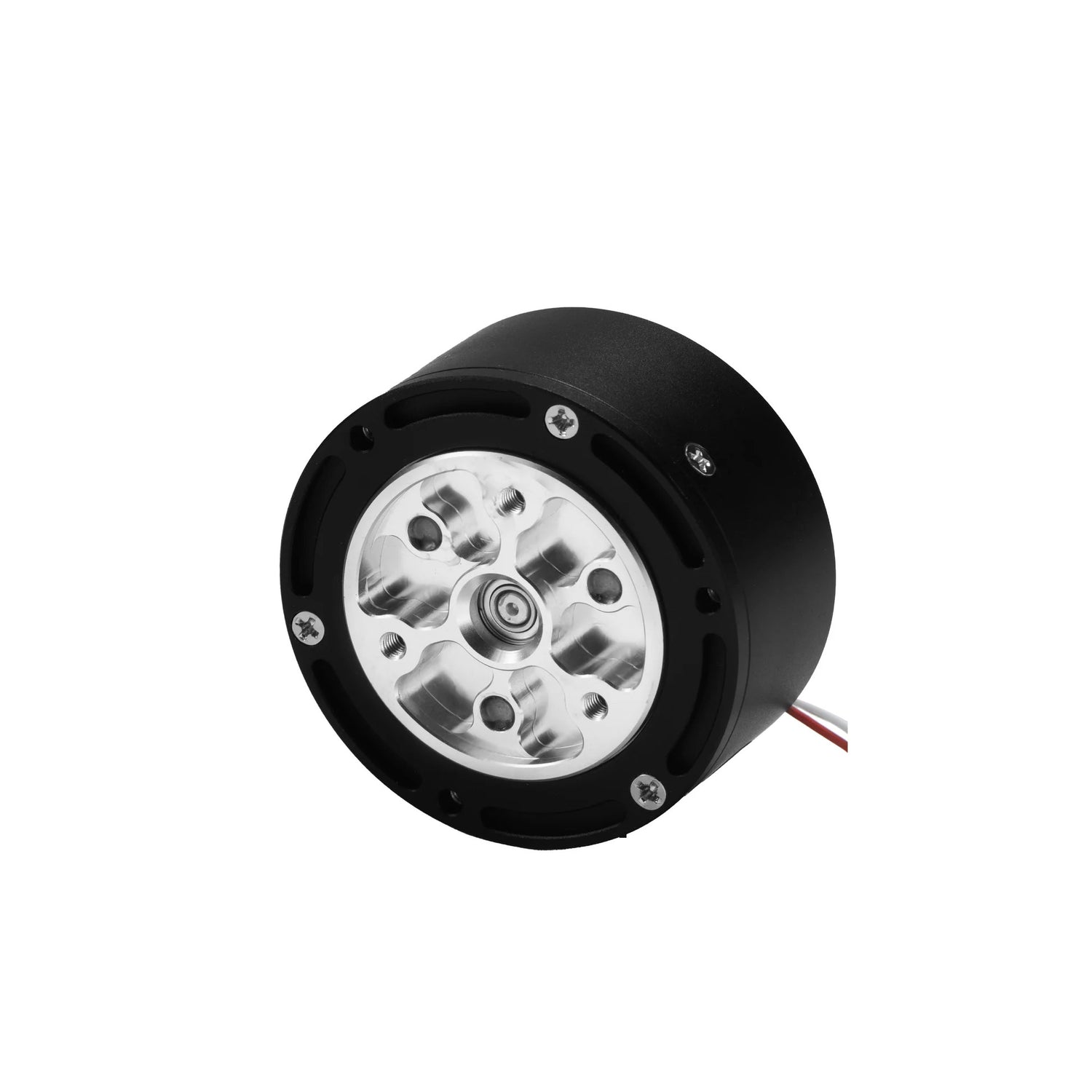

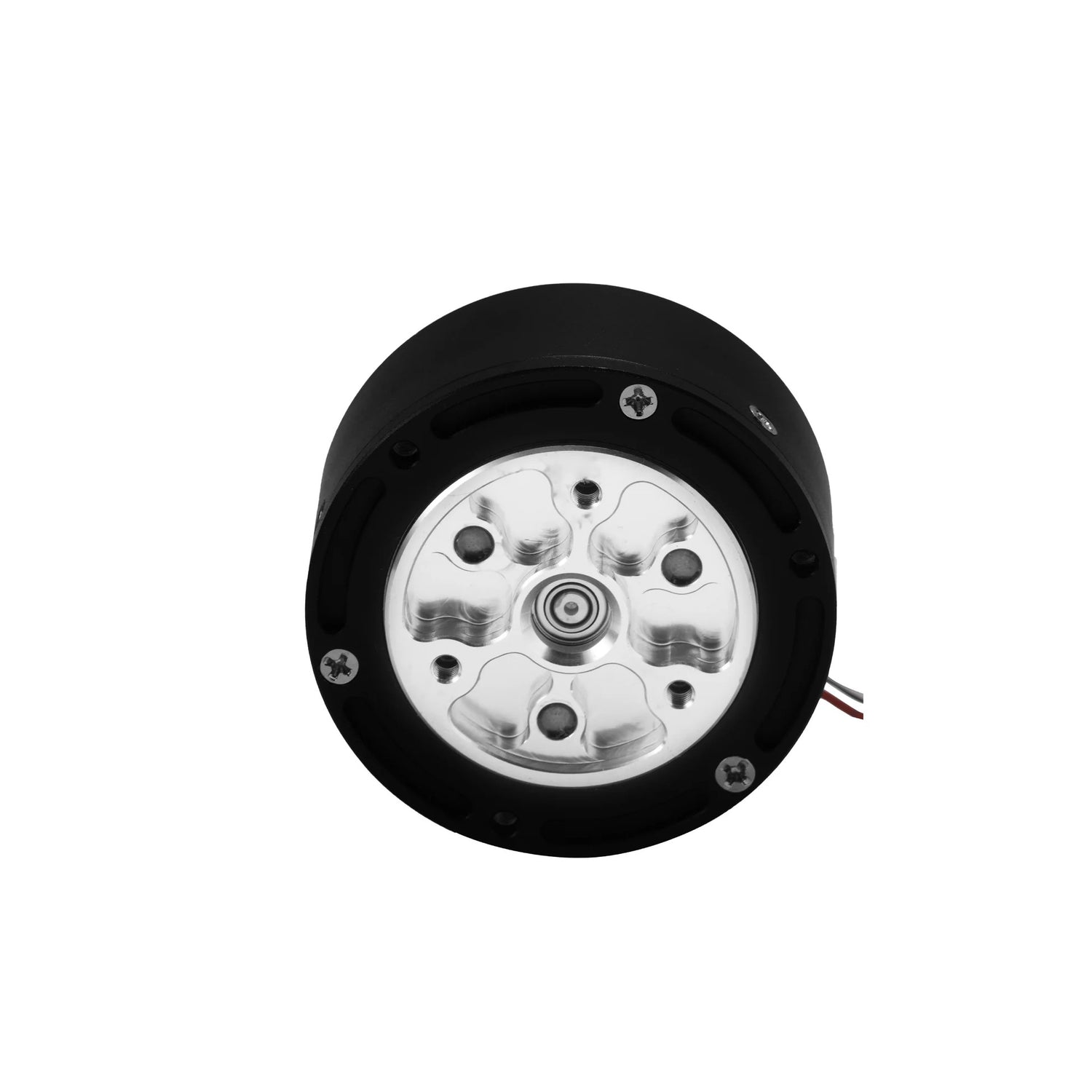

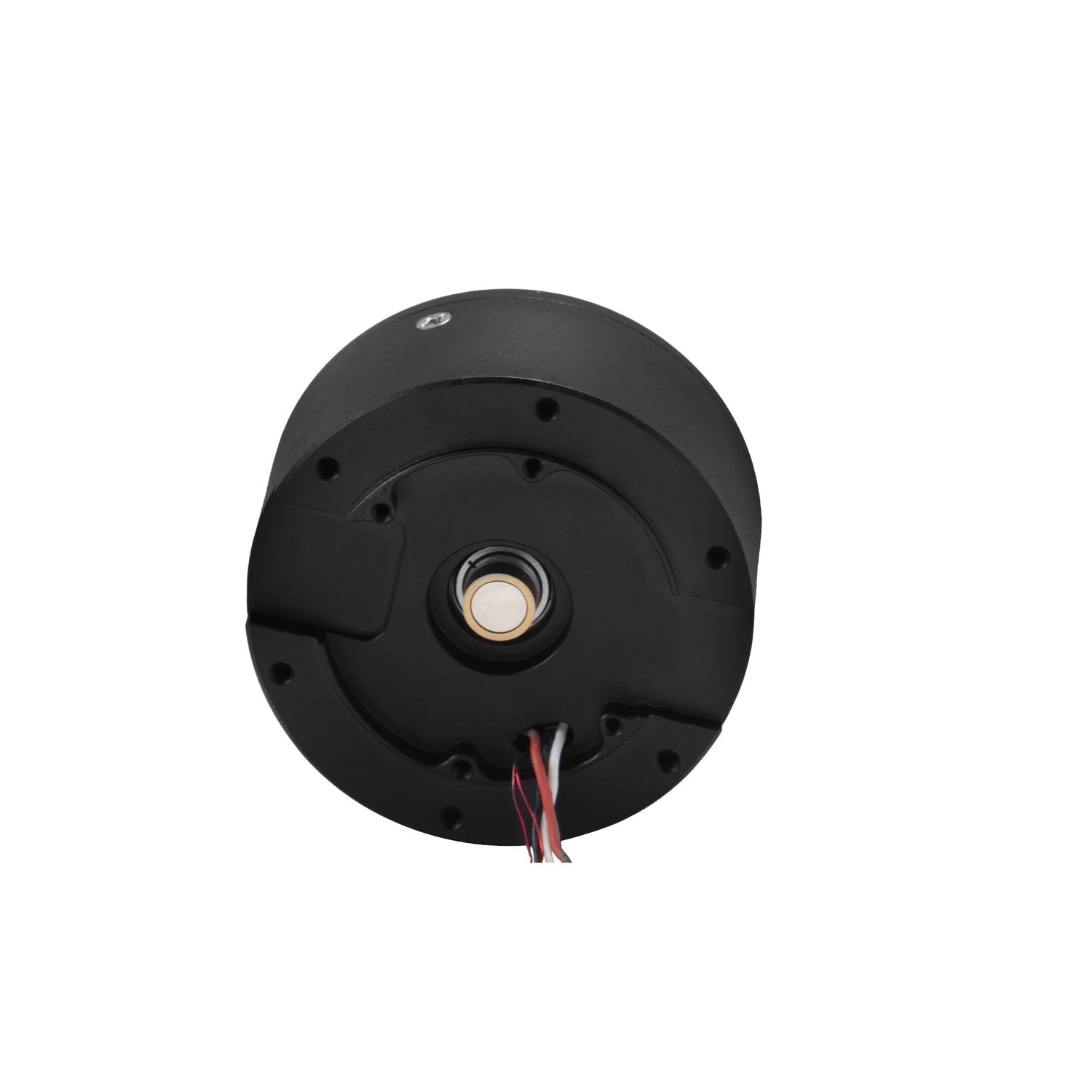

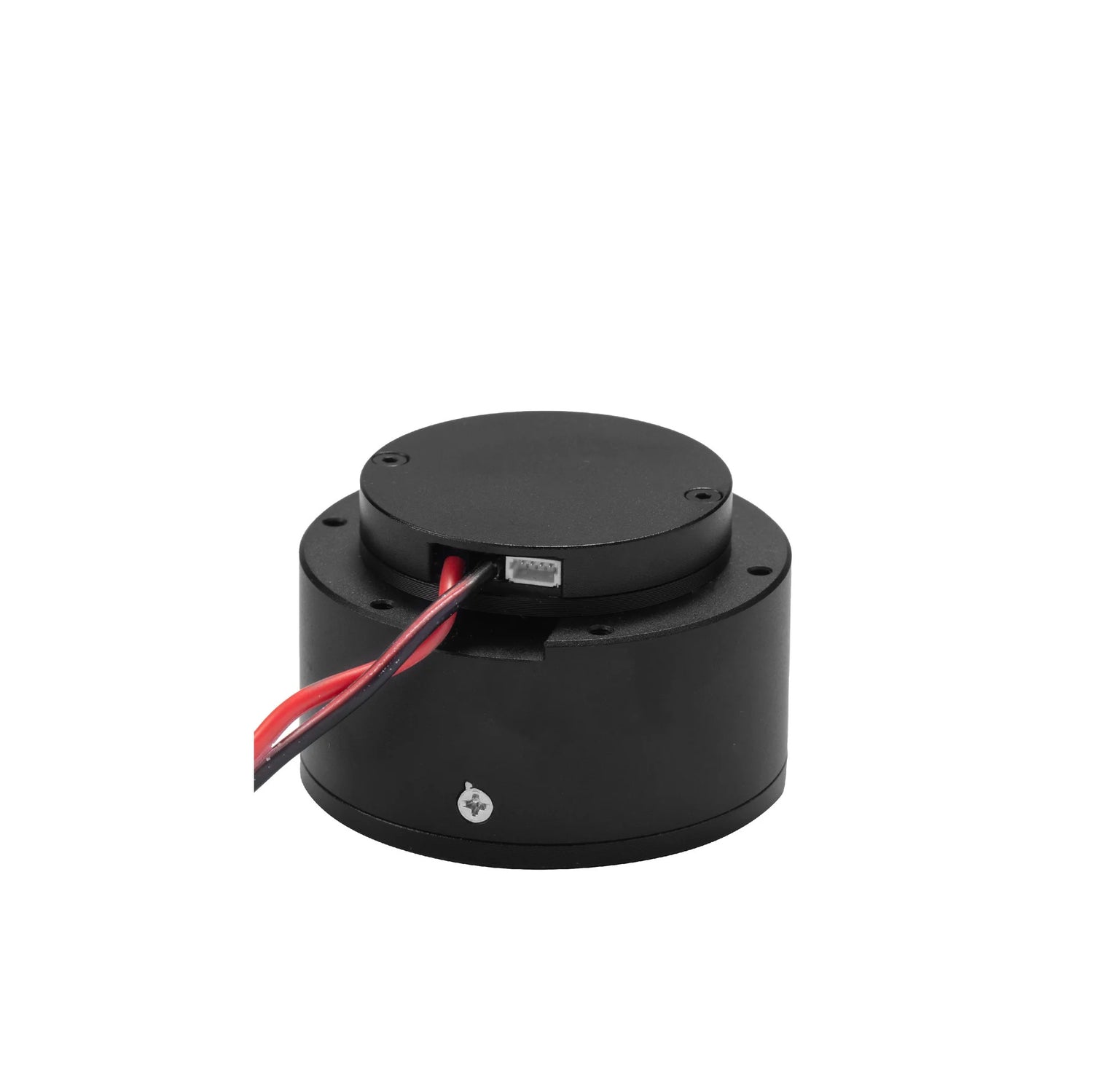

SteadyWin GIM4305-10 Planetary Reduction Motor | High Torque Servo Actuator

• Ideal for robotic joints, automation systems, and motion control projects
• Compact planetary reduction motor with space-saving integrated design
• Works as a high torque motor for stable robotic movement
• Suitable for robot servo motor and servo actuator applications
• Built-in over-temperature, over-voltage, and overload protection
$68
Motor
Encoder & Driver

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

Free shipping. 12-Day delivery.

▤ PARAMETER ⌃
Driver Board Model
GDS34 (SDC101)
Rated Voltage (V)
24
Voltage Range (V)
12–48
Rated Power (W)
48
Rated Torque (N·m)
1.00
Peak Torque (N·m)
3.47
Rated Speed After Reduction (RPM)
300
Maximum Speed After Reduction (RPM)
366
Rated Current (A)
2
Peak Current (A)
5.60
Phase Resistance (Ω)
1.15
Phase Inductance (mH)
0.41
Speed Constant (rpm/V)
15.25
Torque Constant (N·m/A)
0.62
Number of Pole Pairs
14
Gear Ratio
10:1
Gear Type
Planetary
Gear Backlash (arcmin)
15
Motor Weight with Driver (g)
150
Motor Size with Driver (mm)
Ø53 × 32
Maximum Axial Load (N)
125
Maximum Radial Load (N)
500
Noise Level (dB)
<60
Communication
CAN
Protection Rating
IP54
Working Temperature (°C)
-20 to +80
Encoder Resolution (bit)
14-bit
Output Shaft Secondary Encoder
No
Custom Brake Support
Yes
