HIGH TORQUE

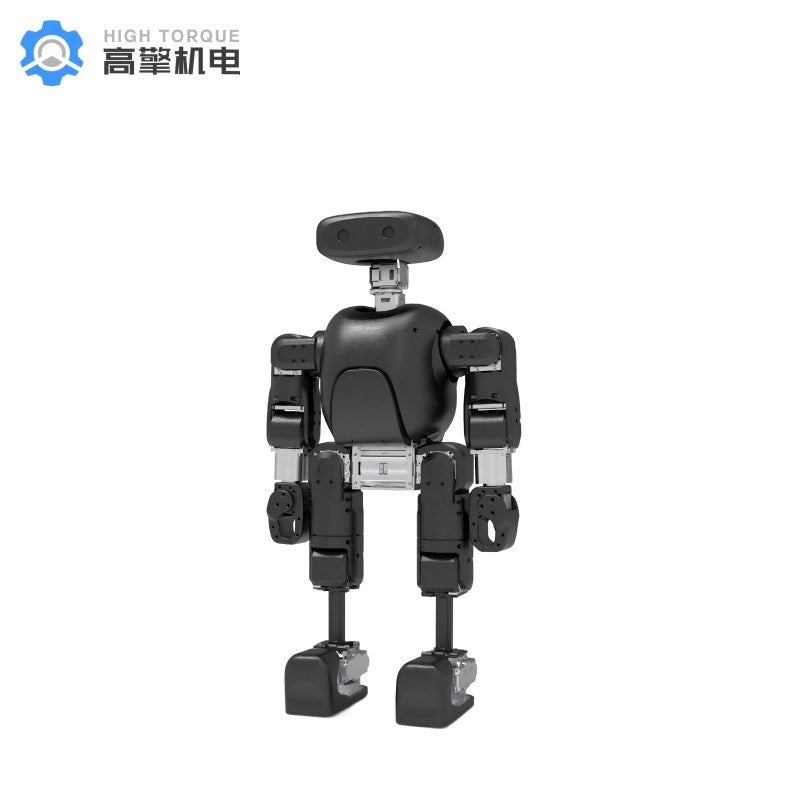

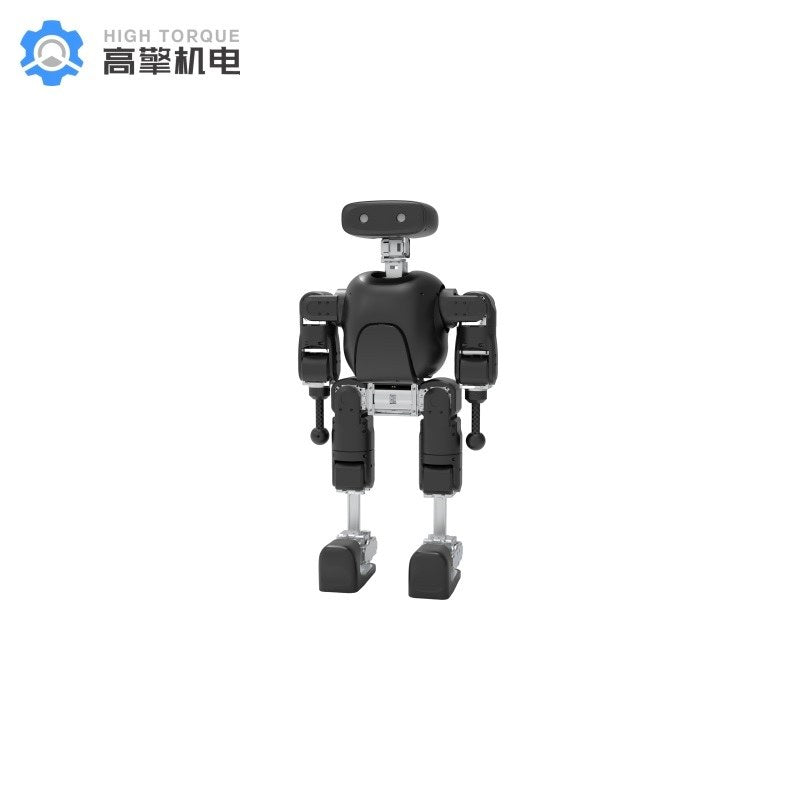

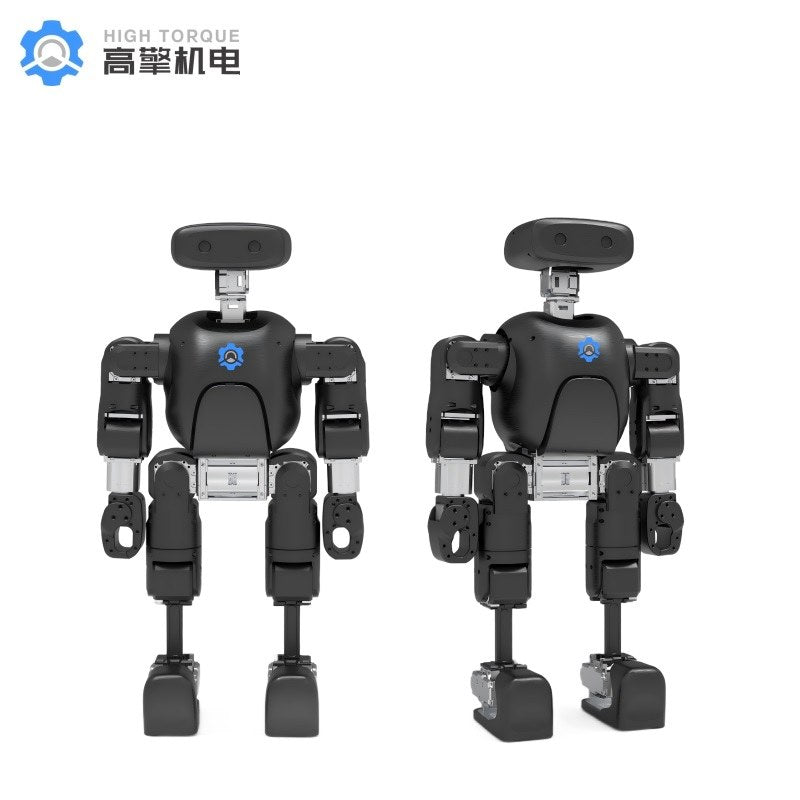

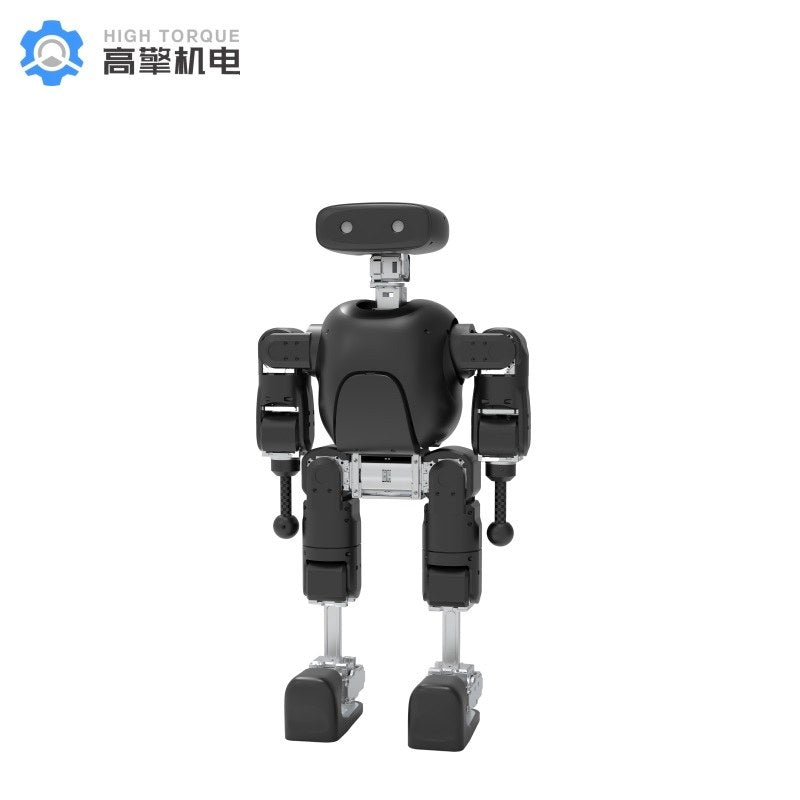

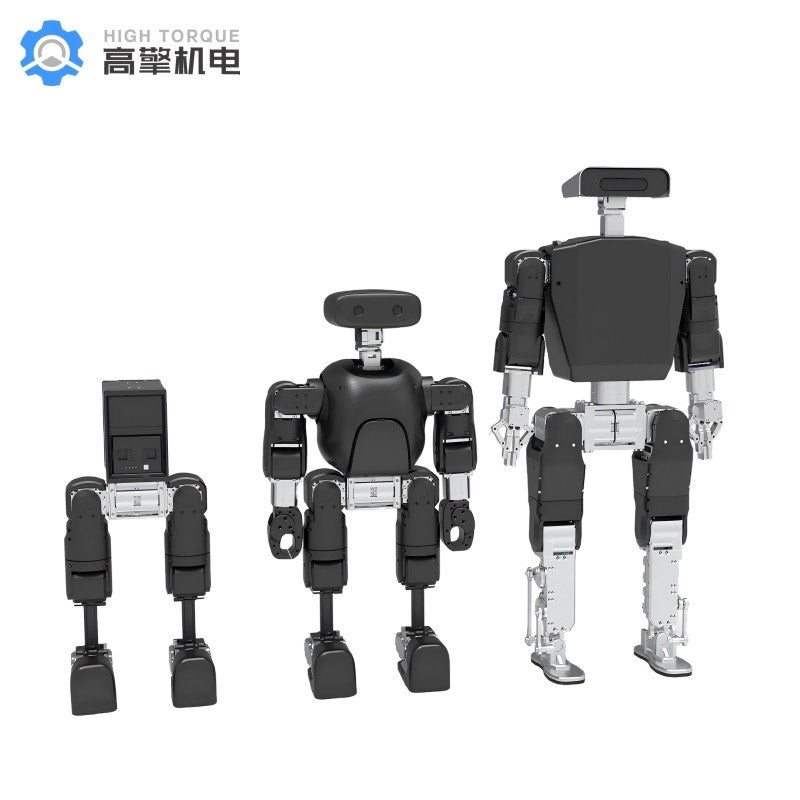

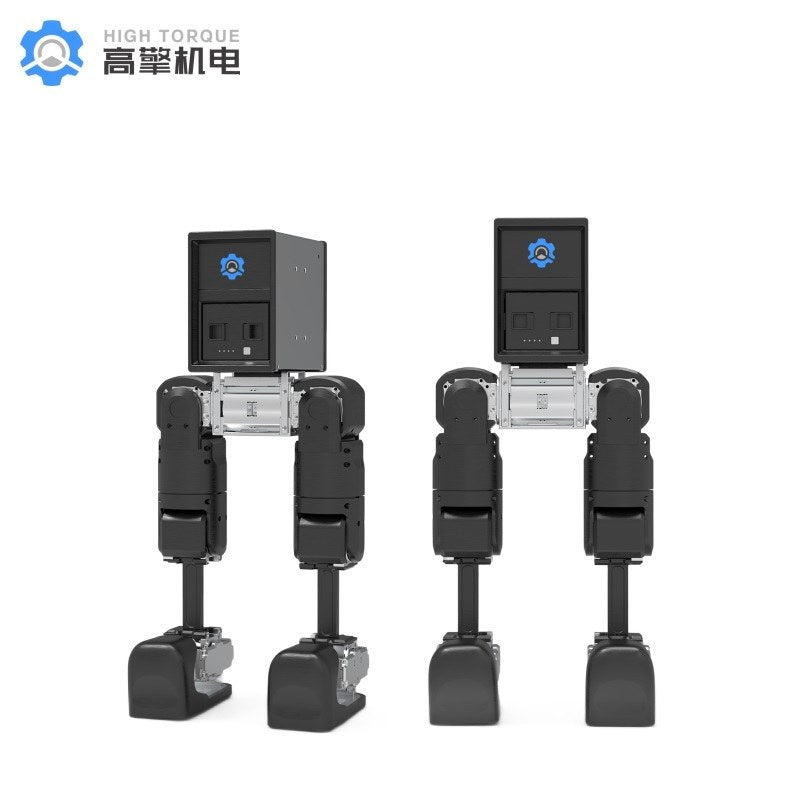

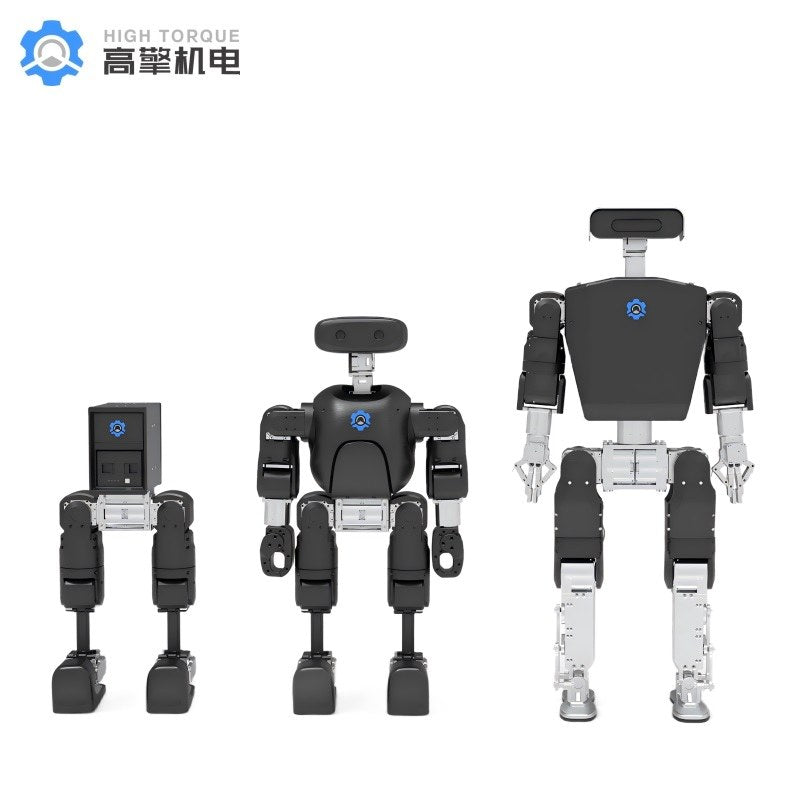

HIGH TORQUE Mini Pi Series Robot

  • Suitable for humanoid robotics, embodied AI projects, research platforms, and education labs.
  • Designed for teams evaluating robot hardware integration, motion systems, and robotics automation workflows.
  • Useful for developers building robotics prototypes, lab demonstrations, and applied automation experiments.
$12,218
Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

HIGH TORQUE Mini Pi Series Robot

The HIGH TORQUE Mini Pi Series Robot is a High Torque robot platform for robotics research, humanoid robot development, education labs, and automation projects. It is intended for developers, research teams, and educators evaluating robot hardware for applied robotics workflows.

Features

  • **Robotics research platform:** Suitable for humanoid robotics, embodied AI evaluation, and lab development.
  • **Robot development workflows:** Useful for motion testing, platform integration, automation experiments, and education.
  • **Engineering-focused setup:** Supports teams comparing robot hardware for research, prototyping, and deployment planning.
  • **Integration reference:** Engineering documentation can support mechanical review, setup planning, and platform evaluation.

Developer Support

HIGH TORQUE Mini Pi robot user manual for setup and operation.pdf ▶ HIGH TORQUE Mini Plus robot user manual for setup and operation.pdf ▶
HIGH TORQUE Mini Pi Series Robot | Humanoid Robot Platform for Robotics Research detail image 1
HIGH TORQUE Mini Pi Series Robot | Humanoid Robot Platform for Robotics Research detail image 2

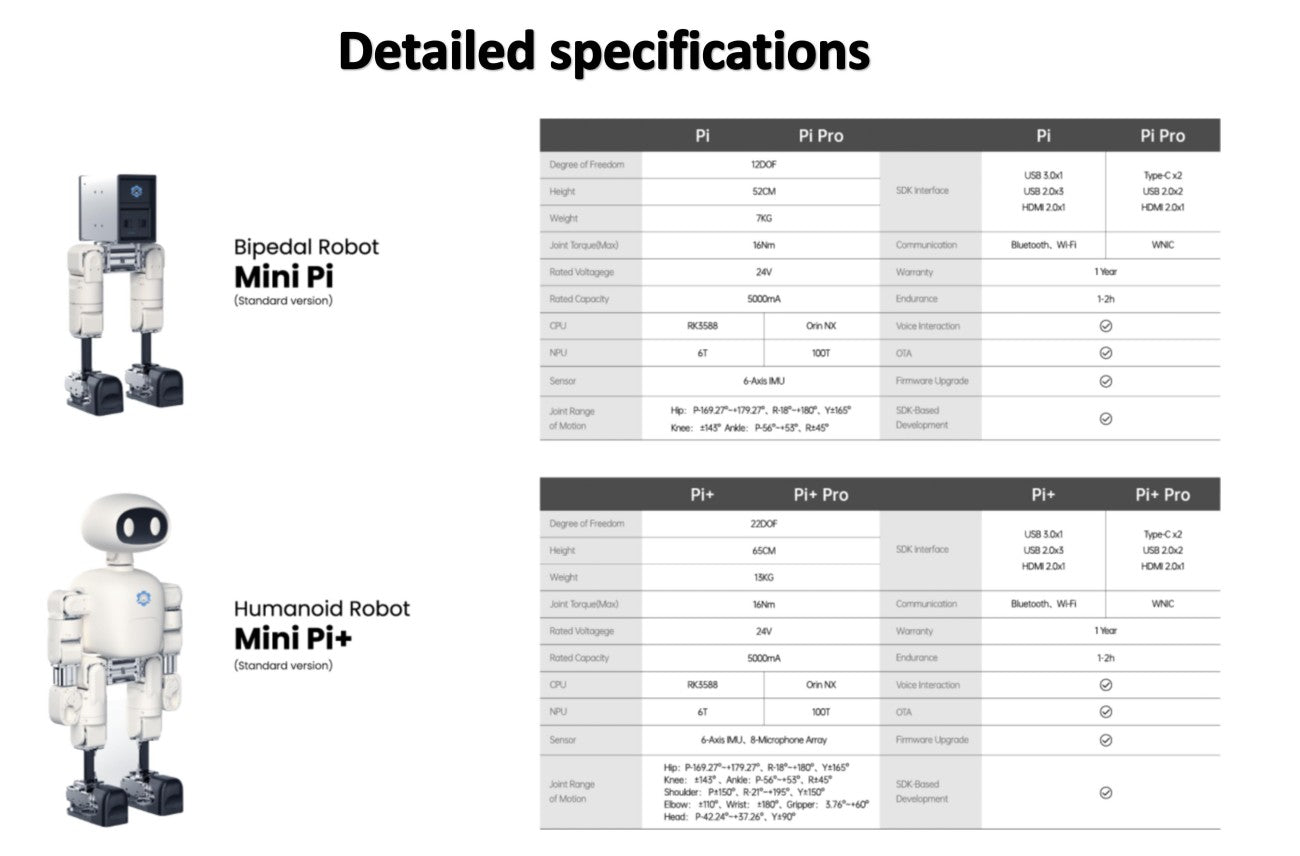

HIGH TORQUE Mini Pi Series Robot | Humanoid Robot Platform for Robotics Research detail image 3

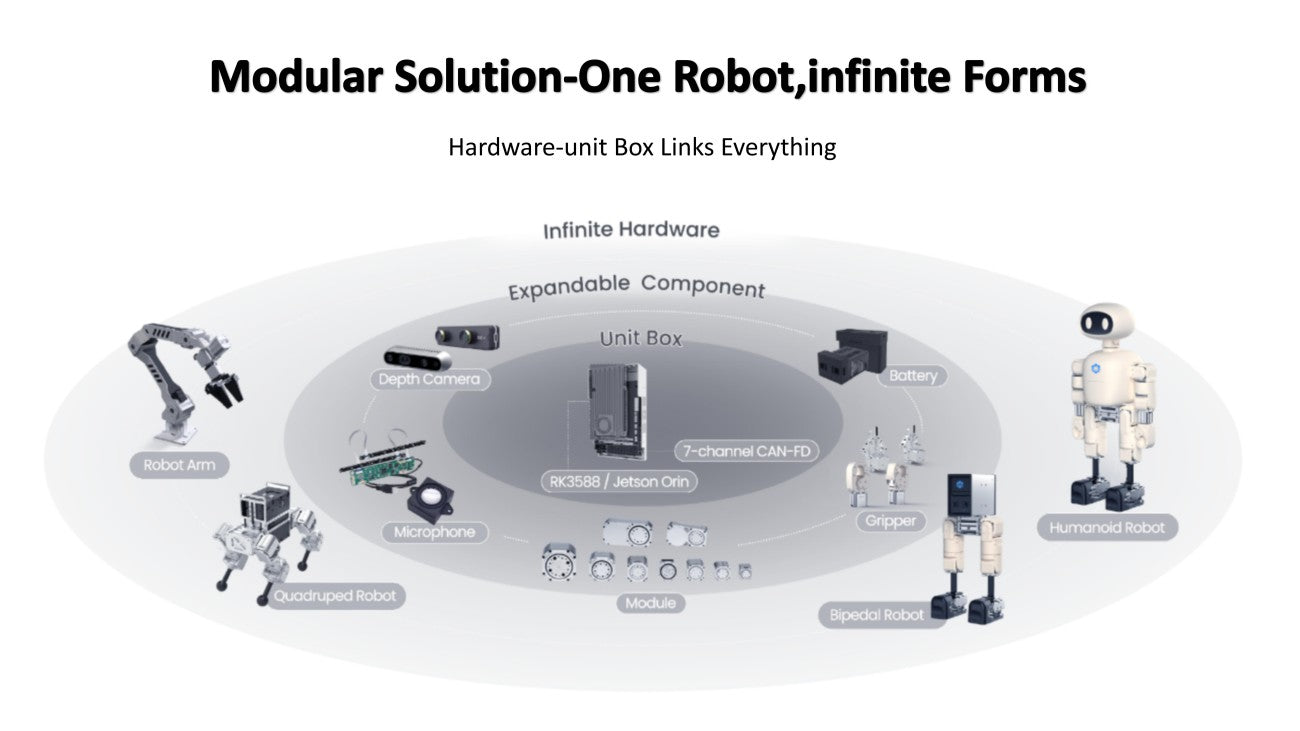

HIGH TORQUE Mini Pi Series Robot | Humanoid Robot Platform for Robotics Research detail image 4

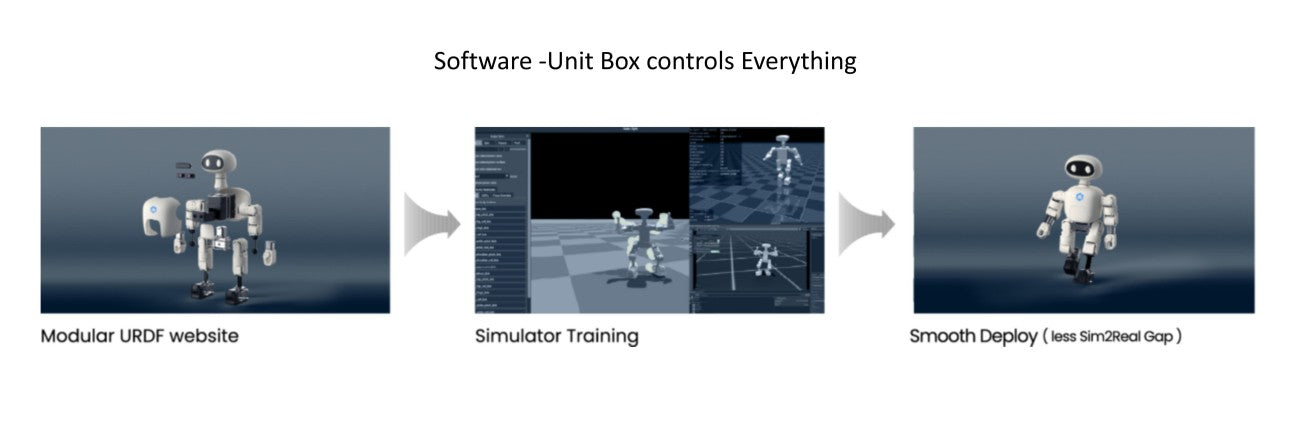

HIGH TORQUE Mini Pi Series Robot | Humanoid Robot Platform for Robotics Research detail image 5
Application Scenarios
Humanoid Robots Robotic Arms Exoskeletons Quadruped Robots AGV Vehicles ARU Robots
▤ Technical Specifications ⌃
Parameter Value 2 Value 3 Value 4 Value 5
Product Versions Mini Pi Mini Pi Pro Mini Pi plus Mini Pi plus Pro
Degree of Freedom 12DOF 12DOF 22DOF 22DOF
Height 52CM 52CM 65CM 65CM
Weight 7KG 7KG 10.15KG 10.9KG
Joint Torque(Max) 16Nm 16Nm 16Nm 16Nm
Rated Voltage 24V 24V 24V 24V
Rated Capacity 5000mA 5000mA 5000mA 5000mA
CPU RK3588 Orin NX RK3588 Orin NX
NPU 6T 100T 6T 100T
Sensor 6-Axis lMU 6-Axis lMU 6-Axis lMU、8-Microphone Array 6-Axis lMU、8-Microphone Array
Joint Range of Motion Hip:P-169.27°～+179.27°、R-18°～+180°、Y±165° Knee:±143° Ankle:P-56°～+53°、R±45° Hip:P-169.27°～+179.27°、R-18°～+180°、Y±165° Knee:±143° Ankle:P-56°～+53°、R±45° Hip:P-169.27°～+179.27°、R-18°～+180°、Y±165° Knee:±143° Ankle:P-56°～+53°、R±45° Shoulder:P±150°、R-21°～+195°、Y±150° Elbow:±110°、Wrist:±180°、Gripper: 3.76°~+60° Head:P-42.24°～+37.26°、Y±90° Hip:P-169.27°～+179.27°、R-18°～+180°、Y±165° Knee:±143° Ankle:P-56°～+53°、R±45° Shoulder:P±150°、R-21°～+195°、Y±150° Elbow:±110°、Wrist:±180°、Gripper: 3.76°~+60° Head:P-42.24°～+37.26°、Y±90°
SDK interface USB 3.0x1 USB 2.0x3 HDMI 2.0x1 Type-C x2 USB 2.0x2 HDMI 2.0x1 USB 3.0x1 USB 2.0x3 HDMI 2.0x1 Type-C x2 USB 2.0x2 HDMI 2.0x1
Communication Bluetooth、WI-FI WNIC Bluetooth、WI-FI WNIC
Warranty 1Year 1Year 1Year 1Year
Endurance 1-2h 1-2h 1-2h 1-2h
Depth Camera - - - D435i
Voice Interaction √ √ √ √
OTA √ √ √ √
Firmware Upgrade √ √ √ √
SDK-Based Development √ √ √ √
