SENSING SG3-ISX031C MIPI Industrial Camera Module for Machine Vision

• Ideal for machine vision, robotics, industrial inspection, and intelligent transportation
• Sony ISX031 automotive-grade image sensor with built-in ISP
• Supports multi-camera synchronization for complex vision systems
• Compatible with multiple SoC platforms and MIPI interfaces
• Supports external trigger and YUV image output
$237
Version
Accessory Kit

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

Free shipping. 12-Day delivery.

Developer Support

SENSING SG3-ISX031C-MIPI Camera Guide ▶

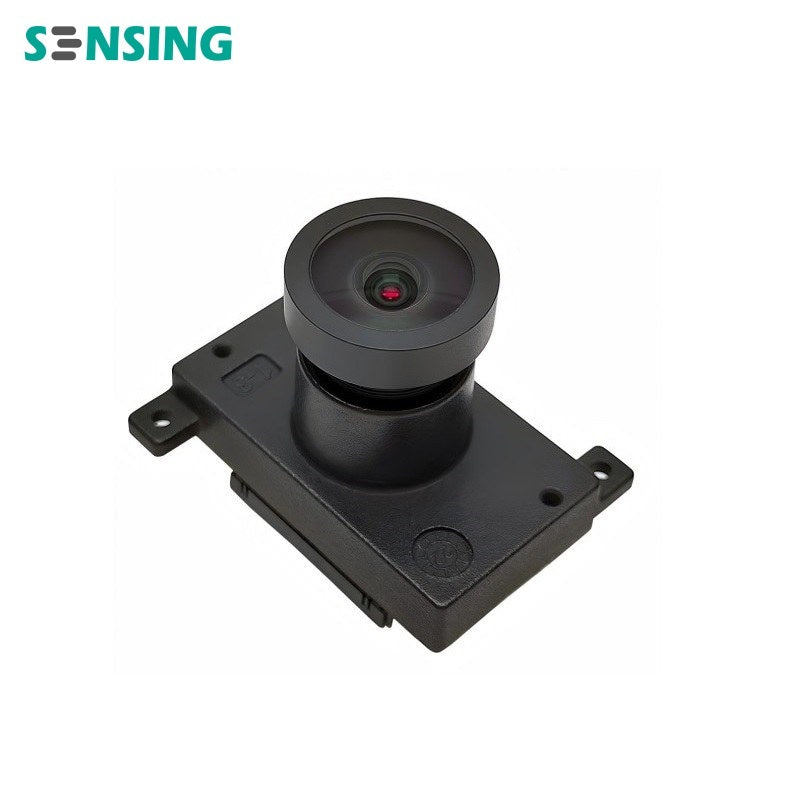

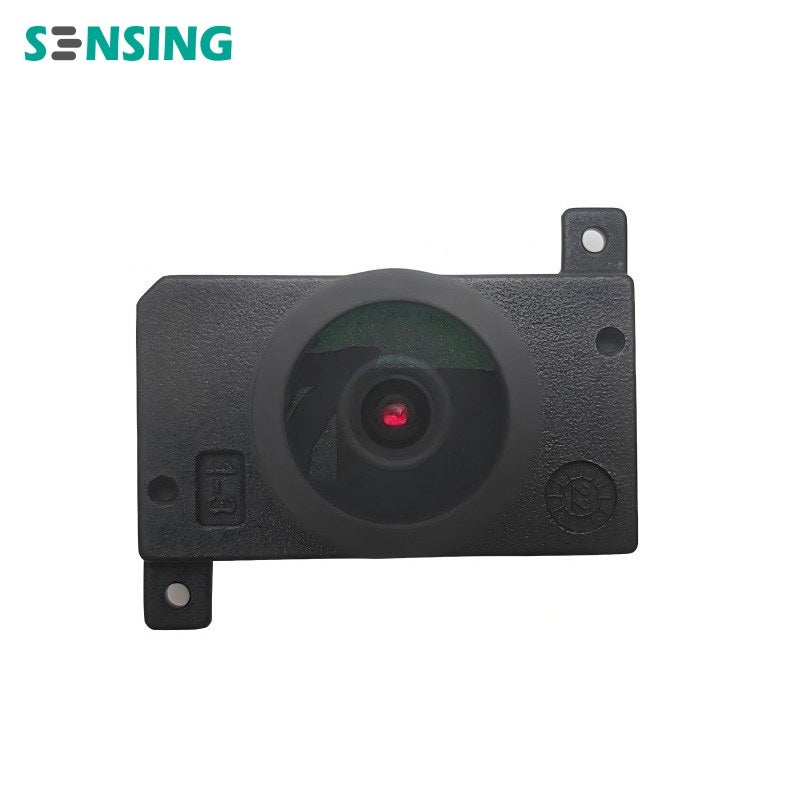

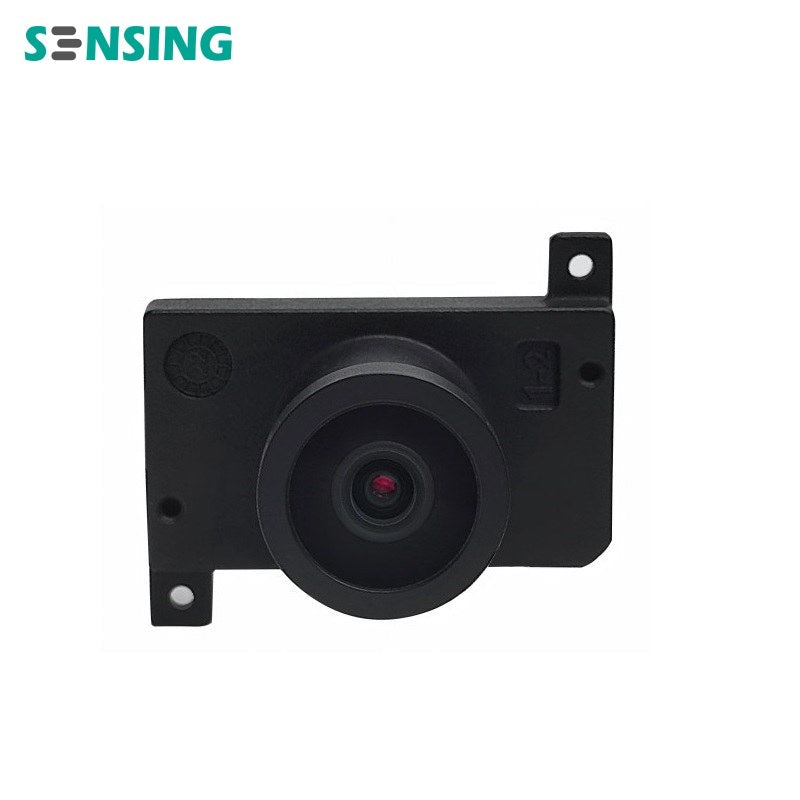

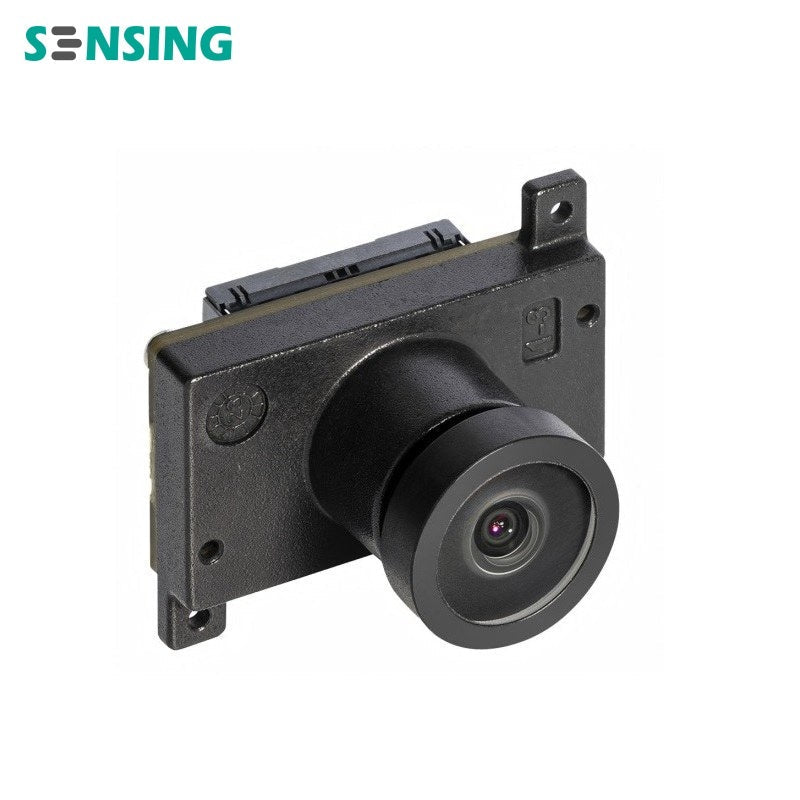

SENSING SG3-ISX031C MIPI Industrial Camera Module

The SENSING SG3-ISX031C is a high-performance automotive-grade MIPI camera module designed for machine vision, robotics, and industrial applications.

Built around the Sony ISX031 CMOS image sensor with an integrated ISP image processor, the camera delivers high-quality image performance after professional image tuning and optimization.

The module supports multi-camera synchronization, making it suitable for complex vision systems requiring multiple viewpoints and synchronized image capture.

With support for multiple focal length lenses, external trigger functionality, and YUV image output, the SG3-ISX031C can easily adapt to different SoC platforms and embedded vision systems.

Designed for demanding environments, the camera is widely used in machine vision, intelligent transportation, aerospace, robotics, and industrial inspection applications.

Features

  • Sony ISX031 Automotive Sensor delivers high image quality with built-in ISP processing.
  • Multi-Camera Synchronization enables advanced perception and multi-view imaging systems.
  • Flexible Lens Support allows different focal lengths for various application scenarios.
  • External Trigger Support improves synchronization and timing accuracy.
  • Broad Platform Compatibility supports multiple SoC platforms and MIPI interfaces.
SENSING SG3-ISX031C MIPI Industrial Camera Module for Machine Vision SENSING SG3-ISX031C MIPI Industrial Camera Module for Machine Vision SENSING SG3-ISX031C MIPI Industrial Camera Module for Machine Vision SENSING SG3-ISX031C MIPI Industrial Camera Module for Machine Vision SENSING SG3-ISX031C MIPI Industrial Camera Module for Machine Vision

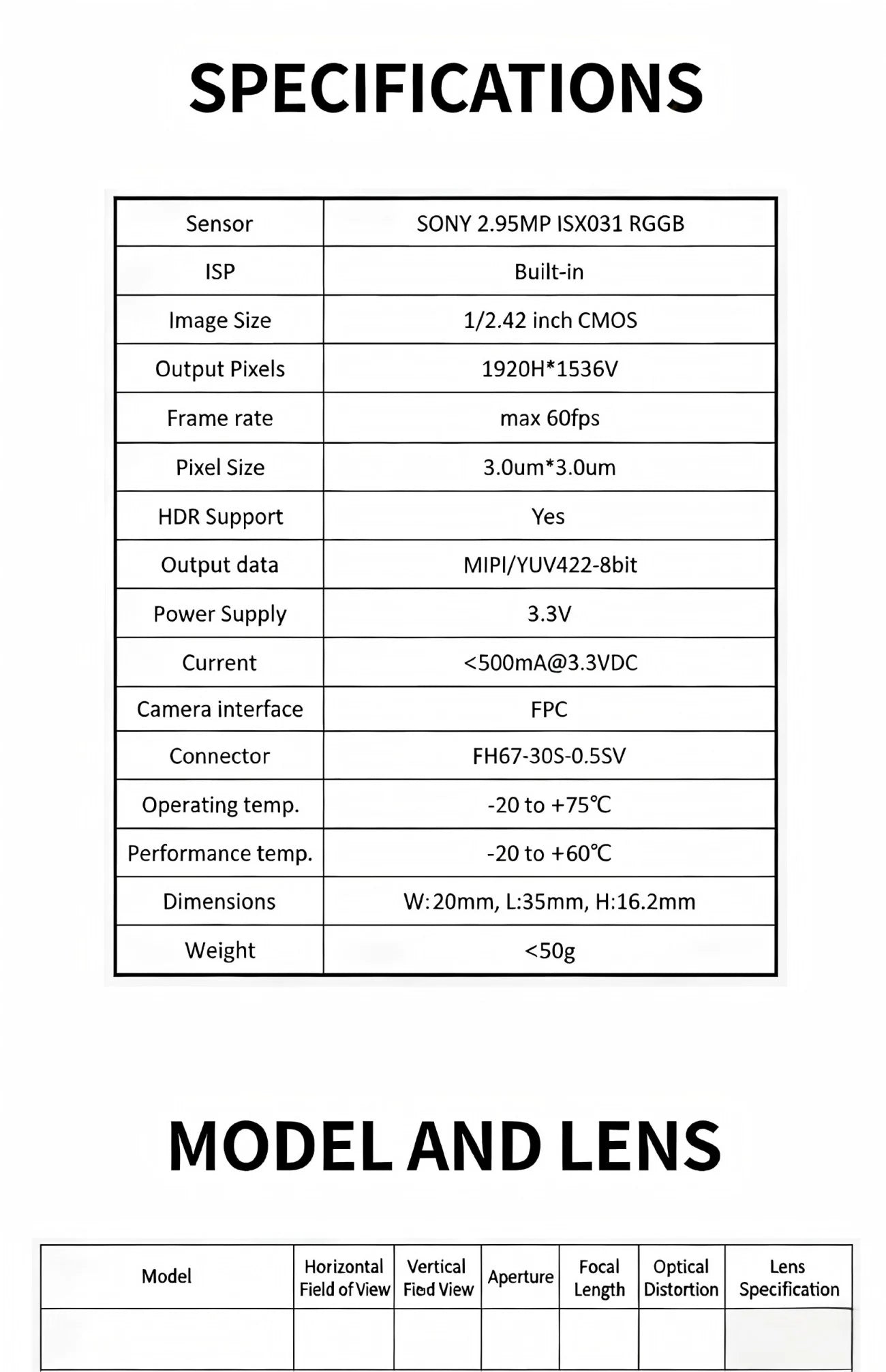

▤ PARAMETER ⌃
Model
SG3-ISX031C-MIPI-HXXX
Resolution
1920 × 1536
Supported Platform
Jetson AGX Thor & Orin
Frame Rate
Max 60 fps
Sensor
Sony 2.95MP ISX031 RGGB
ISP
Built-in
Output Data
MIPI / YUV422 8-bit
Sensor Type
Rolling Shutter
Operating Temperature Range
-20°C to +75°C

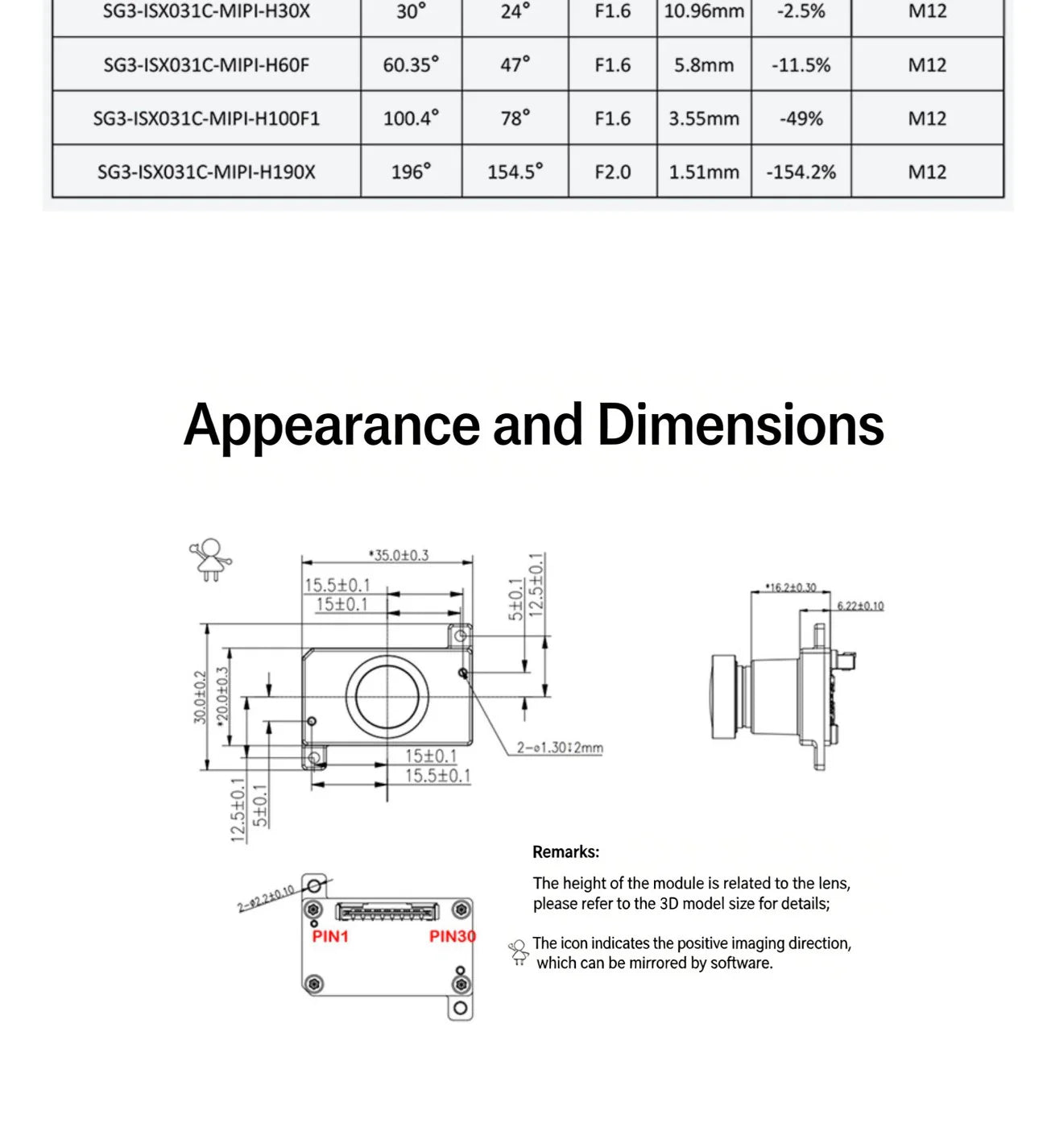

Dimensions
20 mm × 35 mm × 16.2 mm
FOV
HFOV 30° / 60.35° / 100.4° / 196°
Weight
<50 g
